Replacing a PCI Card
Removing the Top Cover

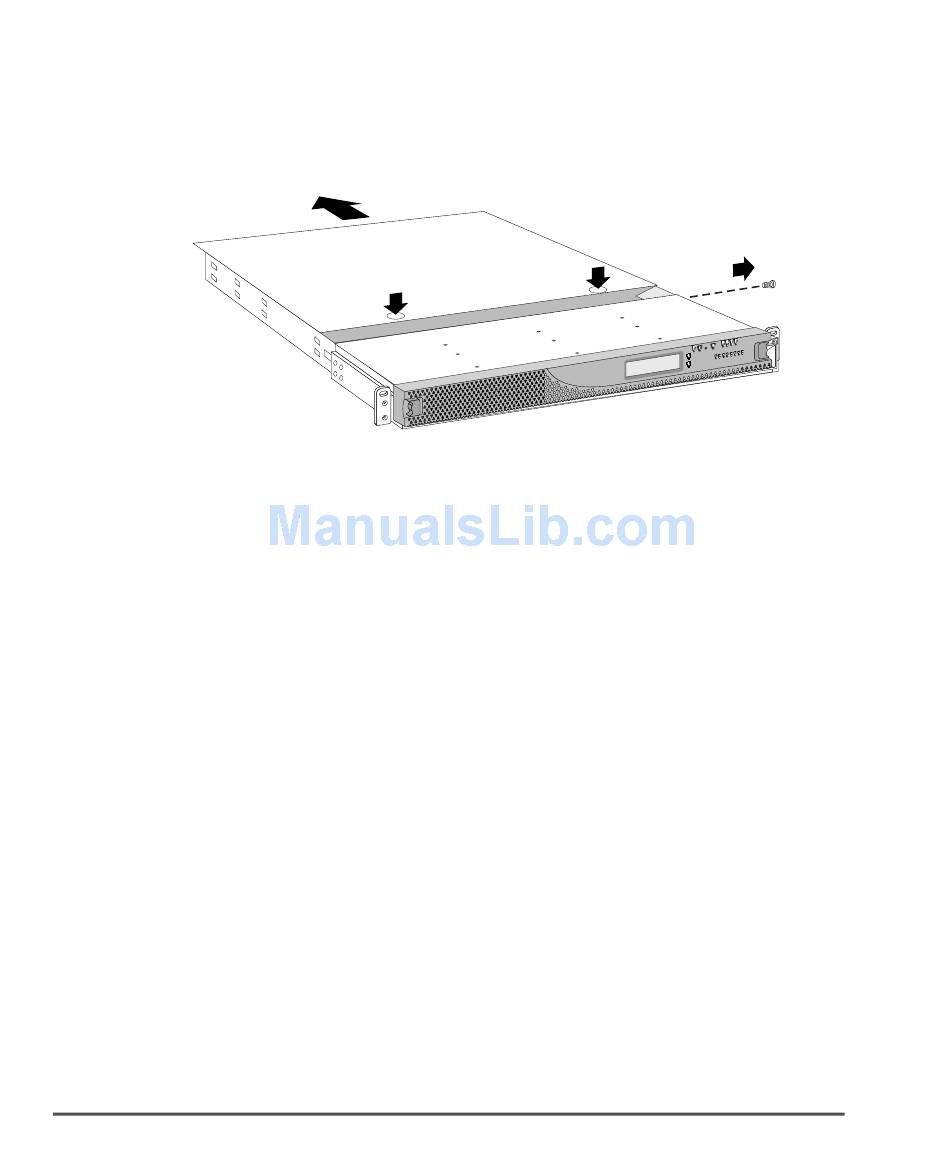

To release the cover, first remove the Phillips screw on the right side of the server
1
(see illustration).
With both thumbs, press the buttons on the top of the cover, then slide the cover
2
off of the rear of the server and set it aside.
2
Copyright © 2007, Adaptec, Inc. All rights reserved. Information in this document is subject to change without notice and does not represent
a commitment on the part of Adaptec or any of its subsidiaries.
Snap Server 700i Series
Field Service Documentation
