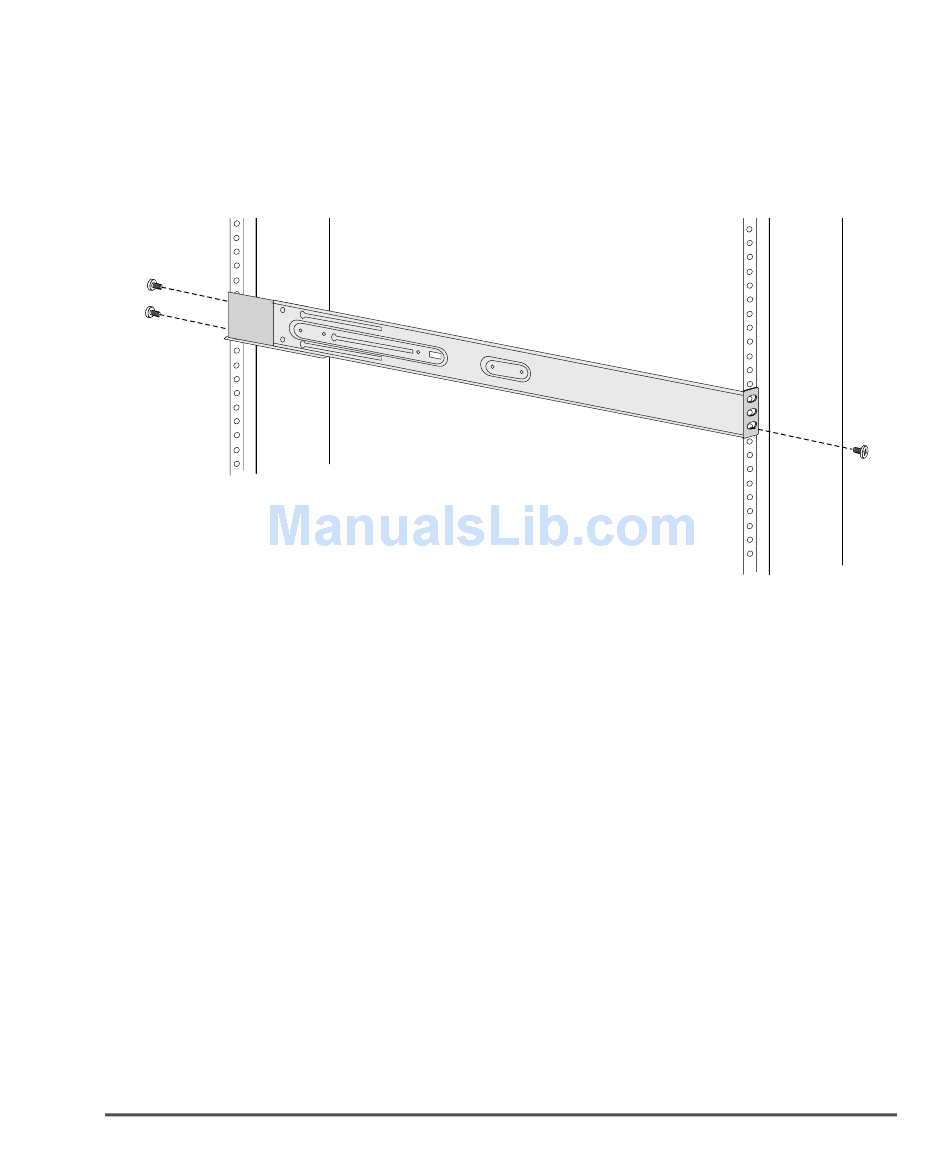

Align the front holes with the front holes in the rack and screw a rail screw into
3
the bottom hole.
The rack holes are not evenly spaced. Be sure to align the rail so that the rail
Note
holes match up with the rack holes.
Align the holes on the rear of the rack with the rail holes, and screw rail screws
4
into the top and bottom holes.
Repeat Steps 2 through 4 for the opposite side rail.
