Upgrading to a Second Power Supply Module
There are static-sensitive electronics inside the unit. Before you handle any
Caution
parts, make sure you are working at a static-controlled workstation and that you are
properly grounded.
Shutting Down the Server
Shut down the server before you make any repairs. Improper shutdown may
Caution
lead to physical harm or loss of data.
To start the shutdown process, push the power
1
button on the front of the server.
The system LED blinks 3 times per second and
the green power LED remains lit until the
shutdown process is complete. Do not disconnect
the AC power cord while the power LED remains
lit.
After the power LED is off, disconnect the AC
2
power cord and all other cables from the back of the server.
The server is heavy. With the help of another person, remove the server from the
3
rack to a clean surface with ample room to the front and rear. See the FRU
procedure Installing the Snap Server in a Rack for instructions on removing the
server from the rack.
Removing the Top Cover

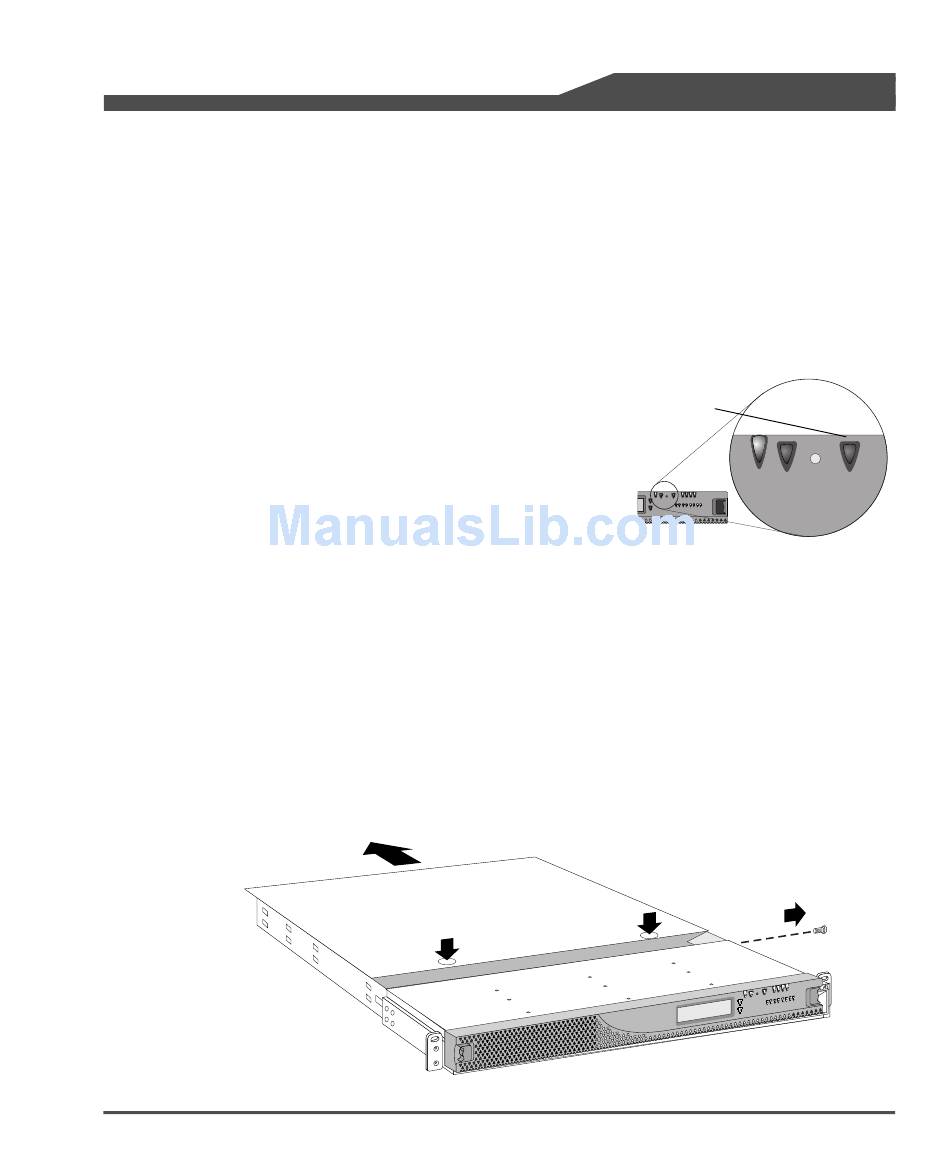

To release the cover, first remove the Phillips screw on the right side of the server
1
(see illustration).
