Upgrading to a Second Power Supply Module
With both thumbs, press the buttons on the top of the cover, then slide the cover
2
off of the rear of the server and set it aside.
Installing a Second Power Supply Module
The electrical connectors for a second power supply are protected by a piece of
1

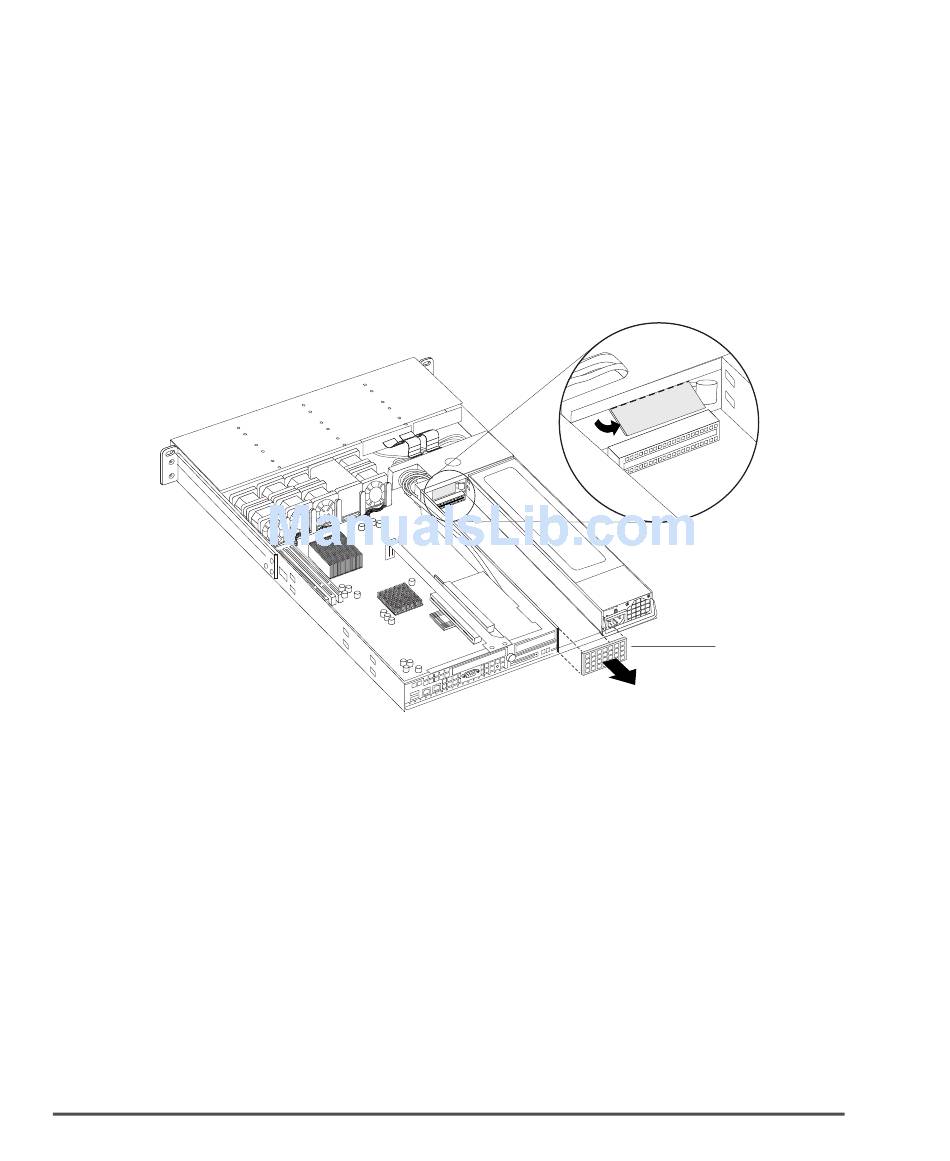

metal. Take a screwdriver or other tool and break off the plastic covering (see
illustration). Also remove the vented cover on the rear of the unit, covering the
opening for the second power supply.
Install the second power supply by resting the body of the module in one hand
2
while holding the handle with the other and inserting the module. Slide it firmly
2
