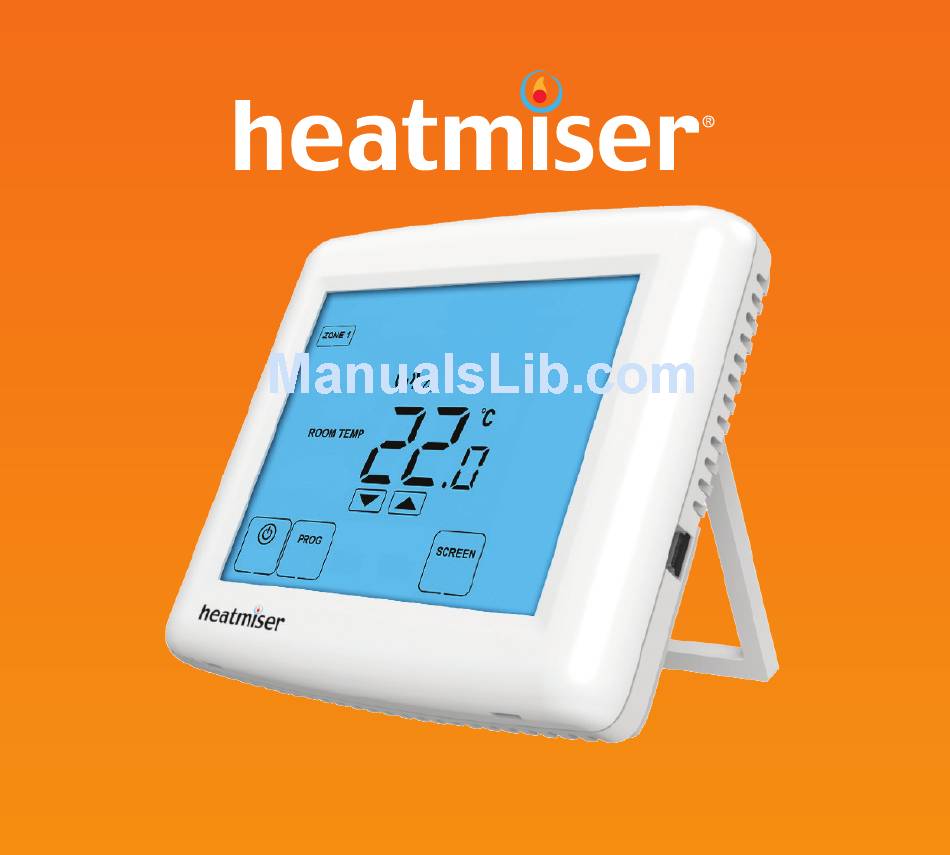

- Page 1 Model: DT-WTS Model: DT-WTS...
-
Page 2: Table Of Contents
Model: DT-WTS Table Of Contents Temperature Control Product Image Frost Protection Table of Contents Heating ON/OFF What is a Room Thermostat? Optional Features Explained Installation Procedure Adjusting the Optional Settings LCD Display Optional Settings - Features Table Pairing the Thermostat 9-10 Re-calibrating the Thermostat Temperature Display... -
Page 3: Model: Dt-Wts
What is a Room Thermostat? A room thermostat simply switches the heating system on and off as necessary. If your heating system is a boiler with radiators, there will usually be only one room thermostat to control the whole house. But you can have different temperatures It works by sensing the air temperature, switching on the heating when the air in individual rooms by installing thermostatic radiator valves (TRVs) on individual temperature falls below the thermostat setting, and switching it off once this set... -
Page 4: Installation Procedure
Installation Procedure Mount the thermostat at eye level. Read the instructions fully so you get the best from our product. Don’t Do not push hard on the LCD screen as this may cause irreparable damage. Do not install near to a direct heat source as this will affect functionality. If using the desk stand, ensure the thermostat is away from heat sources. -
Page 5: Lcd Display
LCD Display Frost Icon - Displayed when the thermostat is in frost protection mode. RF Icon - Flashes when the thermostat communicates with the receiver. Flame Icon - Displayed when the thermostat is calling for heat. Keypad Lock Icon - Displayed when the keypad is locked. Zone Indicator - Displays which zone on the RC1-WTS the thermostat is linked to. -
Page 6: Pairing The Thermostat
Pair Successful Pairing the Thermostat The Comms LED on the receiver should flash and then go out to indicate the pair is successful. The thermostat will display the communication icon. To pair the thermostat with the RC1-WTS receiver, follow these steps. Pair Fail On the receiver;... -
Page 7: Temperature Display
Clean Screen Temperature Display Pressing will disable all keys, providing you 15 seconds to wipe the screen The temperature display information is driven by two different inputs; the sensor clean before the keys are re-activated. measurement and the target temperature you have set. Room Temperature SET Temperature Locking the Keypad... -
Page 8: Temperature Control
Frost Mode Temperature Control keys under the temperature display allow you to adjust the Pressing the key once will place the thermostat in frost protect mode. set temperature. In this mode, the thermostat will display the frost icon and will only turn the heating on should the room temperature drop below the set frost temperature (see page 16). -
Page 9: Heating On/Off
Optional Features Explained Heating On/Off The heating is indicated ON when the flame icon is displayed. THE FOLLOWING SETTINGS ARE OPTIONAL AND IN MOST CASES When the flame icon is absent, there is no requirement for heating to achieve the set NEED NOT BE ADJUSTED temperature but the thermostat remains active. -
Page 10: Adjusting The Optional Settings
Adjusting the Optional Settings Optional Settings - Feature Table FEATURE To adjust the optional settings, follow these steps. DESCRIPTION SETTING • Press PROG ........................00 = 01 = Temperature Format • Press SETUP ........................(°C = Default) - 3.0 C (1.0 C = Default) Switching Differential Feature Number... -
Page 11: Re-Calibrating The Thermostat
Re-calibrating the Thermostat Factory Reset If you need to re-calibrate the thermostat, follow these steps. The thermostat has a reset function to restore all settings to their factory defaults. • Press and hold the Power key to turn the thermostat OFF ........To perform a factory reset, follow these steps. -
Page 12: Battery Recharging
Battery Recharging The thermostat is equipped with a rechargeable battery. The battery can provide power for up to 6 months before recharging is required in normal operating conditions. To recharge the battery you need to connect the thermostat to a power source. A mini USB to USB lead is supplied with the thermostat so you can recharge from the USB port on your laptop or PC. - Page 13 Heating Professionals: Request a copy of our product installation guide containing detailed technical specifications for our complete product range: www.heatmiser.com/guide Want More Information? Call our support team on: +44 (0)1254 669090 Or view technical specifications directly on our website: www.heatmiser.com Twitter: heatmiseruk Facebook: facebook.com/thermostats...
