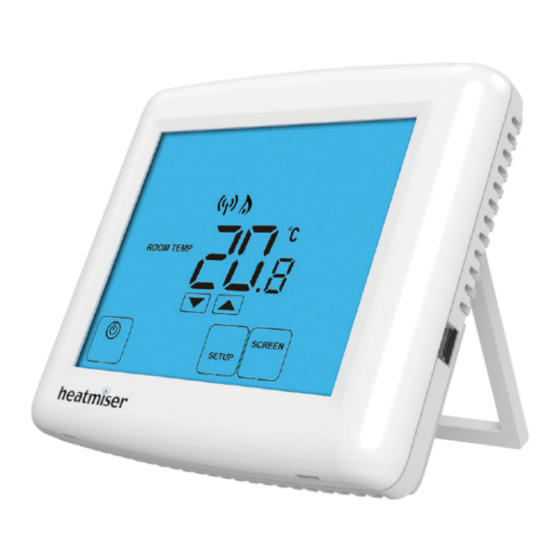

- Page 1 Model: DT-UWTS Model: DT-UWTS...
-
Page 2: Table Of Contents
Installation Procedure Adjusting The Optional Settings LCD Display Optional Settings - Feature Table Testing Communications with 9-10 Re-calibrating the Thermostat the UH1-W Factory Reset Temperature Display Battery Recharging 21-22 Clean Screen Locking the Keypad Wireless Series Model: DT-UWTS Model: DT-UWTS... -
Page 3: Model: Dt-Uwts
– say 18°C , and then turn it up by 1°C each day until you are comfortable with the temperature. You won’t have to adjust the thermostat further. Any adjustment above this setting will waste energy and cost you more money. Wireless Series Model: DT-UWTS... -
Page 4: Installation Procedure
Wall Mounting: Step 1 Fix the wall plate to the wall. Step 2 Push the thermostat onto the wall plate. Desk Stand: Step A Remove the thermostat from the wall plate. Step B Release the desk stand. Wireless Series Model: DT-UWTS... -
Page 5: Lcd Display
Setup/Programming Keys - Used to navigate setup options. Up/Down Keys - Increase of decrease values shown on bottom digit group. Current Temp - Indicates the current sensor temperature. Units of Temperature - Degrees Celsius or Fahrenheit. Wireless Series Model: DT-UWTS... -
Page 6: Testing Communications With The Uh1-W
If the output on the UH1-W is not activated, reduce the distance between the • Press the DONE key ......................DT-UWTS and the UH1-W and check features 05-07 have been setup correctly, then repeat the above process. Wireless Series Model: DT-UWTS... -
Page 7: Temperature Display
• To cancel, press the bottom right corner of the display again for 10 secs. Keypad Lock Indicator This is the current room temperature. This is the temperature you are trying to achieve in your home. Wireless Series Model: DT-UWTS... -
Page 8: Temperature Control
To turn the thermostat OFF completely, press and hold the Power key ....The display and heating output will be turned off completely. Set Icon To turn the thermostat back ON, press the Power key once ......... Wireless Series Model: DT-UWTS... -
Page 9: Optional Features Explained
Feature 05 – UH1-W Address: Within one building, up to 9 UH1-W’s can be used, each must have a unique address. Feature 06 - Zone No: This is the zone number on the UH1-W you wish to assign the thermostat to, select from 1-8. Wireless Series Model: DT-UWTS... -
Page 10: Adjusting The Optional Settings
Use the Up/Down keys at the top of the screen to select the feature number (shown on page 18) and then use the Up/Down keys in the center to adjust the setting ..................• Press DONE to confirm settings and exit .............. Wireless Series Model: DT-UWTS... -
Page 11: Re-Calibrating The Thermostat
Press the Power key once to turn the thermostat back ON ........• Press the Power key once to turn the thermostat back on ........All icons displayed simultaneously. Factory reset is complete. Calibration Temperature Set Icon Wireless Series Model: DT-UWTS... -
Page 12: Battery Recharging
To recharge the battery you need to connect the thermostat to a power source. A mini USB to USB lead is supplied with the thermostat so you can recharge from the USB port on your laptop or PC. Part ref: USB-02 Wireless Series Model: DT-UWTS... - Page 13 Request a copy of our product installation guide containing detailed technical specifications for our complete product range: www.heatmiser.com/guide Want More Information? Call our support team on: +44 (0)1254 669090 Or view technical specifications directly on our website: www.heatmiser.com Twitter: heatmiseruk Facebook: facebook.com/thermostats Wireless Series...
