Page 2: Table Of Contents

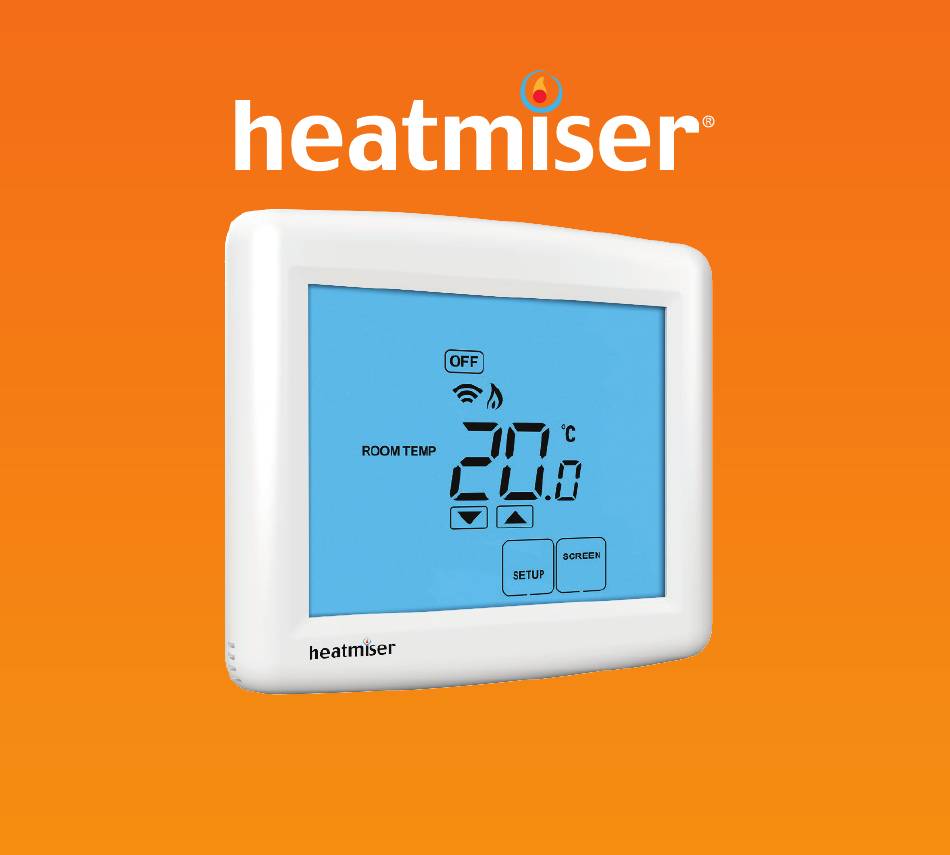

Model: DT-TS WiFi RF Table Of Contents Clean Screen Product Image Table of Contents Locking the Keypad What is a Room Thermostat? Temperature Control Installation Procedure Frost Protection LCD Display Heating ON/OFF WiFi Setup 9-11 Optional Features Explained 23-24 Security Types and Compatibility... -
Page 3: Model: Dt-Ts Wifi Rf
– say 18°C , and then turn it up by 1°C each day until you are comfortable with the temperature. You won’t have to adjust the thermostat further. Any adjustment above this setting will waste energy and cost you more money. WiFi Series Model: DT-TS WiFi RF... -
Page 4: Installation Procedure
Terminate the thermostat as shown in the diagrams on pages 29-31 of this booklet. Step 3 Screw the thermostat back plate securely into the back box. Step 4 Clip the front of the thermostat back onto the thermostat back plate. WiFi Series Model: DT-TS WiFi RF... -
Page 5: Lcd Display
Setup/Programming Keys - Used to navigate setup options. Up/Down Keys - Increase or decrease values shown on bottom digit group. Current Temp - Indicates the current sensor temperature. Units of Temperature - Degrees Celsius or Fahrenheit. WiFi Series Model: DT-TS WiFi RF... - Page 6 IP address of the Multi-Link. Log into your wireless router and navigate to the LAN settings page. WiFi Series Model: DT-TS WiFi RF...
-
Page 7: Security Types And Compatibility
You will not be able to connect to your thermostat without changing this setting on These restrictions are common to most routers but you should refer to the router G model routers. manual for specific restrictions that apply to your model. WiFi Series Model: DT-TS WiFi RF... -
Page 8: Remote Access Via App
These are both set to “admin” as default. We recommend you change these settings to ensure the security of your system. For further information, click the help link within the browser. WiFi Series Model: DT-TS WiFi RF... -
Page 9: Pairing With The Rc1-W Receiver
You are able to connect two WiFi RF thermostats to one RC1-W receiver. Use the Up/Down keys to select the zone this thermostat controls (01 or 02) ......................• Press DONE to confirm and exit ..................Comms LED WiFi Series Model: DT-TS WiFi RF... -
Page 10: Pairing With The Uh1-W
You are able to connect eight WiFi RF thermostats to one UH1-W. Use the Up/Down keys to select the zone this thermostat • controls (01 - 08) ......................• Press the Up key at the top of the screen to select feature 09 ........WiFi Series Model: DT-TS WiFi RF... -
Page 11: Clean Screen
To activate the lock press the bottom right corner of the display and hold for 10s. • When activated, you will see the Keypad Lock symbol. • To cancel, press the bottom right corner of the display again for 10 secs. Keypad Lock Indicator Set Temperature Set Icon WiFi Series Model: DT-TS WiFi RF... -
Page 12: Frost Protection
To cancel the frost protect mode, press the key once. To turn the thermostat back ON, press the ON key once ..........Thermostat completely OFF Thermostat powered ON Frost Protection Mode Enabled *See Feature 3 on page 23 WiFi Series Model: DT-TS WiFi RF... -
Page 13: Optional Features Explained
Feature 06 – UH1-W or RC1-W Receiver: The thermostat can work with our UH1-W 8 should be used. Built in sensor or remote air sensor. zone wiring centre or RC1-W 2 channel receiver. This setting determines which is being used. WiFi Series Model: DT-TS WiFi RF... -
Page 14: Adjusting The Optional Settings
..................Up/Down Temperature Limit - 10 C (00 C = Default) • Press DONE to confirm and exit ................Sensor Selection 00 = Built in sensor, 01 = Remote air sensor WiFi Series Model: DT-TS WiFi RF... -
Page 15: Re-Calibrating The Thermostat
Press the ON key once to turn the thermostat back on ..........• Press the ON key once to turn the thermostat display back on ......Factory reset is complete. All icons displayed simultaneously. Calibration Temperature Setting Set Icon WiFi Series Model: DT-TS WiFi RF... - Page 16 Mains Supply In boiler model but will normally Neutral be connected to the thermostat connections. N.B. The DT-TS WiFi RF is designed to work with the RC1-W and the UH1-W. Please refer to B1 A2 A1 the appropriate diagram for connections Room to your heating system.
-
Page 17: Notes
Wiring Diagram - 2x DT-TS WiFi RF Notes with RC1-W Receiver Two Zone Heating System Heating Zone 1 Valve ..................................P/L and S/L connections will vary To Boiler ..................................depending on the boiler model but Neutral will normally be connected to the .................................. - Page 18 Notes Notes ................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................WiFi Series Model: DT-TS WiFi RF...
