Introduction

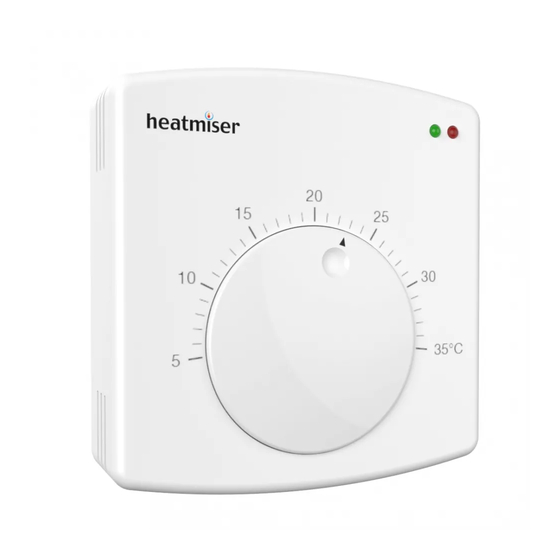

The Heatmiser DS1 dial type thermostat is suitable for conventional or

combi-boiler systems.

This thermostat incorporates the following functions;

• Adjustable Switching Differential

• LED Heat and Power Indication

• 230v AC, 3A Switching

IN ORDER TO AVOID ANY RISK OF ELECTRIC SHOCK, TURN OFF THE POWER TO THE

HEATING SYSTEM.

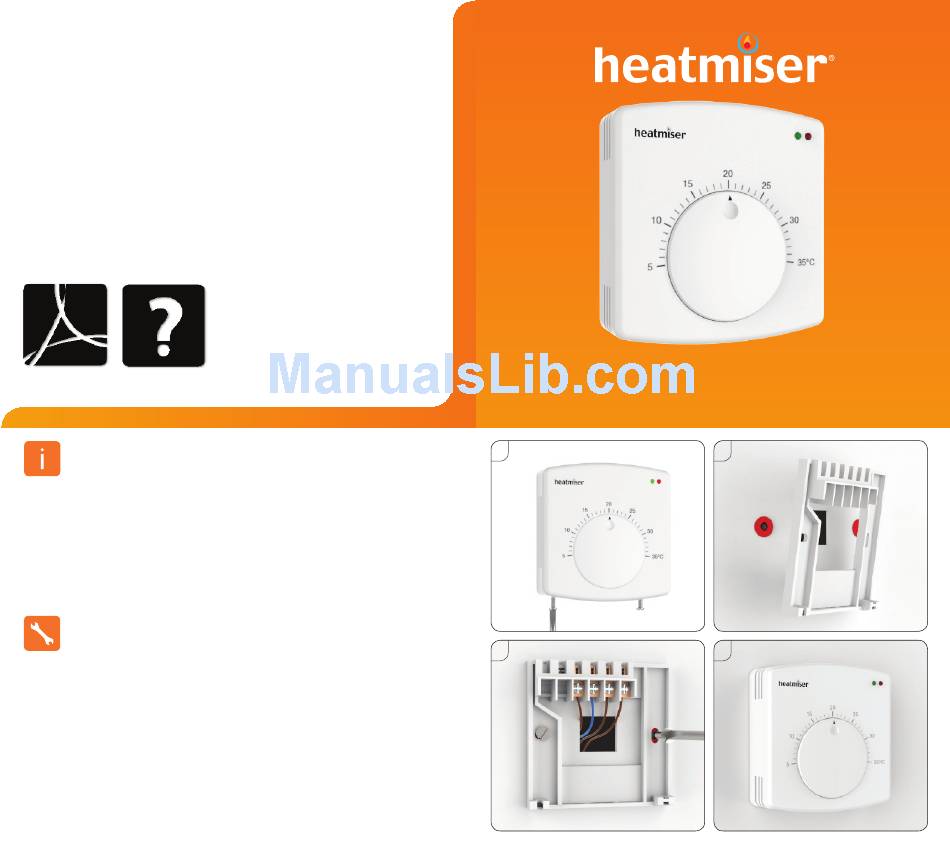

This dial thermostat is designed to be surface mounted.

1. Separate the front part of the thermostat by unscrewing securing screws on the

bottom face of the thermostat.

2. Mark 2 hole positions on the wall using the backplate as a positioning template. Drill at

the marked positions and insert a wall plug in to each hole.

3. Terminate the thermostat as per wiring diagram and screw the DS1 back plate to the

back box.

4. Reconnect the thermostat front plate and insert the securing screws.

Model: DS1

Table of Contents

Do you have a question about the DS1 and is the answer not in the manual?

Page 1 2. Mark 2 hole positions on the wall using the backplate as a positioning template. Drill at the marked positions and insert a wall plug in to each hole. 3. Terminate the thermostat as per wiring diagram and screw the DS1 back plate to the back box.
Page 2: Setting The Temperature
ROOM THERMOSTAT CONNECTIONS Switching Differential The Heatmiser DS1 offers 1, 2 and 3°C switching differential. With a 1°C switching differential the heating will switch on 1°C below the set temperature and will turn off when the set temperature is reached.
