Heatmiser DS1-E Instruction Manual

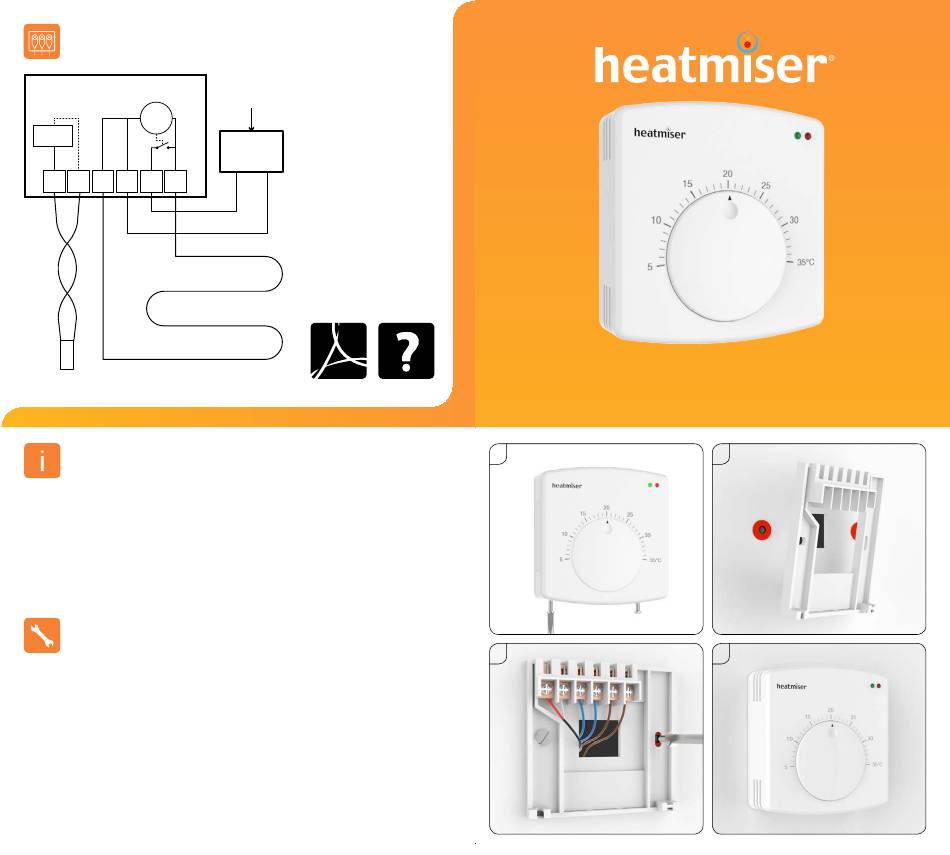

Wiring Diagram
DS1-E
230VAC
Floor
Sensor
RT+ RT- N N L
LOAD
MATTING OR WIRE
FLOOR PROBE
Introduction
The Heatmiser DS1-E dial type thermostat is designed
specifically for electric underfloor heating.
This thermostat incorporates the following functions;
• Adjustable Switching Differential
• LED Heat and Power Indication
• 230v AC, 13A Switching
Installation
IN ORDER TO AVOID ANY RISK OF ELECTRIC SHOCK, TURN OFF THE POWER TO THE
HEATING SYSTEM.
This dial thermostat is designed to be surface mounted.
1. Separate the front part of the thermostat by unscrewing securing screws on the
bottom face of the thermostat.
2. Mark 2 hole positions on the wall using the backplate as a positioning template. Drill at
the marked positions and insert a wall plug in to each hole.
3. Terminate the thermostat as per wiring diagram and screw the DS1-E back plate to the
back box.
4. Reconnect the thermostat front plate and insert the securing screws.
MAINS SUPPLY
RCD
L N
Want More Information?
Call our support team on:
+44 (0)1254 669090
Or view video specifications
directly on our website:
www.heatmiser.com
PDF FAQ
Rev 2.0
1
3
Model: DS1-E
2
4
