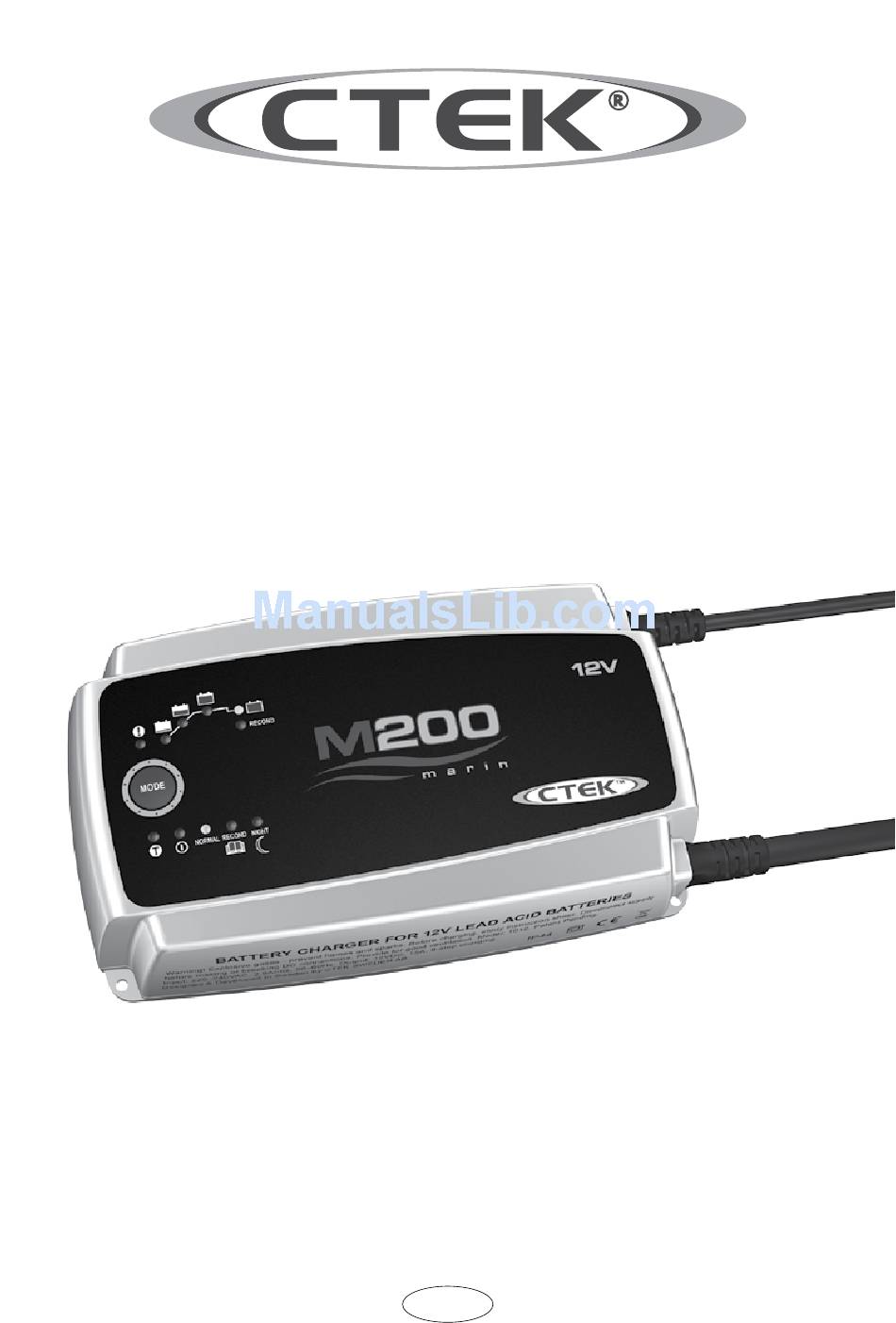

Page 1: Battery Charger

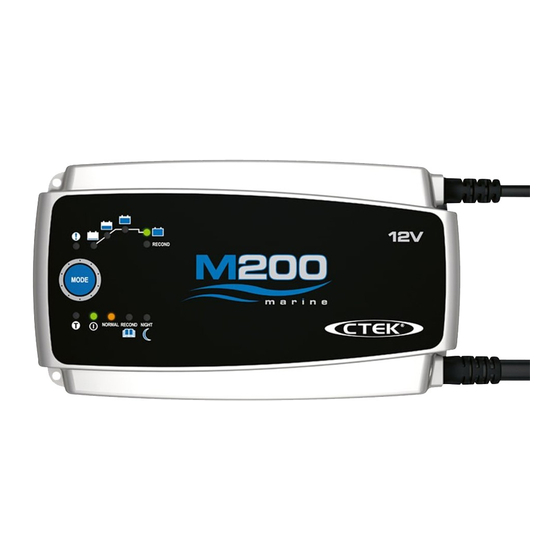

M200 Battery Charger For lead-acid batteries User Manual and Guide to professional charging of starter and deep cycle batteries. - Page 2 INTRODUCTION Congratulations on purchasing your new CTEK professional switch mode battery charger. This charger is part of a range of professional battery chargers from CTEK SWEDEN AB. It represents the latest technology in battery charging with charging and analysis in eight steps with temperature compensation. Read this User Manual and follow the instructions carefully before using your new charger.
- Page 3 supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. (EN 7.12) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental ca- pabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way...
-
Page 4: Battery Types And Settings
BATTERY TYPES AND SETTINGS M200 can easily be set for different types of batteries or conditions. The following recommendations should, however, only be seen as guidelines. Please consult the battery manufacturer for further instructions. Settings are made by pressing the “MODE-button “ and stepping forward one press at a time until the required mode is reached, the button is then released. -
Page 5: Temperature Compensation
TEMPERATURE COMPENSATION M200 has a sensor cable placed together with the battery cables. The units will automatically adjust the charging voltage if the temperature deviates from +25°C. A high temperature lowers the voltage and freezing conditions is handled by higher voltage. -
Page 6: Program Description
12.6V. NIGHT Mode max 5A. the current dropped to RECOND 4.5A, max 16h. Note: In NIGHT Mode the M200 operates in NORMAL Mode with reduced current and disabled fan. The unit automatically returns to NORMAL after 8h. 6 • EN... - Page 7 Analysis Recond Float Pulse Tests whether the Maintenance for Maintenance for Reconditioning of battery retains maximum maximum a drained battery the energy performance battery life Analysis Recond Float Pulse Warning indication if Max 15.8V and 3A 13.6V with max 15A Pulse start at 12.9V, voltage drops to 12.0V for 4h for deeply...
-
Page 8: Limited Warranty
This warranty is void if the unit is abused, handled carelessly or repaired by anyone other than CTEK SWEDEN AB or its authorized representative.
