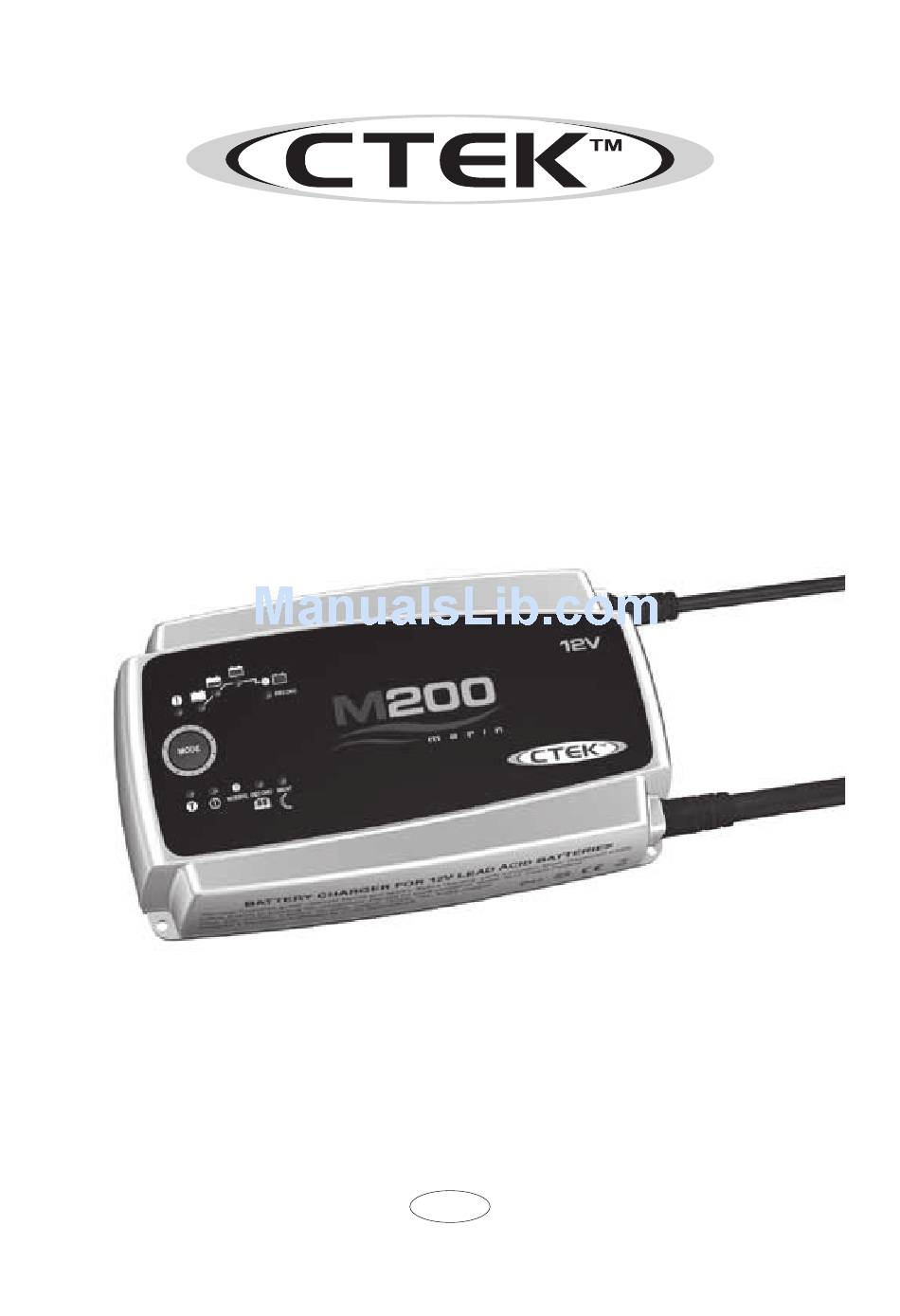

Page 1: Battery Charger

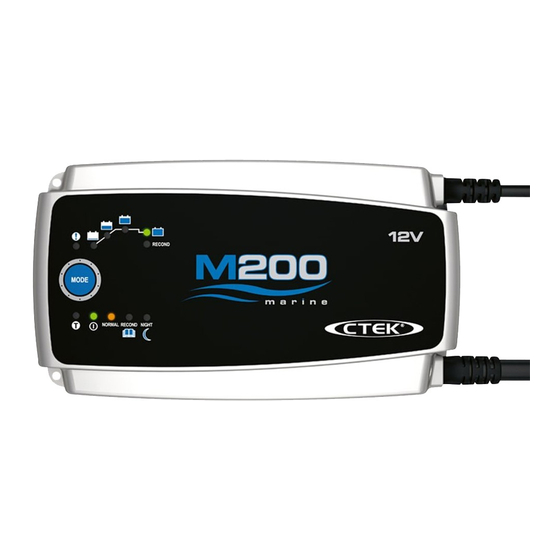

M200 Battery Charger For lead-acid batteries User Manual and Guide to professional charging of starter and deep cycle batteries. 20010739C M200 Manual 001.indd 1 2011-06-20 12:33:19... - Page 2 INTRODUCTION Congratulations on purchasing your new CTEK professional switch mode battery charger. This charger is part of a range of professional battery chargers from CTEK SWEDEN AB. It represents the latest technology in battery charging with charging and analysis in eight steps with temperature compensation. Read this User Manual and follow the instructions carefully before using your new charger.
-
Page 3: Battery Types And Settings
BATTERY TYPES AND SETTINGS M200 can easily be set for different types of batteries or conditions. The following recommendations should, however, only be seen as guidelines. Please consult the battery manufacturer for further instructions. Settings are made by pressing the “MODE-button “ and stepping forward one press at a time until the required mode is reached, the button is then released. -
Page 4: Temperature Compensation
The charger is maintenance-free. The charger must not be opened; doing so will invalidate the warranty. If the power cable is dam- aged it must be replaced by CTEK or its authorized representative. The charger casing can be cleaned using a damp cloth and mild cleaning agent. -
Page 5: Limited Warranty
CTEK SWEDEN AB, Rostugnsv. 3, SE-776 70 VIKMANSHYTTAN, SWEDEN issues this limited warranty to the original purchaser of this product. This limited warranty is not transferable and is only valid for non-commercial use. CTEK SWEDEN AB warrants this unit for 5 years from the date of purchase against defect workmanship or material. It is the obligation of the purchaser to forward the unit together with proof of purchase to the manufacturer or its representative with transportation cost prepaid. -
Page 6: Program Description
NIGHT Mode max 5A. current dropped to 4.5A, RECOND max 16h. Note: In NIGHT Mode the M200 operates in NORMAL Mode with reduced current and disabled fan. The unit automatically returns to NORMAL after 8h. 6 • GB 20010739C M200 Manual 001.indd 6... - Page 7 Pulse start at 12.9V, voltage drops to 12.0V for 4h for deeply max 10 days. max voltage 14.4V. in 3 minutes. discharged batteries. Otherwise for 30 minutes (only in Recond mode). GB • 7 20010739C M200 Manual 001.indd 7 2011-06-20 12:33:20...
