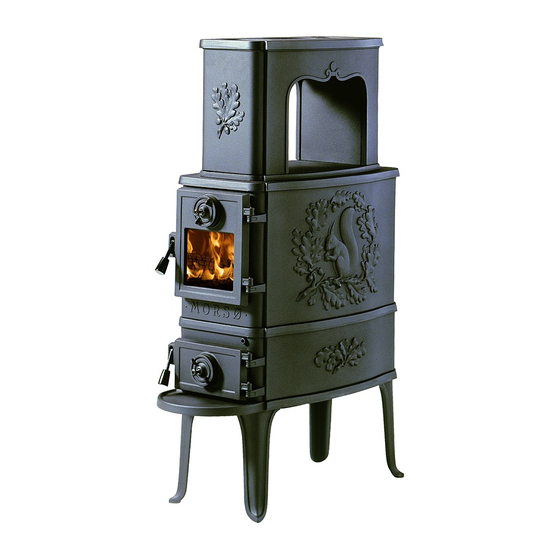

Morso 2B Classic Instructions For Installation And Use Manual

Morso 2B Classic Instructions For Installation And Use Manual

Advertisement

Available languages

Available languages

Quick Links

Morsø 2B Classic
DK
UK
www.morsoe.com
Opstillings- og betjeningsvejledning
Instructions for installation and use

Advertisement

Chapters

loading
Need help?

Need help?

Do you have a question about the 2B Classic and is the answer not in the manual?

Questions and answers

Summary of Contents for Morso 2B Classic

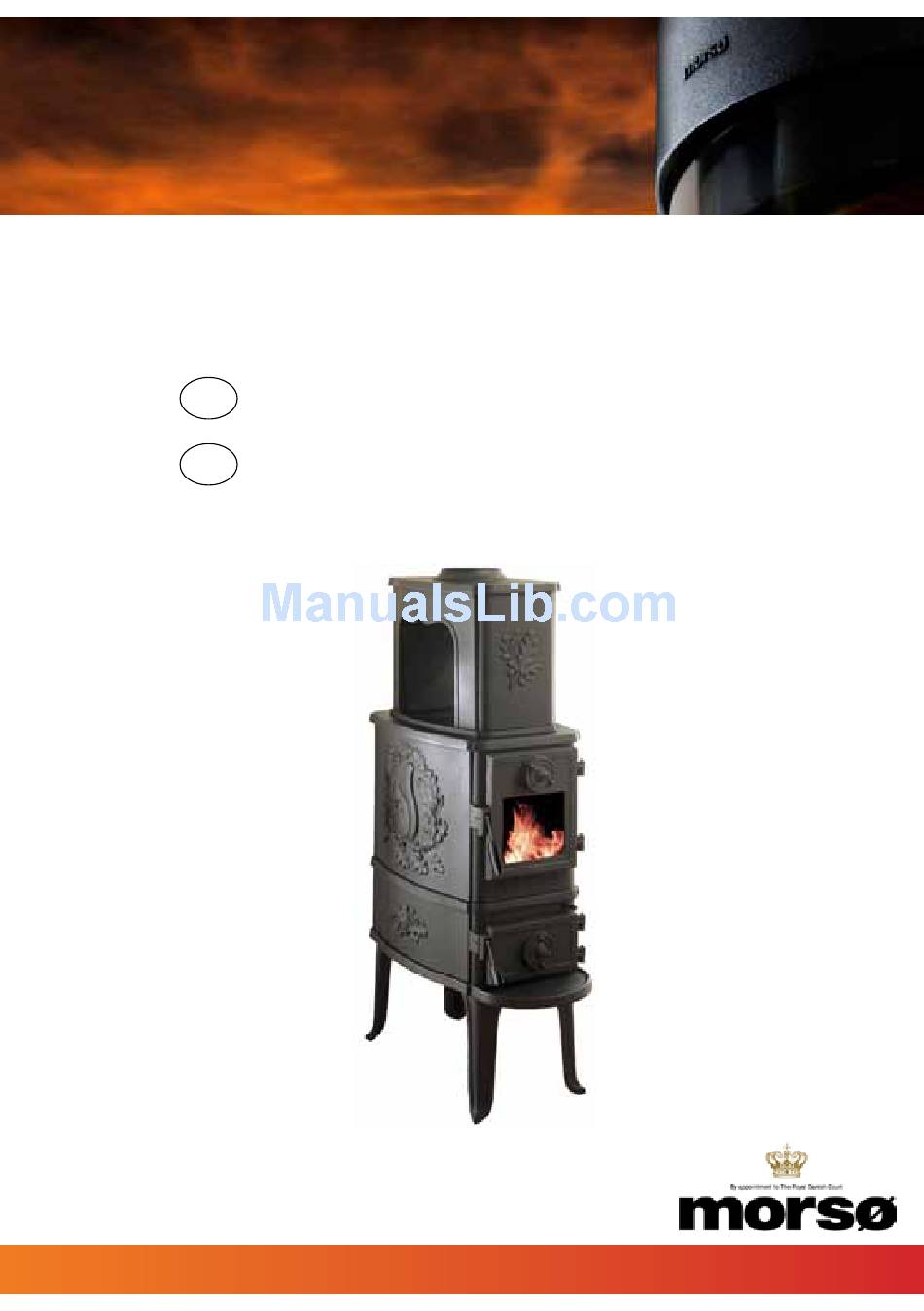

  • Page 1 Morsø 2B Classic Opstillings- og betjeningsvejledning Instructions for installation and use www.morsoe.com...
  • Page 2: Table Of Contents

    InDhOlD · COntent Opstilling af Deres morsø ovn ......5 Fyringsteknik/Brugen af Deres ovn ....11 Regelmæssig vedligeholdelse af ovnen... . 14 tekniske data..
  • Page 3 Opstillings- og betjeningsvejledning 2B Classic en 13240 · SInteF 110-0211 MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS E-Mail: stoves@morsoe.com · Website: www.morsoe.com...
  • Page 4 til lykke med Deres nye Morsø ovn! Morsø, som er den største udbyder på det danske marked, har siden 1853 fremstillet brændeovne af den højeste kvalitet. hvis De blot følger omstående instruktioner, er vi sikre på, at De også vil få nytte og glæde af Deres nye ovn i mange år.
  • Page 5: Opstilling Af Deres Morsø Ovn

    1.0 Opstilling af Deres Morsø Ovn 1.1 Udpakning af ovnen 2B Classic: Efter udpakning skrues brandkammeret af træpallen og lægges roligt ned på siden. For at undgå skamferinger på ovn og gulvet kan papemballagen an- vendes som underlag. Benene, der er medsendt ovnen pakkes ud og skrues fast på...
  • Page 6 Placering af det indvendig dæksel Det indvendige dæksel (3), mærket 2118 placeres over røgkanalen foran i ovnen. Dette gøres ved at føre dækslet ned gennem røgtuden inden røgrøret monteres, som vist på skitse og bil- lederne herunder.
  • Page 7: Opstilling Af Ovnen

    1.2 Opstilling af ovnen Det anbefales at være to mand til dette arbejde, da ovnen er tung at håndtere ene. MORSØ 2B Classic vejer 125 kg. Man skal være opmærksom på nationale og lokale bestemmelser vedrørende opstilling af brændeovne. Samtidig skal man følge de lokale bestemmelser med hensyn til tilslutning til skorsten samt opstilling af skorstene.
  • Page 8: Skorstenen

    Af hensyn til varmecirkulation, rengøring og evt. indvendig rensning af ovn, anbefales afstand til murværk at være 10-15 cm. Et lag tapet bliver normalt, når det er påsat murværk, betragtet som ikke-brændbart materiale. På gulvet Sker opstillingen på brændbart gulv, skal de nationale og lokale bestemmelser overholdes med hensyn til størrelsen på...
  • Page 9: Tilslutning Til Muret Skorsten

    1.6 tilslutning til muret skorsten I væggen fastmures en røgrørsbøsning, og røgrøret føres ind i denne. Røret må ikke stikkes ind i selve skorstensåbningen, men kun gå til den indvendige side af skorstenslysningen. Sam- lingerne ved ovn/rør og rør/murbøsning skal tætnes med den vedlagte glassnor. Normalt be- høver man ikke tætne mellem evt.
  • Page 10: Trækforhold

    1.8 trækforhold Hvis der kommer røg ud af ovnen, når fyrdøren åbnes, skyldes det dårligt skortstenstræk. Der kræves, for denne ovntype, et skorstenstræk på mindst 12 PA for at afgive tilfredsstillende for- brænding og forhindre røgudslip. Der vil dog være risiko for røgudslip, hvis ovndøren åbnes under meget kraftig fyring.
  • Page 11: Fyringsteknik/Brugen Af Deres Ovn

    2.0 Fyringsteknik/Brugen af Deres ovn Ovnens varmeafgivelse reguleres med øverste ventil. Ovnen har 2 lufttilførelser. Sekundær lufttilførsel som reguleres med øverste ventil. Den anden lufttilførsel er en konstant forvarmet lufttilførsel, der tilføres forbrændingen lige over bålet. Denne lufttilførsel kan ikke reguleres. Nederste ventil skal være lukket og skal ikke benyttes.
  • Page 12: Optænding Og Fyringsintervaller

    2. Der åbnes helt for øverste trækventil. 3. Efter antænding af papiret/sprittabletterne lukkes fyrdøren på klem. Askedøren på 2B Classic skal altid være lukket under fy- ring. 4. Når man kan se (efter 5-10 min.), at skorstenen er så varm, at der er træk igennem den, lukkes fyrdøren helt.
  • Page 13 5. Normal påfyring bør ske, mens der endnu er gløder til- bage. Fordel gløderne i bunden, dog flest foran i ovnen. 6. Der lægges 2-3 stykker brænde à ca. 1 kg og ca. 40 cm lange ind over gløderne i ét lag med en afstand på ca. 1 cm mellem træstykkerne.
  • Page 14: Regelmæssig Vedligeholdelse Af Ovnen

    Normalt skal ovndøren altid åbnes roligt de første 2-3 centimeter, og man skal vente til tryk- ket er udlignet inden døren åbnes helt. På denne måde undgås eventuelle røggener specielt i forbindelse med dårlige trækforhold. Åbn aldrig ovndøren under voldsom fyring. Når træet er brændt ud, er det omdannet til glødende trækul.
  • Page 15: Indvendig Vedligeholdelse

    3.2 Indvendig vedligeholdelse Glas Ved korrekt fyring med træ afsættes der ingen, eller kun lidt sod, på det keramiske glas. Er der under optændingen sket soddannelse på glasset, vil soden brænde væk, når der fyres normalt i ovnen. Bliver glasset sodet grundigt til ved fejlbetjening, kan det let fjernes med f.eks. Morsø Glasrens.
  • Page 16: Rensning Af Ovn

    Aske fra en brændeovn kan ikke gavne haven som gødning. Hvis der har været afbrændt far- velagte brochurer, malet eller imprægneret træ og lignende i ovnen, må asken ikke hældes ud på jord, da den kan indeholde tungmetaller. Vedligeholdelsesdele til 2B Classic Beskrivelse Produktnr.
  • Page 17: Tekniske Data

    4.0 tekniske Data Ovn model Morsø 2B Classic CO emission (ved 13 % O2) (%) 0.13 OGC (tjære o.l.) emission (mg/m³) Partikel emission, vægtet gennemsnit (g/kg) Partikel emission, maks. i enkel prøvning (g/kg) Virkningsgrad (%) 75.2 nominel drifteffekt (kW) Røgtræk, minimum (Pa.) Brændsel...
  • Page 19 Instructions for Installation and Use 2B Classic en 13240 MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS E-Mail: stoves@morsoe.com · Website: www.morsoe.com...
  • Page 20 enjoy your new Morsø stove! Morsø, the largest stove manufacturer in Denmark, has been making cast-iron stoves of the highest quality since 1853. By carefully following the instructions below, we are certain that you will enjoy many years of comfortable warmth from your new Morsø...
  • Page 21: Unpacking The Stove

    1.0 Installing your Morsø stove 1.1 Unpacking the stove 2B Classic: After removing the outer packaging, flatten it and lay onto the floor close to the stove; this can then act as protective work surface during the assembly process. Next, remove the legs and bolts from inside the stove.
  • Page 22 Drawing no.: Side 1 of 2 Drawingtype: 2B-138 a Location of file: U:\udv\Tegninger\1B&2B\2B Classic & 2B Standard Assembly.SLDASM This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the company.
  • Page 23: Installing The Stove

    The stove is heavy and therefore it is strongly recommended that when lifting, it is undertaken by two people. Morsø 2B Classic weighs 125 kg. The stove and chimney installations MUST comply to all current National and Local Build- ing Regulations; your approved Morsø dealer or your local building control officer can advise regarding this.
  • Page 24: The Chimney

    In situations where the stove is to be fitted into a brick or non-combustible recess, we recom- mend that the stove is installed with at least 10 - 15 cm clearance to the wall, this will allow heat to circulate around the stove; also the maintenance of the outside stove is easier. When applied to masonry, a layer of wallpaper is normally classified as a non-combustible surface.
  • Page 25: Fresh Air Supply

    1.6 Connecting the stove to a masonry chimney A wall sleeve should be bricked securely into the wall of the chimney at the appropriate height and the stovepipe inserted centrally. The pipe must not extend into the actual chimney open- ing, but rather must reach only to the inside of the chimney aperture.
  • Page 26: Draft Conditions

    1.8 Draft conditions If smoke spillage occurs when the fire door is opened, it is probably due to poor chimney draft. This type of stove requires at least 12 pa of chimney draft to achieve satisfactory combustion and smoke spillage prevention. However, in cases where the stove door is opened too vigor- ously you could expect that slight smoke spillage may occur.
  • Page 27: Firing/Using The Stove

    2.0 Firing the stove/Using your stove The heat output of your stove is regulated by means of the top draft vent. The stove has 2 air supplies. The secondary air supply, i.e. the air supply controlled by the top draft vent. The oth- er air supply is a constant preheated air supply supplied above the fire.
  • Page 28 n.B! Wood is a material that contains a great deal of gas (approximately 75 %). the gases are released when the wood is lit and heated up. For this reason, it is important that the gases are ignited quickly after stoking. If the wood just lies smouldering, especially after re-stoking, a lot of smoke is created, which, in the worst case, may cause an explosive ignition of the gasses, resulting in damage to the stove.
  • Page 29 3. After the paper/fire lighters have caught fire, leave the fire door ajar about 2-3 cm, so that the chimney draws well. The ash door on 2B classic must remain closed du- ring normal use. 4. After 5-10 minutes the chimney draft should be es- tablished, at this point close the fire door.
  • Page 30 5. Refuelling of your stove should be done while there are still glowing embers in the bed. Spread the em- bers across the bottom, but concentrated mostly towards the front of the stove. 6. Place three pieces of fuel weighing roughly 1 kg and measu- ring about 36-38 cm in length across the embers in one la- yer, with spacing of roughly 1 cm between the pieces of wood.
  • Page 31 The stove door should normally be opened gently the first 2 - 3 centimetres, then you should wait until the pressure has equalised before opening the door all the way. This technique will prevent smoke from getting out, particularly when there is a poor draught. the stove door should never be opened when the stove is being fired vigorously.
  • Page 32: Routine Stove Maintenance

    3.0 Routine stove maintenance 3.1 external maintenance The surface of the stove is painted with heat-resistant Senotherm paint. If the stove is used too vigorously, the painted surface may take-on a greyish tinge. It is easily maintained by simply vacuuming the surface with a soft brush attachment and applying two light layers of paint. Morsø...
  • Page 33: Cleaning The Stove

    will naturally shorten the lifespan. The aforementioned parts are all easily replaced. If the baf- fle plate is damaged or warped and is not replaced in time, the top plate could become subject to excessively high temperatures, which may lead to damage here also. note that no unauthorised alterations to the stove design should be undertaken, and always ensure that any replacement parts purchased must be Morsø...
  • Page 34 ash in a container made of non-flammable material before pouring it into a rubbish bag. Ash from a wood-burning stove will not be of any benefit to your garden as fertiliser. If you have burned colour brochures, or painted or treated wood, etc., in the stove, the resulting ash must not be poured onto soil, as it may contain heavy metals.
  • Page 36 Morsø Jernstøberi A/S - 15.11.2012 - 72206900 www.morsoe.com...
