DK
UK
www.morsoe.com

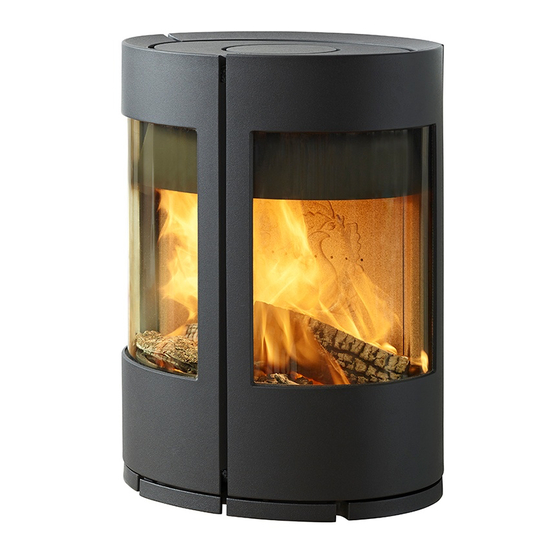

Morsø 6600
Opstillings- og betjeningsvejledning
Instructions for installation and use
Morsø 6643 & 6670

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Morso 6600

  • Page 1 Morsø 6600 Opstillings- og betjeningsvejledning Instructions for installation and use Morsø 6643 & 6670 www.morsoe.com...
  • Page 2: Table Of Contents

    Opstillings- og betjeningsvejledning Fyringsteknik/Brugen af Deres ovn ....11 Morsø 6600 Regelmæssig vedligeholdelse af ovnen... . 15 tekniske data......... 17 Morsø...
  • Page 3: Opstilling Af Din Morsø Ovn

    til lykke med din nye Morsø ovn! 1.0 Opstilling af din Morsø Ovn Morsø, som er den største udbyder på det danske marked, har siden 1853 fremstillet brændeovne af 1.1 Udpakning af ovnen den højeste kvalitet. hvis du blot følger omstående Den støbte grundovn leveres forberedt til montering af den ønskede sokkel og overdel.
  • Page 4: Skorstenen

    Møbleringsafstand ovenud. Den støbte røgtud passer til en Ø150 røg- Afstand til brændbart materiale foran ovnen er 800 mm. for Morsø 6600 Med hensyn til møb- rør. leringsafstand skal afstand til brændbart materiale overholdes, men man bør dog vurdere, om møbler og andet vil blive udtørret af at stå...
  • Page 5: Tilslutning Til Muret Skorsten

    evt. Frisklufttilslutning Ovnen er fra fabrikken forberedt til montering af en evt. frisklufttilslutning uafhængig af rum- met, hvor ovnen opstilles. Boksen til denne frisklufttilslutning, der kan tilkøbes separat, giver mulighed for en ø100mm rørtilslutning enten bagud eller nedenud. Dette gælder dog ikke den væghængte Morsø 6670. 1.7 tilslutning til muret skorsten I væggen fastmures en murbøsning, og røgrøret føres ind i denne.
  • Page 6: Fyringsteknik/Brugen Af Deres Ovn

    1.9 trækforhold 2.0 Fyringsteknik/Brugen af Deres ovn Hvis der kommer røg ud af ovnen, når fyrdøren åbnes, skyldes det dårligt skorstenstræk. Der kræves, for denne ovntype, et skorstenstræk på mindst 12 pa for at afgive tilfredsstillende for- Deres ovn er konstrueret med lufttilførsel 3 steder. brænding og forhindre røgudslip.
  • Page 7: Optænding Og Fyringsintervaller

    2.1 Optænding og fyringsintervaller 5. Er forudsætningen under pkt. 4 opfyldt, lægges der maks. 2 styk- ker brænde med en samlet vægt på ca.1,5 kg og en længde på Under optænding er der behov for en stor luftmængde. Når man starter op med en kold ovn, 25-30 cm ind over gløderne i ét lag med en afstand på...
  • Page 8: Regelmæssig Vedligeholdelse Af Ovnen

    3.0 Regelmæssig vedligeholdelse af ovnen Vigtigt! Det er vigtigt, at den friske træmængde hurtigt begynder at brænde. en hurtig antæn- 3.1. Udvendig vedligeholdelse delse af brændet opnås ved at åbne forbrændingsluften på max. eller ved at lade dø- Ovnens støbte overflade er malet med en varmebestandig senotherm maling. Den holder sig ren stå...
  • Page 9: Tekniske Data

    Hvis røgledepladerne beskadiges og ikke skiftes i tide, vil toppladen herefter være udsat for så høj temperatur, at den kan tage skade. Vedligeholdelsesdele til 6600 serien Årsager til for hurtig slitage af indvendige dele - For kraftig fyring. Brug af for meget tørt træ (møbelaffaldstræ).
  • Page 10 Instructions for installation and use Morsø 6600 Morsø 6643 &6670 Installing your Morsø stove Unpacking the stove...
  • Page 11: Installing Your Morsø Stove

    6600. The minimum distance to combustible materials must be observed; furthermore, it stalled. The chimney sweep will inspect the installation, and reach an agreement with you should be considered whether furniture and other items will dry out if placed near the stove.
  • Page 12: The Chimney

    Please make sure that the smoke baffles are correctly fitted before proceeding to Morsø 6600 light the stove. Optional fresh air connection The stove has been factory-prepared for installation of an optional fresh air supply indepen- dent of the room where the stove installed.
  • Page 13: Connecting To A Brick Chimney

    This drawing is Morsø Jernstøberi A/S' property and must not be sold, lended or copied without any written authorization from the comp the wall-hung Morsø 6600 must not be mounted on a wall made of combustilbe materials. If there is insufficient draught in the chimney, it may be a good idea to install the...
  • Page 14: Firing/Using The Stove

    1.9 Draught 2.0 Firing/using the stove If smoke comes out of the stove when the fire door is opened, it will be due to the poor draught in the chimney. This type of stove requires at least 12 pa. of chimney draught to achieve satis- Your stove is constructed with air inlets in three places.
  • Page 15: Lighting Instructions And Fuelling Intervals

    2.1 lighting and fuelling intervals A lot of air is needed when lighting the stove. If you are starting with a cold stove, the door should be left ajar for the first few minutes, and the combustion air supply opened to maxi- 5.
  • Page 16: Routine Stove Maintenance

    The stove door must be opened gently the first 2 - 3 centimetres, then you should wait until the 3.0 Routine stove maintenance pressure has equalised before opening the door all the way. This technique will prevent smoke from getting out, particularly when there is a poor draught. 3.1 external maintenance The cast surface of the stove is painted with heat-resistant Senotherm paint.
  • Page 17: Cleaning The Stove

    Spare parts for the 6600 waste. That will be a great benefit to the environment. Note: Should be handed in to a recycling station as ceramic glass. Description Product no. Internal parts and/or wearing parts Cast grate 34665600 The baffles and other components that come in direct contact with the fire and glowing fuel are all wearing parts.
  • Page 19 Morsø Jernstøberi A/S - 21.11.2014 www.morsoe.com...
