Summary of Contents for Acclaim Lighting ART-4
- Page 1 All rights reserved. Any improvement and changes to specifications, design and this manual, may be made at any time without prior notice. INSTRUCTIONS MANUAL Please read this manual carefully and thoroughly before operating this unit. 24-004-2565-00 Rev2.1 ART-4 User Instruction...
-
Page 2: Table Of Contents
Operation Temperature ......0 degC to +40 degC Storage Temperature ........ degC to + 70 degC Weight ............. US 150g / EU 100g Dimensions ..........EU 86(L) x86(W) x15.5(H)mm US 76(L) x120(W) x15.5(H)mm Page 9 ART-4 User Instruction ART-4 User Instruction... -
Page 3: Product Description
Function memory and power failure protection EU and US versions optional Each ART-4 can be linked via the "Link IN/OUT" port on the rear panel that allows the users to implement the online control for multi-device accordingly. Please be noted that maximum of 32 devices are allowed to be connected on a link. -

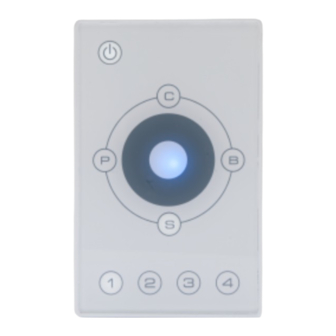

Page 4: Control Panel And Functions
1~4 to raise the scene which has been stored in it. The LED indicator lights 1. Power key up and it starts to display the recorded scene. Used to power on/off ART-4. 2. C key (color) 6.3 SCENE Record Lock/Unlock Used to select color. -
Page 5: Rear Panel View
Operation Guide Rear Panel View ART-4 features one group DMX OUT with 4-pin terminal connector, one group 5. Color POWER IN & PWM OUT with 6-pin terminal connector , a Link In and Link Out for online operation. The configuration of the terminal is as the following(figure To enable Color Menu, hold on pressing the "C"... -
Page 6: On/Off
Hold on pressing "P" key for about 1s to enable built-in Program Menu, the key ART-4 can be connected to a DC power at any voltage from 12V to 24V. When clicks and the indicator is lit. Then rotate the touch toggle to select a desired the indicator of POWER button lights up, the unit powers on and resumes the built-in program.
