Aviosys 9070-IRW User Manual

Aviosys 9070-irw ip camera
Hide thumbs Also See for 9070-IRW:
Table of Contents

Advertisement

Quick Links

Download this manual

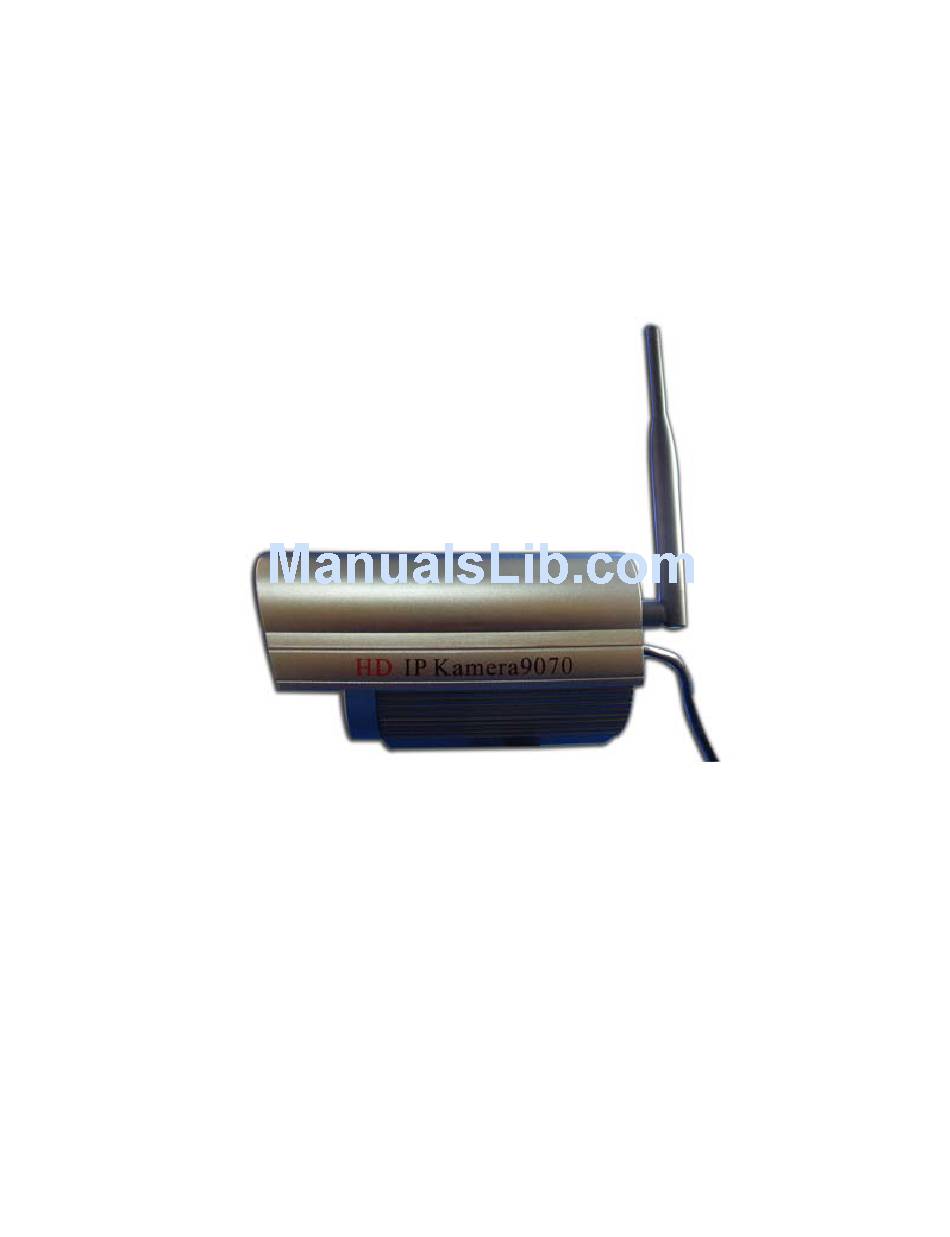

IP Kamera 9070-IRW

User Manual

Release Date: 8/2/2011
Firmware Version : V1.2.1.9
- 1-
Ref#90020326K0709

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9070-IRW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aviosys 9070-IRW

Summary of Contents for Aviosys 9070-IRW

  • Page 1: User Manual

    IP Kamera 9070-IRW User Manual Release Date: 8/2/2011 Firmware Version : V1.2.1.9 - 1- Ref#90020326K0709...
  • Page 2 4. Do not shake the IP Kamera 9070-IRW in any fashion 5. Please contact the dealer If IP Kamera 9070-IRW is not working properly. Copyright © 2011 All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of us.

  • Page 3: Table Of Contents

    Using a Router/Firewall to connect each device to the internet ............20 IP S ............................21 TATIC ETUP Static IP Address provided by the ISP ....................21 6.) WEB INTERFACE ..........................21 9070-IRW ........................21 ONNECTING TO THE ..........................24 ONTROL ONSOLE ..............................25 IDEO Type and Zoom Type: ..........................
  • Page 4 Network .............................. 32 Wireless Settings ..........................33 FTP ..............................33 SMTP (Outgoing E-mail Server) ......................33 SNTP ..............................34 IP Service ............................. 35 DDNS ..............................36 RTSP ..............................37 ..............................37 YSTEM Date and Time ............................. 38 Time Stamp & OSD ..........................38 User ..............................

  • Page 5: Welcome

    The built in web server of the IP Kamera 9070-IRW will allow the IP Kamera to be viewed from any remote locations around the world while bringing ease of mind. Furthermore, with CNT technology the 9070-IR is easy to setup &...

  • Page 6: Minimum System Requirements

    Minimum System Requirements CPU Minimum Requirements • Intel(R), Pentium(R), DUAL Core (D),CPU 3.0GHz or equivalent • Operating Systems: WINDOWS Operating Systems (IE5.0+SPI) • 512 MB system memory or above • Video Card: 3D hardware accelerator card required – 100% DirectX 9.0c compatible •...

  • Page 7: Package Contents

    Package Contents 9070IRW Unit x 1 with sun cover 9070IRW Installation CD AC Adaptor x 1 Camera Mounting Bracket x 1 Antenna x 1 3.) Hardware Description Cable Description Cables: DC 12 V Power Input: Plugs in the Power Adapter to the DC 12V Card RJ45 Ethernet: Plug in the RJ45 Ethernet cable to the Ethernet...

  • Page 8: Setting Up The Device

    4.) Setting up the device Hardware setup Setting up the device Before setting up the device make sure of the following: 1.) Make sure that all the package contents are all included if anything is missing please contact the store or your distributor.

  • Page 9: Installing Vlc Codec

    IP Edit IP Edit is a tool designed to search for Aviosys products that are on the network. With this tool you can edit some specified fields which allow the device to be found and accessed. IP Service allows users to find their device on the internet without having to remember long IP Addresses.

  • Page 10: Custom Setup (Manual Setup)

    3.) Simply double click on your device in the local device section and a internet explorer window will appear, and start connecting to your device. All devices will need to be on the same network if not the device cannot be accessed and will not be detected.

  • Page 11: Setting Up Wireless Settings

    IP Address: Make sure the first 3 sections of the IP Address matches the gateway address. Example: Gateway Address – 192.168.1.1 IP Address – 192.168.1.xxx 3.) Once the Default Gateway information has been obtained, enter the correct information into IP Edit then press the submit button.
  • Page 12 3.) Click on the for more information on how to setup the device. 4.) Pick the router that you are using, then hit the add profile button - 12- Ref#90020326K0709...
  • Page 13 5.) Type in the passphrase for the router and hit the apply button. 7.) Wait about 60 seconds for device to connect. 8.) Then check to see for the connection successful under the connection status and the device is good to 9.) Unplug the RJ45 cable of the device and search on IPEdit for the new wireless settings.

  • Page 14: Advance Setup

    Advance Setup: Click on the On Link under advance section Click on the Site Survey Link then select the wireless internet network that you would like to connect to and hit the add profile button to add a new profile A new window pop and you will be required to enter the necessary network information including the passphrase or password for the wireless internet.
  • Page 15 Then hit apply to save all settings and wait about 60 seconds for device to connect. Then go back to the Main Wireless page and click on the on link under Advance for more options. Select the Profile link to see the profiles that you have added to the device. - 15- Ref#90020326K0709...
  • Page 16 Click on your newly added profile and hit the activate button to start up the Wireless settings. Then click on Link Status to make sure that your device is connected to the wireless network. Note: If the device is connected it will show some information in the Link Status page. Now the device is connected to the wireless network.

  • Page 17: Ip Service

    Aviosys users to easily find there device on the internet . Simply by typing in the name of your device you will not have to remember long IP addresses to get to your device.
  • Page 18 2.) IP Service through Google cloud Note: Make sure that the enable IP Service feature is turned on under the network settings of your device. Searching with IP Service: To use IP Service: 1.) Click on the image and you will be taken to the IP Service webpage. 2.) Depending on which server you selected in the IP Service settings, you will need to select from server 1 or server 2.
  • Page 19 Searching with IP Service (Google Cloud): To use IP Service (Cloud): 1.) Click on the image and you will be taken to the IP Service webpage. 2.) Type in the name that you have selected for your device and hit the submit button. Note: You can name your device in the network settings of your device under IP Service.

  • Page 20: Internet Access (Port Forwarding)

    5.) Internet Access (Port Forwarding) The internet connection can be setup in two main ways so that the 9070IRW can be accessed through the internet Router / Firewall Setup Using a Router/Firewall to connect each device to the internet Note: The device needs to be port forwarded on the router so that it can be accessed by the internet.

  • Page 21: Static Ip Setup

    6.) Web Interface Connecting to the 9070-IRW Once the 9070-IRW has been setup correctly, connect to the login page. An Internet Explorer browser screen pop up with the login screen. Default IP: 192.168.1.168 (When 9070-IRW is connected to PC directly)
  • Page 22 1.) Once you have logged into the device you will be required to install active x controls. 2.) Right click on yellow bar and install the activeX controls. 3.) Then click the install button and install the active controls. 4.) Once active X controls have been installed the video feed will show on the screen Note: If there is no active X controls that are showing up, please go to internet explorer and enable active X controls.
  • Page 23 1.) Under internet options in IE select the security tab. 2.) Then click on the custom level button 3.) Select Prompt (recommended) for the section labeled Download signed ActiveX controls - 23- Ref#90020326K0709...

  • Page 24: The Control Console

    The IP Kamera 9070-IRW Control Console starts in the Section of the webpage. In this section navigate to the other options and settings of the 9070-IRW Live Video: The Live Video section allows the user to view the camera, change resolution views, Image: The Image section allows you to edit the image settings, including recording / viewing codec, frame rate, image tuning, brightness, contrast, saturation, and etc.

  • Page 25: Live Video

    Live Video The Live video section of the IP Kamera 9070-IRW is where the user can view the video of the device. From here resolution, record onto current pc, take a snapshot, zoom, and detect motion detection settings can be changed.

  • Page 26: Motion Detection

    1.) Click on the Application link on the bottom menu 2.) Then select Snapshot path 3.) In here browse for the location where snapshot pictures will be stored. By default the snapshot path will be in C:\9070-IRW\ - 26- Ref#90020326K0709...

  • Page 27: Record

    To use the snapshot function: 1.) Click on the snapshot button, and you will see the screen flicker black. 2.) In explorer go to the selected path and the files will be created there. Record Record: The record button on the 9070IRW when pressed will record the live video feed and save the video into the computer viewing.

  • Page 28: Mouse Eptz

    3.) Once the folder has been selected the device will start to record. To stop recording click on the red icon and it will return to the original state. Note: Remember you need VLC codec to play the video files that are recorded Mouse EPTZ Mouse EPTZ On the live video screen move the mouse cursor to the video and click left or right click to use the Mouse...

  • Page 29: Image

    Image The image section allows you to change the Image settings for the device and tune the image of the IP Kamera 9070-IRW Image Settings The Image settings section allows you to change the video settings and the Name of the Kamera.
  • Page 30 Resolution: In this section you can select the resolution type that you need to be able to display or use. Simply select the resolution that best fits your needs Resolution (MPEG4+MPEG4+JPEG): M4:720P,M4:CIF,JPG:352 (MPEG4+M-JPEG): M4:VGA,JPEG:VGA M4:720P, JPG:720 (MPEG4-1+MPEG4-2) M4:720,M4:CIF Not supported in Firefox: (Single MPEG4): M4:720 (Single MJPEG):...

  • Page 31: Tune Image

    Cable / ADSL: Most high speed internet users today use Cable / ADSL as the main internet provider line. Fiber Optics: High speed fiber optics provides the best solution for outside the network because it is very fast. Intranet (LAN): When using the IP Kamera from within the network this is the best option. Custom: This setting allows you to manually input a setting for the Bit Rate, FPS, and picture quality.

  • Page 32: Network

    The network section allows you to setup the network information for the IP Kamera 9070-IRW. Enable DHCP: This function will enable the DHCP for the 9070-IRW. If this is enabled the IP Address of the device will be automatically provided by the router of the device.

  • Page 33: Wireless Settings

    Wireless Settings The wireless settings section will allow you to setup the wireless feature of the 9070-IRW. Please refer to Setting up wireless settings page 11 The FTP section of the IP Kamera 9070-IRW allows you to save video clips FTP Server: The FTP server address is where the IP Address of the FTP server will be entered.

  • Page 34: Sntp

    Use SSL Connect: If the email server requires SSL (Secure Sockets Layer) this option need Sender Email: Enter the Sender Email Address SMTP Server: Enter the SMTP Outgoing mail address Email Address: Enter the Receiving Email address Submit: After all settings have been made. Hit the submit button to save all changes. Send Test E-Mail: This button will send a test e-mail to the designated account.

  • Page 35: Ip Service

    Power and Video Server: This is the server where most IP Power products and IP Video server products can be found. Kamera Server: This is the IP server where most IP Kamera products from Aviosys will be found on. CNT Server: Cross Network Technology Sever. CNT allows user to connect to their IP Kamera without having to Port Forward to the device.

  • Page 36: Ddns

    DDNS The DYNDNS feature allows you to use dyndns with the 9070-IRW. All you need to do is sign up with a free account with www.dyndns.com and enter the appropriate information. The update button will allow you to update the information.

  • Page 37: Rtsp

    Note: To access the device from outside the network. Please make sure of the following: 9070-IRW should be set to DMZ host, or mapping router's TCP ports 554 and 8554 to 9070-IRW, preferably at the same time mapping UDP port 6970-9999 System The system section allows you to setup the IP 9070-IRW’s system configurations.

  • Page 38: Date And Time

    Date and Time Set the date and Time of the device here. The Local Time: The local time corresponds to the current time of the IP Kamera 9070-IRW. Time Setup: Setup the current time of the device here 1.) Set Manually: Set the time manually 2.) Synchronize with Computer Time: Synchronize the time with the current computers time...

  • Page 39: User

    User In this section, you can create different user access rights for different types of users. Authority: Select one of the following options: Admin: You can operate all functions in Web interface. Also, you can add or delete any user’s account. Operator: You can operate all functions in Web interface except user Add/Delete.

  • Page 40: Device Tune Up

    Device Tune Up The device tune up resets the 9070-IRW to make sure that the device is running smoothly. This resets the internal memory of the device by restarting the 9070-IRW. You can set the Device tune up to reset each...

  • Page 41: Update

    Update The Update Firmware section is where information on the 9070-IRW is displayed. The Kernel Version, Uboot Version, Firmware Version, and other technical information on the device is displayed here. Updating the Device To update the device go to the update section. Here you will find the Current Version description.
  • Page 42 Before you go to the next step make sure you have all your setting information written down. The device will reset back to manufacturers default values after you restart the device. You will need reconfigure the IP Kamera 9070-IRW, including Email, FTP, IP Address, Gateway, and etc.

  • Page 43: Event Log

    Event Log In the Events Log section you can find the log for the IP Camera. This section will notify you any events that have taken place with the IP Kamera. Application The Application Section setups the Video File information, FTP, SD Card, SMTP - 43- Ref#90020326K0709...

  • Page 44: Setting

    Setting Snapshot Path The snapshot path section allows you to configure where you would like your live snapshot and recording files are stored on your local computer. Simply, click on the button and choose a folder to where you want to save the files. PC Split File Size: Allows you to select the segment size of the files that will be recorded onto your computer.
  • Page 45 FTP information can be entered. Note: Also make note that if the SD card is mounted to the device, the 9070-IRW will only be able to record in M-Jpeg mode. The SD card can be unmounted in the SD card section by clicking on...
  • Page 46 9070-IRW will sort the device by time. Name by Index: If add date stamp is not selected, the 9070-IRW will sort by Index. File Format: Here is where the file format for the recordings can e selected.
  • Page 47 SD Format: SD format will format the entire SD card Unmount: The feature will unmount the SD card from the device, so it cannot be accessed unless remounted. Reset: To mount the SD card back onto the device, you can use the button Net Drive The net drive function allows you to save your recordings to a local network computer.
  • Page 48 4.) Here you can select a user in your windows OS that you would like to share with or Everyone which will share this drive with everyone on your network. Select everyone and hit the add button. Note: The user selected must have Read / Write capabilities for this function to work correctly. 5.) Then hit the share button on the bottom and you should receive a confirmation to show that the folder has been shared.
  • Page 49 6.) Click the done button and it will take you back to the folders properties. Under the sharing tab you will find a section that says network path. Copy that information and put it into the 9070-IRW webpage in the net drive section.
  • Page 50 3.) Now select the split size to select how big you want the files to be. Then hit the submit button and the net drive will start to work. E-mail SMTP The SMTP application settings is where the file format uploaded by email can be selected. From here you can choose the files to be in either Jpeg (picture) format or Mpeg.
  • Page 51 EZ-Blog EZ Blog is a an easy way to integrate your IP camera with your blog or website. Simply by using the code produced you can have live video from your IP camera on your blog and websites. Start by selecting which method you would like to use EZ blog. There are two ways that you can use EZ blog.
  • Page 52 User List: The user list shows the available users you can use to setup EZ Blog. We highly recommend to use guest accounts and if a guest account is needed you can easily do so by accessing the menu. Once the user is selected, now you can easily create the embed code: 1.) Type in the password for the selected user.
  • Page 53 Advantages of using CNT: Does not require router setup to use. Can cross network, simply plug and play. Disadvantage: Requires constant communication to make sure device is connected. Note: To use CNT feature, the GAE server must be turned on. You can do this by going to the network tab, and click on the IP Service link To use CNT to integrate your IP camera with your blog:...
  • Page 54 4.) On the bottom where you can preview the image you will see that it will show a login screen. 5.) Then hit the copy button and paste the code that you have copied into your blog or website. My Web The My-Web functionality will make your IP Kamera more than just a surveillance tool.
  • Page 55 5.) After you have created the webpage, make sure to create a Zip file. Zip up the file and Returning to default My Web page If you would like to return your 9070-IRW to the default My Web page click the default My Web Page button. This will reset the current My Web to the original manufacturer default.
  • Page 56 1.) Use IP Edit and directly log into the IP camera. The device will open the root page of the 9070-IRW to the My Web page. 3.) If you would like to return to the normal administrator page for the 9070-IRW you can login to the admin site.

  • Page 57: Schedule Record

    Schedule Record Schedule The schedule allows you to select days and times that you would like to schedule automatic recording. You can pick a day from (Sunday – Saturday) and also a option for Everyday. To schedule automatic recording: 1.) Select the day that you would want to start recording. 2.) Select the From time and the To time.

  • Page 58: Alarm

    Schedule Recording Schedule Record allows you to select where the schedule will record the video files to. Schedule Record – Upload Via FTP: Saves schedule recordings into FTP Schedule Record – Save into SD Card: Saves schedule recordings into SD Card Schedule Record –...
  • Page 59 2.) The Mode: Can be set for indoors or outdoors. Indoors will have a more sensitive motion detection setting while outdoor will be less sensitive. 3.) Select the sensitivity of your choice You can pick from Lowest, Low, Medium, High, Highest You can also customize your own threshold from (1-99) 4.) Once you have set your settings on the window screen click on the picture where you want the motion to be detected.

  • Page 60: Media Player

    SMTP When motion is detected, the IP Kamera 9070-IRW will send files to E-mail. Recording Time: Set the duration of time you would like the IP Kamera 9070-IRW to record when alarm is set off. Enable Alarm Recording Buffer: The alarm recording buffer allows the camera to the selected amount of buffer time before an alarm has been detected.

  • Page 61: Logout

    The media player allows you to view your recordings on the SD card directly through the internet without requiring downloading the file first. This feature makes it very convenient for live streaming. View in Full Screen To view the IP Kamera in full screen model you will need to press the Full Screen mode. Logout When you are done use the IP Kamera 9070IRW the logout function allows you to easily logout of your device.

  • Page 62: Controlling The Device

    This command allows you to change the name of the IP Kamera 9070-IRW http://ipaddress:port/vb.htm?cameratitle=name Ex. http command: http://192.168.1.192/vb.htm?cameratitle=test_907011 Change IP Address: This command allows you to change the IP Address of the IP Kamera 9070-IRW http://ipaddress:port/vb.htm?internetip=ipaddress Ex. http command: http://192.168.1.192/vb.htm?internetip=192.168.1.191 Change Port: This command allows you to change the Port of the IP Kamera 9070-IRW http://ipaddress:port/vb.htm?httpport=portnumber...

  • Page 63: Change Gateway

    8.) Using RTSP with VLC Before Setting up VLC: Make sure that the 9070-IRW is set to be the DMZ host on the router that you are using, please refer to the routers manual on how to accomplish this.
  • Page 64 3.) On the bottom of the screen click the Reset preference button. 4.) On the bottom left hand side of VLC select the all under the show settings area. 5.) Then in the left panel select Input / Codecs > Demuxers > RTP/RTSPl and type in the RTSP user name and RTSP password.
  • Page 65 10.) Type in the RTSP address of your device For Mpeg4 Stream1 : rtsp://<IP Address>/mpeg4 For Mpeg4 Stream2 : rtsp://<IP Address>:8554/mpeg4 rtsp://122.116.137.123/mpeg4 Example: 11.) Hit the play button and wait a few seconds for the program to start streaming. - 65- Ref#90020326K0709...

  • Page 66: Using Cnt With Surf16 Ch

    9.) Using CNT with Surf16 CH CNT makes connecting to the IP Kamera 9070-IRW a very simple task. Using Surf 16 CH and multi device DVR monitoring software, you can easily view your 9070-IRW. Follow these simple steps: MAC Address There are two ways to find the MAC address in IP Edit .

  • Page 67: Frequently Asked Questions (F.a.q)

    Q6: How do I improve the image quality on this device? Ans: The Image quality of the 9070-IRW is dependent on the bit rate of the device. With a larger bit rate the device will naturally create higher quality image, but this will affect the smoothness of the streaming when accessed through the internet.

  • Page 68: Customer Feedback

    Your Feedback is definitely important for us to continue providing the great quality products and service that Aviosys has to offer. We definitely would like to know what you think about our products and how we can we can make your Aviosys experience even better.
