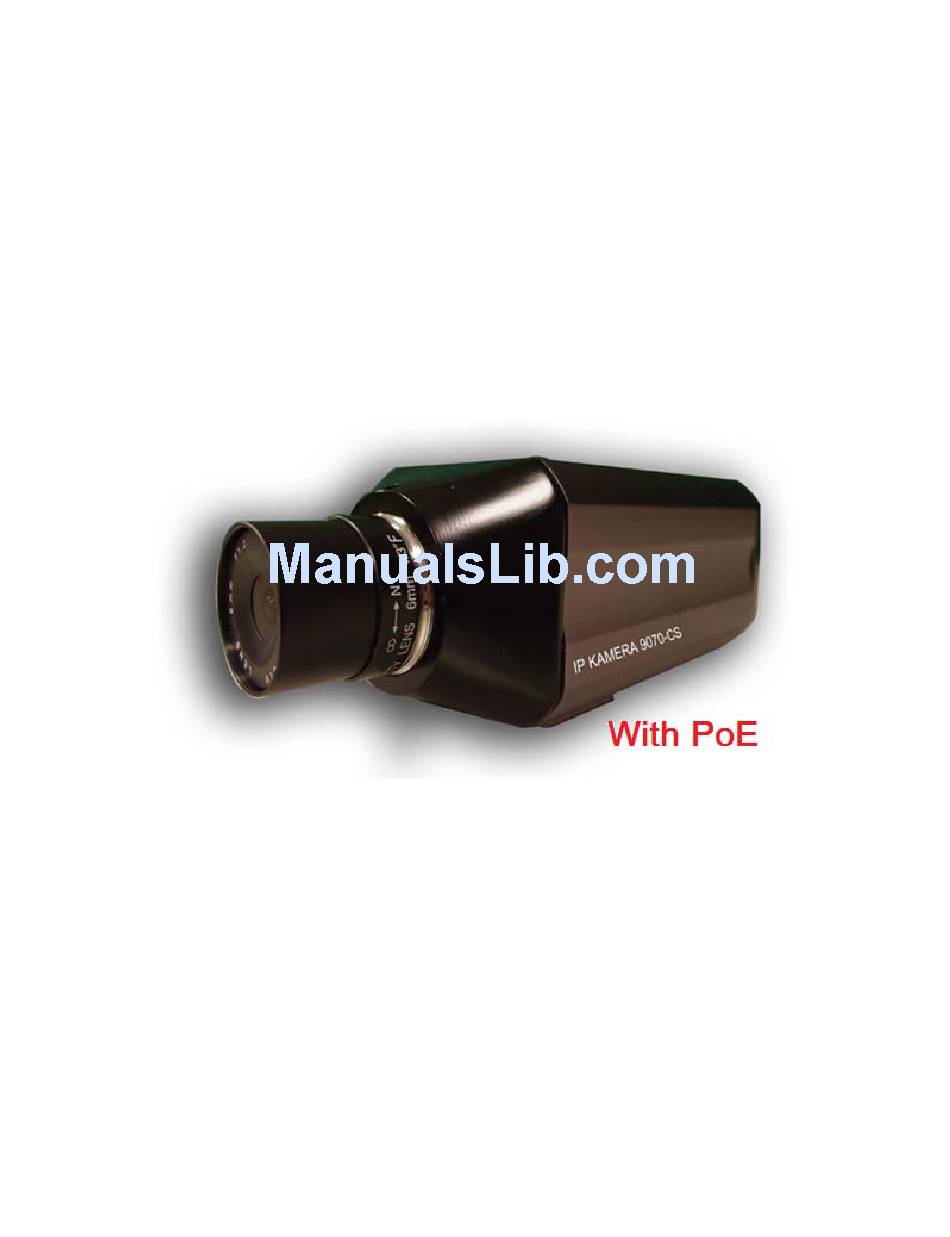

IP Kamera 9070CS-PoE

User Manual

Release Date: 10/20/2009
Manual Version: 1.3
- 1-
Ref#90020326K0709

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9070CS-PoE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aviosys 9070CS-PoE

Summary of Contents for Aviosys 9070CS-PoE

  • Page 1: User Manual

    IP Kamera 9070CS-PoE User Manual Release Date: 10/20/2009 Manual Version: 1.3 - 1- Ref#90020326K0709...
  • Page 2 Warning: Any changes made to this equipment without permission may cause damages to the device! IMPORTANT NOTICE 1. IP Kamera 9070-CS was designed for indoor use, the manufacturer responsibility for possible damages caused by outdoor use, especially in the rain. 2.

  • Page 3: Table Of Contents

    Table of Content   1.) WELCOME  ........................... 6     .......................... 6 NTRODUCTION     .................... 7 INIMUM  YSTEM  EQUIREMENTS   2.) PRODUCT OVERVIEW  ...................... 7     ........................... 7 EATURES    .......................... 7 PECIFICATION     ........................ 8 ACKAGE  ONTENTS     .......................... 8 ENS ...
  • Page 4    ...................... 22 HE  ONTROL  ONSOLE    .......................... 23 IVE  IDEO     .......................... 23 YPE AND     .......................... 24 OTION  ETECTION     .......................... 24 CTIVE  ECORD    ............................ 24 ECORD    ............................ 25 NAPSHOT    ............................. 25 MAGE   .............................. 26 UDIO    ............................. 26 MAGE    ...
  • Page 5   9.) USING CNT WITH SURF16 CH .................... 52     ...................... 52 INDING THE    DDRESS   CNT ...................... 52 DD DEVICE USING    10.) FREQUENTLY ASKED QUESTIONS (F.A.Q)  ................. 53 - 5- Ref#90020326K0709...

  • Page 6: Welcome

    1.) Welcome Introduction The IP Kamera9070-CS PoE provides reliable, high quality solution to IP Kameras. Its distinctive 720P HD quality picture, Tri-mode video capability, SD memory storage, RTSP broadcasting capability, internal microphone and many more functions makes this small device very powerful and unique. Using innovative IP technology, the built in web server of the IP Kamera9070-CS PoE will allow you to view your IP Kamera from any remote locations around the world while bringing you world class surveillance and ease of mind.

  • Page 7: Minimum System Requirements

    Minimum System Requirements CPU Minimum Requirements • Intel(R), Pentium(R), DUAL Core (D),CPU 3.0GHz or equivalent • Operating Systems: WINDOWS Operating Systems (IE5.0+SPI) • 512 MB system memory or above • Video Card: 3D hardware accelerator card required – 100% DirectX 9.0c compatible •...

  • Page 8: Package Contents

    Package Contents 1.)9070-CS PoE Unit x 1 ( Without Lens ) 2.) CS Lens Lens Specifications 1.) Format: 1/3” 2.) EFFL: 6MM 3.) Image Space F/#: F1.2 4.) Field Angle: 58 degree 5.) Stop: Fixed 6.) Focus Extension: 20cm--∞ 7.) Mount; CS 8.) Outside dimensions: 30 x 31.7 3.)9070-CS PoE Installation CD...

  • Page 9: Interface Description

    3.) Interface Description Rear Panel View Rear View SD Card The IP Kamera9070-CS PoE comes with a 512 MB SD Card Reset Button: Reset to Manufacturer Default: Hold Reset button for 5-10 Seconds and the device will reset to manufacturer default Video Out: The Video out requires a BNC connector to output video to a different source.

  • Page 10: Hardware Setup

    2.) Make sure the power adaptor is the correct specification. 3.) Make sure that all the cables are working correctly PoE Router Type The 9070CS-PoE can use all standards of PoE Routers. Option 1: Power can be sourced from the PSE through spare lines in the CAT-5 cable...

  • Page 11: The Network Uses A Router/Firewall To Connect Each Device To The Internet

    The network uses a Router/Firewall to connect each device to the internet In this case, the 9070-IR will need to be port forwarded on the router so that it can accessed by the internet. For example 9070-IR IP Address: 192.168.1.882 9070-IR Port: 9070 On the router that is being used port forwarded (port triggered) IP Address 192.168.1.882 and port 9070.

  • Page 12: Cs Lens

    In this case, the 9070-IR is being connected to the internet through a hub, which is different from a router. The hub does not provide DHCP, and therefore would require that this setup have a static IP Address that is provided by the ISP. Contact the ISP to find out the static IP address so that your device can be accessed through the internet.
  • Page 13 2.) Select the IP Kamera section and pick the IP Kamera and Model that you are using. 3.) Download the following software and save them to the appropriate locations. IPEdit - Device search tool which allows you to modify IP settings, find your on the local network and IP Service.

  • Page 14: Installing Vlc Codec

    Surf 16 CH – 16 Channel DVR, Monitoring, & Recording Software. Views up to 16 channels on one screen. 4.) Once installation is complete please double click the IPEdit to configure and search for your device. Installing VLC Codec The files that are recorded by the9070-CS PoE requires this codec so that you are able to view the view. Download the latest version of the VLC codec and install it into your computer.

  • Page 15: Quick Easy Setup (Recommended)

    2.) Open IPEdit and any device in the same network should automatically be detected and listed in the local devices sections. Note: If the device is not showing up, please hit the rescan button and wait about 1 minute Setup the Device: All devices will need to be on the same network if not the device cannot be accessed and will not be detected.

  • Page 16: Custom Setup (Advance Users)

    4.) Then hit the rescan button on IPEdit to confirm the changes have been made. Custom Setup (Advance Users) 1.) Highlight the device on the local devices section and on the right side of IPEdit all network information on the device will be displayed. If the device is not on the same network a Red Exclamation mark will appear in the IP Network information section...
  • Page 17 IP Address: Make sure the first 3 sections of the IP Address matches the gateway address. Example: Gateway Address – 192.168.1.1 IP Address – 192.168.1.xxx 3.) Once the Default Gateway information has been obtained, enter the correct information into IPEdit and hit the submit button. 4.) Then hit the rescan button on IPEdit to confirm the changes have been made.
  • Page 18 - 18- Ref#90020326K0709...

  • Page 19: Ip Service

    IP Service How to use IP Service on IPEdit: IP service allows the user to directly connect to his / her device through the internet without having to remember long confusing IP Address. Instead you only need to remember the name of the device that the you have selected.

  • Page 20: Web Interface

    6.) Web Interface Connecting to the 9070-CS Once the9070-CS PoE has been setup correctly and access your IP Kamera9070-CS PoE. An Internet Explorer browser screen pop up with the login screen. Default IP: 192.168.1.168 (When 9070 is connected to PC directly) Default Login: Admin Default Password: 12345678 1.) After you have logged into the device you will be required to install active x controls.
  • Page 21 3.) Then click the install button and install the active controls. 4.) Once activeX controls have been installed the video feed will show on the screen Note: If there is no active x controls that are showing up, please go to internet explorer and enable activeX controls.

  • Page 22: The Control Console

    The Control Console The IP Kamera9070-CS PoE Control Console starts in the Section of the webpage. In this section navigate to the other options and settings of the9070-CS PoE Live Video: The Live Video section allows the user to view the camera, change resolution views, Image: The Image section allows you to edit the image settings, including recording / viewing codec, frame rate, image tuning, brightness, contrast, saturation, and etc.

  • Page 23: Live Video

    Network: The network section allows you to change the devices network settings, ftp settings, smtp (email) settings, sntp settings, and IP service settings. System: The system section allows you to change the devices date and time, set time stamp for video, users, audio settings, update, event log.

  • Page 24: Motion Detection

    2X zoom: This 2X zoom is 2 times the normal view for that type. Scaled 720: Is a resolution only available in MPEG-4-1, which sets the picture at 720P. Screen Size: Will enlarge the image to the who size of the screen. This function is very useful when trying to display on larger monitors.

  • Page 25: Snapshot

    3.) Once the folder has been selected the device will start to record. To stop recording click on the red icon and it will return to the original state. Note: Remember you need VLC codec to play the video files that are recorded Snapshot Snapshot: The snapshot function, creates a easy way take pictures of the current view in the IP Kamera9070-CS PoE.

  • Page 26: Audio

    Audio Audio: The audio function allows you to hear the sounds coming from the IP Kamera 9070’s built in microphone. To turn on the audio function: 1.) Click on the Audio button 2.) Then the audio button will start to move showing that sound is being transferred 3.) To turn off the audio click on the button again.
  • Page 27 Resolution: Resolution (MPEG4+MPEG4+JPEG): M4:720P,M4:CIF,JPG:352 (MPEG4+JPEG): M4:VGA,JPEG:VGA (MPEG4+JPEG): M4:720,JPEG:352 (MEG4+MPEG4): M4:720,M4:CIF (Single MPEG4): M4:720 Color System: Select the broadcasting color system that pertains to your country. NTSC/60Hz PAL/50Hz Rate Control: Select the Bit Rate Control that fits your needs. CVBR: Constrained Variable Bit Rate CBR: Constant Bit Rate M-JPEG Settings: The available Quality settings and FPS for the M-JPEG settings are shown below M-JPEG Quality Settings...

  • Page 28: Tune Image

    From here you can control the live videos Zoom Function and direction. Also once EPTZ is enabled, in the Live View Screen buttons will appear on the bottom for you to pan, tilt, and zoom. Note: PTZ is only available in the mode below. When you enable PTZ it will automatically jump into that mode.

  • Page 29: Network

    Sharpness: Select a value between (0~255) Default: To Return all values to normal default click on this button. Note: Make sure you click on the Apply button to save any changes made Network Network The network section allows you to setup the network information for the IP Kamera 9070. IP Address: Actual IP Address of the device can be found here LAN IP Address: Local Area Network Address.

  • Page 30: Ftp

    The FTP section of the IP Kamera 9070 allows you to save video clips FTP Server: Enter the FTP server address here User Name: Enter the FTP Username Password: Enter the FTP Password File Upload Path: Enter the upload path of the FTP Server SMTP (Outgoing E-mail Server) Enter the SMTP E-mail server information here.

  • Page 31: Sntp

    SNTP The SNTP is a protocol for synchronizing the clocks of computer systems. SNTP Server: Enter the SNTP server address. Below are a list of free public NTP servers. Europe — europe.pool.ntp.org Asia — asia.pool.ntp.org Oceania — oceania.pool.ntp.org North America — north-america.pool.ntp.org South America —...

  • Page 32: System

    System The system section allows you to setup the IP 9070’s system configurations. This includes the following Date and Time Set the date and Time of the device here. The Local Time: The local time corresponds to the current time of the IP Kamera 9070. Time Setup: Setup the current time of the device here 1.) Set Manually: Set the time manually 2.) Synchronize with Computer Time: Synchronize the time with the current computers time...

  • Page 33: User

    User The user setting allows you to create and remove users for access to the IP Kamera 9070. Authority: Select one of the following options: Admin: You can operate all functions in Web interface. Also, you can add or delete any user’s account. Operator: You can operate all functions in Web interface except user Add/Delete.

  • Page 34: Update

    The language setting section is where you can select the language that you would like to use to use the 9070. Currently there are 3 languages available: English, Chinese (Traditional), Chinese (Simplified). The 9070 will automatically detect the favored language of choice depending the settings used in Windows. Update The Update Firmware section is where information on the 9070 is displayed.
  • Page 35 To update the device go to the update section. Here you will find the Current Version description. To update the device: 1.) Browse for the correct update file. 2.) Hit the update button. 3.) A message will appear, reminding you not to disconnect when updating. 4.) Please view the bar on the bottom of internet explorer to make sure that the device is updated.
  • Page 36 To update the device go to the update section. Here you will find the Current Version description. To update the device: 8.) Browse for the correct update file. 9.) Hit the update button. 10.) A message will appear, reminding you not to disconnect when updating. 11.) Please view the bar on the bottom of internet explorer to make sure that the device is updated.

  • Page 37: Event Log

    Event Log Application The Application Section allows you to setup the Video File information, FTP, SD Card, SMTP Setting Snapshot Path The Snapshot path is the location where the snapshot pictures will be saved onto your computer. The default snapshot path will be set to C:\. To select the snapshot path click on the button and select the folder where the snapshots will be saved.
  • Page 38 Video File Select the Video File format that the device will record in. 1.) Avi Duration: From the drop-down list, select the length of an AVI file. 2.) Avi Format: MPEG4(720) MPEG4(CIF) 3.) Hit the submit button to confirm new settings. In the FTP section, you can set the file format that you would like to use for FTP transfer.
  • Page 39 SD Card File Format: Select the video format that you would like to save into the SD card Split Filename Type: Select the format that you would like to save the files in the SD card. You can pick from: Name by Index: Creates file names according to index.
  • Page 40 EZ-Blog EZ Blog allows you to easily integrate code into your blog which will let you directly stream into your blog, website, and any compatible site. This way you can IP Kamera as more than a regular security camera but also a promotional tool. User List: This shows the Users Available to create an Ez Blog link with.

  • Page 41: Media Player

    4.) You can highlight the embed code from inside the box and then copying (ctrl + C) or you can just hit the copy button to copy the code. 5.) Once the code has been copied, place that code somewhere in the body of your blog or website and a video will be displayed on the screen.
  • Page 42 My Web The My-Web functionality will make your IP Kamera more than just a surveillance tool. Now you can use it to promote your company, restaurant, business, school, and etc. With some basic website skills or tools any can make a My Web site. Turning On My Web - 42- Ref#90020326K0709...
  • Page 43 Enable my web button: The enable My Web button will activate the My Web functionality. Once enabled every time the device is accessed it will be set to the My Web Page. Login Required: The login required will require your My Web users to login to the device before being able to use it.

  • Page 44: Schedule Record

    3.) If you would like to return to the normal administrator page for the 9070 you can login to the admin site. For Example: 9070 IP Address: 192.168.12.111 Port:8080 Then on the web browser type in the following http://192.168.12.111:8080/index.htm Schedule Record Schedule The schedule allows you to select days and times that you would like to schedule automatic recording.

  • Page 45: Alarm

    Alarm Enable Alarm Enable Alarm – Lost Ethernet Connection: Save into SD Card: When Ethernet connection is lost the device will automatically save into the SD card. Saving a backup. Enable Alarm - Upload When motion is detected, the IP Kamera 9070 will upload the video file to the selected FTP server. Enable Alarm - Save Into SD Card When motion is detected, the IP Kamera 9070 will upload the video file to the SD card.
  • Page 46 Motion Detection To enable motion detection: 1.) Select Enable in the motion detection option. 2.) Select the sensitivity of your choice You can pick from Lowest, Low, Medium, High, Highest You can also customize your own threshold from (1-99) 3.) Once you have set your settings on the window screen click on the picture where you want the motion to be detected.

  • Page 47: Eptz-Set

    EPTZ-Set The EPTZ allows you to Pan, Tilt, & Zoom the image that you are viewing. To activate this feature EPTZ must be enabled in the Image section of the9070-CS PoE. Note: When EPTZ Controller is activated Video Codec mode will be switched to MPEG4 & M-Jpeg when disabled the codec will be set on Mpeg1, Mpeg2, &...

  • Page 48: Controlling The Device

    7.) Controlling the Device CGI HTTP Commands Http commands allow you to control the device with commands. The basic commands are provided below. There are two ways to input http commands with authorization required Password in http: http://login:password@ipaddress:port/command Password not in http: http://ipaddress:port/command Note: If you use the password not in http: command you will need to enter it when the browser asks for the password.

  • Page 49: Change Gateway

    Ex. http command http://192.168.1.192/vb.htm?subnetmask=255.255.0.0 Note: Default subnet mask is 255.255.0.0 Change Gateway: This command allows you to change the gateway the IP Kamera9070-CS PoE. http://ipaddress:port/vb.htm?gateway=gatewayaddress Ex. http command http://192.168.1.192/vb.htm?gateway=192.168.1.1 Change DNS: This command allows you to change the gateway the IP Kamera9070-CS PoE. http://ipaddress:port/vb.htm?dnsip=dnsipaddress Ex.
  • Page 50 Check the Cache value. For low latency, it should be 70~80 based on PC’s performance. Note: If the video is not smooth, set the caching value from 150~1200. This problem could be due to too much congestion, busy pc, and etc. 7.) Save the new settings 8.) Then go back to the VLC media player and go to Media >...
  • Page 51 Hit the play button and wait a few seconds for the program to start streaming. - 51- Ref#90020326K0709...

  • Page 52: Using Cnt With Surf16 Ch

    9.) Using CNT with Surf16 CH CNT makes connecting to the IP Kamera 9070 a very simple task. Using Surf 16 CH and multi device DVR monitoring software, you can easily view your 9070CS. Follow these simple steps: Finding the MAC Address There are two ways to find the MAC address in IPEdit.

  • Page 53: Frequently Asked Questions (F.a.q)

    3.) Do not forget to enter the password and login. 10.) Frequently Asked Questions (F.A.Q) Q1: Why can’t I view the video files that I have recorded, nothing is playing? Ans: VLC Codec, you can download VLC Codec from their website at: Q2: How do I reset the device to manufacturers default values Ans: On the back of the device there is a reset button, hold down the reset button for more than 7 seconds.
