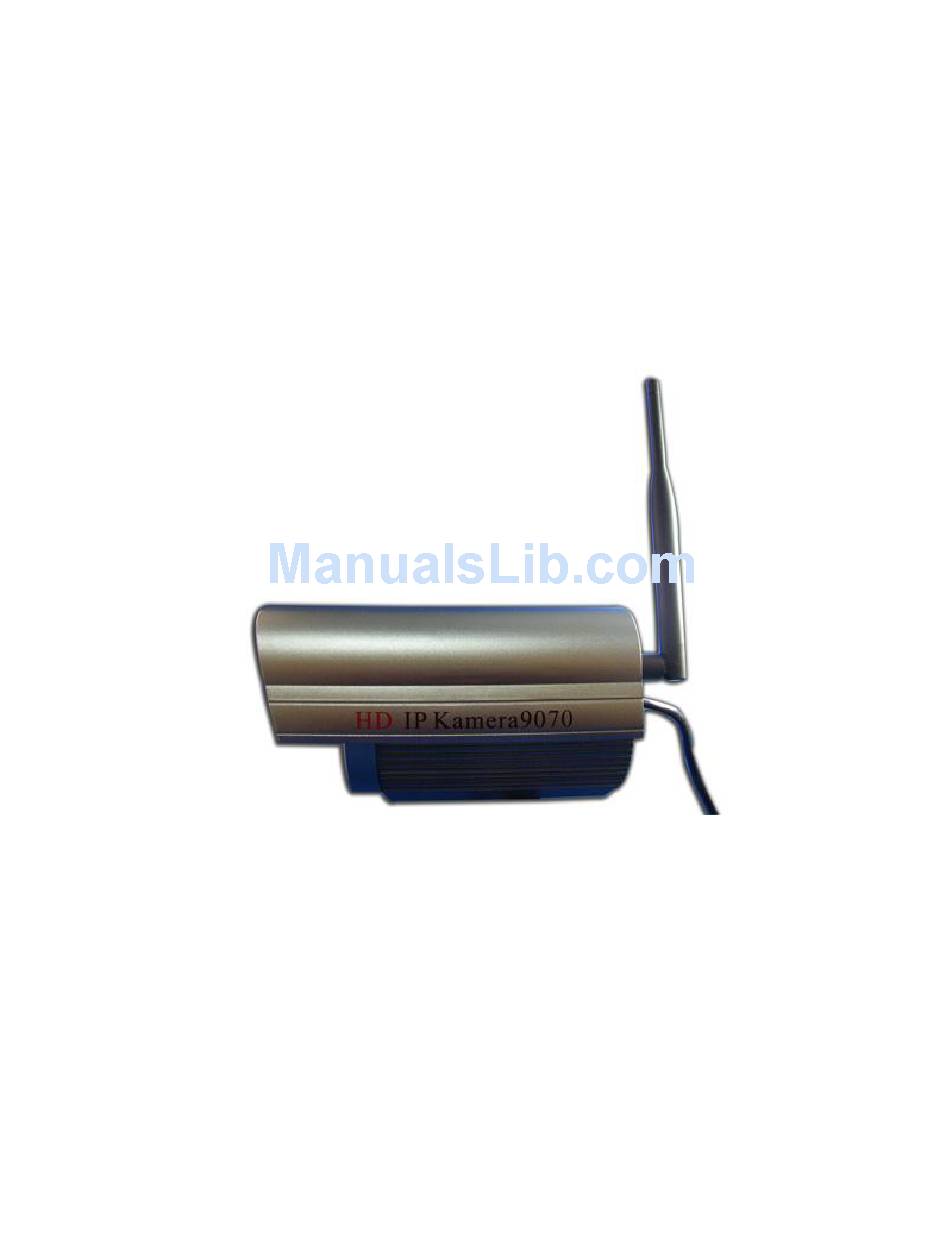

Page 1: User Manual
IP Kamera 9070-IRW User Manual Release Date: 2010/7/22 Manual Version: V1.00 Firmware Version : V1.2.1.4plus - 1- Ref#90020326K0709... - Page 2 4. Do not shake the IP Kamera 9070-IRW in any fashion 5. Please contact the dealer If IP Kamera 9070-IRW is not working properly. Copyright © 2010 All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of us.
-
Page 3: Table Of Contents
ETTINGS Step by Step: ............................17 Advance Setup: ........................... 19 IP S ..............................22 ERVICE 6.) WEB INTERFACE ..........................24 9070-IRW ........................24 ONNECTING TO THE ............................. 26 ONSOLE ..............................27 IDEO Type and Zoom ............................ 27 Motion Detection ..........................28 Mouse EPTZ ............................ - Page 4 SNTP ..............................36 IP Service ............................. 37 RTSP ..............................38 ..............................38 YSTEM Date and Time ............................. 39 Time Stamp ............................39 User ..............................40 Night Vision ............................40 Device Tune Up ........................... 41 Language Settings ..........................41 Update ..............................42 Event Log .............................
-
Page 5: Welcome
The built in web server of the IP Kamera 9070-IRW will allow the IP Kamera to be viewed from any remote locations around the world while bringing ease of mind. Furthermore, with CNT technology the 9070-IR is easy to setup &... -
Page 6: Minimum System Requirements
Minimum System Requirements CPU Minimum Requirements Intel(R), Pentium(R), DUAL Core (D),CPU 3.0GHz or equivalent Operating Systems: WINDOWS Operating Systems (IE5.0+SPI) 512 MB system memory or above Video Card: 3D hardware accelerator card required – 100% DirectX 9.0c compatible ... -
Page 7: Package Contents
Package Contents 1.) 9070-IRW Unit x 1 with Lid 3.) 9070-IRW Installation CD 4.) AC Adaptor (AC adaptor will be included and will correspond to the countries power standards) Specs: Input: 100-250Vac /47-63Hz, 1A Output: 12Vdc/1A Max: 12W 5.) Camera Mounting Bracket 6.) Wireless N Antenna Bar... -
Page 8: Interface Description
3.) Interface Description Rear View & Cable Description Rear View: Cable and Antenna hole for Wireless Cables: DC 12 V Power Input: Plugs in the Power Adapter to the DC 12V Card RJ45 Ethernet: Plug in the RJ45 Ethernet cable to the Ethernet Reset Button: Reset to Manufacturer Default: Hold Reset button for 5-10 Seconds and the device... -
Page 9: Hardware Setup
2.) Make sure the power adaptor is the correct specification. 3.) Make sure that all the cables are working correctly Internet Accessible Setup The internet connection can be setup in two main ways so that the 9070-IRW can be accessed through the internet Router / Firewall Setup... -
Page 10: Static Ip Setup
Static IP Address provided by the ISP. In this case, the 9070-IRW is being connected to the internet through a hub, which is different from a router. The hub does not provide DHCP, and therefore would require that this setup have a static IP Address that is provided by the ISP. -
Page 11: Software Setup
5.) Software Setup The software for the device is located on the Media Link-IP Family CD that came with the device. IP Kamera Pack is located on the main page of the CD. Please follow the directions carefully and install the necessary files Software 1.) First place the Media Link-IP Family CD that came with your device into your CD/DVD Rom drive. -
Page 12: Installing Vlc Codec
3.) Download the following software and save them to the appropriate locations. IP Edit - Device search tool which allows you to modify IP settings, find your on the local network and IP Service. Surf 16 CH – 16 Channel DVR, Monitoring, & Recording Software. Views up to 16 channels on one screen. -
Page 13: Ip Edit
IP Edit IP Edit is a search tool designed to setup and access the IP Kamera 9070 IRW. IP Service is an additional feature which searches for the device easily without having to remember long complicated IP addresses. Instead, this technology allows the user find his or her device through the internet just by device name. -
Page 14: Quick Easy Setup (Recommend For Beginner Users)
Setup the Device: All devices will need to be on the same network if not the device cannot be accessed and will not be detected. Quick Easy Setup (Recommend for Beginner Users) 1.) Click on the REF button, and wait a few seconds. IP Edit will automatically detect the network settings and setup the device. -
Page 15: Custom Setup (Advance Users)
Custom Setup (Advance Users) 1.) Highlight the device on the local devices section and on the right side of IP Edit all network information on the device will be displayed. If the device is not on the same network a Red Exclamation mark will appear in the IP Network information section 2.) To setup the device, you will need type in the correct Gateway and IP Address. - Page 16 3.) Once the Default Gateway information has been obtained, enter the correct information into IP Edit and hit the submit button. 4.) Then hit the rescan button on IP Edit to confirm the changes have been made. - 16- Ref#90020326K0709...
-
Page 17: Setting Up Wireless Settings
Setting up Wireless Settings Step by Step: 1.) After log in web page, please go to the network settings on the bottom and select Wireless. A new window should pop up with the wireless settings 2.) Select the Step by Step option on the wireless screen. 3.) Click on the for more information on how to setup the device. - Page 18 5.) Type in the passphrase for the router and hit the apply button. 6.) Wait about 60 seconds for device to connect. 7.) Then check to see for the connection successful under the connection status and the device is good to go. - 18- Ref#90020326K0709...
-
Page 19: Advance Setup
8.) Unplug the RJ45 cable of the device and search on IPEdit for the new wireless settings. You will see a (W) next to your device in IPEdit which means wireless is activated. If the RJ45 cable is not disconnect you will see two IP Address on the device. - Page 20 Then hit apply to save all settings and wait about 60 seconds for device to connect. Then go back to the Main Wireless page and click on the on link under Advance for more options. Select the Profile link to see the profiles that you have added to the device. - 20- Ref#90020326K0709...
- Page 21 Click on your newly added profile and hit the activate button to start up the Wireless settings. Then click on Link Status to make sure that your device is connected to the wireless network. Note: If the device is connected it will show some information in the Link Status page. - 21- Ref#90020326K0709...
-
Page 22: Ip Service
Then the user can connect to IP Service, type in the device name, and connect directly to the device. Note: IP Kamera 9070-IRW requires you to select Server 2 on IP Service 1.) Open IP Edit, the device will show up in the Local Device Section. If you have not selected a name for the device, please refer to the section on the manual labeled: ―Naming your device‖. - Page 23 4.) Double click on your device and an Internet Explorer window will appear connecting directly to your device. Note: It is crucial to have the IP Address of the device port forwarded from the router that you are using so you can connect to your device from anywhere. Please refer to your routers user manual on how to port forward your device.
-
Page 24: Web Interface
6.) Web Interface Connecting to the 9070-IRW Once the 9070-IRW has been setup correctly, connect to the login page. An Internet Explorer browser screen pop up with the login screen. Default IP: 192.168.1.168 (When 9070-IRW is connected to PC directly) - Page 25 Note: If there is no active X controls that are showing up, please go to internet explorer and enable active X controls. - 25- Ref#90020326K0709...
-
Page 26: Web Console
The IP Kamera 9070-IRW Control Console starts in the Section of the webpage. In this section navigate to the other options and settings of the 9070-IRW Live Video: The Live Video section allows the user to view the camera, change resolution views, Image: The Image section allows you to edit the image settings, including recording / viewing codec, frame rate, image tuning, brightness, contrast, saturation, and etc. -
Page 27: Live Video
Live Video The Live video section of the IP Kamera 9070-IRW is where the user can view the video of the device. From here resolution, record onto current pc, take a snapshot, zoom, and detect motion detection settings can be changed. -
Page 28: Motion Detection
Motion Detection Motion Detection: The motion detection icon will display when motion has been detected. This setting must be activated in the application section When no motion is detected the motion detection icons will look like the following. No Motion Detected But, in the case that motion is detected and recording has started, the icon will look will light up blue. -
Page 29: Record
Record Record: The record button on the 9070-IRW when pressed will record the live video feed and save the video into the computer viewing. To record follow the following steps: 1.) Select the recording path that you would like to store the file under in the applications tab in snapshot path. -
Page 30: Image
Image The image section allows you to change the Image settings for the device and tune the image of the IP Kamera 9070-IRW Image Settings The Image settings section allows you to change the video settings and the Name of the Kamera. - Page 31 Resolution: In the resolution section you can select from the following options. Resolution (MPEG4+MPEG4+JPEG): M4:720P,M4:CIF,JPG:352 (MPEG4+M-JPEG): M4:VGA,JPEG:VGA M4:720P, JPG:720 (MPEG4-1+MPEG4-2) M4:720,M4:CIF Not supported in Firefox: (Single MPEG4): M4:720 (Single MJPEG): M4:720 Color System: Select the broadcasting color system that pertains to your country. NTSC/60Hz PAL/50Hz Each country has their TV broadcasting standard, please check with your local service provider to find out if...
-
Page 32: Tune Image
Fiber Optics: High speed fiber optics provides the best solution for outside the network because it is very fast. Intranet (LAN): When using the IP Kamera from within the network this is the best option. Custom: This setting allows you to manually input a setting for the Bit Rate, FPS, and picture quality. M-JPEG Settings: The available Quality settings and FPS for the M-JPEG settings are shown below M-JPEG Quality Settings High... -
Page 33: Network
TV Output: Select the mode enable or disable to output to a T.V Binning / Skipping mode: Binning enables low light-light performance. Select Binning, Skipping, 4x Binning mode (default is Binning) BLC (Backlight control): Select from one of the options on or off to control the Backlight: Select a value between (0~100%) Brightness: Select a value between (0~100%) Contrast: Select a value between (0~100%) - Page 34 Default Gateway: The default gateway address is the address to connect to the router. DNS Server: Domain Name System Address Http Port: Enter the port that you would like the 9070 to connect on. MAC: The Mac Address or physical address of the device Note: Make sure you click on the Apply button to save any changes made - 34- Ref#90020326K0709...
-
Page 35: Wireless Settings
Wireless Settings The wireless settings section will allow you to setup the wireless feature of the 9070-IRW. Please refer to page 18 or Setting up wireless section for more details. The FTP section of the IP Kamera 9070 allows you to save video clips FTP Server: The FTP server address is where the IP Address of the FTP server will be entered. -
Page 36: Sntp
My Server Requires Authentication: Some servers require SMTP Authentication for security purposes. If your email server requires this option, make sure to have this section checked. Account Name: Enter then login of the mail account Password: Enter the password of the E-mail account Use SSL Connect: If the email server requires SSL (Secure Sockets Layer) this option need Sender Email: Enter the Sender Email Address SMTP Server: Enter the SMTP Outgoing mail address... -
Page 37: Ip Service
Power and Video Server: This is the server where most IP Power products and IP Video server products can be found. Kamera Server: This is the IP server where most IP Kamera products from Aviosys will be found on. CNT Server: Cross Network Technology Sever. CNT allows user to connect to their IP Kamera without having to Port Forward to the device. -
Page 38: Rtsp
Once this section has been made you can come here to verify that Note: This function is for IP Surf Pop software. Please refer to the IP Surf Pop manual for more information at www.Aviosys.com RTSP Real Time Streaming Protocol (RTSP) gives the device another way to stream live video. Using programs that support RTSP, you can broadcast the videos from the 9070 live. -
Page 39: Date And Time
Date and Time Set the date and Time of the device here. The Local Time: The local time corresponds to the current time of the IP Kamera 9070. Time Setup: Setup the current time of the device here 1.) Set Manually: Set the time manually 2.) Synchronize with Computer Time: Synchronize the time with the current computers time 3.) Synchronize with SNTP: Synchronize with SNTP Time Stamp... -
Page 40: User
User In this section, you can create different user access rights for different types of users. Authority: Select one of the following options: Admin: You can operate all functions in Web interface. Also, you can add or delete any user’s account. Operator: You can operate all functions in Web interface except user Add/Delete. -
Page 41: Device Tune Up
Device Tune Up The device tune up resets the 9070 to make sure that the device is running smoothly. This resets the internal memory of the device by restarting the 9070. You can set the Device tune up to reset each hour, day Month, or Week Language Settings The language setting section is where you can select the language that you would like to use to use the... -
Page 42: Update
Update The Update Firmware section is where information on the 9070 is displayed. The Kernel Version, Uboot Version, Firmware Version, and other technical information on the device is displayed here. Updating the Device To update the device go to the update section. Here you will find the Current Version description. To update the device: 1.) Browse for the correct update file. -
Page 43: Event Log
4.) Please wait for the loading circle to finish, and wait for an update confirmation page. 5.) Once the device is updated you will see a update confirmation and click okay. Warning: Before you go to the next step make sure you have all your setting information written down. -
Page 44: Application
Application The Application Section allows you to setup the Video File information, FTP, Memory Management, SMTP Settings Snapshot Path The Snapshot path is the location where the snapshot pictures will be saved onto your computer. The default snapshot path will be set to C:\. To select the snapshot path click on the button and select the folder where the snapshots will be saved. - Page 45 Recording Format Select the Video File format that the device will record in. 1.) Avi Format: MPEG4 (720) & MPEG4 (CIF) 2.) Avi Duration: From the drop-down list, select the length of an AVI file, then press submit The FTP section allows you to view your current FTP settings. From here you may have to un-mount the SD memory so that you can record in MPEG4 format.
- Page 46 Note: 1.) Before you use the FTP function, you will need to set the FTP server information. You can click on the link to take you to the FTP setup section. 2.) If the SD Card is inserted into the device, the 9070 will only be able to record in M-Jpeg mode to the FTP.
- Page 47 In the settings section, you can find the SMTP information by clicking on the SMTP tab. Here you can see the current SMTP Server information and email address. Storage Settings You can also select the file format in which you would like the IP Kamera 9070-IRW to send. Select from MPEG4 or MJPEG. - 47-...
- Page 48 EZ-Blog Note: To use the Ez Blog functionality, please make sure that your device has been port forwarded so that it can be accessed through the internet. EZ Blog allows you to easily integrate code into your blog which will let you directly stream into your blog, website, and any compatible site.
- Page 49 Media Player The media player allows you to view your recordings on the SD card directly through the internet without requiring downloading the file first. This feature makes it very convenient for live streaming. View in Full Screen To view the IP Kamera in full screen model you will need to press the Full Screen mode. - 49- Ref#90020326K0709...
- Page 50 My Web The My-Web functionality will make your IP Kamera more than just a surveillance tool. Now you can use it to promote your company, restaurant, business, school, and etc. With some basic website skills or tools any can make a My Web site. Turning On My Web Enable my web button: The enable My Web button will activate the My Web functionality.
- Page 51 How to use my WEB 1. Download sample. 2. Save the zip file to the location . Press browse, and select the zip file you download. 4. Press upload and send the zip file to 9070 web. 5. Confirm setting . *** If familiar with webpage langrage, you can change the webpage in zip file to your own webpage.
-
Page 52: Schedule Record
Then on the web browser type in the following http://192.168.12.111:8080/index.htm Use can get 9070-IRW message by RSS as Snapshot, Motion detection , Record as motion ***Notice: User need to register in DDNS *** In the Dyndns section, type in the Dyndns that you register from www.dyndns.com and add a /rss20. -
Page 53: Schedule Recording
The schedule allows you to select days and times that you would like to schedule automatic recording. You can pick a day from (Sunday – Saturday) and also a option for Everyday. To schedule automatic recording: 1.) Select the day that you would want to start recording. 2.) Select the From time and the To time. -
Page 54: Alarm
SMTP When motion is detected, the IP Kamera 9070 will send the video file to in a E-mail format. Recording Time: Set the duration of time you would like the IP Kamera 9070-IRW to record when alarm is set off. - Page 55 Motion Detection To enable motion detection: 1.) Select Enable in the motion detection option. 2.) Select the sensitivity of your choice You can pick from Lowest, Low, Medium, High, Highest You can also customize your own threshold from (1-99) 3.) Once you have set your settings on the window screen click on the picture where you want the motion to be detected.
-
Page 56: Media Player
Media Player The media player allows you to view your recordings on the SD card directly through the internet without requiring downloading the file first. This feature makes it very convenient for live streaming. View in Full Screen To view the IP Kamera in full screen model you will need to press the Full Screen mode. Logout When you are done use the IP Kamera 9070 CSWO/CSO the logout function allows you to easily logout of your device. -
Page 57: Controlling The Device
7.) Controlling the Device CGI HTTP Commands Http commands allow you to control the device with commands. The basic commands are provided below. There are two ways to input http commands with authorization required Password in http: http://login:password@ipaddress:port/command Password not in http: http://ipaddress:port/command Note: If you use the password not in http: command you will need to enter it when the browser asks for the password. -
Page 58: Change Name
This command allows you to change the name of the IP Kamera 9070-IRW http://ipaddress:port/vb.htm?cameratitle=name Ex. http command: http://192.168.1.192/vb.htm?cameratitle=test_907011 Change IP Address: This command allows you to change the IP Address of the IP Kamera 9070-IRW http://ipaddress:port/vb.htm?internetip=ipaddress Ex. http command: http://192.168.1.192/vb.htm?internetip=192.168.1.191 Change Port: This command allows you to change the Port of the IP Kamera 9070-IRW http://ipaddress:port/vb.htm?httpport=portnumber... -
Page 59: Mjpeg Streaming
8.) Using RTSP with VLC Before Setting up VLC: Make sure that the 9070-IRW is set to be the DMZ host on the router that you are using, please refer to the routers manual on how to accomplish this. - Page 60 Check the Cache value. For low latency, it should be 70~80 based on PC’s performance. Note: If the video is not smooth, set the caching value from 150~1200. This problem could be due to too much congestion, busy pc, and etc. 7.) Save the new settings 8.) Then go back to the VLC media player and go to Media >...
- Page 61 10.) Type in the RTSP address of your device For Mpeg4 Stream1 : rtsp://<IP Address>/mpeg4 For Mpeg4 Stream2 : rtsp://<IP Address>:8554/mpeg4 rtsp://122.116.137.123/mpeg4 Example: 11.) Hit the play button and wait a few seconds for the program to start streaming. - 61- Ref#90020326K0709...
-
Page 62: Using Cnt With Surf16 Ch
9.) Using CNT with Surf16 CH CNT makes connecting to the IP Kamera 9070 a very simple task. Using Surf 16 CH and multi device DVR monitoring software, you can easily view your 9070-IRW. Follow these simple steps: MAC Address There are two ways to find the MAC address in IP Edit . -
Page 63: Frequently Asked Questions (F.a.q)
Ans: On the back of the device there is a reset button, hold down the reset button for more than 7 seconds. Then give the 9070-IRW a 1 minute to restart. Once the device has restarted it will be set back to manufacturer default settings. -
