Summary of Contents for Aviosys IP Kamera 9070-IR
-

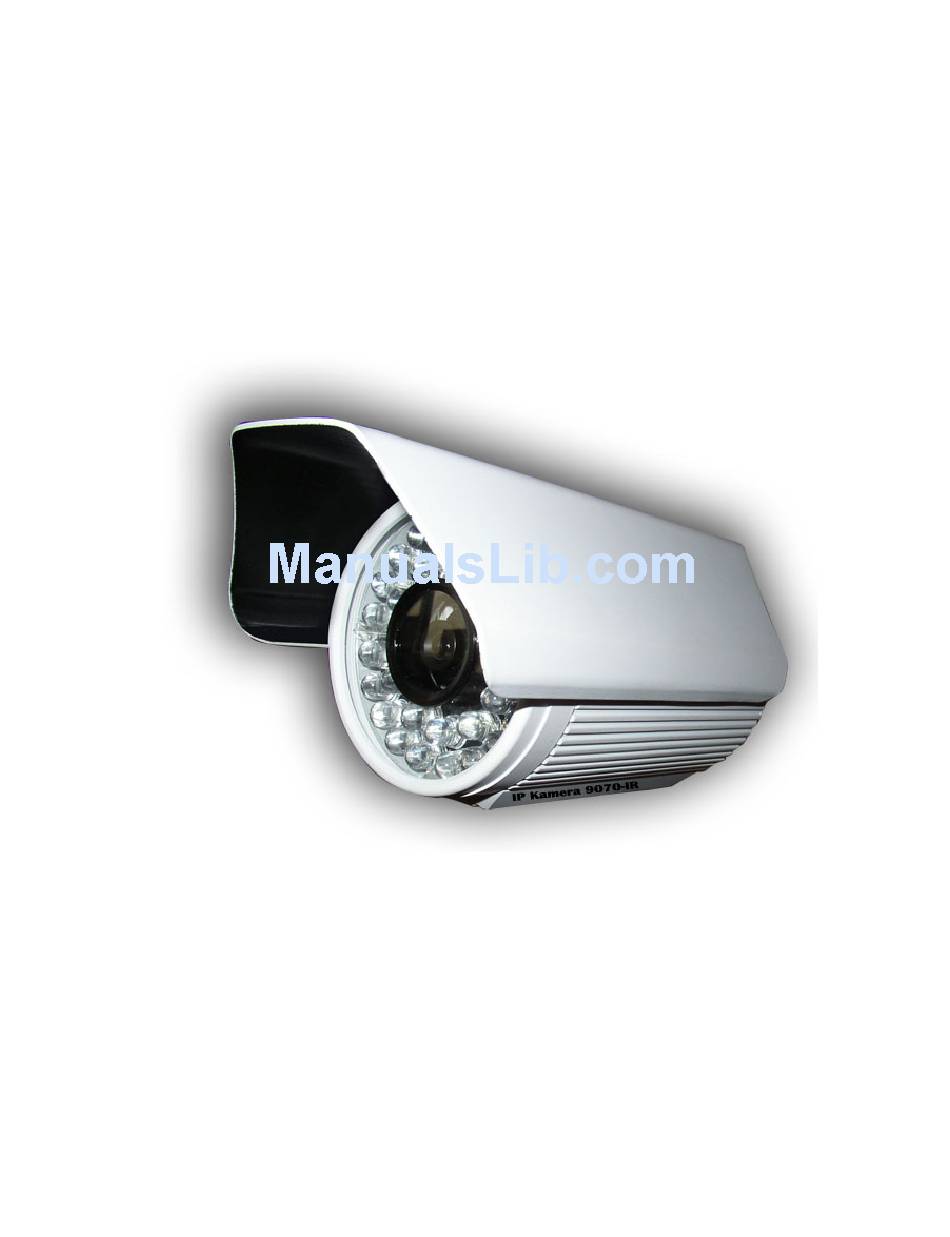

Page 1: User Manual
IP Kamera 9070-IR User Manual Release Date: 10/20/2009 Manual Version: 1.2 - 1- Ref#90020326K0709... - Page 2 4. Do not shake the IP Kamera 9070-IR in any fashion 5. Please contact the dealer If IP Kamera 9070-IR is not working properly. Copyright © 2008 All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of us.
-
Page 3: Table Of Contents
Table of Content .......................... 5 NTRODUCTION .................... 5 INIMUM YSTEM EQUIREMENTS 2.) PRODUCT OVERVIEW ...................... 6 ........................... 6 EATURES .......................... 6 PECIFICATION ........................ 7 ACKAGE ONTENTS 3.) INTERFACE DESCRIPTION .................... 8 ........................ 8 ABLE ESCRIPTION 4.) HARDWARE SETUP ... - Page 4 .......................... 26 ETWORK ............................ 26 ETWORK FTP .............................. 27 SMTP E‐ ) ..................... 27 UTGOING MAIL ERVER SNTP .............................. 28 ............................ 28 ERVICE ........................... 29 YSTEM .......................... 29 ATE AND ............................. 29 IME TAMP ............................... 30 ...
-
Page 5: Introduction
The built in web server of the IP Kamera 9070-IR will allow the IP Kamera to be viewed from any remote locations around the world while bringing ease of mind. Furthermore, with CNT technology the 9070-IR is easy to setup & use, simply just plug and play. -
Page 6: Product Overview
2.) Product Overview Features Tri-Mode Camera (MPG4-1/MPEG4-2/M-Jpeg) Advance Motion detection trigger AVI /Jpeg save on FTP / SD card or Email 3 layers (Admin, Operator, and User) Password protected Resolution from CIF 352x192 up to HD 1280x720P Supports NTP protocol to get correct time schedule. 1/2.5”... -
Page 7: Package Contents
Package Contents 1.) 9070-IR Unit x 1 with Lid 3.) 9070-IR Installation CD 4.) AC Adaptor (AC adaptor will be included and will correspond to the countries power standards) Specs: Input: 100-250Vac /47-63Hz, 1A Output: 12Vdc/1A Max: 12W 5.) Camera Mounting Bracket... -
Page 8: Interface Description
3.) Interface Description Cable Description Cables DC 12 V Power Input: Plugs in the Power Adapter to the DC 12V Card RJ45 Ethernet: Plug in the RJ45 Ethernet cable to the Ethernet Reset Button: Reset to Manufacturer Default: Hold Reset button for 5-10 Seconds and the device will reset to manufacturer default. -
Page 9: Internet Accessible Setup
The internet connection can be setup in two main ways so that the 9070-IR can be accessed through the internet The network uses a Router/Firewall to connect each device to the internet In this case, the 9070-IR will need to be port forwarded on the router so that it can accessed by the internet. For example 9070-IR IP Address: 192.168.1.882... -
Page 10: Software Setup
In this case, the 9070-IR is being connected to the internet through a hub, which is different from a router. The hub does not provide DHCP, and therefore would require that this setup have a static IP Address that is provided by the ISP. -
Page 11: Installing Vlc Codec
3.) Download the following software and save them to the appropriate locations. IPEdit - Device search tool which allows you to modify IP settings, find your on the local network and IP Service. Surf 16 CH – 16 Channel DVR, Monitoring, & Recording Software. Views up to 16 channels on one screen. -
Page 12: Quick Easy Setup (Recommended)
2.) Open IPEdit and any device in the same network should automatically be detected and listed in the local devices sections. Note: If the device is not showing up, please hit the rescan button and wait about 1 minute Setup the Device: All devices will need to be on the same network if not the device cannot be accessed and will not be detected. -
Page 13: Custom Setup (Advance Users)
3.) Hit yes to confirm and Enter the login and password for the Device to Approve changes 4.) Then hit the rescan button on IPEdit to confirm the changes have been made. Custom Setup (Advance Users) 1.) Highlight the device on the local devices section and on the right side of IPEdit all network information on the device will be displayed. - Page 14 2.) To setup the device, you will need type in the correct Gateway and IP Address. The Gateway Address: The gateway address can be obtained in Windows under the network connections page IP Address: Make sure the first 3 sections of the IP Address matches the gateway address. Example: Gateway Address –...
-
Page 15: Ip Service
Please refer to your routers user manual on how to port forward your device. 6.) Web Interface Connecting to the 9070-IR Once the 9070-IR has been setup correctly, connect to the login page. An Internet Explorer browser screen pop up with the login screen. - 15- Ref#90020326K0709... - Page 16 Default IP: 192.168.1.168 (When 9070-IR is connected to PC directly) Default Login: Admin Default Password: 12345678 1.) After logging into the device active x controls will be required to be installed. If this screen does not appear make sure that active x has been allowed in internet explorer.
- Page 17 3.) Then click the install button and install the active X controls. 4.) Once activeX controls have been installed the video feed will show on the screen - 17- Ref#90020326K0709...
- Page 18 Note: If no active x controls are showing up, please go to internet explorer and enable activeX controls. - 18- Ref#90020326K0709...
-
Page 19: The Control Console
The IP Kamera 9070-IR Control Console starts in the Section of the webpage. In this section navigate to the other options and settings of the 9070-IR Live Video: The Live Video section allows the user to view the camera, change resolution views, Image: The Image section allows the user to adjust the image settings, including recording / viewing codec, frame rate, image tuning, brightness, contrast, saturation, and etc. -
Page 20: Live Video
Live Video The Live video section of the IP Kamera 9070-IR is where the user can view the video of the device. From here resolution, record onto current pc, take a snapshot, zoom, and detect motion detection settings can be changed. -
Page 21: Motion Detection
To Zoom In: To Zoom into the picture move the mouse cursor over the picture and click and hold the left mouse. To Zoom Out: To Zoom out of the picture move the mouse cursor over the picture and click and hold the right mouse. -
Page 22: Record
Automatic Recording Inactivated Automatic Recording Activated Record Record: The record button on the 9070-IR when pressed will record the live video feed and save the video into the computer viewing. To record follow the following steps: 1.) Click on the record button 2.) Then select the designated folder to store the file. -
Page 23: Image
2.) In explorer go to the selected path and the files will be created there. Image The image section changes the Image settings for the device and tunes the image of the IP Kamera 9070-IR Image Settings The Image settings section changes the video settings and the Name of the Kamera. - Page 24 FPS: Select a FPS from 15fps or 7.5fps Enable EPTZ: The EPTZ on the IP Kamera 9070-IR a virtual EPTZ function. This function allows the user to control the video on the Live Video mode by moving left or right, zooming in and zooming out.
-
Page 25: Tune Image
From here control the live view Zoom Function and direction. Also once EPTZ is enabled, in the Live View Screen buttons will appear on the bottom with the pan, tilt, and zoom button Note: PTZ is only available in the mode below. When PTZ is enabled, it will automatically jump into that mode. -
Page 26: Network
Note: Make sure to click on the Apply button to save any changes made Network Network The network section sets up the network information for the IP Kamera 9070-IR. IP Address: Actual IP Address of the device can be found here LAN IP Address: Local Area Network Address. -
Page 27: Ftp
The FTP allows the user to easily save files onto a FTP server. With the 9070-IR, Video Files & Picture files (Jpeg) can both easily be saved onto the FTP server. Make sure the following information is filled out correctly... -
Page 28: Sntp
Account Name: Enter then login of the mail account Password: Enter the password of the E-mail account Use SSL Connect: If the email server requires SSL (Secure Sockets Layer) this option need Sender Email: Enter the Sender Email Address SMTP Server: Enter the SMTP Outgoing mail address Email Address: Enter the Receiving Email address SNTP The SNTP is a protocol for synchronizing the clocks of computer systems over packet-switched, variable-... -
Page 29: System
Date and Time Set the date and Time of the device here. The Local Time: The local time corresponds to the current time of the IP Kamera 9070-IR. Time Setup: Setup the current time of the device here 1.) Set Manually: Set the time manually 2.) Synchronize with Computer Time: Synchronize the time with the current computers time... -
Page 30: User
To enable the Time Stamp check the enable box. User The user setting creates and removes users for access to the IP Kamera 9070-IR. Authority: Select one of the following options: Admin: Admin can operate all functions in Web interface. As well as, add or delete any user’s account. -
Page 31: Light
ight nable Infrared: To disable the Infrared select on and hit submit Disable Infrared: To disable the Infrared select off and hit submit Device Tune Up The device tune up resets the 9070 to make sure that the device is running smoothly. This resets the internal memory of the device by restarting the 9070. - Page 32 The language setting section is where you can select the language that you would like to use to use the 9070. Currently there are 3 languages available: English, Chinese (Traditional), Chinese (Simplified) there will be more to come. The 9070 will automatically detect the favored language of choice depending the settings used in Windows. - 32- Ref#90020326K0709...
-
Page 33: Update
Update The Update Firmware section is where information on the 9070 is displayed. The Kernel Version, Uboot Version, Firmware Version, and other technical information on the device is displayed here. Updating the Device To update the device go to the update section. Here you will find the Current Version description. To update the device: 1.) Browse for the correct update file. -
Page 34: Event Log
the device. You will need reconfigure the IP Kamera 9070, including Email, FTP, IP Address, Gateway, and etc. 6.) Enter update page, then hit the restart button. 7.) Then make sure you re-setup the device. Event Log Application The Application Section setups the Video File information, FTP, SD Card, SMTP - 34- Ref#90020326K0709... -
Page 35: Setting
Setting Snapshot Path Select the snapshot path to the destination where snapshots will be saved. Video File Select the Video File format that the device will record in. 1.) Avi Duration: From the drop-down list, select the length of an AVI file. 2.) Avi Format: MPEG4 (720) MPEG4 (CIF) - Page 36 SD Card File Format: Select the video format to save into the SD card Split Filename Type: Select the format to save the files in the SD card. Select from: Name by Index: Creates file names according to index. Name by Time: Creates file names according to time. Split File Size: Select the size of each file that will be saved into the SD.
- Page 37 Select the file format for IP Kamera 9070-IR to send in. Select from MPEG4 or MJPEG. EZ-Blog Note: To use the Ez Blog functionality, please make sure that your device has been port forwarded so that it can be accessed through the internet.
-
Page 38: Media Player
2.) Then select the size and dimensions that you would like the video to be displayed on the blog. 3.) Click on the create code button. 4.) You can highlight the embed code from inside the box and then copying (ctrl + C) or you can just hit the copy button to copy the code. - Page 39 View in Full Screen To view the IP Kamera in full screen model you will need to press the Full Screen mode. My Web - 39- Ref#90020326K0709...
- Page 40 The My-Web functionality will make your IP Kamera more than just a surveillance tool. Now you can use it to promote your company, restaurant, business, school, and etc. With some basic website skills or tools any can make a My Web site. Turning On My Web Enable my web button: The enable My Web button will activate the My Web functionality.
-
Page 41: Schedule Record
Using My Web To use the My Web feature: 1.) Use IPEdit and directly log into the IP camera. 2.) The device will open the root page of the 9070 to the My Web page. 3.) If you would like to return to the normal administrator page for the 9070 you can login to the admin site. -
Page 42: Alarm
Alarm Motion Detection To enable motion detection: 1.) Select Enable in the motion detection option. 2.) Select the desired sensitivity of choice Pick from Lowest, Low, Medium, High, Highest The threshold can be selected from (1-99) 3.) Once the settings are set, on the window screen click on the picture where motion will be detected. Double click on the selected areas to remove the choice. -
Page 43: Eptz-Set
When motion is detected, the IP Kamera 9070-IR will send the video file to in a E-mail format. Recording Time: Set the duration of time for the IP Kamera 9070-IR to record when alarm is set off. Enable Alarm Recording Buffer: The alarm recording buffer allows the camera to the selected amount of buffer time before an alarm has been detected. -
Page 44: How To Enable And Use Eptz Controller
Also snapshot function works only with the EPTZ controller and not when using the mouse to EPTZ. 1.) Click on the EPTZ button located on the bottom of the screen of the 9070-IR. 2.) If the EPTZ has not been enabled a notification will notify the user that it must be enabled. -
Page 45: Controlling The Device
This command changes the name of the IP Kamera 9070-IR http://ipaddress:port/vb.htm?cameratitle=name Ex. http command: http://192.168.1.192/vb.htm?cameratitle=test_907011 Change IP Address: This command changes the IP Address of the IP Kamera 9070-IR http://ipaddress:port/vb.htm?internetip=ipaddress Ex. http command: http://192.168.1.192/vb.htm?internetip=192.168.1.191 Change Port: This command changes the Port of the IP Kamera 9070-IR http://ipaddress:port/vb.htm?httpport=portnumber... -
Page 46: Change Gateway
Ex. http command http://192.168.1.192/vb.htm?subnetmask=255.255.0.0 Note: Default subnet mask is 255.255.0.0 Change Gateway: This command changes the gateway the IP Kamera 9070-IR. http://ipaddress:port/vb.htm?gateway=gatewayaddress Ex. http command http://192.168.1.192/vb.htm?gateway=192.168.1.1 Change DNS: This command changes the gateway the IP Kamera 9070-IR. http://ipaddress:port/vb.htm?dnsip=dnsipaddress Ex. http command http://192.168.1.192/vb.htm?dnsip=168.95.1.1... - Page 47 Check the Cache value. For low latency, it should be 70~80 based on PC’s performance. Note: If the video is not smooth, set the caching value from 150~1200. This problem could be due to too much congestion, busy pc, and etc. 7.) Save the new settings 8.) Then go back to the VLC media player and go to Media >...
-
Page 48: Using Cnt With Surf16 Ch
Hit the play button and wait a few seconds for the program to start streaming. 9.) Using CNT with Surf16 CH CNT makes connecting to the IP Kamera 9070-IR a very simple task. Surf 16 CH a multi-device DVR monitoring software easily allows the user view the 9070-IR. -
Page 49: Add Device Using Cnt
1.) In IPEdit, highlight the device that is being used. On the right side of IPEdit the MAC Address for CNT will be listed. *Note: Make sure when typing in the MAC address to leave out the “:” Find MAC Address in WAN Using IPService on IPEdit 1.) Find the MAC Address through the internet, Open IPEdit and hit the connect button on IP Service. -
Page 50: Frequently Asked Questions (F.a.q)
Ans: On the back of the device there is a reset button, hold down the reset button for more than 7 seconds. Then give the 9070-IR a 1 minute to restart. Once the device has restarted it will be set back to manufacturer default settings.
