Page 1: User Manual

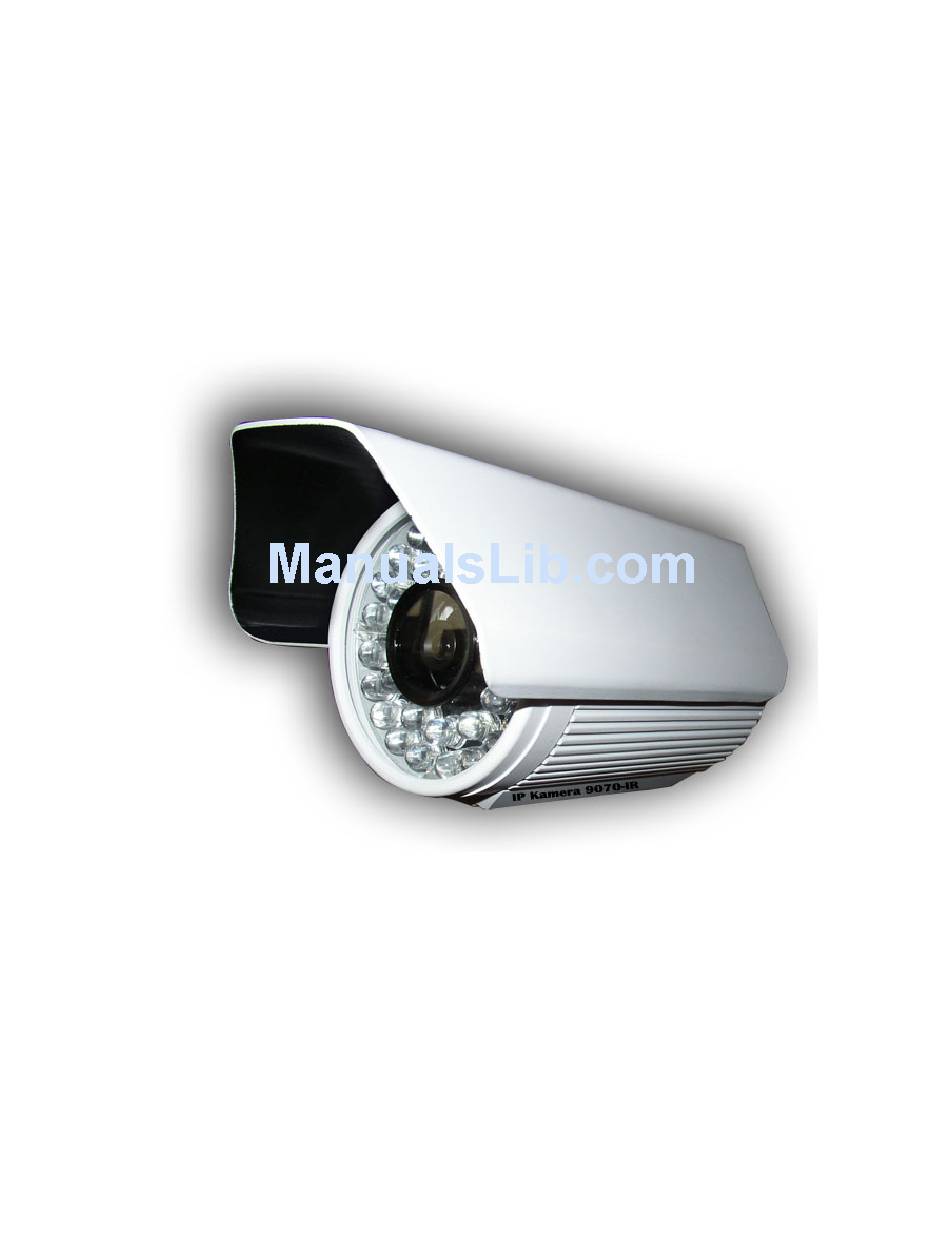

IP Kamera 9070-IR User Manual Release Date: 07/02/2009 Manual Version: 1.1 - 1- Ref#90020326K0709... - Page 2 IMPORTANT NOTICE 1. IP Kamera 9070-IR was designed for indoor use, the manufacturer responsibility for possible damages caused by outdoor use, especially in the rain. 2. Please use the power adapter provided by the dealer, the manufacturer is not responsibility for the possible damage from using power adapters.
-
Page 3: Table Of Contents
Table of Content 1.) INTRODUCTION ........................ 5 .................... 5 INIMUM YSTEM EQUIREMENTS 2.) PRODUCT OVERVIEW ...................... 6 ........................... 6 EATURES .......................... 6 PECIFICATION ........................ 7 ACKAGE ONTENTS 3.) INTERFACE DESCRIPTION .................... 8 ........................ 8 ABLE ESCRIPTION 4.) HARDWARE SETUP ...................... 8 ...................... 9 NTERNET CCESSIBLE ETUP ........ 9 HE NETWORK USES A OUTER IREWALL TO CONNECT EACH DEVICE TO THE INTERNET ISP. ................. 9 ... - Page 4 ............................. 24 UNE MAGE .......................... 26 ETWORK ............................ 26 ETWORK FTP .............................. 27 SMTP E‐ ) ..................... 27 UTGOING MAIL ERVER SNTP .............................. 27 ............................ 28 ERVICE ........................... 29 YSTEM .......................... 29 ATE AND ............................. 29 IME TAMP ............................... 30 ............................... 30 IGHT ............................ 32 PDATE ............................ 33 ...
-
Page 5: Introduction
The built in web server of the IP Kamera 9070-IR will allow the IP Kamera to be viewed from any remote locations around the world while bringing ease of mind. Furthermore, with CNT technology the 9070-IR is easy to setup & use, simply just plug and play. -
Page 6: Product Overview
2.) Product Overview Features Tri-Mode Camera (MPG4-1/MPEG4-2/M-Jpeg) Advance Motion detection trigger AVI /Jpeg save on FTP / SD card or Email 3 layers (Admin, Operator, and User) Password protected Resolution from CIF 352x192 up to HD 1280x720P Supports NTP protocol to get correct time schedule. 1/2.5”... -
Page 7: Package Contents
Package Contents 1.) 9070-IR Unit x 1 with Lid 3.) 9070-IR Installation CD 4.) AC Adaptor (AC adaptor will be included and will correspond to the countries power standards) Specs: Input: 100-250Vac /47-63Hz, 1A Output: 12Vdc/1A Max: 12W 5.) RJ45 Cable x 1 (Optional) 7.) Camera Mounting Bracket... -
Page 8: Interface Description
3.) Interface Description Cable Description Cables DC 12 V Power Input: Plugs in the Power Adapter to the DC 12V Card RJ45 Ethernet: Plug in the RJ45 Ethernet cable to the Ethernet Reset Button: Reset to Manufacturer Default: Hold Reset button for 5-10 Seconds and the device will reset to manufacturer default. -
Page 9: Internet Accessible Setup
The internet connection can be setup in two main ways so that the 9070-IR can be accessed through the internet The network uses a Router/Firewall to connect each device to the internet In this case, the 9070-IR will need to be port forwarded on the router so that it can accessed by the internet. For example 9070-IR IP Address: 192.168.1.882... -
Page 10: Software Setup
In this case, the 9070-IR is being connected to the internet through a hub, which is different from a router. The hub does not provide DHCP, and therefore would require that this setup have a static IP Address that is provided by the ISP. -
Page 11: Installing Vlc Codec
Installing VLC Codec The files that are recorded by the 9070-IR requires VLC codec to be able to view the recordings. Download the latest version of the VLC codec and install. The latest version of the codec can be found here. -
Page 12: Quick Easy Setup (Recommended)
2.) Open IPEdit and any device in the same network should automatically be detected and listed in the local devices sections. Note: Hit the Rescan button and wait about 1 minute, if the device is not showing up. Setup the Device: All devices will need to be on the same network if not the device cannot be accessed and will not be detected. -
Page 13: Custom Setup (Advance Users)
3.) Hit yes to confirm and Enter the login and password for the Device to Approve changes 4.) Then hit the rescan button on IPEdit to confirm the changes have been made. Custom Setup (Advance Users) 1.) Highlight the device on the local devices section and on the right side of IPEdit all network information on the device will be displayed. - Page 14 2.) To setup the device, type in the correct Gateway and IP Address. The Gateway Address: The gateway address can be obtained in Windows under the network connections page IP Address: Make sure the first 3 sections of the IP Address matches the gateway address. Example: Gateway Address –...
-
Page 15: Ip Service
IP Service, type in the device name, and directly connect to the device. Note: To find IP Kamera 9070-IR select Server 2 on IP Service 1.) Open IPEdit, the device will show up in the Local Device Section. To find the device easier on IPEdit select a name for the device. -
Page 16: Web Interface
6.) Web Interface Connecting to the 9070-IR Once the 9070-IR has been setup correctly, connect to the login page. An Internet Explorer browser screen pop up with the login screen. Default IP: 192.168.1.168 (When 9070-IR is connected to PC directly) - Page 17 2.) Right click on yellow bar and install the activeX controls. 3.) Then click the install button and install the active X controls. - 17- Ref#90020326K0709...
- Page 18 4.) Once activeX controls have been installed the video feed will show on the screen Note: If no active x controls are showing up, please go to internet explorer and enable activeX controls. - 18- Ref#90020326K0709...
-
Page 19: The Control Console
EPTZ-Set: The EPTZ allows the user to zoom into the cameras image using digital zoom with pan & tilt. SD Card: The built SD Card allows the user to access the SD card capability of the IP Kamera 9070-IR. - 19-... -
Page 20: Live Video
Live Video The Live video section of the IP Kamera 9070-IR is where the user can view the video of the device. From here resolution, record onto current pc, take a snapshot, zoom, and detect motion detection settings can be changed. -
Page 21: Active Record
When the active recording function is activated it will light up in red. Record Record: The record button on the 9070-IR when pressed will record the live video feed and save the video into the computer viewing. To record follow the following steps: 1.) Click on the record button... -
Page 22: Image
4.) To return to live video mode click on the live Image The image section changes the Image settings for the device and tunes the image of the IP Kamera 9070-IR Image Settings The Image settings section changes the video settings and the Name of the Kamera. - Page 23 Camera Name: Select a camera name for the device and then hit submit Video Codec: Resolution: Resolution (MPEG4+MPEG4+JPEG): M4:720P,M4:CIF,JPG:352 (MPEG4+JPEG): M4:VGA,JPEG:VGA (MPEG4+JPEG): M4:720,JPEG:352 (MEG4+MPEG4): M4:720,M4:CIF (Single MPEG4): M4:720 Color System: Select the broadcasting color system that pertains the country. NTSC/60Hz PAL/50Hz Rate Control: Select the most suitable Bit Rate Control.
-
Page 24: Tune Image
FPS: Select a FPS from 15fps or 7.5fps Enable EPTZ: The EPTZ on the IP Kamera 9070-IR a virtual EPTZ function. This function allows the user to control the video on the Live Video mode by moving left or right, zooming in and zooming out. - Page 25 White Balance: Select from the following options auto, indoor, or outdoor Day and Night: Select the mode Day or Night TV Output: Select the mode enable or disable to output to a T.V Binning / Skipping mode: Binning enables low light-light performance. Select Binning, Skipping, 4x Binning mode (default is Binning) BLC (Backlight control): Select from one of the options on or off to control the Backlight: Select a value between (0~255)
-
Page 26: Network
Network Network The network section sets up the network information for the IP Kamera 9070-IR. IP Address: Actual IP Address of the device can be found here LAN IP Address: Local Area Network Address. Subnet Mask: Subnet Mask information Default Gateway: Default Gateway Address... -
Page 27: Ftp
The FTP section of the IP Kamera 9070-IR setups the FTP saves video clips on FTP. FTP Server: Enter the FTP server address here User Name: Enter the FTP Username Password: Enter the FTP Password File Upload Path: Enter the upload path of the FTP Server SMTP (Outgoing E-mail Server) Enter the SMTP E-mail server information here. -
Page 28: Ip Service
SNTP Server: Enter the SNTP server address Time Zone: Enter the corresponding time zone Automatically adjust for daylight saving time: Check this section for daylight saving time to be implemented automatically. IP Service IP service allows connects to the device directly without having to remember a long IP Address. Enter the device name into IP Service and anyone can find their device as long as the port forwarding has been setup. -
Page 29: System
Date and Time Set the date and Time of the device here. The Local Time: The local time corresponds to the current time of the IP Kamera 9070-IR. Time Setup: Setup the current time of the device here 1.) Set Manually: Set the time manually 2.) Synchronize with Computer Time: Synchronize the time with the current computers time... -
Page 30: User
To enable the Time Stamp check the enable box. User The user setting creates and removes users for access to the IP Kamera 9070-IR. Authority: Select one of the following options: Admin: Admin can operate all functions in Web interface. As well as, add or delete any user’s account. - Page 31 - 31- Ref#90020326K0709...
-
Page 32: Update
Before going to the next step make sure that all setting information are written down. The device will reset back to manufacturer default values after restarting the device. Reconfigure the IP Kamera 9070-IR, including Email, FTP, IP Address, Gateway, and etc. - 32-... -
Page 33: Event Log
Event Log Application The Application Section setups the Video File information, FTP, SD Card, SMTP - 33- Ref#90020326K0709... -
Page 34: Setting
Setting Snapshot Path Select the snapshot path to the destination where snapshots will be saved. Video File Select the Video File format that the device will record in. 1.) Avi Duration: From the drop-down list, select the length of an AVI file. 2.) Avi Format: MPEG4 (720) MPEG4 (CIF) - Page 35 SD Card File Format: Select the video format to save into the SD card Split Filename Type: Select the format to save the files in the SD card. Select from: Name by Index: Creates file names according to index. Name by Time: Creates file names according to time. Split File Size: Select the size of each file that will be saved into the SD.
-
Page 36: Record
In the settings section, find the SMTP information by clicking on the SMTP tab. Here the current SMTP Server information and email address are available. Storage Settings Select the file format for IP Kamera 9070-IR to send in. Select from MPEG4 or MJPEG. Record Schedule The schedule allows the user to select days and times to schedule for automatic recording. -
Page 37: Alarm
When motion is detected, the IP Kamera 9070-IR will send the video file to in a E-mail format. Recording Time: Set the duration of time for the IP Kamera 9070-IR to record when alarm is set off. Enable Alarm Recording Buffer: The alarm recording buffer allows the camera to the selected amount of buffer time before an alarm has been detected. - Page 38 Motion Detection To enable motion detection: 1.) Select Enable in the motion detection option. 2.) Select the desired sensitivity of choice Pick from Lowest, Low, Medium, High, Highest The threshold can be selected from (1-99) 3.) Once the settings are set, on the window screen click on the picture where motion will be detected. Double click on the selected areas to remove the choice.
-
Page 39: Eptz-Set
Also snapshot function works only with the EPTZ controller and not when using the mouse to EPTZ. 1.) Click on the EPTZ button located on the bottom of the screen of the 9070-IR. 2.) If the EPTZ has not been enabled a notification will notify the user that it must be enabled. -
Page 40: Sd Card
The snapshot command takes a snapshot of the camera in the current view. http://ipaddress:port/snapshot.cgi Ex. http command: http://192.168.100.50:85/snapshot.cgi Change Name: This command changes the name of the IP Kamera 9070-IR http://ipaddress:port/vb.htm?cameratitle=name Ex. http command: http://192.168.1.192/vb.htm?cameratitle=test_907011 Change IP Address: This command changes the IP Address of the IP Kamera 9070-IR - 40- Ref#90020326K0709... -
Page 41: Change Port
This command changes the Port of the IP Kamera 9070-IR http://ipaddress:port/vb.htm?httpport=portnumber Ex. http command: http://192.168.1.192/vb.htm?httpport=1025 Change Subnet Mask: This command changes the Subnet Mask of the IP Kamera 9070-IR http://ipaddress:port/vb.htm?subnetmask=subnetmask Ex. http command http://192.168.1.192/vb.htm?subnetmask=255.255.0.0 Note: Default subnet mask is 255.255.0.0 Change Gateway: This command changes the gateway the IP Kamera 9070-IR. -
Page 42: Using Rtsp With Vlc
8.) Using RTSP with VLC How to setup VLC media player & Open a network stream 1.) Open VLC media Player 2.) Click on Tools > Preference 3.) Click on the Reset Preferences 4.) On the bottom left hand side of VLC select the all under the show settings area. 5.) Then in the left panel select the video option and check in the box that says “Overlay video output”... - Page 43 10.) Next select the network tab and under the protocol select RTSP. 11.) Type in the RTSP address of the device For Mpeg4 Stream1: rtsp ://< IP Address>/mpeg4 For Mpeg4 Stream2: rtsp ://< IP Address>:8554/mpeg4 Hit the play button when all settings have been set. - 43- Ref#90020326K0709...
-
Page 44: Using Cnt With Surf16 Ch
9.) Using CNT with Surf16 CH CNT makes connecting to the IP Kamera 9070-IR a very simple task. Surf 16 CH a multi-device DVR monitoring software easily allows the user view the 9070-IR. Follow these simple steps: Finding the MAC Address There are two ways to find the MAC address in IPEdit. -
Page 45: Frequently Asked Questions (F.a.q)
Ans: On the back of the device there is a reset button, hold down the reset button for more than 7 seconds. Then give the 9070-IR a 1 minute to restart. Once the device has restarted it will be set back to manufacturer default settings.
