Summary of Contents for Aviosys 9070-CSW
-
Page 1: User Manual

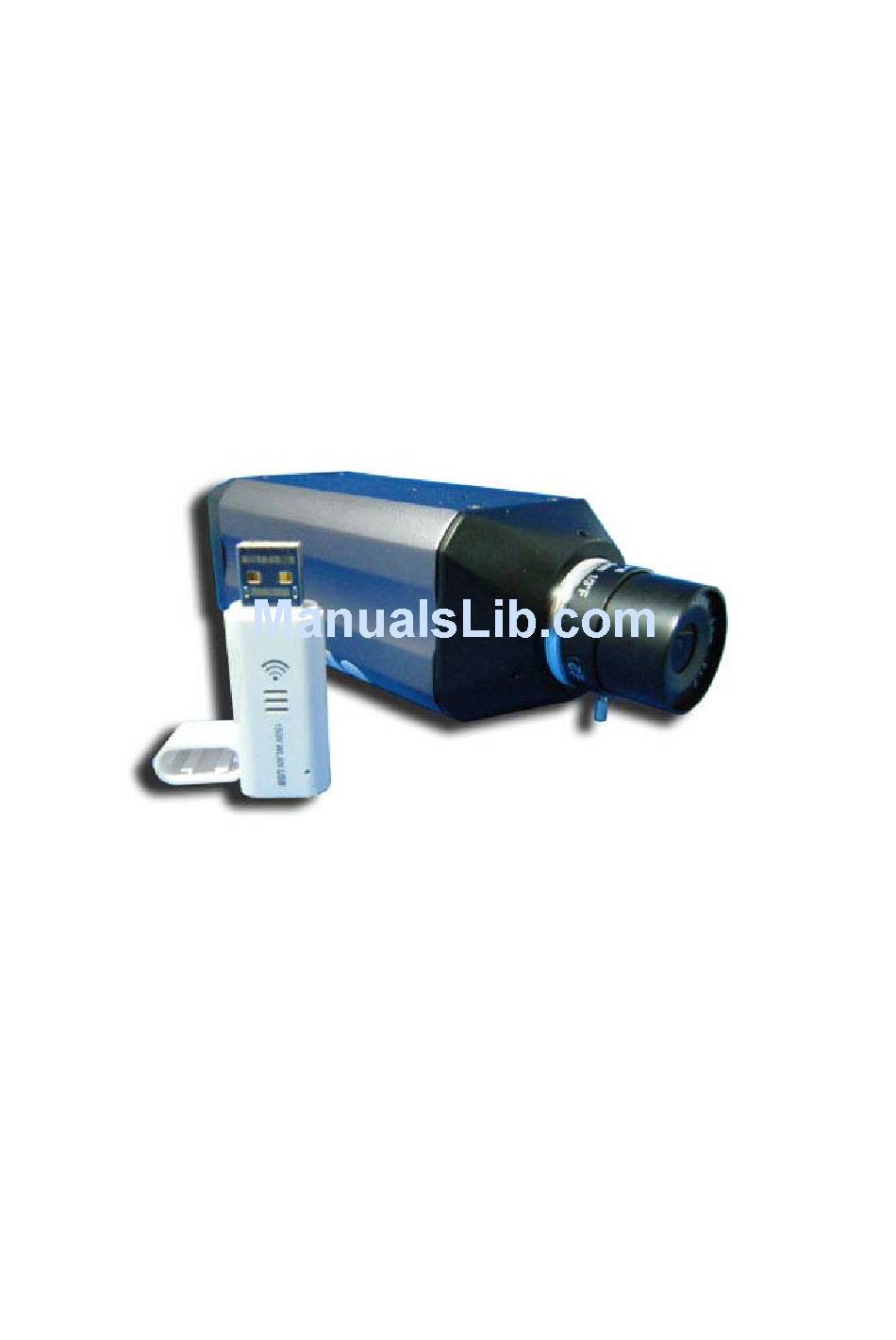

IP Kamera 9070-CSW User Manual Release Date: 6/10/2010 Manual Version: 1.0 Firmware Version: 1.2.1.4 - 1- Ref#201006049070CSW... - Page 2 IMPORTANT NOTICE 1. IP Kamera 9070-CSW was designed for indoor use, the manufacturer responsibility for possible damages caused by outdoor use, especially in the rain. 2. Please use the power adapter provided by the dealer, the manufacturer responsibility for the possible damage from using power adapters not .
-
Page 3: Table Of Contents
Table of Content 1.) WELCOME ........................... 6 .......................... 6 NTRODUCTION .................... 7 INIMUM YSTEM EQUIREMENTS 2.) PRODUCT OVERVIEW ...................... 7 ........................... 7 EATURES .......................... 7 PECIFICATION ........................ 8 ACKAGE ONTENTS .......................... 8 ENS PECIFICATIONS ... - Page 4 ...................... 24 HE ONTROL ONSOLE .......................... 25 IVE IDEO .......................... 25 YPE AND .......................... 26 OTION ETECTION .......................... 26 CTIVE ECORD ............................ 26 ECORD ............................ 27 NAPSHOT .............................. 27 UDIO ............................. 28 MAGE .......................... 28 MAGE ...
- Page 5 MJPEG ........................... 57 TREAMING 8.) USING RTSP WITH VLC ...................... 57 9.) USING CNT WITH SURF16 CH .................... 61 ...................... 61 INDING THE DDRESS CNT ...................... 61 DD DEVICE USING 10.) FREQUENTLY ASKED QUESTIONS (F.A.Q) ................. 62 - 5- Ref#201006049070CSW...
-
Page 6: Welcome
Using innovative IP technology, the built in web server of the IP Kamera 9070-CSW will allow you to view your IP Kamera from any remote locations around the world while bringing you world class surveillance and ease of mind. -
Page 7: Minimum System Requirements
Minimum System Requirements CPU Minimum Requirements • Intel(R), Pentium(R), DUAL Core (D),CPU 3.0GHz or equivalent • Operating Systems: WINDOWS Operating Systems (IE5.0+SPI) • 512 MB system memory or above • Video Card: 3D hardware accelerator card required – 100% DirectX 9.0c compatible •... -
Page 8: Package Contents
Package Contents 1.) 9070-CSW Unit x 1 ( Without Lens ) 2.) CS Lens Lens Specifications 1.) Format: 1/3” 2.) EFFL: 6MM 3.) Image Space F/#: F1.2 4.) Field Angle: 58 degree 5.) Stop: Fixed 6.) Focus Extension: 20cm--∞ 7.) Mount; CS 8.) Outside dimensions:... -
Page 9: Interface Description
3.) Interface Description Rear Panel View Rear View The IP Kamera 9070-CSW comes with a 512 MB SD SD Card Card Reset Button: Reset to Manufacturer Default: Hold Reset button for 5-10 Seconds and the device will reset to manufacturer default... -
Page 10: Hardware Setup
4.) Hardware Setup *Before setup the device make sure of the following: 1.) Make sure that all the package contents are all included if anything is missing please contact the store or your distributor. 2.) Make sure the power adaptor is the correct specification. 3.) Make sure that all the cables are working correctly Internet Accessible Setup The internet connection can be setup in two main ways so that the 9070-IR can be accessed... -
Page 11: By Using Static Ip Address Provided By The Isp
2.) Remove the cap from the IP Kamera 9070-CSW. 3.) Remove the back cap from the lens 4.) Then slowly screw in the lens to the IP Kamera 9070-CSW in a clockwise direction to tighten. 5.) Finally Remove the front lens cap. -
Page 12: Sd Card
SD Card Simply place the SD card in the back of the 9070-CSW with the face of the SD card facing down. 5.) Software Setup The software for the device is located on the Media Link-IP Family CD that came with the device. -
Page 13: Installing Vlc Codec
Installing VLC Codec The files that are recorded by the 9070-CSW requires this codec so that you are able to view the view. Download the latest version of the VLC codec and install it into your computer. You can find the latest version of the codec from here http://www.videolan.org/... - Page 14 2.) Open IPEdit and any device in the same network should automatically be detected and listed in the local devices sections. Note: If the device is not showing up, please hit the rescan button and wait about 1 minute Setup the Device: - 14- Ref#201006049070CSW...
-
Page 15: Quick Easy Setup (Recommended)
All devices will need to be on the same network if not the device cannot be accessed and will not be detected. Quick Easy Setup (Recommended) 1.) Click on the REF button, and wait a few seconds. IPEdit will automatically detect the network settings and setup the device. - Page 16 2.) To setup the device, you will need type in the correct Gateway and IP Address. The Gateway Address: The gateway address can be obtained in Windows under the network connections page IP Address: Make sure the first 3 sections of the IP Address matches the gateway address. Example: Gateway Address –...
- Page 17 4.) Then hit the rescan button on IPEdit to confirm the changes have been made. - 17- Ref#201006049070CSW...
-
Page 18: Setting Up Wireless Settings
Setting up Wireless Settings 1.) Click on the On Link under advance section 2.) Click on the Site Survey Link 3.) Then select the Interface Name and select the EDIMAX radial button, then click up. 4.) Next select the wireless internet network that you would like to connect to and hit the add profile button to add a new profile 5.) A new window pop and you will be required to enter the necessary network - 18-... - Page 19 information including the passphrase or password for the wireless internet. Then hit apply to save all settings. 6.) Then go back to the Main Wireless page and click on the on link under Advance for more options. 7.) Select the Profile link to see the profiles that you have added to the device. 8.) Click on your newly added profile and hit the activate button to start up the Wireless settings.
- Page 20 9.) Then click on Link Status to make sure that your device is connected to the wireless network. Note: If the device is connected it will show some information in the Link Status page. 10.) Now that the device is connected to the wireless network. Unplug the Ethernet cable to the device.
-
Page 21: Ip Service
Service w to use IP Se ervice on IPEd dit: IP se ervice allows t the user to dire ectly connect to his / her de evice through t the internet w ithout having t reme ember long co onfusing IP Ad ddress. -
Page 22: Web Interface
6.) Web Interface Connecting to the 9070-CSW Once the 9070-CSW has been setup correctly and access your IP Kamera 9070-CSW. An Internet Explorer browser screen pop up with the login screen. Default IP: 192.168.1.168 (When 9070 is connected to PC directly) - Page 23 3.) Then click the install button and install the active controls. 4.) Once activeX controls have been installed the video feed will show on the screen Note: If there is no active x controls that are showing up, please go to internet explorer and enable activeX controls.
-
Page 24: The Control Console
The IP Kamera 9070-CSW Control Console starts in the Section of the webpage. In this section navigate to the other options and settings of the 9070-CSW Live Video: The Live Video section allows the user to view the camera, change resolution views, Image: The Image section allows you to edit the image settings, including recording / viewing codec, frame rate, image tuning, brightness, contrast, saturation, and etc. -
Page 25: Live Video
Network: The network section allows you to change the devices network settings, ftp settings, smtp (email) settings, sntp settings, and IP service settings. System: The system section allows you to change the devices date and time, set time stamp for video, users, audio settings, update, event log. -
Page 26: A Ctive R Ecord
The reco rd button on th he 9070-CSW W when presse ed will record th he live video fe eed and save the video Reco... -
Page 27: Record
Once the fold er has been s selected the de evice will start t to record. To s top recording click on the re ed icon and it will return to t he original sta ate. Note e: Remember r you need VL LC codec to p play the video o files that ar... -
Page 28: Image/
Image s ettings for th he device and d tune the im mage of IP Kamera 9 9070-CSW age Settin Image setting gs section allow ws you to cha nge the video o settings and the Name of t the Kamera. - Page 29 Video Codec: Resolution: Resolution M4:720P,M4:CIF,JPG:352 (MPEG4+MPEG4+JPEG): M4:VGA,JPEG:VGA (MPEG4+JPEG): M4:720P, JPG:720 M4:720,JPEG:352 (MPEG4+JPEG): M4:720,M4:CIF (MPEG4-1+MPEG4-2) Not supported in Firefox: M4:720 (Single MPEG4): Color System: Select the broadcasting color system that pertains to your country. NTSC/60Hz PAL/50Hz Each country has their TV broadcasting standard, please check with your local service provider to find out if you us a NSTC system or PAL system.
-
Page 30: Tune Image
Internet Speed: The Internet Speeds settings allows you to choose some preset settings to best fit your current internet speeds. From here you can select from the following options: Cable / ADSL: Most high speed internet users today use Cable / ADSL as the main internet provider line. Fiber Optics: High speed fiber optics provides the best solution for outside the network because it is very fast. -
Page 31: Network
White Balance: Select from the following options auto, indoor, or outdoor Day and Night: Select the mode Day or Night TV Output: Select the mode enable or disable to output to a T.V Binning / Skipping mode: Binning enables low light-light performance. Select Binning, Skipping, 4x Binning mode (default is Binning) BLC (Backlight control): Select from one of the options on or off to control the Backlight: Select a value between (0~255) -
Page 32: Network
Network The network section allows you to setup the network information for the IP Kamera 9070. Enable DHCP: This function will enable the DHCP for the device. If this is enabled the IP Address of the device will be automatically provided by the router of the device. IP Address: Actual IP Address of the device can be found here LAN IP Address: Local Area Network Address. -
Page 33: Wireless Settings
Wireless Settings Quick setup for Wireless Networks 1.) Unplug the device including the following Power Cable RJ45 Ethernet Cable Edimax USB dongle if connected 2.) First plug in the power to the device, second plug in the USB dongle, Lastly plug in the network cable 3.) Then Open IP edit and Login to the 9070 IP Kamera. - Page 34 7.) Pick the router that you are using, then hit the add profile button 8.) Type in the passphrase for the router and hit the apply button. 9.) Wait about 60 seconds for device to connect. 10.) Then check to see for the connection successful under the connection status and the device is good to go.
-
Page 35: Ftp
11.) Unplug the RJ45 cable of the device and search on IPEdit for the new wireless settings. You will see a (W) next to your device in IPEdit which means wireless is activated. If the RJ45 cable is not disconnect you will see two IP Address on the device. -
Page 36: Smtp (Outgoing E-Mail Server)
SMTP (Outgoing E-mail Server) Enter the SMTP E-mail server information here. My Server Requires Authentication: Some servers require SMTP Authentication for security purposes. If your email server requires this option, make sure to have this section checked. Account Name: Enter then login of the mail account Password: Enter the password of the E-mail account Use SSL Connect: If the email server requires SSL (Secure Sockets Layer) this option need Sender Email: Enter the Sender Email Address... - Page 37 SNTP Server: Enter the SNTP server address. Below are a list of free public NTP servers. Europe — europe.pool.ntp.org Asia — asia.pool.ntp.org Oceania — oceania.pool.ntp.org North America — north-america.pool.ntp.org South America — south-america.pool.ntp.org Africa — africa.pool.ntp.org Time Zone: Enter the corresponding time zone Automatically adjust for daylight saving time: Check this section if you want daylight saving time to be implemented automatically.
-
Page 38: Ip Service
Power and Video Server: This is the server where most IP Power products and IP Video server products can be found. Kamera Server: This is the IP server where most IP Kamera products from Aviosys will be found on. CNT Server: Cross Network Technology Sever. CNT allows user to connect to their IP Kamera without having to Port Forward to the device. -
Page 39: Rtsp
Note: This function is for IP Surf Pop software. Please refer to the IP Surf Pop manual for more information at www.Aviosys.com RTSP Real Time Streaming Protocol (RTSP) gives the device another way to stream live video. -
Page 40: Time Stamp
Set the date and Time of the device here. The Local Time: The local time corresponds to the current time of the IP Kamera 9070. Time Setup: Setup the current time of the device here 1.) Set Manually: Set the time manually 2.) Synchronize with Computer Time: Synchronize the time with the current computers time 3.) Synchronize with SNTP: Synchronize with SNTP Time Stamp... -
Page 41: Audio
The user setting allows you to create and remove users for access to the IP Kamera 9070. Authority: Select one of the following options: Admin: You can operate all functions in Web interface. Also, you can add or delete any user’s account. Operator: You can operate all functions in Web interface except user Add/Delete. -
Page 42: Device Tune Up
Device Tune Up The device tune up resets the 9070 to make sure that the device is running smoothly. This resets the internal memory of the device by restarting the 9070. You can set the Device tune up to reset each hour, day Month, or Week Language Setting The language setting section is where you can select the language that you would like to use to use the 9070. - Page 43 The Update Firmware section is where information on the 9070 is displayed. The Kernel Version, Uboot Version, Firmware Version, and other technical information on the device is displayed here. Updating the Device To update the device go to the update section. Here you will find the Current Version description. To update the device: 1.) Browse for the correct update file.
-
Page 44: Events
5.) Once the device is updated you will see a update confirmation and click okay. Warning: Before you go to the next step make sure you have all your setting information written down. The device will reset back to manufacturers default values after you restart the device. -
Page 45: Application
Application The Application Section allows you to setup the Video File information, FTP, SD Card, SMTP Setting Snapshot Path The Snapshot path is the location where the snapshot pictures will be saved onto your computer. The default snapshot path will be set to C:\. To select the snapshot path click on the button and select the folder where the snapshots will be saved. - Page 46 The FTP section allows you to view your current FTP settings. From here you may have to unmount the SD memory so that you can record in MPEG4 format. Note: 1.) Before you use the FTP function, you will need to set the FTP server information. You can click on the link to take you to the FTP setup section.
- Page 47 In the settings section, you can find the SMTP information by clicking on the SMTP tab. Here you can see the current SMTP Server information and email address. Storage Settings You can also select the file format in which you would like the IP Kamera 9070-CSW to send. Select from MPEG4 or MJPEG. - 47-...
- Page 48 EZ-Blog EZ Blog allows you to easily integrate code into your blog which will let you directly stream into your blog, website, and any compatible site. This way you can IP Kamera as more than a regular security camera but also a promotional tool. User List: This shows the Users Available to create an Ez Blog link with.
-
Page 49: Media Player
4.) You can highlight the embed code from inside the box and then copying (ctrl + C) or you can just hit the copy button to copy the code. 5.) Once the code has been copied, place that code somewhere in the body of your blog or website and a video will be displayed on the screen. - Page 50 My Web The My-Web functionality will make your IP Kamera more than just a surveillance tool. Now you can use it to promote your company, restaurant, business, school, and etc. With some basic website skills or tools any can make a My Web site. Turning On My Web - 50- Ref#201006049070CSW...
- Page 51 Enable my web button: The enable My Web button will activate the My Web functionality. Once enabled every time the device is accessed it will be set to the My Web Page. Login Required: The login required will require your My Web users to login to the device before being able to use it.
-
Page 52: Schedule Record
3.) If you would like to return to the normal administrator page for the 9070 you can login to the admin site. For Example: 9070 IP Address: 192.168.12.111 Port:8080 Then on the web browser type in the following http://192.168.12.111:8080/index.htm Schedule Record Schedule The schedule allows you to select days and times that you would like to schedule automatic recording. -
Page 53: Alarm
Alarm Motion Detection To enable motion detection: 1.) Select Enable in the motion detection option. 2.) Select the sensitivity of your choice You can pick from Lowest, Low, Medium, High, Highest You can also customize your own threshold from (1-99) 3.) Once you have set your settings on the window screen click on the picture where you want the motion to be detected. -
Page 54: Logout
0 will send the e video file to in a E-mail for rmat. Set the durat ion of time you u would like th he IP Kamera 9070-CSW to o record when alarm is Reco ording Time: set o off. fer: The alarm... -
Page 55: Eptz-Set
The EPTZ allows you to Pan, Tilt, & Zoom the image that you are viewing. To activate this feature EPTZ must be enabled in the Image section of the 9070-CSW. Note: When EPTZ Controller is activated Video Codec mode will be switched to MPEG4 & M-Jpeg when disabled the codec will be set on Mpeg1, Mpeg2, &... -
Page 56: How To Use Eptz With The Mouse
Change Name: This command allows you to change the name of the IP Kamera 9070-CSW http://ipaddress:port/vb.htm?cameratitle=name Ex. http command: http://192.168.1.192/vb.htm?cameratitle=test_907011 Change IP Address: This command allows you to change the IP Address of the IP Kamera 9070-CSW - 56- Ref#201006049070CSW... -
Page 57: Change Port
This command allows you to change the Port of the IP Kamera 9070-CSW http://ipaddress:port/vb.htm?httpport=portnumber Ex. http command: http://192.168.1.192/vb.htm?httpport=1025 Change Subnet Mask: This command allows you to change the Subnet Mask of the IP Kamera 9070-CSW http://ipaddress:port/vb.htm?subnetmask=subnetmask Ex. http command http://192.168.1.192/vb.htm?subnetmask=255.255.0.0 Note: Default subnet mask is 255.255.0.0 Change Gateway: This command allows you to change the gateway the IP Kamera 9070-CSW. - Page 58 How to setup VLC media player & Open a network stream Note: Before using RSTP you must port forward your router to the following port numbers. For 1280 x 720P (Mpeg4-1): Port forward to 554 If Port forwarding (Mpeg4-2): Port forward to 8554 1.) Open VLC media Player 2.) Click on Tools >...
- Page 59 10.) Type in the RTSP address of your device For Mpeg4 Stream1 : rtsp://<IP Address>/mpeg4 For Mpeg4 Stream2 : rtsp://<IP Address>:8554/mpeg4 Example: rtsp://122.116.137.123/mpeg4 Hit the play button and wait a few seconds for the program to start streaming. - 59- Ref#201006049070CSW...
- Page 60 - 60- Ref#201006049070CSW...
-
Page 61: Using Cnt With Surf16 Ch
9.) Using CNT with Surf16 CH CNT makes connecting to the IP Kamera 9070 a very simple task. Using Surf 16 CH and multi device DVR monitoring software, you can easily view your 9070CS. Follow these simple steps: Finding the MAC Address There are two ways to find the MAC address in IPEdit. -
Page 62: Frequently Asked Questions (F.a.q)
Ans: On the back of the device there is a reset button, hold down the reset button for more than 7 seconds. Then give the 9070-CSW a 1 minute to restart. Once the device has restarted it will be set back to manufacturer default settings.
