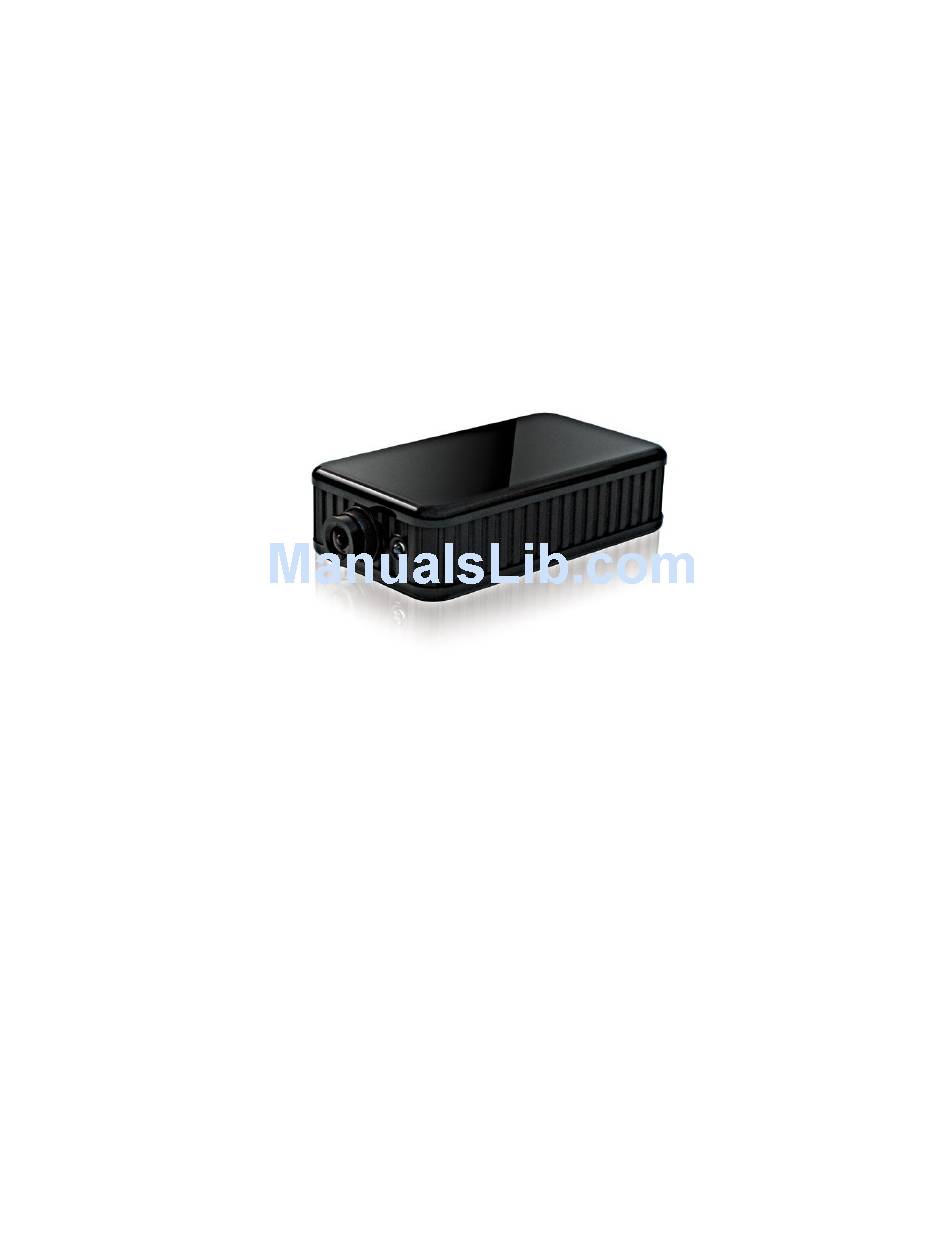

Page 1: User Manual
IP Kamera 9070 User Manual Release Date: 8/20/2010 Manual Version: V1.2.1.4plus - 1- Ref#90020326K0709... - Page 2 IMPORTANT NOTICE 1. IP Kamera 9070 was designed for indoor use, it is the responsibility of the user for any possible damages caused by outdoor use, especially in the rain. 2. Please use the power adapter provided by the dealer, the manufacturer responsibility for the possible damage from using power adapters not .
-
Page 3: Table Of Contents
IREWALL ETUP IP S ..........................11 TATIC ETUP ......................11 ONNECTING THE EVICE 5.) SOFTWARE SETUP ......................12 IP K 9070 ....................12 OFTWARE FOR AMERA ..........................12 OFTWARE VLC C ......................13 NSTALLING ODEC IP E ..........................14 ) ................ 15... - Page 4 ..........................23 CTIVE ECORD ............................24 ECORD ............................24 NAPSHOT ........................... 25 MAGE ..........................25 MAGE ETTINGS ............................. 28 MAGE ..........................29 ETWORK ............................29 ETWORK FTP ..............................30 SMTP (O ) ..................... 30 UTGOING MAIL ERVER SNTP............................... 31 IP S ............................
- Page 5 CNT ......................56 DD DEVICE USING 10.) FREQUENTLY ASKED QUESTIONS (F.A.Q) ................ 57 11.) CUSTOMER FEEDBACK ....................57 - 5- Ref#90020326K0709...
-
Page 6: Welcome
Using innovative IP technology, the built in web server of the IP Kamera 9070 will allow you to view your IP Kamera from any remote locations around the world while bringing you world class surveillance and ease of mind. -
Page 7: Minimum System Requirements
Minimum System Requirements CPU Minimum Requirements Intel(R), Pentium(R), DUAL Core (D),CPU 3.0GHz or equivalent Operating Systems: WINDOWS Operating Systems (IE5.0+SPI) 512 MB system memory or above Video Card: 3D hardware accelerator card required – 100% DirectX 9.0c compatible ... -
Page 8: Package Contents
Package Contents 1.) 9070 Unit x 1 2.) 9070 Installation CD 3.) AC Adaptor (One AC adaptor will be included and will correspond to the countries power standards) Specs: Input: 100-250Vac /47-63Hz, 1A Output: 5Vdc/1A 4.) Camera Mounting Bracket 5.) RJ45 Cable x 1 (Optional) -
Page 9: Interface Description
3.) Interface Description Rear Panel View Rear View Device Reset: Reset to Manufacturer Default: Hold Reset button for 5-10 Seconds and the device will reset to manufacturer default Video Out: The Video out requires a RCA connector to output video to a different source. RJ45 Ethernet: Plug in the RJ45 Ethernet cable to the Ethernet port DC 5 V Power Input:... -
Page 10: Hardware Setup
On the router that is being used port forwarded (port triggered) IP Address 192.168.1.882 and port 9070. For this section you may be required to refer the user manual for the router due to the fact that each router has a different way of setting up the device. -
Page 11: Static Ip Setup
Static IP Address provided by the ISP. In this case, the 9070-Basic is being connected to the internet through a hub, which is different from a router. The hub does not provide DHCP, and therefore would require that this setup have a static IP Address that is provided by the ISP. -
Page 12: Software Setup
IP Kamera Pack is located on the main page of the CD. Please follow the directions carefully and install the necessary files Software for IP Kamera 9070 Software 1.) First place the Media Link-IP Family CD that came with your device into your CD/DVD Rom drive. -
Page 13: Installing Vlc Codec
Installing VLC Codec The files that are recorded by the 9070 IRW requires this codec so that you are able to view the view. Download the latest version of the VLC codec and install it into your computer. You can find the latest version of the codec from here h ttp://www.videolan.org/... -
Page 14: Ip Edit
IP Edit IP Edit is a search tool designed to setup and access the IP Kamera 9070 IRW. IP Service is an additional feature which searches for the device easily without having to remember long complicated IP addresses. Instead, this technology allows the user find his or her device through the internet just by device name. -
Page 15: Quick Easy Setup (Recommend For Beginner Users)
Quick Easy Setup (Recommend for Beginner Users) 1.) Click on the REF button, and wait a few seconds. IP Edit will automatically detect the network settings and setup the device. 2.) Once settings have been detected hit the apply button to apply the new settings. 3.) Hit yes to confirm and Enter the login and password for the Device to Approve changes 4.) Then hit the rescan button on IP Edit to confirm the changes have been made. -
Page 16: Custom Setup (Advance Users)
Custom Setup (Advance Users) 1.) Highlight the device on the local devices section and on the right side of IP Edit all network information on the device will be displayed. If the device is not on the same network a Red Exclamation mark will appear in the IP Network information section 2.) To setup the device, you will need type in the correct Gateway and IP Address. - Page 17 4.) Then hit the rescan button on IP Edit to confirm the changes have been made. - 17- Ref#90020326K0709...
-
Page 18: Ip Service
Note: The IP Kamera 9070 IRW requires you to select Server 2 on IP Service Open IP Edit , the device will show up in the Local Device Section. If you have not selected a name for the device, please refer to the section on the manual labeled: ―Naming your device‖. -
Page 19: Web Interface
6.) Web Interface Connecting to the 9070-Basic Once the 9070-Basic has been setup correctly, connect to the login page. An Internet Explorer browser screen pop up with the login screen. Default IP: 192.168.1.168 (When 9070 is connected to PC directly) - Page 20 Note: If no active x controls are showing up, please go to internet explorer and enable activeX controls. - 20- Ref#90020326K0709...
-
Page 21: The Control Console
The IP Kamera 9070-Basic Control Console starts in the Section of the webpage. In this section navigate to the other options and settings of the 9070-Basic Live Video: The Live Video section allows the user to view the camera, change resolution views, Image: The Image section allows the user to adjust the image settings, including recording / viewing codec, frame rate, image tuning, brightness, contrast, saturation, and etc. -
Page 22: Live Video
Live Video The Live video section of the IP Kamera 9070 is where you will live view the video of the device. From here you can change resolution, record onto current pc, take a snapshot, zoom, and detect motion detection. -
Page 23: Motion Detection
Motion Detection Motion Detection: The motion detection icon will display when motion has been detected. This setting must be activated in the application section No Motion Detected Motion Detected Mouse EPTZ Mouse EPTZ On the live video screen move the mouse cursor to the video and click left or right click to use the Mouse ETPZ functionality. -
Page 24: Record
Record Record: The record button on the 9070-Basicwhen pressed will record the live video feed and save the video into the computer viewing. To record follow the following steps: 1.) Select the recording path that you would like to store the file under in the applications tab in snapshot path. -
Page 25: Image
Image The image section allows you to change the Image settings for the device and tune the image of the IP Kamera 9070 Image Settings The Image settings section allows you to change the video settings and the Name of the Kamera. - Page 26 Video Codec: Resolution: Resolution (MPEG4+MPEG4+JPEG): M4:720P,M4:CIF,JPG:352 (MPEG4+JPEG): M4:VGA,JPEG:VGA M4:720P, JPG:720 (MPEG4+JPEG): M4:720,JPEG:352 (MPEG4-1+MPEG4-2) M4:720,M4:CIF Not supported in Firefox: (Single MPEG4): M4:720 Color System: Select the broadcasting color system that pertains to your country. NTSC/60Hz PAL/50Hz Each country has their TV broadcasting standard, please check with your local service provider to find out if you us a NSTC system or PAL system.
- Page 27 Internet Speed: The Internet Speeds settings allows you to choose some preset settings to best fit your current internet speeds. From here you can select from the following options: Cable / ADSL: Most high speed internet users today use Cable / ADSL as the main internet provider line. Fiber Optics: High speed fiber optics provides the best solution for outside the network because it is very fast.
-
Page 28: Tune Image
Tune Image The tune image settings section allows you to control and tune the picture quality of the image. Keep in mind, the quality of the picture will also be affected by the quality of the lens that is being used. White Balance: Select from the following options auto, indoor, or outdoor Day and Night: Select the mode Day or Night TV Output: Select the mode enable or disable to output to a T.V... -
Page 29: Network
Network Network The network section allows you to setup the network information for the IP Kamera 9070. Enable DHCP: This function will enable the DHCP for the device. If this is enabled the IP Address of the device will be automatically provided by the router of the device. -
Page 30: Ftp
The FTP section of the IP Kamera 9070 allows you to save video clips FTP Server: The FTP server address is where the IP Address of the FTP server will be entered. User Name: Enter the FTP Username Password: Enter the FTP Password... -
Page 31: Sntp
Email Address: Enter the Receiving Email address Submit: After all settings have been made. Hit the submit button to save all changes. Send Test E-Mail: This button will send a test e-mail to the designated account. This way, you can check to make sure that the settings are correct. -
Page 32: Ip Service
Power and Video Server: This is the server where most IP Power products and IP Video server products can be found. Kamera Server: This is the IP server where most IP Kamera products from Aviosys will be found on. CNT Server: Cross Network Technology Sever. CNT allows user to connect to their IP Kamera without having to Port Forward to the device. -
Page 33: Rtsp
Note: To access the device from outside the network. Please make sure of the following: 9070 should be set to DMZ host, or mapping router's TCP ports 554 and 8554 to 9070, preferably at the same time mapping UDP port 6970-9999 System The system section allows you to setup the IP 9070’s system configurations. -
Page 34: Date And Time
Date and Time Set the date and Time of the device here. The Local Time: The local time corresponds to the current time of the IP Kamera 9070. Time Setup: Setup the current time of the device here 1.) Set Manually: Set the time manually 2.) Synchronize with Computer Time: Synchronize the time with the current computers time... -
Page 35: User
User In this section, you can create different user access rights for different types of users. Authority: Select one of the following options: Admin: You can operate all functions in Web interface. Also, you can add or delete any user’s account. Operator: You can operate all functions in Web interface except user Add/Delete. -
Page 36: Device Tune Up
The device tune up resets the 9070 to make sure that the device is running smoothly. This resets the internal memory of the device by restarting the 9070. You can set the Device tune up to reset each hour, day Month, or Week... -
Page 37: Update
Update The Update Firmware section is where information on the 9070 is displayed. The Kernel Version, Uboot Version, Firmware Version, and other technical information on the device is displayed here. U pdating the Device 7 2 B To update the device go to the update section. Here you will find the Current Version description. -
Page 38: Event Log
Before you go to the next step make sure you have all your setting information written down. The device will reset back to manufacturers default values after you restart the device. You will need reconfigure the IP Kamera 9070, including Email, FTP, IP Address, Gateway, and etc. -
Page 39: Application
pplication The Application Section setups the Video File information, FTP, SD Card, SMTP Setting Snapshot Path The Snapshot path is the location where the snapshot pictures will be saved onto your computer. The default snapshot path will be set to C:\. To select the snapshot path click on the button and select the folder where the snapshots will be saved. - Page 40 Recording Format Select the Video File format that the device will record in. 1.) Avi Format: MPEG4 (720) & MPEG4 (CIF) 2.) Avi Duration: From the drop-down list, select the length of an AVI file, then press submit The FTP section allows you to view your current FTP settings. From here you may have to un-mount the SD memory so that you can record in MPEG4 format.
- Page 41 1.) Before you use the FTP function, you will need to set the FTP server information. You can click on the link to take you to the FTP setup section. 2.) If the SD Card is inserted into the device, the 9070 will only be able to record in M-Jpeg mode to the FTP. SD Card File Format: Select the video format that you would like to save into the SD card Split Filename Type: Select the format that you would like to save the files in the SD card.
- Page 42 In the settings section, you can find the SMTP information by clicking on the SMTP tab. Here you can see the current SMTP Server information and email address. Storage Settings You can also select the file format in which you would like the IP Kamera 9070-Basicto send. Select from MPEG4 or MJPEG. EZ-Blog Note: To use the Ez Blog functionality, please make sure that your device has been port forwarded so that it can be accessed through the internet.
- Page 43 User List: This shows the Users Available to create an Ez Blog link with. Use a guest user account to create the EZ-Blog. You can easily create on by clicking on the User link Setup the Embed Code Next step is to setup the Embed Code that will be implemented into your blog, website, etc. 1.) type in the correct password for your login account.
- Page 44 Media Player The media player allows you to view your recordings on the SD card directly through the internet without requiring downloading the file first. This feature makes it very convenient for live streaming. View in Full Screen To view the IP Kamera in full screen model you will need to press the Full Screen mode. My Web - 44- Ref#90020326K0709...
- Page 45 2. Save the zip file to the location . Press browse, and select the zip file you download. 4. Press upload and send the zip file to 9070 web. 5. Confirm setting . *** If familiar with webpage langrage, you can change the webpage in zip file to your own webpage. ***...
- Page 46 5.) After you have created the webpage, make sure to create a Zip file. Zip up the file and Returning to default My Web page If you would like to return your 9070 to the default My Web page click the default My Web Page button. This will reset the current My Web to the original manufacturer default.
-
Page 47: Schedule Record
Schedule Record Schedule The schedule allows you to select days and times that you would like to schedule automatic recording. You can pick a day from (Sunday – Saturday) and also a option for Everyday. To schedule automatic recording: 1.) Select the day that you would want to start recording. 2.) Select the From time and the To time. -
Page 48: Alarm
When Ethernet connection is lost the device will automatically save into the SD card. Saving a backup. Enable Alarm - Upload When motion is detected, the IP Kamera 9070 will upload the video file to the selected FTP server. Enable Alarm - Save Into SD Card When motion is detected, the IP Kamera 9070 will upload the video file to the SD card. - Page 49 Motion Detection To enable motion detection: 1.) Select Enable in the motion detection option. 2.) Select the sensitivity of your choice You can pick from Lowest, Low, Medium, High, Highest You can also customize your own threshold from (1-99) 3.) Once you have set your settings on the window screen click on the picture where you want the motion to be detected.
-
Page 50: Media Player
Logout When you are done use the IP Kamera 9070 CSWO/CSO the logout function allows you to easily logout of your device. This ensures that anyone who uses the device after you will need to re-login to the IP Kamera. -
Page 51: Controlling The Device
Note: If using password not in http: command the browser asks for the login and password. Snapshot Command: The snapshot command takes a snapshot of the camera in the current view. http://ipaddress:port/snapshot.cgi Ex. http command: h ttp://192.168.100.50:85/snapshot.cgi Change Name: This command changes the name of the IP Kamera 9070-Basic http://ipaddress:port/vb.htm?cameratitle=name - 51- Ref#90020326K0709... -
Page 52: Change Ip Address
Ex. http command: h ttp://192.168.1.192/vb.htm?cameratitle=test_907011 Change IP Address: This command changes the IP Address of the IP Kamera 9070-Basic http://ipaddress:port/vb.htm?internetip=ipaddress Ex. http command: h ttp://192.168.1.192/vb.htm?internetip=192.168.1.191 Change Port: This command changes the Port of the IP Kamera 9070-Basic http://ipaddress:port/vb.htm?httpport=portnumber Ex. http command: http://192.168.1.192/vb.htm?httpport=1025... -
Page 53: Using Rtsp With Vlc
8.) Using RTSP with VLC Before Setting up VLC: Make sure that the 9070-Basicis set to be the DMZ host on the router that you are using, please refer to the routers manual on how to accomplish this. How to setup VLC media player & Open a network stream Real Time Streaming Protocol (RTSP) gives the device another way to stream live video. - Page 54 Check the Cache value. For low latency, it should be 70~80 based on PC’s performance. Note: If the video is not smooth, set the caching value from 150~1200. This problem could be due to too much congestion, busy pc, and etc. 7.) Save the new settings 8.) Then go back to the VLC media player and go to Media >...
-
Page 55: Using Cnt With Surf16 Ch
11.) Hit the play button and wait a few seconds for the program to start streaming. 9.) Using CNT with Surf16 CH CNT makes connecting to the IP Kamera 9070-Basic a very simple task. Surf 16 CH a multi-device DVR monitoring software easily allows the user view the 9070-Basic. -
Page 56: A Dd Device Using Cnt
Find MAC Address in WAN Using IPService on IP Edit 1.) Find the MAC Address through the internet, Open IP Edit and hit the connect button on IP Service. 2.) Then Type in the name of the device, in this case it is ―Sample Name‖, then hit the search button. 3.) Device will be listed and the MAC address should be displayed on the screen. -
Page 57: Frequently Asked Questions (F.a.q)
Q6: How do I improve the image quality on this device? Ans: The Image quality of the 9070 is dependent on the bit rate of the device. With a larger bit rate the device will naturally create higher quality image, but this will affect the smoothness of the streaming when accessed through the internet.
