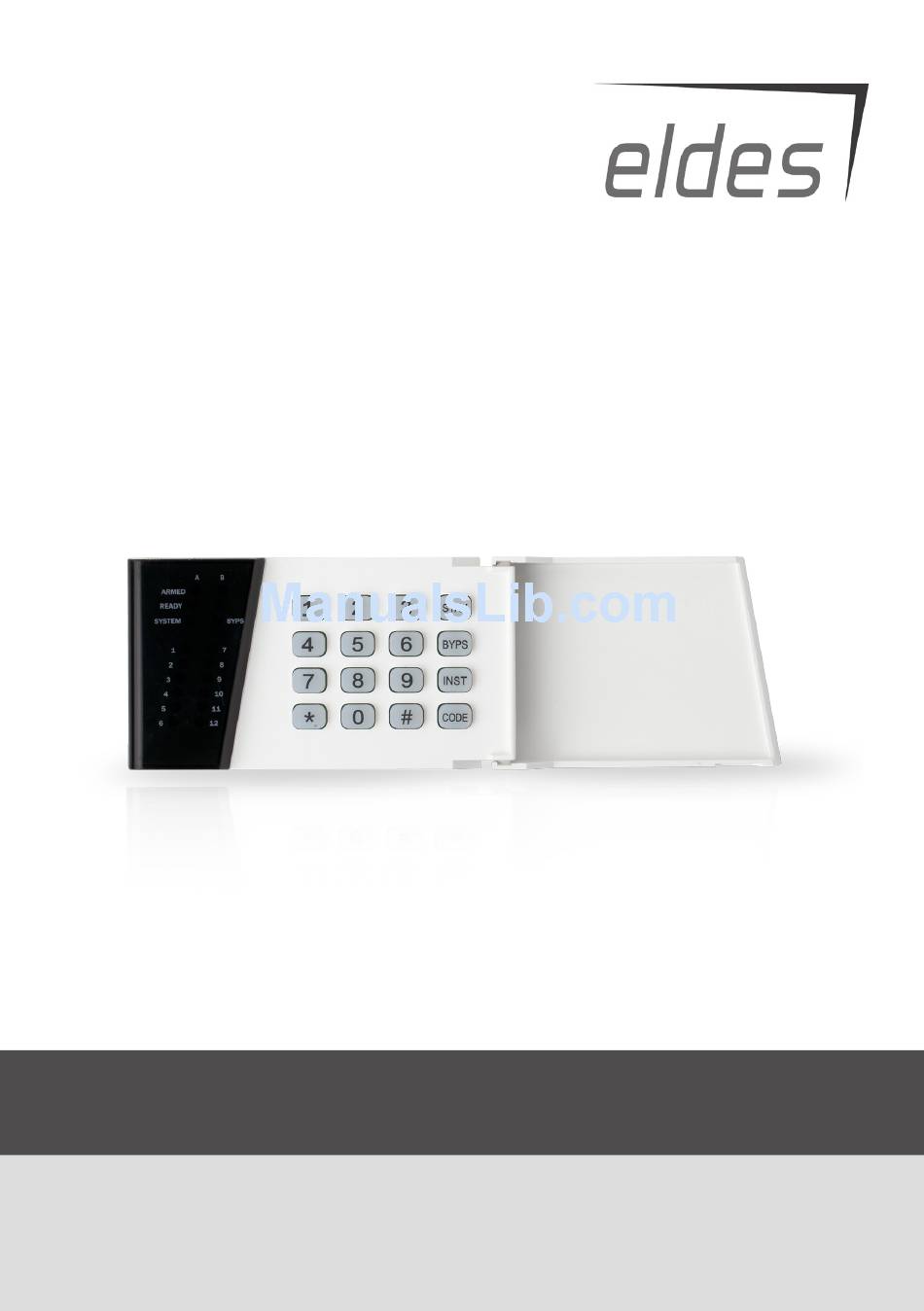

ESIM264 v07.14.02 and up. • ESIM364 v02.06.01 and up. Main features: • Alarm system arming & disarming; • Stay mode activation & deactivation; • System parameter configuration; • PGM output control; • Visual indication by LED indicators; • Audio indication by built-in buzzer; • Keypad partition switch. EKB3 is a LED keypad intended to use with ELDES alarm systems. The system configuration by EKB3 keypad is performed by ac- tivating the Configuration Mode and entering the required parameters & values. ELDES alarm systems allow to connect up to 4 EKB3 keypads. NOTE: For complete system configuration & control using EKB3 keypad, please refer to ELDES alarm system installation manual located at: www.eldes.lt/en/download 1. Package content 1. EKB3 ..........qty. 1 2. User manual ......qty. 1 3. 5,6kΩ resistor ......qty. 1...
2.4 Connector functionality AUX+ Positive 12-14V power supply terminal AUX- Negative 12-14V power supply terminal RS485 interface for communication (green wire) RS485 interface for communication (yellow wire) Common terminal for Z1 Security zone terminal BACK SIDE FRONT SIDE ARMED READY STAY SYSTEM BYPS BYPS INST TAMPER AUX- AUX+ CODE DIP SWITCH Fig. No. 1 Fig. No. 2 USER MANUAL EKB3 V1.2...
Page 4
2.5 Keypad Address Jumpers 2 and 3 located on the back side of the keypad are intended to set keypad address. The keypad address is configured by setting the jumper positions. ELDES alarm system allows to connect up to 4 EKB3 keypads - each set under different address. Jumper combinations for different keypad address configuration are indicated in the table below. Contacts Position Address 3 2 Keypad 1 3 2 Keypad 2 3 2 Keypad 3 3 2 Keypad 4 The address of each connected keypad is also indicated in ELDES Configuration Tool software.
BACK SIDE Fig. No. 3 Disconnect alarm system ELDES alarm system power supply and backup battery before connecting the wires. Fix the keypad holder on the wall using the screws. Wire up keypad terminals to ELDES alarm system respectively – AUX+ to AUX+, AUX- to AUX-, Y to Y, G to G (see Fig. No. 4). Connect a sensor and the resistor across Z1 and COM terminals in accordance with zone connection Type 1 or Type 2 (see alarm system installation manual). As keypad zone Z1 is disabled by default, it can be enabled by SMS, ELDES Configuration Tool, EKB2, EKB3 and EKB3W keypad. Z2 terminal is permanently inactive. Keypad zone Z1 must be enabled and resistor connected even if the tamper button alone is required (see Fig. No. 4). Set the keypad address by combining jumper positions (see 2.5 Keypad Address). Infix the keypad into the holder (see Fig. No. 3). ATTENTION! Before fixing the keypad into the holder please , make sure that the tamper is properly pressed (see Fig. No. 2). 8. Power up ELDES alarm system. 9. EKB3 keypad is ready. ESIM364 AUX- AUX+ EKB3 AUX- AUX+ 5,6k Fig. No. 4 USER MANUAL EKB3 V1.2...
Page 6
4. EKB3 Zone and Tamper Keypad EKB3 has one wired zone Z1 and one tamper button. By default, the keypad zone Z1 is disabled. The keypad zone can be enabled by SMS, keypad and ELDES Configuration Tool. When Z1 is enabled, it operates like any other system zone, therefore a sensor can be connected to it. In addition, Z1 and COM terminals must be connected with resistor of 5,6kΩ nominal. The tamper button is intended for monitoring the enclosure status of EKB3, therefore the system causes alarm if the enclosure is illegally opened. Keypad zone Z1 must be enabled and resistor connected even if the tamper button alone is required. 5. Partition Control and Indications ATTENTION: The features described below are only available with the system ESIM364 and requires keypad partition switch feature. To switch the keypad partition using EKB3 keypad, please press and hold [1]... [4] key for 2 seconds to apply the command. Upon successful keypad partition change, the keypad buzzer will emit three short beeps. In case of an alarm, [1]... [4] key will flash in orange, corresponding the partition that contains violated zones/tampers. Arming/disarming To arm the partition that the keypad is switched to, please enter a valid user password, assigned to the respective partition. The armed partition number will be indicated by illuminated [1]... [4] key in orange. To arm all 4 partitions simultanously, please follow these steps: 1. Press and hold [0] key. 2. Keep holding the key until you hear three short beeps. 3. Release the key and enter a valid user password, assigned to all 4 partitions. Upon the successful arming process, [1], [2], [3], [4] keys will light ON in orange.
