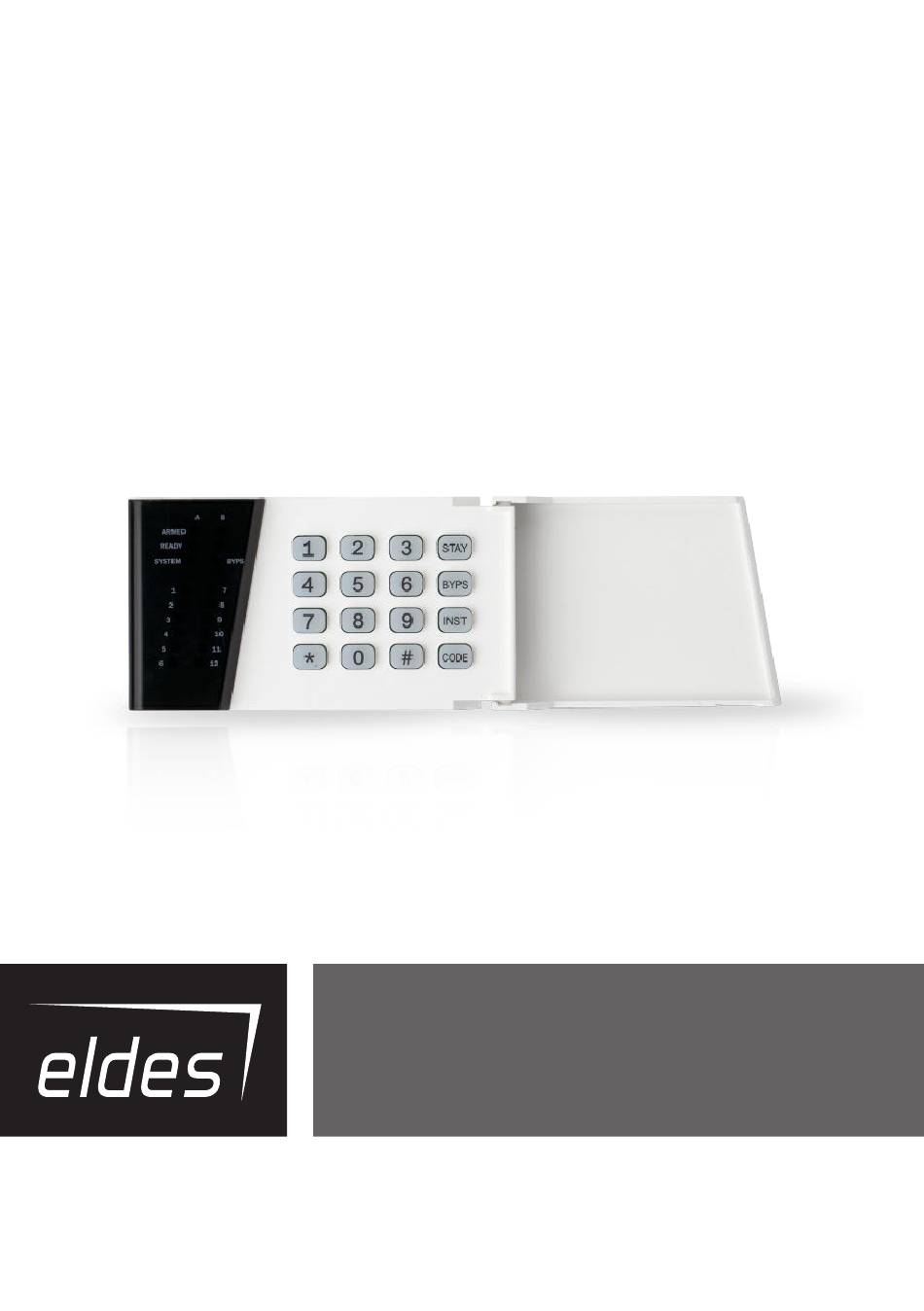

- Page 1 EKB3W WIRELESS LED KEYPAD...
-
Page 2: Technical Specifications
EKB3W is a wireless LED keypad intended to use with ELDES alarm systems. The system configuration by EKB3W keypad is performed by activating the Configuration Mode and entering the required parameters and values. It is possible to connect up to 4 EKB3W devices to ELDES alarm system at a time. -
Page 3: Front Side
2.4 Main Unit & Connector Functionality FRONT SIDE BACK SIDE ARMED READY STAY BATTERY SYSTEM BYPS BYPS BATTERY INST TAMPER BATTERY 5,6 kOhm CODE Z1 COM TAMPER Tamper switch Common terminal + / - Battery slots Security zone terminal USER MANUAL EKB3W V1.5... -
Page 4: Installation
Before installing the wireless device, we highly recommend to refer to RADIO SYSTEM INSTALLATION AND SIGNAL PENETRATION manual located at www.eldes.lt/download Detach the keypad holder from EKB3W front side. Connect a sensor and the resistor across Z1 and COM terminals in accordance with zone connection Type 1 or Type 2. -
Page 5: Chapter 6. Restoring Default Parameters)
6. Pair the device with the alarm system using ELDES Configuration Tool software. Open Wireless Device Management section and enter a 8-digit wireless device ID located on the EKB3W enclosure and press Add button. The device can also be paired by sending a corre- sponding command via SMS message. -
Page 6: Battery Replacement
PCB supervising the back side of the enclosure in case the device is illegally detached. Once the enclosure of EKB3W is tampered, the tamper switch will become triggered. This action will be followed by alarm, resulting in sending an SMS text message and/or phone call to the user. -
Page 7: Additional Information
UAB” will not take any responsibility regarding personal or property or revenue loss while using the system. “ELDES UAB” li- ability according to local laws does not exceed value of the purchased system. “ELDES UAB” is not affiliated with any of the Internet providers therefore is not responsible for the quality of Internet service. - Page 8 Made in Lithuania. www.eldes.lt...
