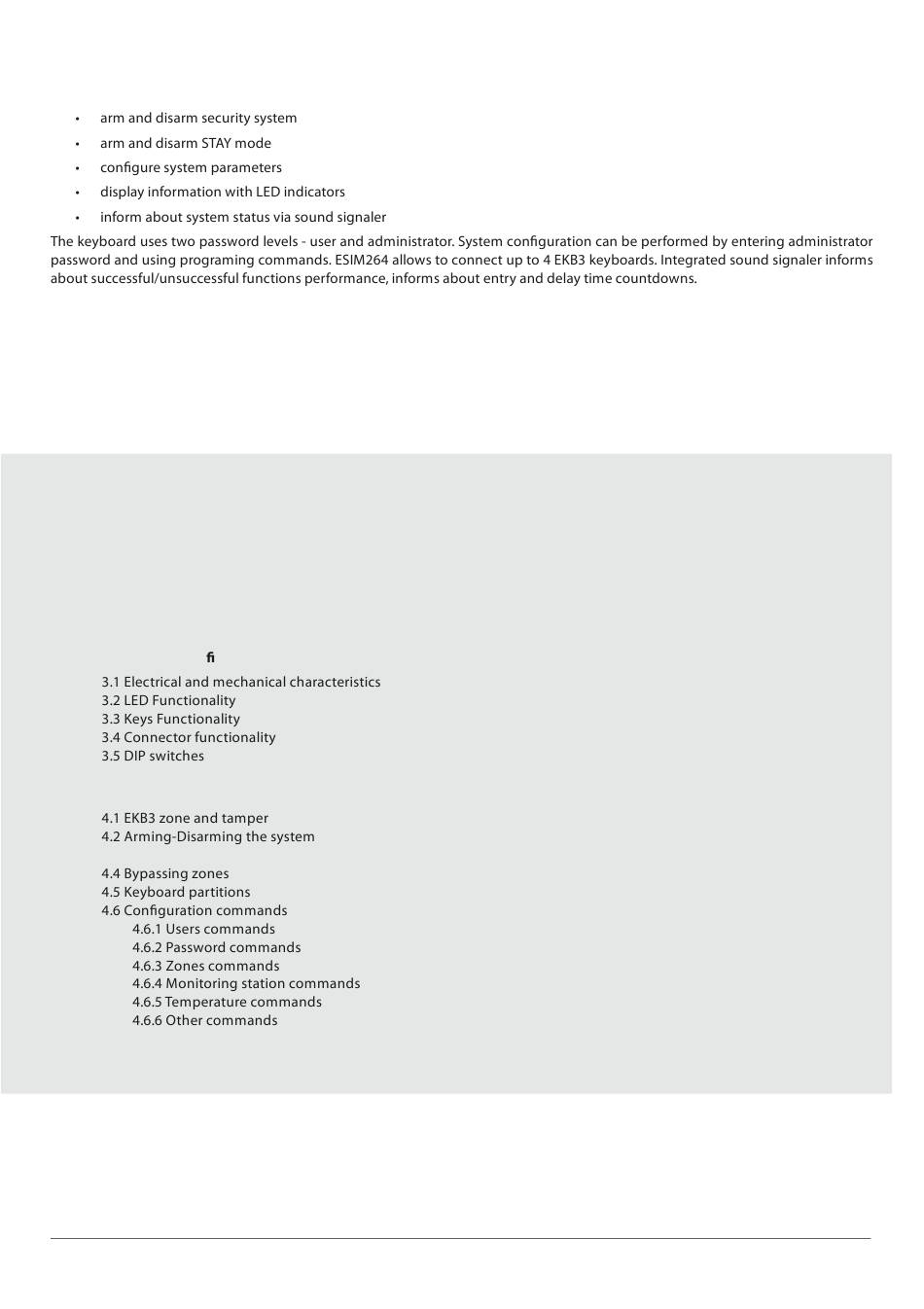

EKB3 is a keyboard intended to use with GSM alarm and management system ESIM264.
Main EKB3 keyboard functions are:
CONTENT
1. Package content .............................................................................................................................................................. 3
2. Device installation ........................................................................................................................................................... 3
3. Technical speci cations .................................................................................................................................................. 3
...........................................................................................................................................................................................................4
4. Operation description ..................................................................................................................................................... 5
4.3 System troubles ....................................................................................................................................................................................................5
5. Additional Information ......................................................................................................................................................................................... 30
2
...................................................................................................................................................3
.................................................................................................................................................................................................4
...............................................................................................................................................................................................4
....................................................................................................................................................................................4
.......................................................................................................................................................................................5
........................................................................................................................................................................5
...................................................................................................................................................................................................6
............................................................................................................................................................................................6
.................................................................................................................................................................................6
....................................................................................................................................................................................6
............................................................................................................................................................................9
................................................................................................................................................................................ 12
....................................................................................................................................................... 16
................................................................................................................................................................... 23
................................................................................................................................................................................. 24

Advertisement

loading
Need help?

Need help?

Do you have a question about the EKB3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eldes EKB3

Summary of Contents for Eldes EKB3

  • Page 1: Table Of Contents

    EKB3 is a keyboard intended to use with GSM alarm and management system ESIM264. Main EKB3 keyboard functions are: CONTENT 1. Package content ................................3 2. Device installation ................................3 3. Technical speci cations ..............................3 ..............................3 .........................................4 .......................................4 ....................................4 ...........................................4...

  • Page 2: Package Content

    ......qty. 1 2. Device installation No. 1). DOWN SIDE BACK SIDE Fig. No. 1 3.4). NOTE: 4. EKB3 keyboard is ready to use. 3. Technical speci cations 3.1 Electrical and mechanical characteristics 100 m. Dimensions USER MANUAL EKB3 V1.0...
  • Page 3 3.3 Keys Functionality 3.2 LED Functionality [BYPS] ARMED [CODE] System trouble list READY SYSTEM BYPS [0] ... [9] Violated zone [STAY] [INST] 3.4 Connector functionality FRONT SIDE BACK SIDE ARMED READY STAY SYSTEM BYPS BYPS INST TAMPER AUX- AUX+ CODE DIP SWITCH Fig.

  • Page 4: Operation Description

    4. Operation description 4.1 EKB3 zone and tamper 4.2 Arming-Disarming the system NOTE: Possible reasons why system fails to arm: 4.3 System troubles Zone number Trouble Time High zones* Zone number 1 = 1 Zone number 7 = 12 Zone number 2 = 2...
  • Page 5 4.6 Con guration commands 4.6.1 Users commands Allow Only Preset Users Enter code 12 and function: EKB3 Enabled – [120#] Users Enter code 17, user number and phone number: EKB3 where xx – user number, yyyyyyyyyyy – user phone number.
  • Page 6 Inform about Arming/Disarming Enter code 75, user number and function: EKB3 where xx - means user number. Parameter range from 01 to 05 Inform All about Arming/Disarming Enter code 22 and function: EKB3 Disabled – [220#] USER MANUAL EKB3 V1.0...
  • Page 7 Disable Call during Alarm Enter code 30 and function: EKB3 Disabled – [300#] Disable SMS during Alarm Enter code 31 and function: EKB3 Disabled – [310#] Keyboard Partition Enter code 51 and function: EKB3 where x – 0 means partition 0, 1 means partition 1.
  • Page 8 Enter code 60, iButton number and partition: EKB3 where x – 0 means partition 0, 1 means partition 1. 4.6.2 Password commands SMS Password Enter code 14 and new SMS password: EKB3 where xxxx – 4 digit SMS password. USER MANUAL EKB3 V1.0...
  • Page 9 Keyboard Password Enter code 15, keyboard password number and new keybo- EKB3 ard password: where xx – keyboard password number, yyyy – 4 digits new keyboard password. Change Keyboard Password Enter code 63, old keyboard password and new keyboard EKB3 password: where xxxx –...
  • Page 10 Enter code 16 and new administrator password: EKB3 where xxxx – 4 digits new administrator password. Duress Password Enter code 73 and keyboard password number: EKB3 where xx – keyboard password number. Parameter range from 01 to 10. USER MANUAL EKB3 V1.0...
  • Page 11 Security Guard Service Password Enter code 74 and keyboard password number: EKB3 where xx – keyboard password number. Parameter range from 01 to 10. 4.6.3 Zones commands ATZ Mode ATZ mode is disabled. Enter code 28 and function: EKB3...
  • Page 12 Enter code 34 and zone number: EKB3 Zone 1 – [3401#] Zone 2 – [3402#] Zone 3 – [3403#] … Disabled – [3400#] Zone Mode No ATZ Type1 Type2 Type3 Enter code 38 and Zone mode: EKB3 USER MANUAL EKB3 V1.0...
  • Page 13 Zone Mode ATZ Type4 Type5 Enter code 39 and Zone mode: EKB3 Zone Status Enter code 52, zone number and function: EKB3 where x – 0 means disabled, 1 means enabled.
  • Page 14 Enter code 53, zone number and function: EKB3 where x – zone number. Parameter range from 01 to 44. Entry Delay Enter code 54, zone number and function: EKB3 where x – time in seconds. USER MANUAL EKB3 V1.0...
  • Page 15 STAY Enter code 56, zone number and function: EKB3 where x – 0 means disabled, 1 means enabled. Zone Partition Enter code 57, zone number and partition: EKB3 where x – 0 means partition 0, 1 means partition 1. 4.6.4 Monitoring station commands...
  • Page 16 Alarm Event Disarmed Event Armed Event External Power Loss Event External Power Restore Event Akum Status Event Test Event Enter code 25, event number and function: EKB3 where x – 0 means disabled, 1 means enabled. USER MANUAL EKB3 V1.0...
  • Page 17 Monitoring Station Phone Numbers to 15 numbers. Enter code 26, phone number (01-03) and monitoring sta- EKB3 tion phone number: where xx – phone number, yyyyyyyyyyy – monitoring station phone number. Account Enter code 27 and account number: EKB3 where xxxx – account number.
  • Page 18 Enter code 41 and DNS1 IP address numbers: EKB3 where xxxxxxxxxxxx – DNS1 IP address numbers, e.g. 111011001254 for IP: 111.11.1.254. DNS2 Enter code 42 and DNS2 IP address numbers: EKB3 where xxxxxxxxxxxx – DNS2 IP address numbers, e.g. 111011001254 for IP: 111.11.1.254. USER MANUAL EKB3 V1.0...
  • Page 19 Protocol Enter code 43 and function: EKB3 UDP – [431#] Server Port Enter code 44 and port number: EKB3 where x – port number. Parameter range from 0 to 65535. Local Port Enter code 45 and port number: EKB3 where x – port number.
  • Page 20 Test Period Enter code 46 and test period: EKB3 where x – test period. Device ID Enter code 47 and device ID: EKB3 where x – device ID. Communication Type Enter code 48 and communication type: EKB3 USER MANUAL EKB3 V1.0...
  • Page 21 Enable GSM Backup Enter code 67 and function: EKB3 Disable – [670#] GPRS Attempts Enter code 68 and number of GPRS attempts: EKB3 where x – number of GPRS attempts. Delay between Attempts Enter code 69 and time in seconds: EKB3 where x –...
  • Page 22 – number of degrees in Celcius. Enter code 20 and degrees in Celsius: EKB3 where xx – number of degrees in Celcius. Temperature Limit Info SMS Enter code 50 and function: EKB3 Disabled – [500#] USER MANUAL EKB3 V1.0...
  • Page 23 4.6.6 Other commands Alarm time Enter code 10 and count of minutes: EKB3 where xx – minutes. Siren ON when RF signal is lost Enter code 76 and function: EKB3 Disabled – [760#] Info SMS scheduler Enter code 11, time and period: EKB3 where xx –...
  • Page 24 Bell Squawk Enable Enter code 29 and function: EKB3 Disabled – [290#] Chime Enable Enter code 32 and function: EKB3 Disabled – [320#] Using Module to 12 units. EPGM8 Enter code 33 and function: EKB3 Disabled – [3302#] USER MANUAL EKB3 V1.0...
  • Page 25 Language Enter code 35 and function: EKB3 Log Enable Enter code 36 and function: EKB3 Disabled – [360#] Control Status Enter code 49, output control number and function: EKB3 … where x – 0 means disabled, 1 means enabled.
  • Page 26 Enter code 62 and administrator password: EKB3 where xxxx – administrator password. Time Settings Enter code 66, date and time: EKB3 where yyyy – years, mm – months, dd - days, hh - hours, xx – minutes. USER MANUAL EKB3 V1.0...
  • Page 27 AC Loss Delay Enter code 70 and time in seconds: EKB3 where x – time in seconds. AC Restore Delay Enter code 71 and time in seconds: EKB3 where x – time in seconds. Exit Delay Enter code 72 and time in seconds: EKB3 where x –...
  • Page 28 USER MANUAL EKB3 V1.0...

  • Page 29: Additional Information

    5. Additional Information Limited Liability Manufacturer Warranty Safety instructions...
