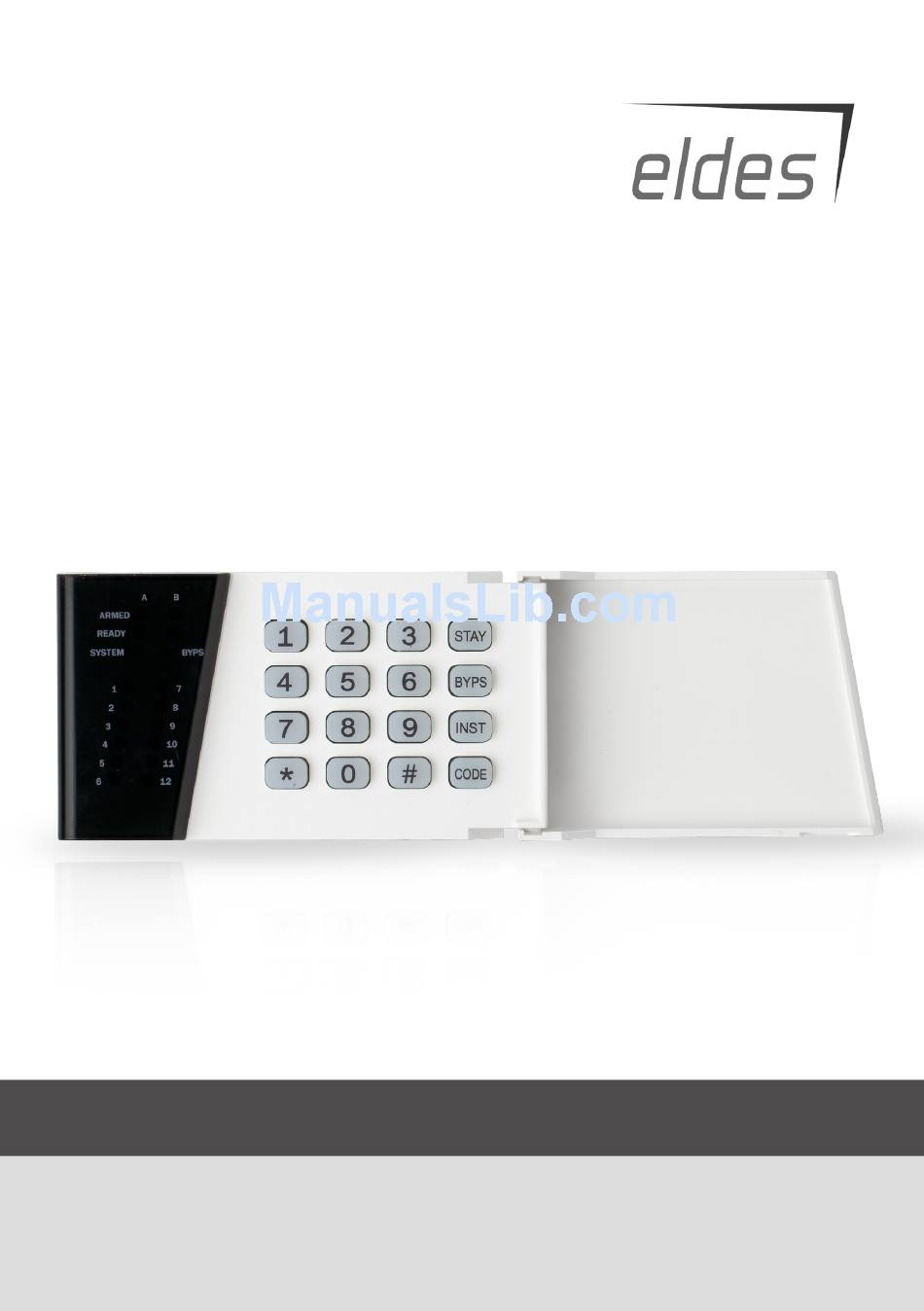

  • Page 1 WIRELESS LED KEYPAD EKB3W...

  • Page 2: Technical Specifications

    Keypad partition switch (only for ESIM364) EKB3W is a wireless LED keypad intended to use with ELDES alarm systems. The system configuration by EKB3W keypad is performed by activating the Configuration Mode and entering the required parameters & values. ELDES alarm systems allow to connect up to 4 EKB3W keypads.
  • Page 3 + / - Battery slots Security zone terminal 3. Installation 1. Detach keypad holder from EKB3W front side . Keypad holder detach points are marked with arrows (see Fig. No. 3). DOWN SIDE BACK SIDE Fig. No. 3 2. Fix the keypad holder on the wall using the screws.
  • Page 4 5. Bind the device to the alarm system using ELDES Configuration Tool software. Open Wireless Device Management section and enter a 8-digit wireless device ID located on the EKB3W enclosure and press Add button (see Fig. No. 6). The device can also be bind by sending a corresponding command via SMS message.

  • Page 5: Battery Replacement

    4. EKB3W Zone & Tamper Upon successful EKB3W wireless LED keypad contact binding process, the system adds 1 wireless Instant zone intended for wired sensor connection. In case of tamper violation, the alarm is caused regardless of system being armed or disarmed. There are 2 ways to detect tamper violation on EKB3W: •...

  • Page 6: Additional Information

    “ ELDES UAB” will not take any responsibility regarding personal or property or revenue loss while using the system. “ELDES UAB” liability according to local laws does not exceed value of the purchased system. “ELDES UAB” is not affiliated with any of the Internet providers therefore is not responsible for the quality of Internet service.
  • Page 7 “ELDES UAB”. “ELSDES UAB” reserves the right to update or modify this document and/or related products without a warning. Hereby, “ELDES UAB” declares that this wireless LED keypad EKB3W is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at www.eldes.lt...
  • Page 8 Made in Lithuania. www.eldes.lt/www.eldesgsm.ru...
