Eldes EKB2 User Manual

Lcd keypad

Hide thumbs Also See for EKB2:

Need help?

Do you have a question about the EKB2 and is the answer not in the manual?

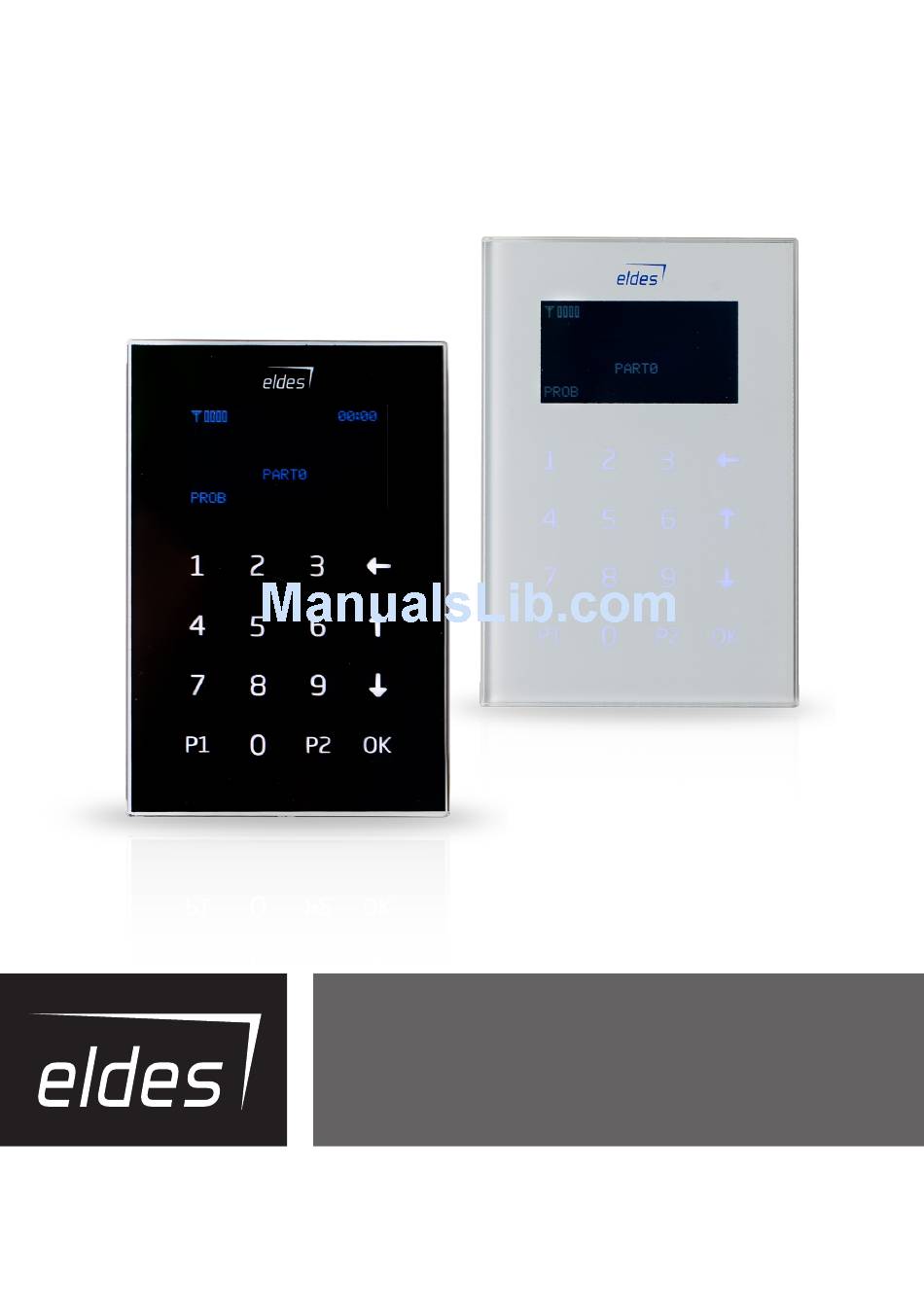

Page 1 EKB2 LCD KEYPAD...
Page 2: Main Features
• Keypad partition switch (for ESIM264 v7.09.02 and up; ESIM364 up to v02.06.20). EKB2 is an LCD keypad intended for using with ELDES alarm systems. The system configuration is performed by accessing EKB2 menu and entering the required values. ELDES alarm system allows to connect up to 4 EKB2 keypads.
Page 3 A0 and A1 pins located on the back side of the keypad are intended to set keypad address. The keypad address is set by putting the jumper (-s) on the pins. ELDES alarm system allows to connect up to 4 EKB2 keypads - each set under different address. Jumper combina- tions for different keypad address configuration are indicated in the table below.
Page 4: Installation
3. Fix the keypad holder on the wall using the screws. (see Fig. No. 5) 4. Disconnect ELDES alarm system main power supply and backup battery. 5. Wire up keypad terminals to ELDES alarm system respectively – Vin to AUX+, COM to AUX- , Y to Y, G to G (see Fig. No. 6).
Page 5: Additional Information
“ELDES UAB” will not take any responsibility regarding personal or property or revenue loss while using the system. “ELDES UAB” liability according to local laws does not exceed value of the purchased system. “ELDES UAB” is not affiliated with any of the cellular providers therefore is not responsible for the quality of cellular service.
Page 6 Made in the European Union www.eldes.lt...
