Eldes EKB2 - LCD Keypad Manual

Introduction

Compatible with:

  • ESIM264 v7.09.02 and up.
  • ESIM364 all versions.
  • ESIM384 all versions.

Main features:

  • Alarm system arming & disarming;
  • STAY-arming & disarming;
  • System parameter configuration;
  • PGM output control;
  • System information display on LCD screen;
  • Audio indication by built-in mini buzzer;
  • Wireless device information display;
  • Keypad partition switch (for ESIM264 v7.09.02 and up; ESIM364 up to v02.06.20).

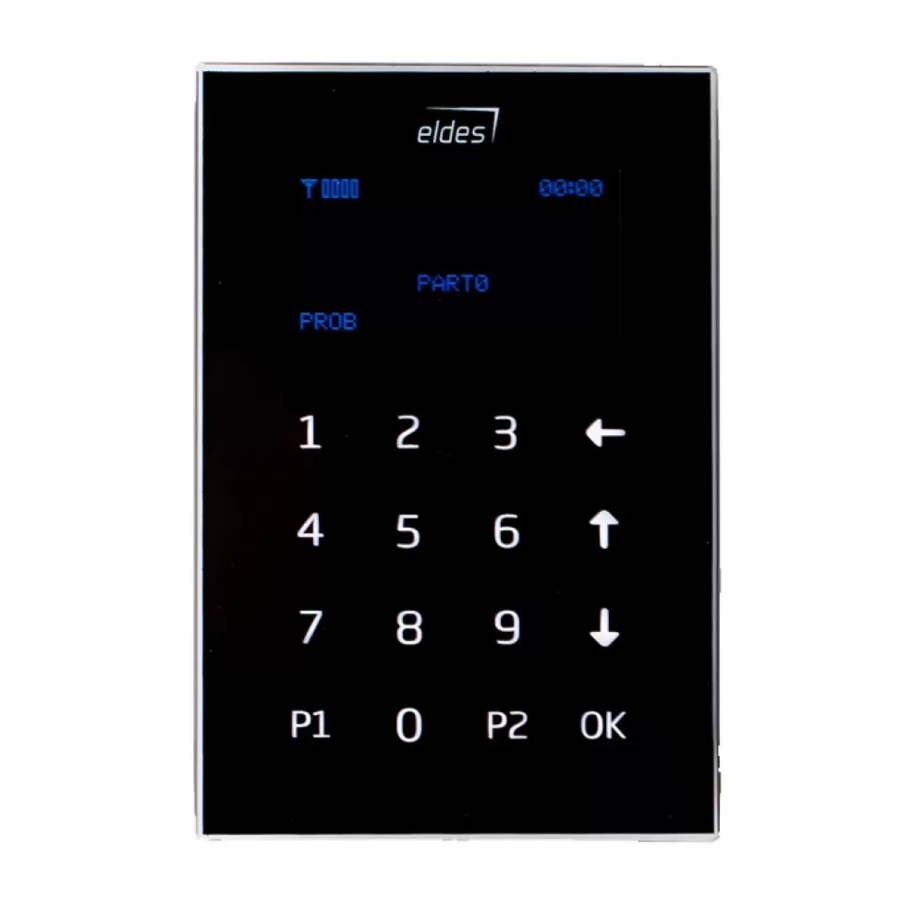

EKB2 is an LCD keypad intended for using with ELDES alarm systems. The system configuration is performed by accessing EKB2 menu and entering the required values. ELDES alarm system allows to connect up to 4 EKB2 keypads.

NOTE: For complete system configuration & control using EKB2 keypad, please refer to ELDES alarm system installation manual located at www.eldesalarms.com

CONTENTS OF PACK

  1. EKB2 x1
  2. User manual x1
  3. 5,6kΩ resistor x1
  4. Jumper x2
  5. Screws x4

TECHNICAL SPECIFICATIONS

Electrical & Mechanical Characteristics

Power Supply 12-14V 150mA max.
Maximum Keypad Connection Cable Length 100 m.
Dimensions 133 x 89 x 19 mm
Range of Operating Temperatures 0...+55ºC

Keys Functionality

One menu level back / cancel Value typing
Menu navigation – up Keypad partition switch (for ESIM264 v7.09.02 and up; ESIM364 up to v02.06.20) / minus character to enter negative temp. value
Menu navigation – down Additional menu / minus character to enter negative temp. value
Confirm (enter) value

Keys Functionality - Part 1
Valid for ESIM264 v7.09.02 and up/ESIM364 up to v02.06.20.

Keys Functionality - Part 2
Valid for ESIM364 v02.07.00 and up

Connector and Main Unit Functionality

Connector and Main Unit Functionality

Vin Positive 12-14V power supply terminal
COM Negative 12-14V power supply terminal
G RS485 interface for communication (green wire)
Y RS485 interface for communication (yellow wire)
COM Common terminal for Z1
Z1 Security zone terminal
A0 Keypad address pin
A1 Keypad address pin
Buzzer Mini buzzer providing sound signals
Tamper Tamper-button for EKB2 enclosure status monitoring

Keypad Address

A0 and A1 pins located on the back side of the keypad are intended to set keypad address. The keypad address is set by putting the jumper (-s) on the pins. ELDES alarm system allows to connect up to 4 EKB2 keypads - each set under different address. Jumper combinations for different keypad address configuration are indicated in the table below.

Address Configuration
Address Configuration
The address of each connected keypad is also indicated in ELDES Configuration Tool software.

INSTALLATION

  1. Remove the screw located on the bottom side of the enclosure (see Fig. No. 3)
    INSTALLATION - Step 1
  2. Detach keypad holder from EKB2 keypad by gently pulling theholder towards yourself (see Fig. No. 4).
    INSTALLATION - Step 2
  3. Fix the keypad holder on the wall using the screws. (see Fig. No. 5)
    INSTALLATION - Step 3
  4. Disconnect ELDES alarm system main power supply and backup battery.
  5. Wire up keypad terminals to ELDES alarm system respectively – Vin to AUX+, COM to AUX-, Y to Y, G to G (see Fig. No. 6).
    INSTALLATION - Step 4
  6. Connect a sensor and the resistor across Z1 and COM terminals in accordance with zone connection Type 1 or Type 2 (see alarm system installation manual). As keypad zone Z1 is disabled by default, it can be enabled by SMS, ELDES Configuration Tool, EKB2, EKB3 and EKB3W keypad. Keypad zone Z1 must be enabled and resistor connected even if the tamper button alone is required (see Fig. No. 6).
  7. Set the keypad address by putting the jumper on A0 and A1 pins (see chapter 2.4 Keypad Address).
  8. Fix the keypad into the holder.
    warning ATTENTION:Before fixing the keypad into the holder please, make sure that the tamper button is properly pressed (see Fig. No. 2).
  9. Screw up the bottom side of the enclosure. (see Fig. No. 3)
  10. Power up ELDES alarm system.
  11. EKB2 keypad is ready.

ADDITIONAL INFORMATION

Limited Liability

The buyer must agree that the system will reduce the risk of fire, theft, burglary or other dangers but does not guarantee against such events. "ELDES UAB" will not take any responsibility regarding personal or property or revenue loss while using the system. "ELDES UAB" liability according to local laws does not exceed value of the purchased system. "ELDES UAB" is not affiliated with any of the cellular providers therefore is not responsible for the quality of cellular service.

Manufacturer Warranty

The system carries a 24-month warranty by the manufacturer "ELDES UAB". Warranty period starts from the day the system has been purchased by the end user. The warranty is valid only if the system has been used as intended, following all guidelines listed in the manual and within specified operating conditions. Receipt must be kept as a proof of purchase date. The warranty is voided if the system has been exposed to mechanical impact, chemicals, high humidity, fluids, corrosive and hazardous environment or other force majeure factors.

SAFETY INSTRUCTIONS

Please read and follow these safety guidelines in order to maintain safety of operators and people around:

  • DO NOT use the system where it can be interfere with other devices and cause any potential danger.
  • DO NOT use the system with medical devices.
  • DO NOT use the system in hazardous environment.
  • DO NOT expose the system to high humidity, chemical environment or mechanical impacts.
  • DO NOT attempt to personally repair the system.
warningKeypad EKB2 is a device mounted in limited access areas. Any system repairs must be done only by qualified, safety aware personnel.
warning The system must be powered by 12-14V150mA max power supply and must be approved by LST EN 60950-1 standard and be easily accessible.
warning Main power must be disconnected before any installation or tuning work starts. The system installation or maintenance must not be done during stormy conditions.


The WEEE (Waste Electrical and Electronic Equipment) marking on this product (see left) or its documentation indicates that the product must not be disposed of together with household waste. To prevent possible harm to human health and/or the environment, the product must be disposed on in an approved and environmentally safe recycling process. For further inform ation on how to dispose of this product correctly, contact the system supplier, or the local authority responsible for waste disposal in your area.

Copyright © "ELDES UAB", 2017. All rights reserved

It is not allowed to copy and distribute information in this document or pass to a third party without advanced written authorization by "ELDES UAB". "ELSDES UAB" reserves the right to update or modify this document and/or related products without a warning. Hereby, "ELDES UAB" declares that this LCD keypad EKB2 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at www.eldesalarms.com
