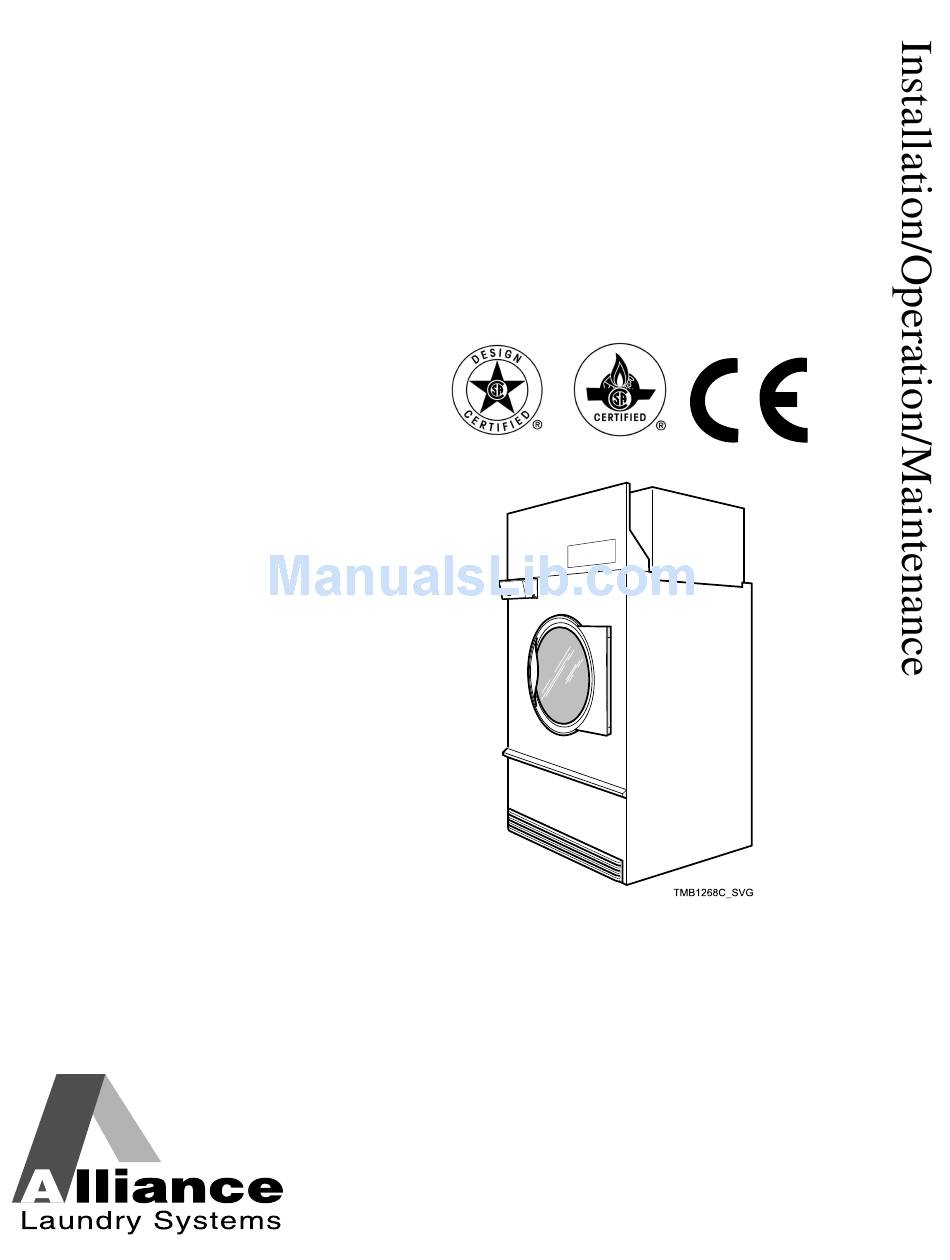

Original Instructions
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Tumble Dryers
120 Pound (54 Kilogram) Capacity
170 Pound (77 Kilogram) Capacity
200 Pound (91 Kilogram) Capacity
Starting Serial No. 0907003062
Refer to Page 6 for Model Identification
www.alliancelaundry.com
Part No. 70458101ENR7
January 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CA120L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alliance Laundry Systems CA120L

Summary of Contents for Alliance Laundry Systems CA120L

  • Page 1 Tumble Dryers 120 Pound (54 Kilogram) Capacity 170 Pound (77 Kilogram) Capacity 200 Pound (91 Kilogram) Capacity Starting Serial No. 0907003062 Refer to Page 6 for Model Identification Original Instructions Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) www.alliancelaundry.com Part No.

  • Page 3: Front Matter

    Never start the tumble dryer with any guards/panels removed. • Whenever ground wires are removed during servicing, these ground wires must be reconnected to ensure that the tumble dryer is properly grounded. W002R1 © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...
  • Page 4 A “T-Handle” type gas shut-off valve must be installed in the gas supply line to this appliance. • This appliance must not be installed in a bedroom or bathroom. © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...

  • Page 5: Table Of Contents

    All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...
  • Page 6 DMP OPL Models...................74 Ignition Control Operation and Troubleshooting for Models Starting 3/11/13..................... 77 Internal Control Failure................77 Troubleshooting..................77 Proper Electrode Location................ 78 Flame Current Measurement..............78 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...
  • Page 7 Bi-Annually....................86 Annually.....................87 Fire Suppression System Maintenance Test........... 87 Before You Call for Service..............89 Removing Tumble Dryer from Service..........90 Disposal of Unit.................. 91 © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 8: Introduction

    UU120E DR120G2-BT120N ST120L YT120N HU120T YT120S YT120E DR120G2-BU120L ST120N YU120L IPD120S2 YT120T YU120E DR120G2-BU120N SU120L YU120N IT120S YU120S HA120L SU120N IT120T YU120T HA120N UA120L ST120S © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...
  • Page 9 HU200S UU200T SA200N Explanation of digit in 6th position of model number: E = Electric L = Liquid Petroleum (L.P.) Gas N = Natural Gas © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 10: Contact Information

    Figure 1 . or +32 56 41 20 54 for the name and address of the nearest authorized parts distributor. Date Purchased ______________________________ © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...
  • Page 11 Introduction Serial Plate Figure 1 © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 12: Safety Information

    Daily remove piled up dust from filter and inside of filter compartment. W051R1 • Do not use or store flammable materials near this appliance. © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...
  • Page 13 Always clean the lint filter daily. Keep area around the exhaust opening and adjacent surrounding area free from the accumulation of lint, dust and dirt. The interior of the tumble © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 14: Specifications And Dimensions

    Maximum Static Back Pressure: W.C.I. 0.8 (2.0, 0.2) 0.8 (2.0, 0.2) 0.8 (2.0, 0.2) (mbar, kPa) Maximum Airflow: C.F.M. (L/sec.) 1,600 (755) 2,450 (1,156) 2,450 (1,156) Gas Models © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...
  • Page 15 Heating Element Rating: Kilowatts 60 kW Not Applicable Not Applicable (kW) NOTE: All machines are shipped with extra nipple to convert to metric thread (from Standard). © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 16: 120 Series Tumble Dryer Dimensions And Exhaust Outlet Locations

    120L/N/E 46.38 in. 85.7 in. 70 in. 41.6 in. 43.2 in. 61.5 in. (1,178 mm) (2,177 mm) (1,778 mm) (1,057 mm) (1,097 mm) (1,562 mm) © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...
  • Page 17 120S 60.7 in. 8.44 in. 5 in. (127 mm) 8.18 in. 6.82 in. 8.18 in. (1,542 mm) (214 mm) (208 mm) (173 mm) (208 mm) © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 18: 170 And 200 Series Tumble Dryer Dimensions And Exhaust Outlet Locations

    170L/N/S 53.12 in. 94 in. 75.12 in. 48.86 in. 50.45 in. 62.5 in. (1,349 mm) (2,388 mm) (1,908 mm) (1,241 mm) (1,281 mm) (1,588 mm) © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...
  • Page 19 6 in. (152 mm) 7 in. (178 mm) 200L/N/S 42.38 in. (1076 mm) 6.75 in. (171 mm) 6 in. (152 mm) 7 in. (178 mm) © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 20: Electric And Gas Connection Locations For Gas Models Through 3/10/13

    1 in. NPT (377 mm) (1,966 mm) 200L/N 21 in. (533 mm) 81 in. (2,057 mm) 13.7 in. (348 mm) 77.4 in. 1 in. NPT (1,966 mm) © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...

  • Page 21: Electric And Gas Connection Locations For Gas Models Starting 3/11/13

    1 in. NPT (377 mm) (1,966 mm) 200L/N 21 in. (533 mm) 81 in. (2,057 mm) 14.85 in. 77.4 in. 1 in. NPT (377 mm) (1,966 mm) © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 22: Electric And Steam Connection Locations For Steam Models Through 3/10/13

    34.625 in. (879 mm) 13.125 in. (333 mm) 68.5 in. (1,740 mm) 170S 1 in. NPT 44.625 in. (1,133 mm) 8.75 in. (222 mm) 71.75 in. (1,822 mm) © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...
  • Page 23 18.34 in. (466 mm) 77.84 in. (1,977 mm) 170S 21 in. (533 mm) 81 in. (2,057 mm) 200S 21 in. (533 mm) 81 in. (2,057 mm) © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 24: Electric And Steam Connection Locations For Steam Models Starting 3/11/13

    34.625 in. (879 mm) 13.125 in. (333 mm) 68.5 in. (1,740 mm) 170S 1 in. NPT 44.125 in. (1,133 mm) 9 in. (229 mm) 72.125 in. (1,832 mm) © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...
  • Page 25 18.34 in. (466 mm) 77.84 in. (1,977 mm) 170S 21 in. (533 mm) 81 in. (2,057 mm) 200S 21 in. (533 mm) 81 in. (2,057 mm) © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 26: Electric Connection Location For Electric Models

    Specifications and Dimensions Electric Connection Location for Electric Models TMB2336N Models 120E 35.81 in. (910 mm) 85.64 in. (2,175 mm) © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...

  • Page 27: Installation

    A typical tumble dryer enclosure is shown in Figure 2 . IMPORTANT: Install tumble dryers with sufficient clearance for servicing and operation, refer to Figure 2 © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...
  • Page 28 To reduce the risk of severe injury, clearance of tumbler cabinet from combustible construction must conform to the minimum clearances, and/or local codes and ordinances. W770 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...

  • Page 29: Position And Level The Tumble Dryer

    120 series tumble dryer to 70 inches (1,778 mm), and the 170 and 200 series tumble dryer to 75 inches (1,905 mm). © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 30: Fire Suppression System

    (Standard US 3/4-11 suppression system, or the fire suppression system 1/2 NH thread). Refer to Figure 3 and Figure 4 . will not operate as intended. © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...
  • Page 31 Part No. 20618 Inlet hose 10 feet (3.05 m) Figure 4 Connect inlet hoses to water supply. Flush the lines for approximately two minutes to remove any foreign materials © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 32: Electrical Requirements

    Refer to Adjustments section. Gas Tumble Dryers: Start the tumble dryer and check the burner flame. Adjust the air inlet shutter as required. Refer to Adjustments section. © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...
  • Page 33 Press start on times) control keypad. For models with all other control suffixes: Press and hold reset button on junction box until light goes out. © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 34: Required For Ce Models Only

    L.P. Gas configurations that must be regulated. For L.P. Gas, third family B/P at 50 mbar (5 kPa), order Machines are built in two different configurations: © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...

  • Page 35: Ce Orifices

    Unregulated 0.1417 M401014 (3.6) 0.1496 M402997 (3.8) 0.1520 M401020 (3.9) Third 11.25/12 Unregulated 0.0980 M406361 3B/P (28/30, 2.8/3.0) (2.5) 0.1200 M401017 (3.0) 0.1220 70070903 (3.1) © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 36: Properties Of Ce Gases

    (MJ/m (MJ/m (MJ/m (MJ/m Density Natural Second 1226 1362 1014 0.555 2H,E Applicable (45.67) (34.02) (50.72) (37.78) 1004 1115 0.612 Applicable (37.38) (29.25) (41.52) (32.49) © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...

  • Page 37: Changing Gas Configuration

    (located ahead of the tumble dryer) that will maintain the gas supply at the inlet pressure specified. W430R1 © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 38: Specific Conversion Procedures

    Figure 7 How to Change Burner Orifice Size Disconnect electrical power from tumble dryer. Close gas shut-off valve to tumble dryer. Refer to Figure 7 . © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...
  • Page 39 (manifold) pressure tap. Start tumble dryer and note pressure once flame is burning. Remove regulator cap and adjust regulator screw until the © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 40: Exhaust Requirements

    Exhaust ducts must be assembled so the interior surfaces are smooth, so the joints do not permit the accumulation of lint. DO NOT use plastic, thin foil or Type © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...
  • Page 41 Consult your local building code for regulations which may also NOTE: Where exhaust duct pierces a combustible wall apply. or ceiling, the opening must be sized per local codes. © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 42: Alternate Venting For 120 Series Tumble Dryers

    20% for (6.4 m) each additional 20 feet (6.1 m) . Refer to Table 3 to determine equivalent venting. © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...

  • Page 43: Manifold Venting

    Two Manifold Assemblies. This illustration indicates minimum diameters, and should be increased if the collector length exceeds 14 feet (4.3 m) and two 90° elbows. The diameter of a Figure 12 © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...
  • Page 44 34 in. (864 mm) 32 in. (813 mm) 36 in. (914 mm) 33 in. (838 mm) 38 in. (965 mm) 35 in. (889 mm) 40 in. (1,016 mm) © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...
  • Page 45 Outlet duct diameter = combined largest duct diameter of both sides 45° typical Figure 14 Two Manifold Assemblies Refer to Table 4 for measurements for each manifold. © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 46: Gas Requirements

    Installation Code in Canada • In Australia and New Zealand , installation must comply with the Gas Installations Standard AS/NZS 5601 Part 1: General Installations. © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...
  • Page 47 Repeat these steps Gas Pipe Cap until burner ignites. Use pipe compound, resistant to actions of Sediment Trap L.P. gas, on all pipe threads. Figure 15 © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 48: Gas Supply Pipe Sizing And Looping

    12 120 series tumble dryers = 270,000 Btu/hr. (285 Mj/hr.,79.13 kW) each; 170 series tumble dryers = 395,000 Btu/hr. (417 Mj/hr., 115.77 kW) each; 200 series tumble dryers = 425,000 Btu/hr. (448 Mj/hr., 124.56 kW) each Figure 16 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...
  • Page 49 2 (50.80) 2 (50.80) 2.5 (63.50) 2.5 (63.50) 2.5 (63.50) 2.5 (63.50) 1,200,000 2 (50.80) 2 (50.80) 2.5 (63.50) 2.5 (63.50) 2.5 (63.50) 2.5 (63.50) © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 50: High Altitude Orifice Sizing

    For L.P. Gas, correct the total Btu/hr by multiplying it by 0.6. The answer is the equivalent Btu on the above chart. Table 5 High Altitude Orifice Sizing © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...
  • Page 51 (1,221 – 1,830) (350) 6,001 – 8,000 0.1660 (4.2) M402995 300,200 (1,831 – 2,440) (317) 8,001 – 10,000 0.1570 (4) M402996 268,600 (2,441 – 3,050) (283) © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...
  • Page 52 (341) 8,001 – 10,000 0.1130 (2.9) M401022 289,000 (2,441 – 3,050) (305) *Btu/hr. derate of 4% per 1,000 ft. (305 m) of altitude. Table 6 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...

  • Page 53: Electrical Requirements

    If more than one tumble dryer is being installed, a circuit breaker must be provided for each. © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 54: For Ce Models Only

    Service/Ground Location Junction Box Terminal Block Earth/Ground Electrical Service Figure 17 Ground and Terminal Block Locations for Non-CE Gas and Steam Models © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...
  • Page 55 Earth/Ground Junction Box Terminal Block Power Disconnect (Models Through 7/31/11) Electrical Service Figure 18 Ground and Terminal Block Locations for CE Gas and Steam Models © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 56: To Connect Electrical Service To The Tumble Dryer

    The ferrite ring provided in the literature packet must be installed over the power leads during connection of electrical service. The ferrite protects the sensitive electronic controls from destructive electrical disturbances which may be present © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...
  • Page 57 Snap the ferrite ring closed over all the service leads inside of the contactor box as shown. It is important that the ferrite © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 58: Electrical Specifications

    Electrical Requirements Non-CE Models CE Models Ferrite Ring Junction Box Models Through 7/31/11 Figure 20 Electrical Specifications © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...
  • Page 59 125A - 3 pole 1 (35) 400-415V/50Hz/3ph L1,L2,L3 and ground 125A - 3 pole 1 (35) 480V/60Hz/3ph L1,L2,L3 and ground 76.1 100A - 3 pole 3 (26.2) © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...
  • Page 60 14 (2.5) 440V/60Hz/3ph L1, L2, L3 and ground 15A - 3 pole 14 (2.5) 460-480V/60Hz/3ph L1, L2, L3 and ground 15A - 3 pole 14 (2.5) © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...
  • Page 61 Breaker Rating Size AWG (mm²) * Current ratings vary slightly depending on model; refer to serial plate. Table 10 For 200 Series Tumble Dryer Models © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 62: Steam Requirements

    NOTE: To prevent water hammering, route return steam header to the return. lines below outlets of steam coils. © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...
  • Page 63 18 in. (457 mm) Drop Solenoid Valve (Supplied with machine) 10 Steam Bonnet 11 Flexible Line 12 Union 13 Trap with Built-In Strainer Figure 21 120 Series Tumble Dryers © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...
  • Page 64 Pounds Condensate/Hour Steam Pressure PSI (bar) Minimum Supply Pipe Diameter (Kilograms Condensate/Hour) 80-100 (5.3-6.9) 1 in. NPT 345 (156) *Based on 6.9 bar. Table 11 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...
  • Page 65 Steam Bonnet Solenoid Valve (Supplied with machine) Union 10 Trap with Built-In Strainer 11 Return 12 Supply Figure 22 170 and 200 Series Tumble Dryers © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 66: Piping Recommendations

    If necessary, install a strainer at the end of each flexible hose. Install a steam trap to each strainer. © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...

  • Page 67: Operating Instructions

    Pound (Kg) Emergency Stop Button 120 (54.4) Figure 23 170 (77.1) To operate emergency stop button: • Press red emergency stop button to stop all action. © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 68: Reversing Operation

    Select reversing or nonreversing cylinder rotation setting, if L1 and L2 service leads to the reverse drive motor. applicable. Control Instructions Dual Digital Timer Control RQ Control Suffix © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...
  • Page 69 • Check airflow switch. Replace if inoperative. AF - 2 Airflow switch failed to close after cycle • Check airflow switch. Replace if inoperative. started © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 70: Electronic Opl Micro Control

    NOTE: All pads can be pressed in any sequence without damaging control or tumble dryer. To stop the tumble dryer at any time, open the door or Figure 29 press STOP/RESET. © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...

  • Page 71: Led Opl Control

    18 hours or until the door is opened. S Models H Models Figure 34 © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 72: Unilinc Control

    After an hour the machine enters delayed tumble and will tumble for two minutes every hour for up to 18 hours or until the door is opened. © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...

  • Page 73: Dx4 Opl Control

    Temperature Time Time W779 Left 104°F (40°C) 30 min. Button min. Middle 140°F (60°C) 30 min. Button min. Diagnostic Microprocessor Control © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 74: Dmp Opl Models

    STOP once to stop the tumble dryer and press STOP again to cancel the current cycle. 5 – Extra 150ºF (66ºC) Table 15 Default Programs DMP OPL Models RD Control Suffix © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...
  • Page 75 Function Coin Tumble dryer Type OPL=Off; Coin=On Temperature Units ºF=Off; ºC=On Local/Remote Reversing Local=On; Remote=Off © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...
  • Page 76 #1 is set for OPL, then DIP switch #7 in the ON position enables the safety tumble. If DIP switch #1 is set for Coin, then DIP switch #7 in the ON position enables © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...

  • Page 77: Ignition Control Operation And Troubleshooting For Models Starting

    Thermostat on, no spark or valve 1. Cable connects to control and electrode. Voltage present at gas valve. 2. Bad control. Check red LED for steady on or flashing codes. © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 78: Proper Electrode Location

    If the meter reads negative or below “0” on the scale, the meter be powered up again in an attempt to re-ignite the gas. leads are reversed. Re-connect leads with proper polarity. © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...

  • Page 79: Ignition Control Operation For Ce Models Through 3/10/13

    Error Code. enter Lockout Mode. If no faults are detected, the Diagnostic LED will turn Green and the ignition control will enter Standby Mode. © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 80: System Tests

    Refer to Figure 41 . The Diagnostic LED will indicate the status of the ignition control. Refer to Table 17 . © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...
  • Page 81 Operating Instructions Error Code DGN LED status Fault Type Fast Red and Ignition Control Orange Flashes is in Reset Delay Diagnostic (DGN) LED Figure 41 © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 82: Adjustments

    These should be checked and the required screw. corrective action taken. Open or close air shutter as necessary to obtain proper flame intensity. © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 83: Loading Door Switch

    If adjustment is required, refer to Figure 43 and proceed as follows: Open door. Loosen acorn nut. Turn door strike screw in or out as required. Tighten acorn nut. © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 84: Belt Drive

    170 series tumble dryers using a similar 60-70 45-55 70-80 55-65 65-70 55-60 procedure. NOTE: Proper tensions for new belts are measured Table 18 with a Belt Tension Gauge: © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...
  • Page 85 0.25 inch at five pounds pressure. Belts should not slip or make any noise when starting up under normal load. © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 86: Maintenance

    Check belt tension and condition. Replace worn or cracked belts. Bi-Annually Check mounting hardware for any loose nuts, bolts or screws. Check gas connections for leakage. Check for loose electrical connections. © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 87: Annually

    If less than minimum pounds indicated in Table 19 , the fire suppression system has failed the maintenance test. Refer to the Troubleshooting Manual. © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...
  • Page 88 12. Start the tumble dryer to dry the test load. 13. On maintenance record, check box if fire suppression system passed the test, date and sign record. Spray Manifold Water Spray Figure 47 © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No. 70458101ENR7...

  • Page 89: Before You Call For Service

    Tumble dryer is in Cool Down Mode. • • Lint screen clogged. Clean lint screen. • • Exhaust duct to outside is blocked. Clean out. © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 90: Removing Tumble Dryer From Service

    Turn off gas supply external to machine. Turn off manual gas shut-off valve on machine. Turn off steam supply external to machine. Remove all electric, gas and steam connections. © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...

  • Page 91: Disposal Of Unit

    Figure 48 © Part No. 70458101ENR7 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...
