RIDE-ON MOWER
EN
OWNER'S MANUAL
WARNING!
Read this manual carefully before using the machine.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MJ 66 and is the answer not in the manual?

Questions and answers

Related Manuals for GGP ITALY SPA MJ 66

Summary of Contents for GGP ITALY SPA MJ 66

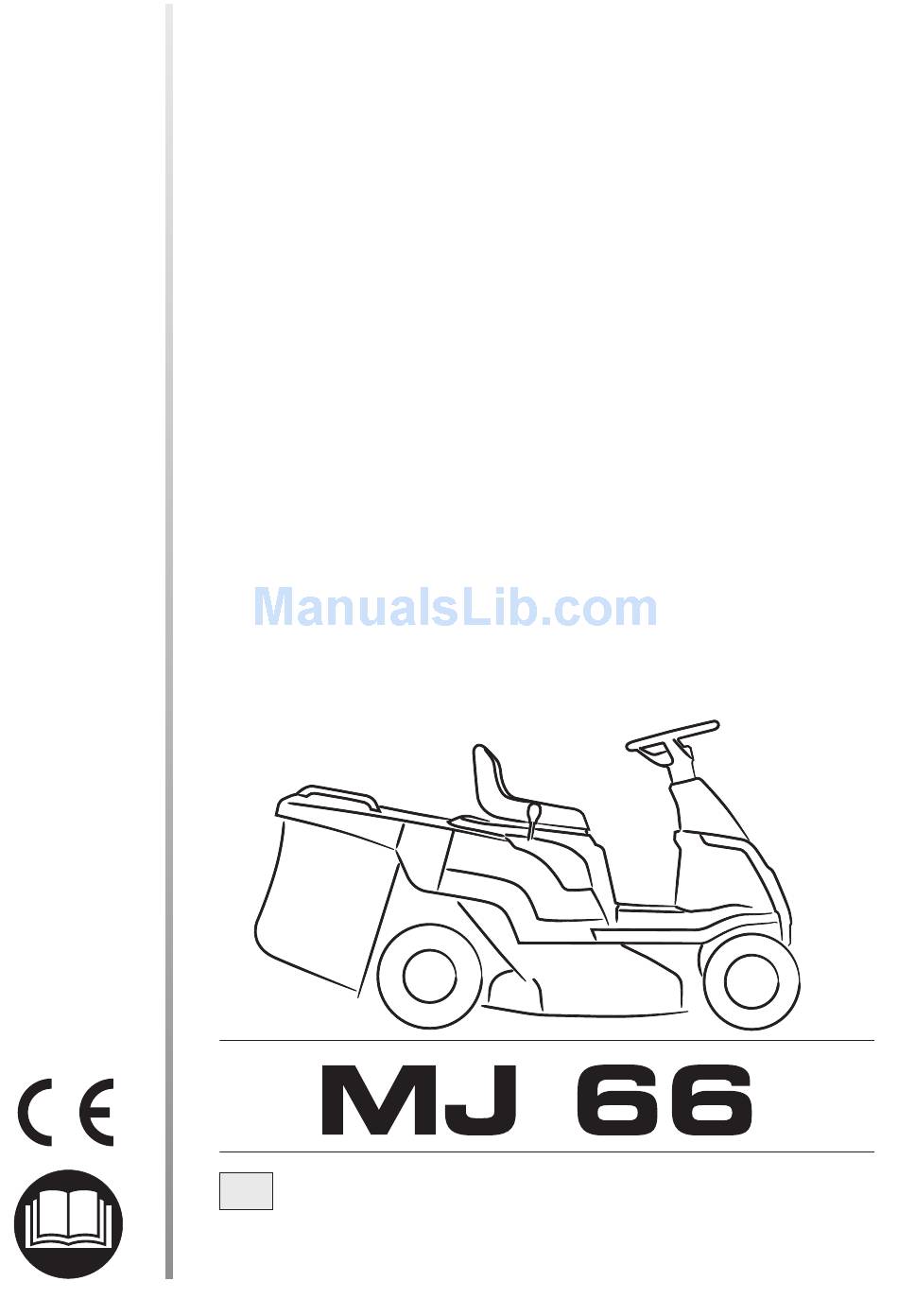

  • Page 1 RIDE-ON MOWER OWNER’S MANUAL WARNING! Read this manual carefully before using the machine.

  • Page 3: Table Of Contents

    TRANSLATION OF THE ORIGINAL INSTRUCTIONS TABLE OF CONTENTS 1. SAFETY ............. 3 6. MAINTENANCE ........22 All the information for maintaining Regulations for using the machine safely the machine in peak efficiency 2. IDENTIFICATION OF THE MACHINE 6.1 Safety recommendations ....22 AND PARTS ..........
  • Page 4 well as a transmission unit that moves the ma- – towing or pushing loads without the use of the chine. specific accessory for towing; – use of the machine for riding over unstable, The operator is able to operate the machine and use the main controls, always seated in the op- slippery, icy, stony, rough, marshy ground or erator’s position.

  • Page 5: Safety

    1. SAFETY 1.1 HOW TO READ THE MANUAL Some paragraphs in the manual contain informa- tion of particular importance and these are high- The manual describes several machine models lighted at various levels of emphasis, and signify the following: that can mainly differ in: NOTE –...
  • Page 6 C) OPERATION re-fitted. 17) Reduce the throttle setting before stopping the 1) Do not operate the engine in a confined space engine and turn the fuel off at the conclusion of where dangerous carbon monoxide fumes can col- mowing, following the instructions in the manual. lect.
  • Page 7 1.3 SAFETY DECALS If placed on a label, they are considered an integral part of the machine. Your machine must be used with care. Picto- grams have been placed on the machine to re- If a decal should fall off or become illegible, mind you of the main precautions to be taken contact your retailer to replace it.

  • Page 8: Identification Of The Machine And Parts

    2. IDENTIFICATION OF THE MACHINE AND PARTS 2.1 IDENTIFICATION OF THE MACHINE The identification label located under the seat has the essential data of each machine. The serial number (6) must be quoted when you require technical assistance or spare parts. 1.

  • Page 9: Unpacking And Assembly

    3. UNPACKING AND ASSEMBLY For storage and transport reasons, some compo- NOTE To prevent damage to nents of the machine are not directly installed in the cutting deck, raise it to its maximum height the factory, but have to be assembled after their and take utmost care when taking the machine removal from the packing.

  • Page 10: Hydrostatic Transmission

    Mount the lower part (5) of the rear plate and screw (6) it to the lower brackets without tighten- ing the screws completely. Hydrostatic transmission Make sure the release lever (7) is inserted in the rear plate groove correctly and that it runs freely.
  • Page 11 3.5 ASSEMBLY OF THE BLADE 3.7 FITTING THE GRASS-CATCHER ENGAGEMENT LEVER EXTENSION • Use equipment marked “D”. • Use equipment marked “C”. Fit the grass catcher following sequences illus- Tighten the knob (1) on the extension (2), then trated in the figures. screw the extension (2) onto the end of the lever (3).
  • Page 13 (if provided) • Use equipment marked “E”. Fit the handle (1) on the deflector cap (2) using the pin (3) pushing it to the end with a hammer. Insert an end of the spring (4) in the deflector cap (2) opening and fasten it with the pin (5) inserted in the specific deflector cap (2) seat (6).

  • Page 14: Commands And Control Instruments

    4. COMMANDS AND CONTROL INSTRUMENTS 3. BLADE ENGAGEMENT AND BRAKE LEVER This lever has two positions, as shown on the label: Position «A» = Blade disen- gaged Position «B» = Blade engaged – If the blade is engaged when safety conditions have not been complied with, the engine shuts down.
  • Page 15 – On being released at the «START» posi- tion, the key will automatically return to «OFF» for switching «ON». off the engine «CHOKE» (if fitted) = cold starting 6. ACCELERATOR LEVEL Regulates the engine’s r.p.m. The positions «SLOW» for mini- are indicated on a plate showing the following mum engine speed symbols:...
  • Page 16 12. SPEED CHANGE LEVER – The pedal automatically goes into neutral «N» when released. This lever has 6 posi- tions for the 4 forward speeds, the neutral po- Only shift into re- sition «N» and reverse verse when the machine has stopped «R».

  • Page 17: How To Use The Machine

    5. HOW TO USE THE MACHINE 5.1 SAFETY RECOMMENDATIONS Electric Start Do not tamper with or – the operator is seated or the parking remove the safety devices fitted on the brake is engaged. machine. REMEMBER THAT THE USER IS ALWAYS RESPONSIBLE FOR DAMAGE AND INJURY TO OTHERS.
  • Page 18 5.3.2 Refuelling 5.3.3 Tyre pressure NOTE The oil and fuel to use are indicated in the engine booklet. Having the correct tyre pressure is essential for keeping the cutting deck horizontal and thus achieving uniform mowing. To reach the oil dip- stick, turn the seat over and remove the cover underneath.

  • Page 19: Using The Machine

    Then fit the grass-catcher or the rear discharge guard as indicated above. • Preparation for mowing and grass side discharge Lift the safety lever(1) and the side discharge guard (2). Fasten the side discharge chute (3) and lower the guard (2), making sure it stays well fastenedto the chute protrusions (3a) .
  • Page 20 Before starting the tion. Should the malfunction persist, refer to engine: chapter «8» of this manual and the engine manual. – open the fuel stop- cock (1 - where supplied), which you 5.4.2 Moving without mowing can reach from the left-hand rear wheel arch.

  • Page 21: Grass Cutting

    Hydrostatic transmission Hydrostatic transmission First reduce the machine’s speed by reducing The speed has to be adapted to the condition the engine’s r.p.m., and then press the brake of the grass in a gradual and progressive way pedal to slow down the machine until it stops. by moving the speed drive pedal.
  • Page 22 great care when changing direction that the first wheels do not hit obstacles (such as stones, branches, roots, etc.), that may cause the ma- chine to slide sideways, roll over or otherwise cause loss of control. REDUCE SPEED BE- FORE ANY CHAN GE OF DIRECTION ON SLOPES and always en ga ge the parking brake before leaving the machine stopp ed and unattended.
  • Page 23 – switch off the engine by turning the key to «STOP»; – close the fuel tap (1). Always take out the ignition key before leaving the ma- chine unattended! IMPORTANT To keep the battery charged, do not leave the key in the «ON» position when the engine is not running.
  • Page 24 After each use, accurately clean the cutting deck 5.5.10 Storage and inactivity to remove any grass remains or debris. for long periods If the machine is likely to be unused for a long pe- Wear eye protection riod (more than 1 month), follow the instructions in the engine manual.

  • Page 25: Maintenance

    6. MAINTENANCE 6.1 SAFETY RECOMMENDATIONS Any adjustments or maintenance operations not described in Routine and accurate maintenance is essential in this manual must be carried out by your maintaining original machine safety and perform- Dealer or a specialized Service Centre. ance levels.
  • Page 26 See the engine manual for the full list and frequency. At the first signs of any malfunction, contact your Dealer imme diately. The operation must be carried out by your Dealer or a specialized Service Centre. General lubrication should also be carried out whenever the machine is to be left unused for a long period. –...

  • Page 27: Interventions On The Machine

    6.3 INTERVENTIONS ON THE MACHINE IMPORTANT Before remounting the wheel, apply grease to the axle. Put the snap 6.3.1 Cutting deck alignment ring (1) and supporting washer (2) back in place. The cutting deck should be properly set to obtain a good cut.

  • Page 28: Environmental Protection

    Only blades with the following codes must be IMPORTANT A blown fuse must used on this machine: always be replaced by one of the same type and ampere rating, and never with one 184109505/0 of another rating. The blade (2) must be assembled with the code If you cannot find out why the fuse has blown, facing the ground, following the steps indicated in consult a Licensed Service Centre.

  • Page 29: Troubleshooting

    8. TROUBLESHOOTING PROBLEM LIKELY CAUSE SOLUTIONS Electronic card blocked due to: Turn the key to «STOP» and look for Electric the cause of the problem: start 1. With the key on «START» – flat battery – recharge battery ( 6.2.3) the starter motor does not run –...
  • Page 30 PROBLEM LIKELY CAUSE SOLUTIONS 6. Starting is difficult or the – fault in carburation – clean or replace the air filter engine runs erratically – flush out the float chamber – empty fuel tank and refill with fresh fuel – check and, if necessary, replace fuel filter 7.

  • Page 31: Accessories On Request

    If problems continue after having carried out necessary equipment and the technical these operations, contact a Licensed Service knowledge. The guarantee is automatically Centre. revoked and the manufacturer declines all responsibility for any repairs which are badly done. Do not take on com- plicated repair work if you don’t have the 9.

  • Page 32: Specifications

    10. SPECIFICATIONS Electric Start Hydrostatic transmission Electrical system ......... 12 V Tyres 11”-13” Battery ........7.2 or 9.0 Ah Forward speed (approximate) in Forward gear ....0 - 5.6 km/h Front tyres ........11 x 4.00-4” in Reverse ......0 - 2.7 km/h or ..........
  • Page 33 DICHIARAZIONE CE DI CONFORMITÁ Déclaration CE de Conformité EC Conformity Statement EG-Konformitätserklärung (Direttiva Macchine 2006/42/CE, Allegato II, parte A) (Directive Machines 2006/42/CE, Annexe II, partie (Machine Directive 2006/42/EC, Annex II, part A) (Maschinenrichtlinie 2006/42/EG, Anhang II, Teil 1. The Company 1.
  • Page 34 As soon as you have purchased the machine, write the machine identification data (3 - 5 - 6) found on the identification label in the spaces provided ( 2.1 - IDENTIFICATION OF THE MACHINE).
