Connections

Power supply

Electrical
installation

Positioning

230V a.c. (UK: 240V a.c.) +10%/-15%, 50 Hz, 2300 W with a 2000 W
heating element / 3000 W with a 2700 W heating element.
Approx. 3.5 m, 3x1.5 mm² cable.
Brown = phase, blue = neutral, green/yellow = protective earth (I.E.C.
Standards).
Connect machine to power source in accordance to the relevant electrical
standards of the country in which the machine is to be installed.
The socket must be equipped with an earthed conductor that is in accor-
dance with the local regulations. The dispenser housing will be carrying
voltage if no earthed conductor is connected! (mains filter). The power
supply voltage must be 230 V (UK: 240 V).

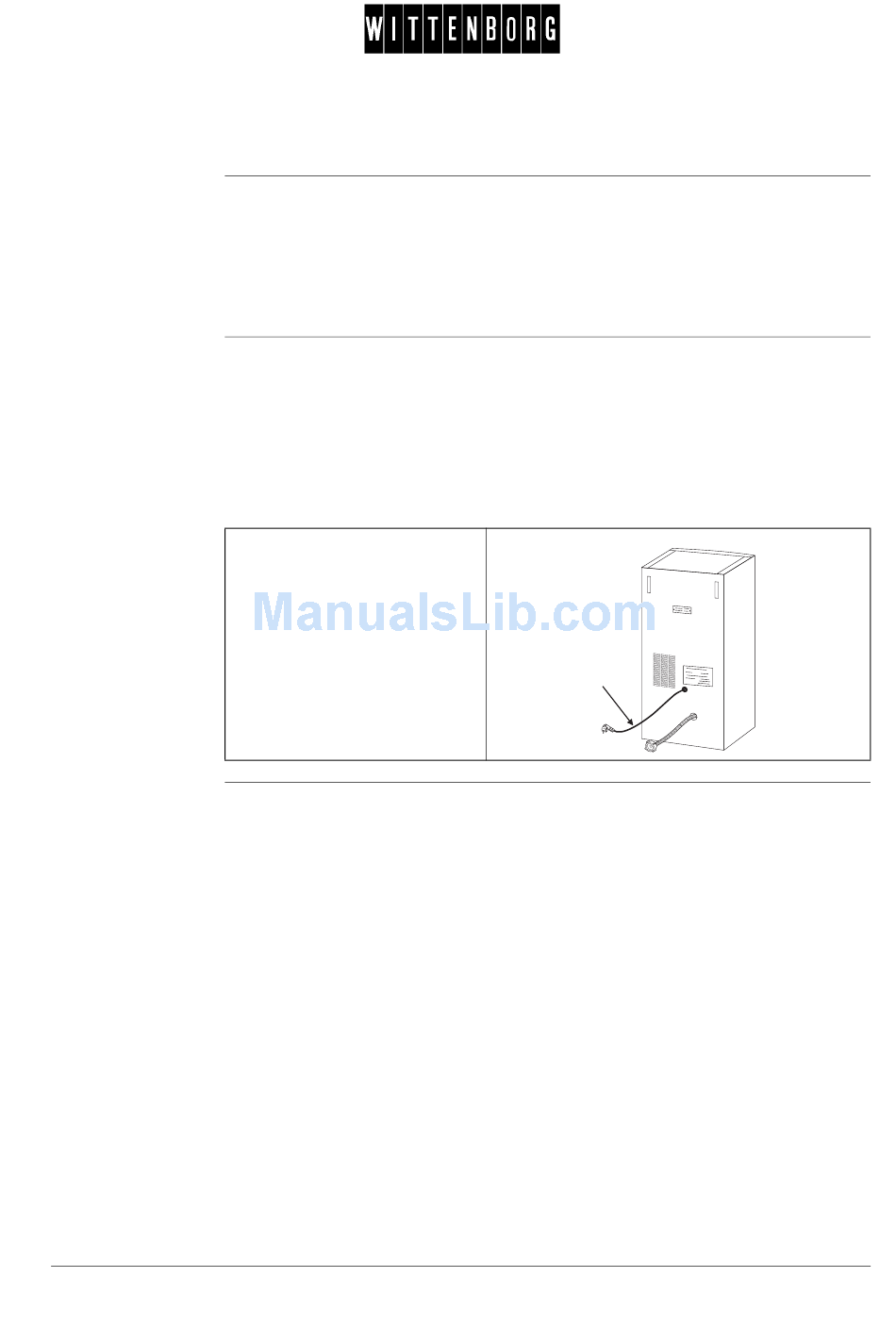

Plug in the power supply
plug.
Turn the machine on at the
main switch.
Position the vending machine. Adjust the horizontal and vertical position.
In order to ensure correct ventilation, a distance of 40 mm is required from
the rear side of the machine to the wall.
Ambient temperature: 5°C to 32°C
3
