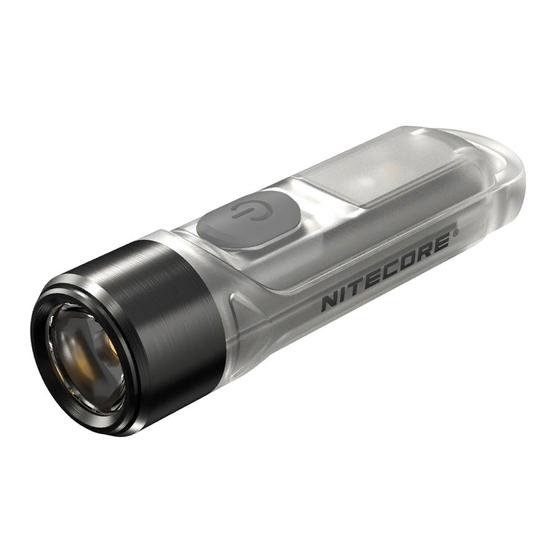

Nitecore TIKI User Manual

Features
• Utilizes a primary OSRAM P8 LED with a max output of 300 lumens
• TIKI/TIKI GITD/TIKI GITD BLUE: Utilizes an auxiliary high CRI white LED (CRI≥90; Color Temperature: 4500K) and an
auxiliary UV LED (Power: 500mW; Wavelength: 365nm)
TIKI LE: Utilizes an auxiliary red LED and an auxiliary blue LED
• The primary white light utilizes a total reflective optic lens for a uniform and soft beam
• Built-in rechargeable Li-ion battery
• Built-in Li-ion battery charging circuit with a Micro-USB port
• Advanced Power Cut-Off (APC) technology for an ultralow standby power consumption
• One hand operable interface controls 3 outputs with a single switch
• Head constructed from metallic materials with a superior heat dissipation capability
(TIKI/TIKI GITD/TIKI GITD BLUE: Stainless Steel; TIKI LE: Aluminum Alloy)
• Body constructed from durable PC (V0) materials
(TIKI GITD/TIKI GITD BLUE: Phosphorescent shell that glows in the dark after being charged)
• Rating in accordance with IP66
• Impact resistant to 1 meter
Specifications
Length: 55mm (2.17")
Head Diameter: 14.7mm (0.58")
Weight: TIKI/TIKI GITD/TIKI GITD BLUE: 12g (0.42oz)
TIKI LE: 10.5g (0.37oz)
Accessories
Key Clasp
Technical Data
TIKI/TIKI GITD/TIKI GITD BLUE:
FL1 STANDARD HIGH MID
300 Lumens 60 Lumens 15 Lumens
30min 1h
71m 31m
1,260cd 250cd
Note: The stated data is measured in accordance with the international flashlight testing standards ANSI/PLATO FL
1-2019, using the built-in Li-ion battery (130mAh) under laboratory conditions. The data may vary in real world use due to
different battery usage or environmental conditions.
TIKI LE:
FL1 STANDARD HIGH MID
300 Lumens 60 Lumens 15 Lumens
30min 1h
71m 31m
1,260cd 250cd
Note: The stated data is measured in accordance with the international flashlight testing standards ANSI/PLATO FL
1-2019, using the built-in Li-ion battery (130mAh) under laboratory conditions. The data may vary in real world use due to
different battery usage or environmental conditions.
Aux White
LOW ULTRALOW UV
Constant-on
1 Lumen 500mW 22 Lumens
4h 40h 45min 1h 30min
15m 4m ─ ─
60cd 4cd ─ ─
1m (Impact Resistance)
IP66
LOW ULTRALOW Red Blue
1 Lumen 3 Lumens 0.8 Lumens
4h 40h 1h 45min
15m 4m ─ ─
60cd 4cd ─ ─
1m (Impact Resistance)
IP66
Charging Function
The product is equipped with an intelligent charging system. Please
charge the battery before the first use.
Connecting to the External Power: As illustrated, use the USB cable
to connect an external power supply (e.g. a USB adapter, a computer
or other USB charging devices) to the USB port to begin the charging
process. The charging time is approx. 1h 20min.
Charging Indicator: During the charging process, the charging indicator
located beneath the switch will be steadily turned on. When the battery is
fully charged, the charging indicator will be turned off.
Note: The product should be recharged when the output appears to be
dim or the light becomes unresponsive due to low power.
Primary White Light
On / Off
On: When the light is off, double press the Power Button to access ULTRALOW of the primary white light.
Off: When the light is on, long press the Power Button to turn it off.
Brightness Levels
When the light is on, short press the Power Button to cycle through "ULTRALOW – LOW – MID – HIGH".
Note: The product will regulate its output to avoid overheating and prolong its lifespan when accessing HIGH for over 1
minute.
Direct Access to HIGH
When the light is off, press and hold the Power Button to access HIGH of the primary white light. Release to turn it off.
Auxiliary Lights
TIKI/TIKI GITD/TIKI GITD BLUE: When the light is off, triple press the Power Button to turn on the UV light. When the UV
light is on, short press the Power Button to cycle through "Aux White Constant-on – Aux White Warning Flashing – UV".
Long press the Power Button to turn it off.
TIKI LE: When the light is off, triple press the Power Button to turn on the Red light. When the Red light is on, short press
the Power Button to cycle through "Blue – Red/Blue Police Warning Flashing – Red". Long press the Power Button to turn
Aux White
it off.
Warning Flashing
22 Lumens
Cautions
20h
1. CAUTION! Possible dangerous radiation! Don't look into the light! May be dangerous for your eyes.
─
2. Please charge the battery before the first use.
3. Please recharge the product every 3 months when left unused for a prolonged time.
─
4. The product contains small assembly parts. Please keep it away from children to avoid danger of choking or suffocation.
5. DO NOT disassemble, modify or reconstruct the product, otherwise the warranty will be nullified, and the product might
be damaged.
Warranty Service
All NITECORE ® products are warranted for quality. Any DOA / defective product can be exchanged for a replacement
through a local distributor/dealer within 15 days of purchase. After that, all defective / malfunctioning NITECORE
products can be repaired free of charge within 24 months from the date of purchase. Beyond 24 months, a limited
warranty applies, covering the cost of labor and maintenance, but not the cost of accessories or replacement parts.
Red/Blue Police
The warranty will be nullified if
Warning Flashing
1. the product(s) is/are broken down, reconstructed and/or modified by unauthorized parties;
2. the product(s) is/are damaged due to improper use.
─
For the latest information on NITECORE
email to service@nitecore.com
1h 45min
※ All images, texts and statements specified herein this user manual are for reference purposes only. Should any
─
discrepancy occur between this manual and information specified on www.nitecore.com, Sysmax Innovations Co., Ltd.
reserves the rights to interpret and amend the content of this document at any time without prior notice.
─
SYSMAX Innovations Co., Ltd.
TEL: +86-20-83862000
FAX: +86-20-83882723
E-mail: info@nitecore.com
Web: www.nitecore.com
Address： 24/F, TCL Plaza, No. 18 Haizhou Road,
Haizhu District, Guangzhou, 510335, Guangdong, China
TIKI / TIKI GITD / TIKI GITD BLUE / TIKI LE
products and services, please contact a local NITECORE
®
Thanks for purchasing NITECORE!
Please find us on facebook : NITECORE Flashlight
USER MANUAL
®
distributor or send an
®
Made in China
TIKI250222
