Quick User Guide
Warning before installation
-Power off the Network camera if it is found to be smoking or smells unusual.
-Keep the Network camera away from water. If the Network camera gets wet,
power off immediately.
-Do not place the Network camera near heat sources, such as a television or
oven.
-Refer to your instruction manual for the operating temperature.
-Keep the Network camera away from direct sunlight.
-Do not place the Network camera in high humidity environments.
-Do not place the Network camera on unsteady surfaces.
-Do not touch the Network camera when there is lightning present.
-Do not disassemble the Network camera.
-Do not drop the Network camera.
-Do not insert any object into the Network camera, such as a screwdriver.
For other safety and regulation information, please refer to "User's manual".
1. Check Contents
No. Item
1
Network Camera
2
Software CD
3
Quick User Guide
4
Accessories
2. Physical Description
Description
ZN-MDI243M-IR
User's Manual, Utility software
This document
Template for installation
Video monitor cable
Tapping Screw M4x30 : 2pcs
Anchor : 2pcs

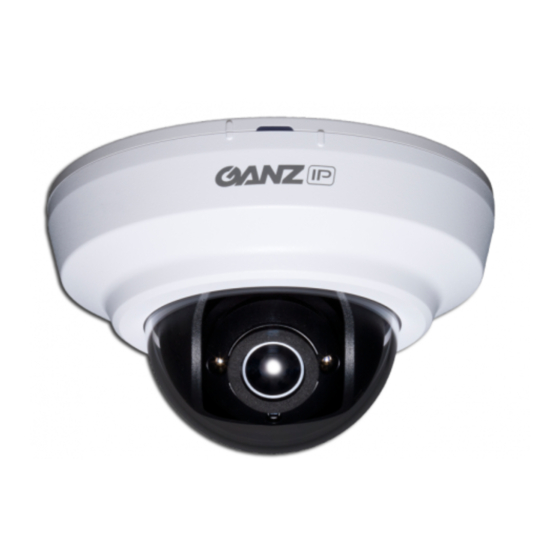

ZN-MDI243M-IR Network Camera
Ver1.00 EN
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CBC ZN-MDI243M-IR
Summary of Contents for CBC ZN-MDI243M-IR
-
Page 1: Physical Description
Quick User Guide ZN-MDI243M-IR Network Camera Warning before installation -Power off the Network camera if it is found to be smoking or smells unusual. -Keep the Network camera away from water. If the Network camera gets wet, power off immediately. - Page 2 Quick User Guide ZN-MDI243M-IR Network Camera 1. Control Button -Change Video output format NTSC/PAL. (toggle) -Factory Default (Keep hold more than 10 seconds) 2. Status LED 3. Reset Button 4. Video output for service monitor 5. Network (RJ-45 PoE required) 3.
- Page 3 Quick User Guide ZN-MDI243M-IR Network Camera 1) After the camera is listed in camera list, select the camera. 2) Type in the all network information. 3) Click “Change IP address” button to apply settings to the camera. When double click the camera in the list, the default web browser (Internet Explorer or compatible equivalent) will open and automatically connect to the camera.
