Quick User Guide
Warning before installation
-Power off the Network camera if it is found to be smoking or smells unusual.
-Keep the Network camera away from water. If the Network camera gets wet, power
off immediately.
-Do not place the Network camera near heat sources, such as a television or oven.
-Refer to your instruction manual for the operating temperature.
-Keep the Network camera away from direct sunlight.
-Do not place the Network camera in high humidity environments.
-Do not place the Network camera on unsteady surfaces.
-Do not touch the Network camera when there is lightning present.
-Do not disassemble the Network camera.
-Do not drop the Network camera.
-Do not insert any object into the Network camera, such as a screwdriver.
For other safety and regulation information, please refer to "User's manual".
1. Check Contents
No.
Item
1
Network Camera
2
Software CD
3
Quick User Guide
4
Accessories
5
Lens
2. Physical Description
Rear View
1. Alarm In/Out, Audio In/Out (use terminal block connector)
2. Video Out
3. Micro SD card (SDHC supported)
Description
ZN-C Series (ZN-C2M / ZN-C1M / ZN-C1)
User's Manual, Utility software
This document
Tripod mount
Screws for tripod mount
C mount adapter ring
DC jack adapter
Dust protection cap,
Terminal block connector
Allen Wrench
(Optional)

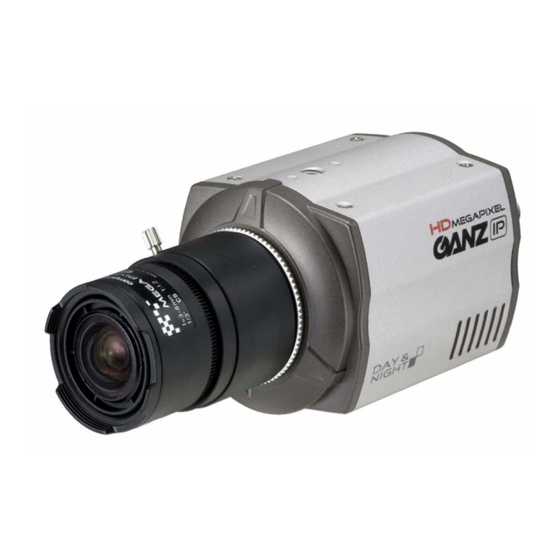

ZN-C Series Network Camera
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CBC ZN-C Series
Summary of Contents for CBC ZN-C Series
-
Page 1: Physical Description
-Do not insert any object into the Network camera, such as a screwdriver. For other safety and regulation information, please refer to “User’s manual”. 1. Check Contents Item Description Network Camera ZN-C Series (ZN-C2M / ZN-C1M / ZN-C1) Software CD User’s Manual, Utility software Quick User Guide This document Accessories... - Page 2 Quick User Guide ZN-C Series Network Camera 4. Network (RJ-45 PoE supported) 5. Reset Button 6. Power (DC12V / AC24V) 7. Status LED 8. DC Iris Front View 9. Flange back locking screw 3. Making Connection 1. If you have external devices such as sensor or alarms, make connection from terminal block connector.
- Page 3 Quick User Guide ZN-C Series Network Camera 4. Assign IP address The default setting of the camera is set to “DHCP” and “UPnP” function is set to ON. If you have a DHCP server on your network and UPnP function is enabled on your PC you can find the network camera in “My network”.
- Page 4 Quick User Guide ZN-C Series Network Camera Note: By Default the cameras come with “Installation Mode” set to “ON” to enable Analog output. You must turn installation mode off to use 720p or 1080p streaming. For further information for setup, please refer to User’s manual...
