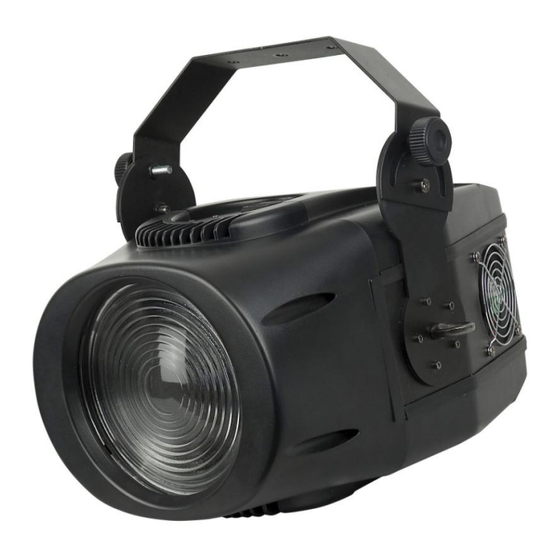

- Page 1 Club Color Wash 575 MKII ORDERCODE 40139...
- Page 2 You have bought a great, innovative product from Showtec. The Showtec Club Color Wash 575 MKII brings excitement to any venue. Whether you want simple plug-&- play action or a sophisticated DMX show, this product provides the effect you need.
-
Page 3: Table Of Contents
Showtec Showtec Club Color Wash 575 MKII Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….… Operating Determinations…………………………………………………………………………………. Rigging…………………………………………………………………………………………………………. Description..…................……….………………………………….. Features and Overview ………………………………...….……………….………….…………………... Backside…………………………………………………...…...….……………….…………………...….…. Installation................…...…………………………………….…… Installing the Lamp ............………………………………………..……….. Lamp Adjustment…............………………………………………..……….. Set Up and Operation..............……..…………………………………. One Club Wash................……………………………………….. Multiple Club Wash................…………………………………. DMX-Protocol…...........…………………………………………………………….. Control Panel….....……........……………………………………………………... -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Rigging
Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If the projector is lowered from the ceiling or high joists, professional trussing systems have to be used. Use a clamp to mount the projector, with the mounting-bracket, to the trussing system. -
Page 7: Description
Description of the device Features The Showtec Club Color Wash 575 MKII is a light effect with high output and great effects. • 1 Colour-wheel: 6 colours + correction filter + open • 1 Colour-wheel: 7 colours + open • DMX-control via standard DMX-controller •... -
Page 8: Backside
Backside Fig. 2 2 3 4 DMX signal connector (IN) IEC Connector + Fuse 10A 250V DMX signal connector (OUT) -
Page 9: Installation
Installation Installing the Lamp The Showtec Club Color Wash 575 MKII uses the HMI 575 (ordercode 80915O / 80923 / 80923G / 80923S / 82610) reflectorbulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. -
Page 10: Lamp Adjustment
Lamp Adjustment You can adjust the lamp’s position by turning the screws A, B, C. The lamp position is set in the factory. As the lamps, which can be used, differ from manufacturer to manufacturer, it can be necessary to readjust the position. The lamp must be readjusted e.g., if the light does not seem to be evenly distributed within the ray of light. -
Page 11: Set Up And Operation
Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. One Club Color Wash 1. -
Page 12: Dmx-Protocol
DMX Protocol Channel 1 – Colours Linear color change following the movement of the slider. In this way you can stop the color-wheel in any position – also between two colors creating double-colored beams. Between 128 - 191 and between 192 - 255, the color-wheel rotates continuously the so-called “Rainbow”... -
Page 13: Control Panel
The Club Color Wash 575 MKII can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel When the indicator light is on, means the Club Color Wash is working Fig. 6 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. -
Page 14: Functions Control Panel
MODE 1: as default mode. Receive DMX512 signal, set the desired address via the UP/DOWN buttons. DMX mode: select channel 1 - channel 512 MODE 2: press the MODE/ESC button until the display shows and set the desired function via UP/DOWN buttons, as master auto mode. -
Page 15: Stand-Alone Mode
Remotely controllable functions Colour-wheel 1 The Club Color Wash contains a colour-wheel with 6 colours, 1 correction filter and white. It is also possible to rotate the colour-wheel continuously at different speeds ( “Rainbow effect” in both directions). Colour-wheel 2 The Club Color Wash contains a colour-wheel with 7 colours and white. -
Page 16: Colorwheel 1 And Colorwheel 2
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec Club Color Wash 575 MKII requires almost no maintenance. However, you should keep the unit clean. -
Page 17: Changing The Lamp
Changing the Lamp 1. Disconnect mains power supply. Loosen the 3 screws on the back of the housing. 2. Gently remove the small metal housing. 3. Follow directions for installing a new lamp, page 7. Replacing a Fuse Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the fuse burns out, the product will not function whatsoever. - Page 18 Problem Probable cause(s) Remedy No power to the fixture · Check that power is switched on One or more And cables are plugged in. fixtures are Primary fuse blown. · Replace fuse. completely dead. Fixtures reset The controller is not connected. ·...
-
Page 19: Product Specifications
Product Specification Model: Showtec Club Color Wash 575 MKII Voltage: 240V-50Hz (CE) Fuse: 10A / 250V Dimensions: 425x290x385mm (LxWxH) Weight: 15,9 kg Operation and Programming Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+) Set Up and Addressing: LED control panel...
