Summary of Contents for SHOWTEC 41200

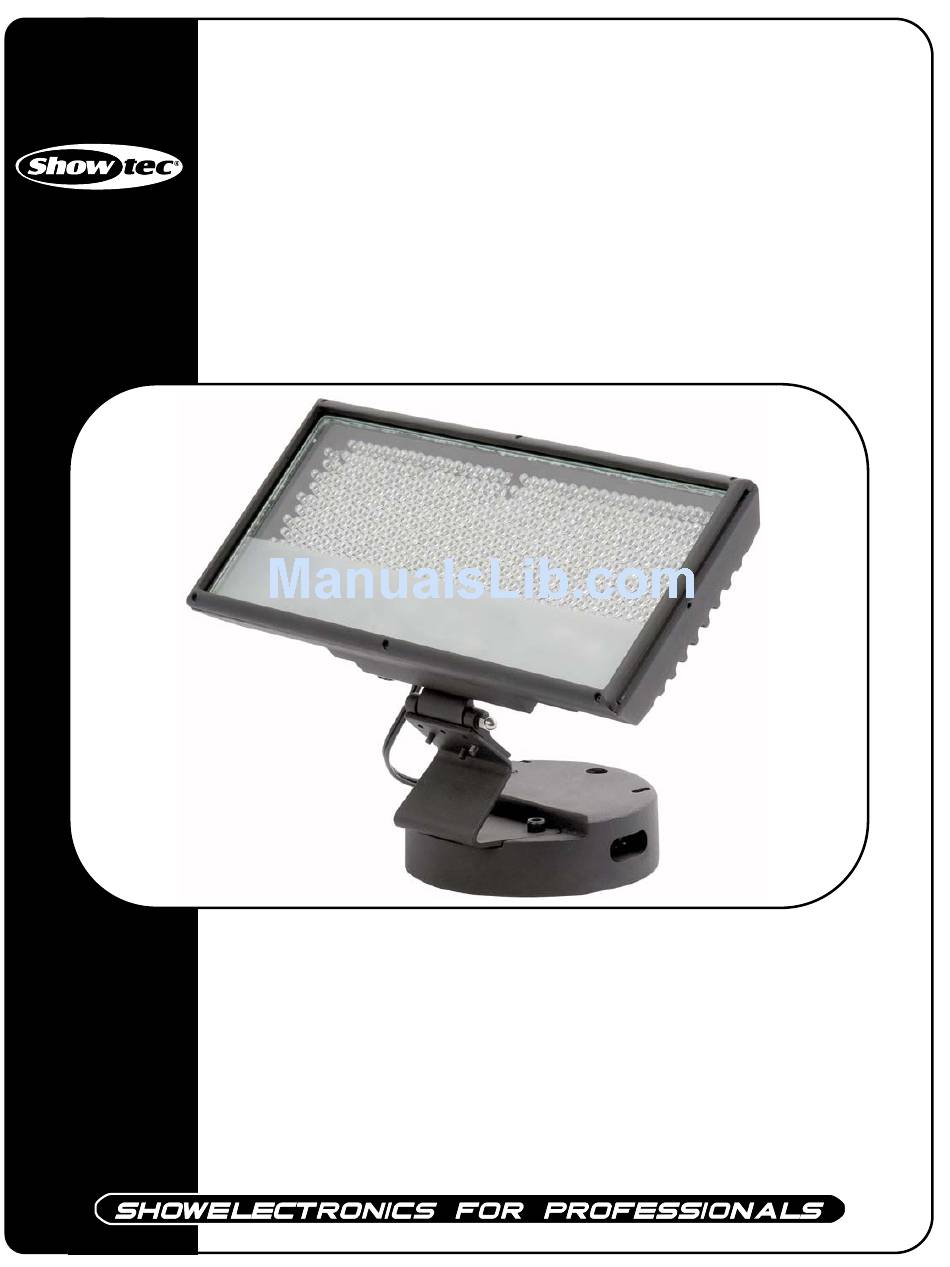

- Page 1 LED Wallpainter ORDERCODE 41200...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec LED Wallpainter Product Guide ™ Warning..…...................…………………………………………. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Rigging…………………………………………………………………………………………………………. Description..…................……….………………………………… Features…….……………………………………………………………………………………….……...…. Overview……………………………………………………………………………………………………….. Backside……………………………………………………………………………………………………….. Installation................…...…………………………………….…… Set Up and Operation..............……..…………………………….…… Operation…………..…………..…………………………………………………………….……...…… Addressing…….…..…………..…………………………………………………………….……...…… Connection………..…..……………………………………………………………….…….…..…………….…. Set Up Example….…..……………………………………………………………….…….…..…………….…. Maintenance...................………..………….…….……………… Troubleshooting................………………….………………….….. Product Specifications..............……………….…….………………….. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely • (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Description
Description of the device Features LED Wallpainter is a LED system from Showtec. • 2 Modes: Stand-alone, DMX-controlled • 3 Channels (R, G, B) NOTE: Knowledge of DMX is required to fully utilize this unit. Overview Fig. 1 Backside Fig. 2... -
Page 7: Installation
Installation Remove all packing materials from the Wallpainter. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 8: Connection
Connection A DMX controller and a series of LED Wallpainters can be connected together. Make sure that all the joints are coated with shrinking tubes together with glue inside. Blow them well to be tightly touched with a hair drier for waterproof purpose. Make sure that the output connector of the last fixture of each series (max. 30 units per series) must be sealed with a shrinking tube too. -
Page 9: Set Up Example
SET UP Example... -
Page 10: Maintenance
3. If all of the above appears to be O.K., plug the unit in again. 4. If you are unable to determine the cause of the problem, do not open the LED Wallpainter, as this may damage the unit and the warranty will become void. 5. Return the device to your Showtec dealer. -
Page 11: Product Specifications
Product Specification Model: Showtec LED Wallpainter Voltage : AC 230V-50Hz (CE) Power: 25W IP Rating: IP65 DMX Input : 3-pin XLR Male connector DMX Output : 3-pin XLR Female connector Dimensions : 321 x 140 x 230 mm (LxWxH) Weight : 4,9 kg... - Page 12 2005 Showtec.
