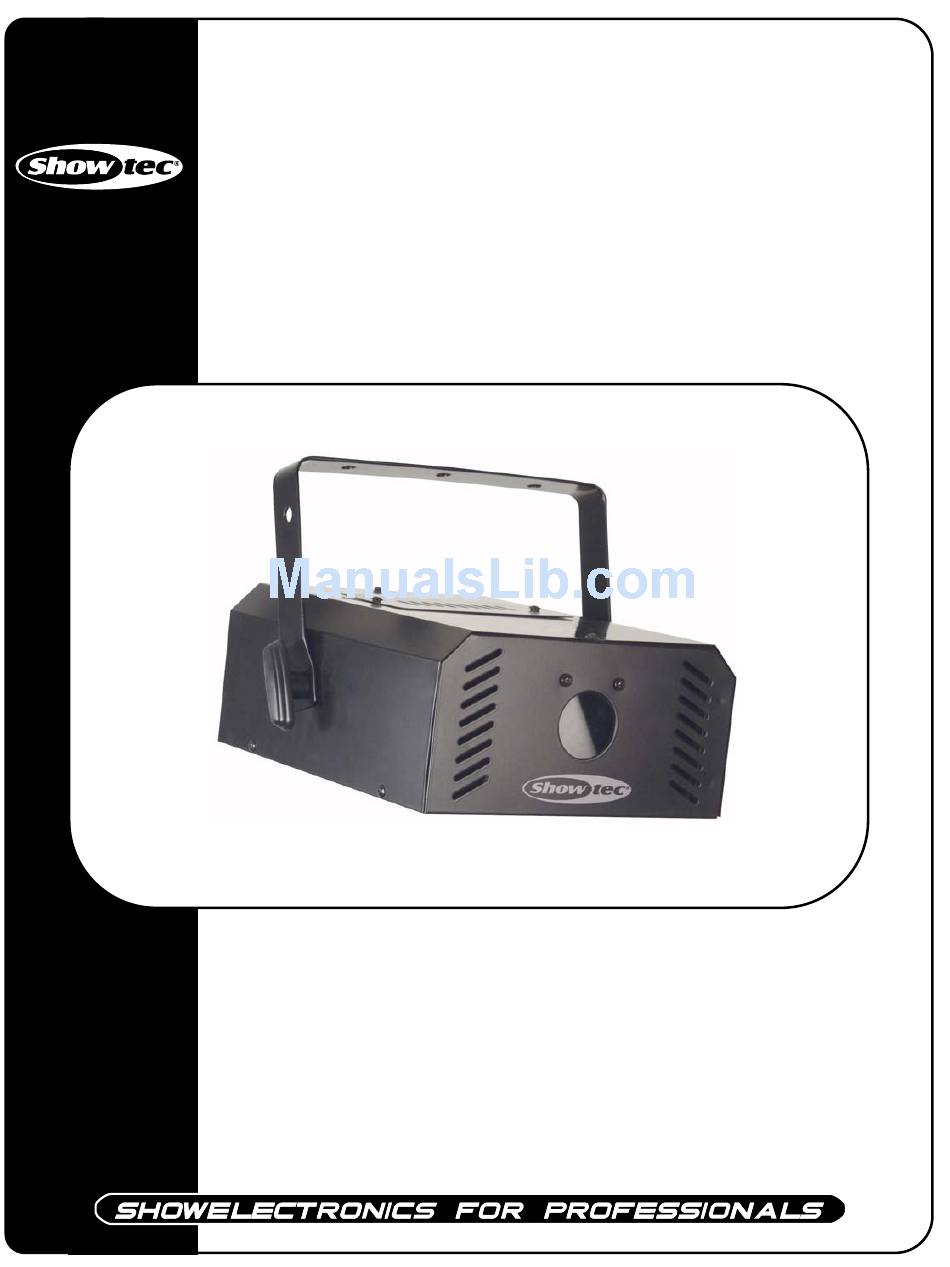

- Page 1 Aquatic ORDERCODE 30838...

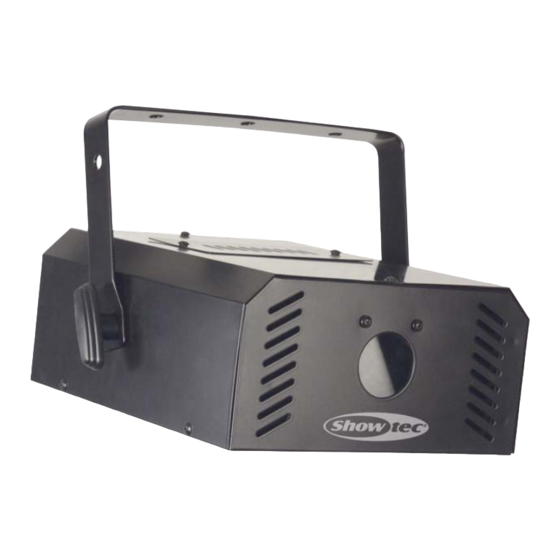

- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec Aquatic brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need. You can rely on Showtec, for more excellent lighting products.
-
Page 3: Table Of Contents
Showtec Showtec Aquatic Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Rigging…………………………………………………………………………………………………………. Description..…................……….………………………………… Features and Overview ………………………………...….……………….………….………………….…. Backside…………………………………………………...…...….……………….…………………...….…. Installation................…...…………………………………….….. Installing the Lamp ............………………………………………..………… Set Up and Operation..............……..……………………………….… Maintenance...................………..………….…….……………… Changing the Lamp................…………………….………………… Replacing the Fuse................…………………….………………… Troubleshooting................………………….………………….….. No Light..........………………….…………………………………………………….. Product Specifications..............……………….…….………………….. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely • (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Rigging
Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If the projector is lowered from the ceiling or high joists, professional trussing systems have to be •... -
Page 7: Description Of The Device
Description of the device Features The Showtec Aquatic is a light effect with high output and great effects. • 1 Color-wheel with 4 colors (Blue, Yellow, Green, Pink) • Speed adjustable Water-effect • Lamp ELC 24V 250W • Fuse F3A / 250V Overview Fig. -
Page 8: Backside
Backside 5 6 7 8 Fig. 2 Speed Ground Colour-wheel ON/OFF Fuse F3A, 250V Safety eye 9) Cooling Fan... -
Page 9: Installation
Installation Installing the Lamp The Showtec Aquatic uses the ELC 24V 250W (ordercode 80809O / 80809G / 80809P) reflectorbulb as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 10: Maintenance
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec Aquatic requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. -
Page 11: Product Specification
Product Specification Model: Showtec Aquatic Voltage: 240V-50Hz (CE) Fuse: 3A / 250V Dimensions: 333x305x130mm (LxWxH) Weight: 7,12 kg Lamp Allowed lamp models*: Osram ELC 24V 250W ordercode 80809O GE ELC 24V 250W ordercode 80809G Philips ELC 24V 250W ordercode 80809P... - Page 12 2005 Showtec.
