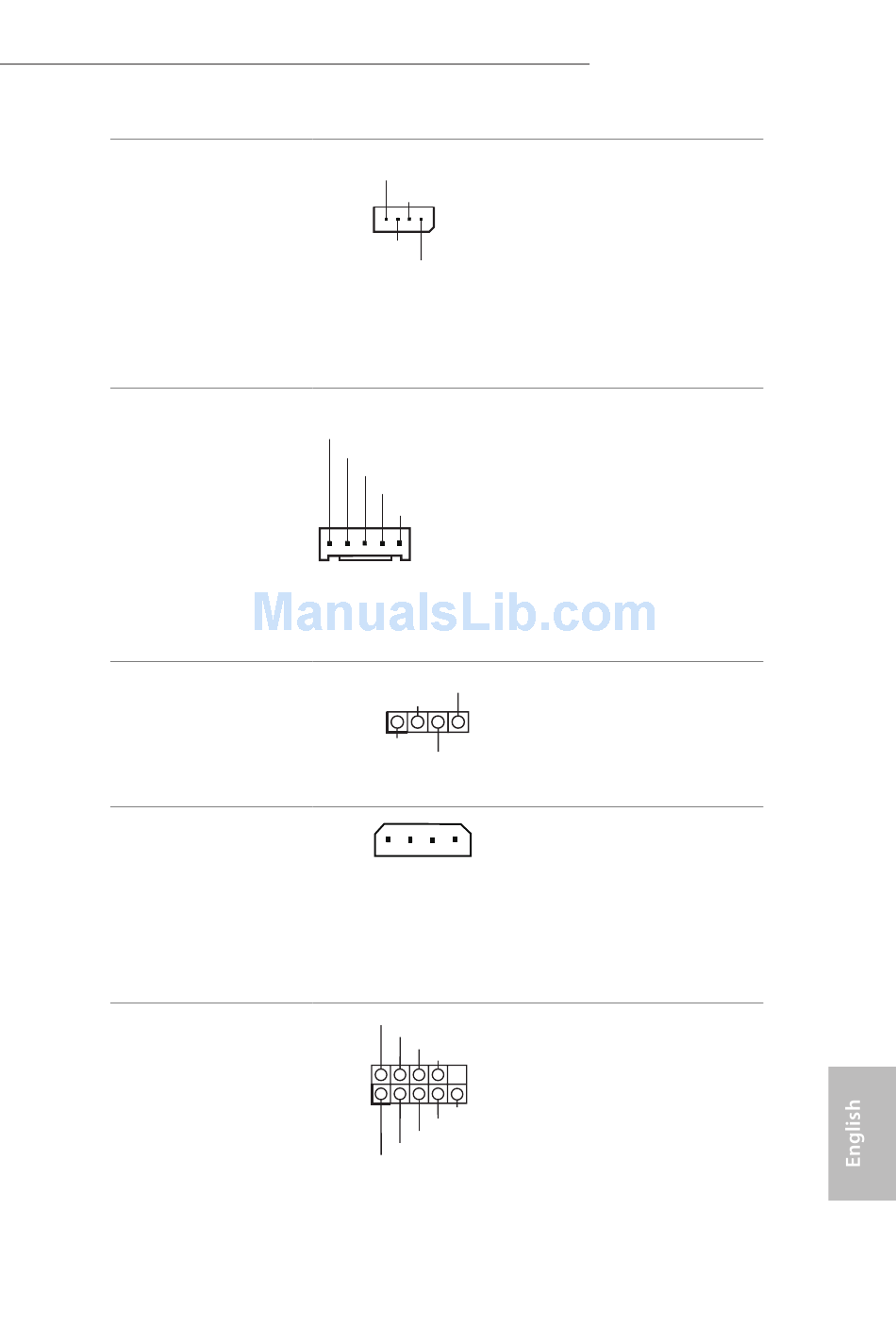

Intelligent Platform
Management Bus header
(4-pin IPMB1)
(see p.6, No. 5)
Baseboard Management
Controller SMBus Headers
(5-pin BMC_SMB1)
(see p.6, No. 45)
(5-pin BMC_SMB3)
(see p.6, No. 48)
(5-pin BMC_SMB2)
(see p.6, No. 47)
Front LAN LED
Connector
(LED_LAN3_4)
(see p.6, No. 52)
PCIE Power Connector
(4-pin PCIE_PWR1)
(see p.6, No. 57)
Serial Port Header
(9-pin COM2)
(see p.6, No. 53)
IPMB_SDA
IPMB_SCL
GND
No Connect
BMC_SMBDATA
GND
BMC_SMBCLK
Power
BMC_SMB_PRESENT_1_N
LAN4_LINK
LED_PWR
1
LAN3_LINK
LED_PWR
RRXD1
DDTR#1
DDSR#1
CCTS#1
1
RRI#1
RRTS#1
GND
TTXD1
DDCD#1
EP2C612D16C-4L
This 4-pin connector is used
to provide a cabled base-board
or front panel connection for
value added features and 3rd-
party add-in cards, such as
Emergency Management cards,
t h a t p r o v i d e m a n a g e m e n t
features using the IPMB.
hese headers are used for the
SM BUS devices..
his 4-pin connector is used
for the front LAN status
indicator.
Please connect this connector
with a hard disk power
connector when two graphics
cards / PCI Express cards are
installed on this
motherboard.
his COM2 header supports a
serial port module.
