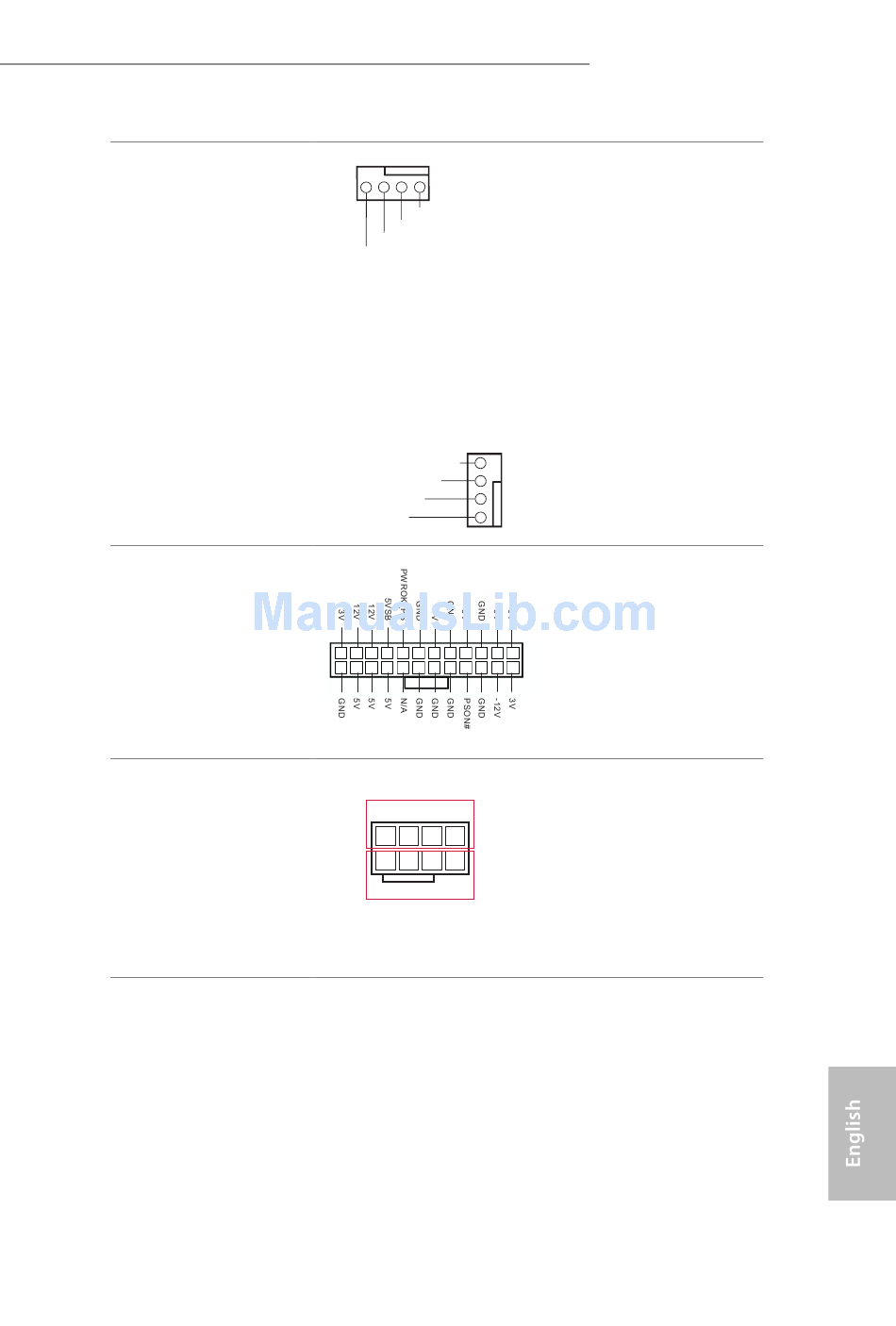

Front and Rear Fan
Connectors
(4-pin FRNT_FAN1)
(see p.6, No. 10)
(4-pin FRNT_FAN2)
(see p.6, No. 9)
(4-pin FRNT_FAN3)
(see p.6, No. 20)
(4-pin FRNT_FAN4)
(see p.6, No. 32)
(4-pin REAR_FAN1)
(see p.6, No. 61)
(4-pin REAR_FAN2)
(see p.6, No. 60)
ATX Power Connector
(24-pin ATXPWR1)
(see p.6, No. 8)
ATX 12V Power
Connectors
(8-pin ATX12V1)
(see p.6, No. 12)
(8-pin ATX12V2)
(see p.6, No. 4)
GND
+12V
FAN_SPEED
FAN_SPEED_CONTROL
FAN_SPEED_CONTROL
FAN_SPEED
+12V
GND
12
24
+12V2
1
4
5
8
GND
EP2C612D16C-4L
Please connect fan cables to the
fan connectors and match the
black wire to the ground pin.
All fans support Fan Control.
4
3
2
1
his motherboard provides a
24-pin ATX power connector.
To use a 20-pin ATX power
1
supply, please plug it along Pin
1 and Pin 13.
13
his motherboard provides
two 8-pin ATX 12V power
connectors.
29
