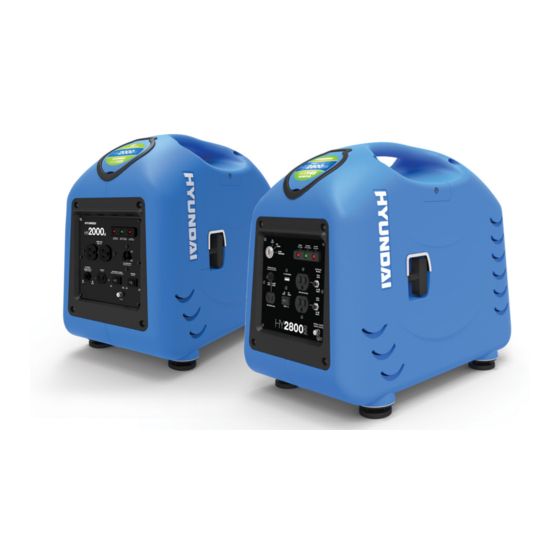

Hyundai HY2000sei User Manual

Portable inverter
Hide thumbs Also See for HY2000sei:

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HY2000sei and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyundai HY2000sei

Summary of Contents for Hyundai HY2000sei

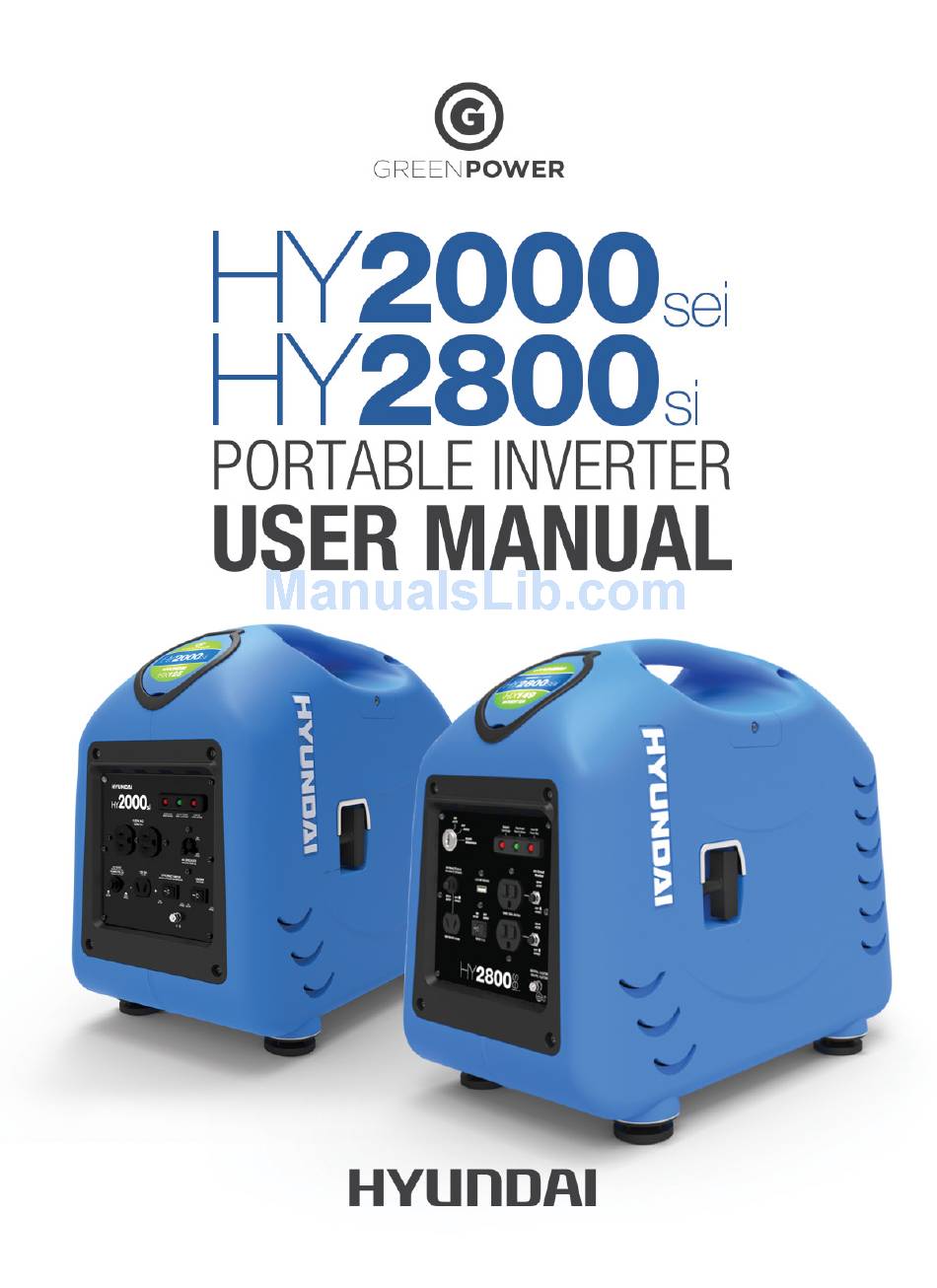

  • Page 2 HY2000-2800_UG_EN © 2014 MIDLAND POWER INC.
  • Page 3 Thank you for purchasing this Hyundai GreenPower portable inverter generator. Please register your product in order for us to ensure your continued satisfaction. This manual covers the safety, operation and maintenance procedures for the HY2000si and HY2800sei. All information in this publication is based on the latest product information available at the time of approval for printing.

  • Page 4: Table Of Contents

    CONTENTS Safety Precautions AC Safety Guidelines Identification of Components Pre-operation Inspection Fuel Level Check Air Filter Check Initial Startup Operating Your Generator Shutting Off Your Generator Maintenance Troubleshooting Specifications Warranty Glossary Transfer of Ownership and Warranty Card Warranty Registration Card...

  • Page 5: Safety Precautions

    SAFETY PRECAUTIONS This generator is designed to give safe and dependable service if operated according to instructions. Read and understand this manual carefully before operating the generator, failure to follow instructions could result in serious injury or death. Engines give off carbon monoxide, an odorless, colorless, poison gas. Breath- ing carbon monoxide can cause nausea, fainting or death.

  • Page 6: Ac Safety Guidelines

    Do not operate the generator in rain or snow or allow any moisture to • come in contact with the generator. Do not touch the spark plug while the generator is operating and • shortly after the generator has been shut down. Keep children away from the generator when it is in use.

  • Page 7: Identification Of Components

    OTHER SAFETY HAZARDS To avoid breathing in poisonous carbon monoxide from the exhaust • gases, adequate ventilation should be provided if the generator set is running in a partially enclosed space. If the generator set is stored outdoors, check all the electrical compo- •...

  • Page 8: Pre-Operation Inspection

    PRE-OPERATION INSPECTION WARNING • Ensure that the generator is on a level surface and the engine is turned off before inspection. ENGINE OIL INSPECTION Use high-detergent, premium quality, 4-stroke engine oil. Select the appropriate viscosity for the average temperature in your area. Loosen the cover screws and remove the maintenance cover (refer to fig.).

  • Page 9: Fuel Level Check

    NOTICE The oil alert system is designed to prevent engine damage caused by an insufficient amount of oil in the crankcase. Before the oil level in the crankcase falls below a safe limit, the oil alert system will automatically shut down the engine. If the oil alert system shuts down the engine, the oil alert indicator will come on when you operate the starter and the engine will not run.
  • Page 10 CHECK THE AIR FILTER WARNING Never run the engine without the air filter. Rapid engine wear will result from contaminants, such as dust and dirt, being drawn through the carburetor into the engine. Remove air filter cover and sponge. Inspect filter sponge for dirt and debris. Clean filter sponge by soaking in gasoline, ring out before reinstalling.

  • Page 11: Initial Startup

    INITIAL STARTUP WARNING We know you’re excited to get using your generator. Please be sure to follow the setup, operation, and shut off instructions below thoroughly to ensure the best lifespan for your generator. 1. Setup the Battery (HY2800 ONLY): Remove the Battery Access Panel from the unit by unscrewing the screw at the top and releasing the panel.
  • Page 12 5. Locate, unscrew, and remove the Oil Dipstick, exposing the internal engine compartment. Be sure not to allow any dust or debris near the engine during this time. 6. Pour in the full contents of the 450 mL oil bottle provided with your unit, or fill to the full mark located on the dipstick.

  • Page 13: Operating Your Generator

    OPERATING YOUR GENERATOR Before using generator, a ground wire must be connected to the ground terminal. The Ground terminal is located on the Front Panel. Before using the ground terminal consult a qualified electrician. 1. Disconnect all devices from the generator. 2.
  • Page 14 (HY2800 Electric only, for HY2000 and manual start proceed to 5b) Turn Power switch to "Start" for 5 seconds to start engine. If the engine does not start, the battery may be dead, proceed to step 5b to start the engine.
  • Page 15 Connections for standby power to a building’s electrical system must be done by a qualified electrician and must comply with all applicable laws and electrical codes. Improper connections may cause serious injuries to electrical worker during power outages. Additionally, the generator may explode or cause fires when the utility power is restored.
  • Page 16 NOTICE • Under normal operating conditions, the output indicator light (Green) will be ON • When a connected device draws high startup power the over- load and output indicator light may briefly illuminate, but this is to be expected. Once the device starts up the overload indicator light will shut off and the output light will remain green.
  • Page 17 FOR DC OPERATION Do not leave generator unattended when charging batteries. Stop charging when the voltage of the batteries is above 16V. Failure to monitor charge level may result in damage to the battery or personal injury. The DC receptacle may be used while the AC power is in use. The overloaded DC circuit will trip the DC circuit protector.

  • Page 18: Shutting Off Your Generator

    SHUTTING OFF YOUR GENERATOR 1. Disconnect all devices from the generator. 2. Turn EcoMode switch to "Off". 3. Turn Power switch to "Off". 4. Close the fuel valve by turning it to "Off". To stop the engine in an emergency, turn the engine switch “OFF”. Always connect the ground terminal at the front panel to the ground (earth) to prevent electrical shock.

  • Page 19: Maintenance

    • If you require a part for replacement, we strongly recommend using Hyundai OEM replacement parts. Do not use non-Hyundai parts. Contact customer service for replacement parts. • Some of these maintenance techniques can be dangerous and should be performed by a qualified technician.
  • Page 20 AIR FILTER SERVICE A dirty air cleaner will restrict air flow to the carburetor. To prevent carburetor malfunction, service the air cleaner regularly. Service more frequently when operating the generator in extremely dirty areas. Loosen cover screws and remove the maintenance cover. Remove air filter cover.
  • Page 21 With the engine in a level position, add oil to the upper level mark. (refer to fig.). Upper limit Dipstick Oil Filler Cap Lower limit Reinstall the oil filler cap/dipstick securely. Reinstall the maintenance cover and tighten the cover screws securely.
  • Page 22 SPARK PLUG SERVICE To insure proper operation the spark arrester should be cleaned thoroughly at least once every 100 hours of use. Top maintenance cover Ignition Coil Screw Remove the top screw and the top maintenance cover (refer to fig.). Remove the ignition coil (refer to fig.).
  • Page 23 Install the correctly gapped spark plug back into the original position. Reinstall the ignition coil securely. Close the top maintenance cover and tighten the screw. TRANSPORTATION AND STORAGE Do not overfill the tank. Before attempting to transport allow generator to cool for at least 15 minutes.

  • Page 24: Troubleshooting

    TROUBLESHOOTING If the generator still does not start, have an authorized Hyundai repair technician diagnose and repair the problem. Attempting service or repair without the proper training, tools and equipment may cause injury to you and/or others. It can also damage the generator or lead to hazardous conditions.
  • Page 25 PROBLEM SYMPTOMS CORRECTION Generator Generator The on/off switch is in the “Off” position. will not will not start Switch to “On.” start The engine is out of gasoline. Engine choke is in wrong position. Adjust choke lever according to instructions on page 12.
  • Page 26 Overload Adjust choke lever according to instruc- indicator tions on page 12 light keeps *When a connected device draws high startup flashing power the overload and output indicator light may briefly illuminate, but this is to be expected. Once the device starts up the overload indicator light will shut off and the output light will remain green.
  • Page 27 Engine idle Carburetor in need of tuning. For details fluctuates on how to adjust correctly please contact your local service centre, or contact Midland Intl Inc. at 1-877-528-3772. Missing ground reference on return side of differential analog output (external). Air filter element obstructed by debris. Clean according to user manual instruc- tions on page 18.

  • Page 28: Specifications

    SPECIFICATIONS HY2000SI HY2800SEI WATTS 2200W Peak Power 2800W Peak Power 2000W Running Power 2600W Running Power AMPS Output Current 16.6A, Output Current 21.6A, Max Circuit 20.0A Max Circuit 23.3A 3.8 HP 5500RPM 5.3HP 5500RPM MOTOR 4-Stroke 125CC Hyun- 4-Stroke 150CC Hyun- dai Motor dai Motor START...
  • Page 29 RECOMMENDED OIL USAGE OIL GRADE TEMPERATURE SEASON 5W40 0° & below Winter 10W40 20° to -5° Spring/Fall 15W40 20° + Summer 10W30 25° to -15 All season SPARK PLUG COMPATIBILITY BRAND HY2000SI HY2800SEI CR7HS CR7HS DENSO U20FPR U20FPR CHAMPION RZ10YC RZ10YC BOSCH U24BC...

  • Page 30: Warranty

    This limited warranty is valid for residential or recreational applications only and only when the generator receives all necessary preventative maintenance as described in the Hyundai Generators “Operation Manual.” The repair or replace- ment of a generator will take place within a reasonable period of time during normal business hours.
  • Page 31 6. Damage caused by operation with improper fuel, or at speeds, loads, conditions, or modifications contrary to published specifications 7. Items not supplied by Hyundai, including, but not limited to; starting batteries, battery cables, external wiring, fuel lines, filters, etc. (refer to exclusions).
  • Page 32 Product Registration Product registration is required for product support and warranty coverage. The owner’s registration found in the user manual can be completed and mailed. You can also register online at www.hyundaipower.ca. You should keep your receipt for proof of purchase. Warranty Claim Procedure: Warranty service must be performed by one of our authorized service dealers.

  • Page 33: Glossary

    GLOSSARY - The receptacle for the device plug used for AC application. AC SOCKET - It protects AC circuits from being damaged due AC CIRCUIT PROTECTOR to overload or short circuit by stopping the flow of electricity between the generator and device. - It removes dust from engine intake air.
  • Page 34 - Before the oil level falls below a safe limit, the Oil Indicator OIL INDICATOR LIGHT light (red) will go ON and the Oil Alert system will automatically stop the engine. - The output indicator light (green) is illuminated when OUTPUT INDICATOR LIGHT the generator is operating normally.
  • Page 35 OWNERSHIP AND WARRANTY TRANSFER INSTRUCTIONS: Changes in ownership must be registered with Hyundai Power Equipment in order to ensure continued warranty and service support. Warranty support cannot be provided without registration (from original date of purchase and after transfer of ownership) This transfer form must be completed on or before the date that ownership change takes effect.
  • Page 36 HY2000si and HY2800sei User Manual...
  • Page 37 REGISTRATION INSTRUCTIONS: Ownership must be registered with Hyundai Power Equipment in order to ensure continued warranty and service support. Please fill out the registration card below and mail it along with a copy of your receipt, and the original UPC barcode from your product packaging. The store, date of purchase and product purchase should be clearly visible on the receipt copy.
