Summary of Contents for Pyle PT510

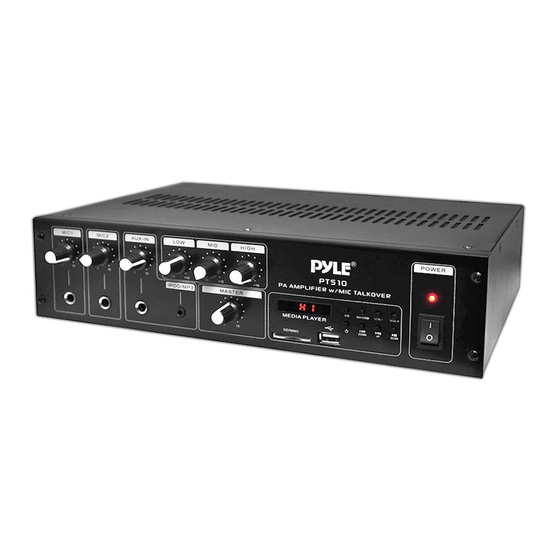

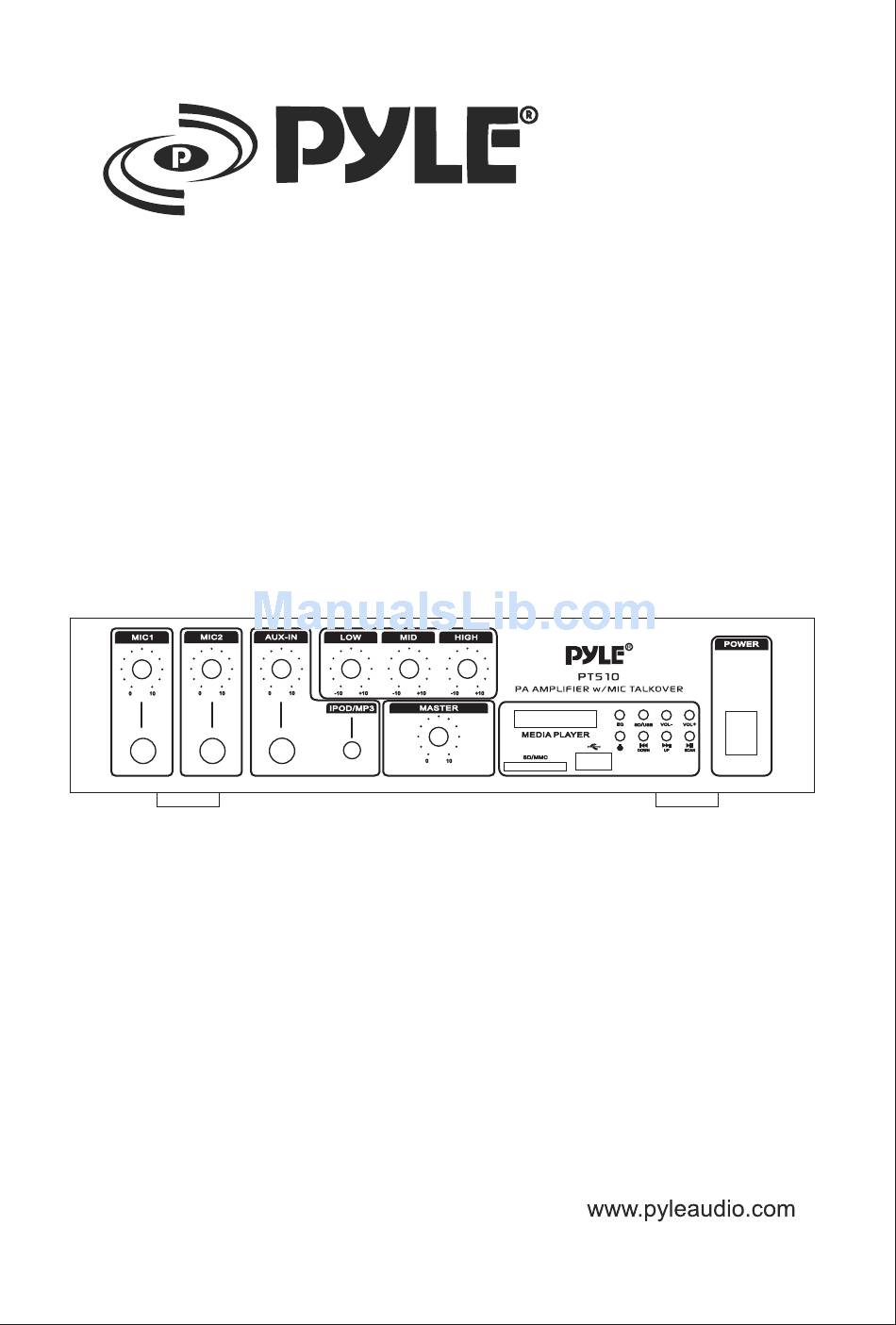

- Page 1 240 Watt Public Address Power Amplifier, w/ 70V Output & Mic Talkover, USB/SD Card MP3 Player, Built-in FM Radio MODEL:PT510 PA AMPLIFIER...
- Page 2 FRONT PANEL- PT510 REAR PANEL- PT510...
- Page 3 MODEL:PT510 PA AMPLIFIER 1.MIC1 Volume Control -Volume control for MIC1. 2.MIC2 Volume Control -Volume control for MIC2. 3.AUX-IN VOLUME CONTROL - Allow you to control any high level sound source inputs (by 1/4" Audio Input,1/8" iPod/MP3 input, and RCA Audio Input to connect any high level sound source inputs).
- Page 4 MODEL:PT510 PA AMPLIFIER -DOWN/UP: Song Selection Control both for MP3(USB/SD/MMC) and FM Tuner -PLAY/PAUSE: Play or Pause control for MP3(USB/SD/MMC) and FM Tuner. 16.Power On/Off for the Whole Machine. 17.AC INPUT -When plug the power supply cable on the machine, pls make sure the swtich as above is in the proper position befor operating, 18.AC OUTLET...
- Page 5 mic2 mic1 This example shows a two 4 ohm speaker, and the total impedance is 8 ohms TO THE 8-OHM TERMINAL This example shows a 4 ohm speaker This example shows a two 4 ohm speaker, and the total impedance is 8 ohms...
- Page 6 240W 4 ohm 10 W speaker 12.6x7.48x3.15 32x19x8(cm) 4.2KGS...
