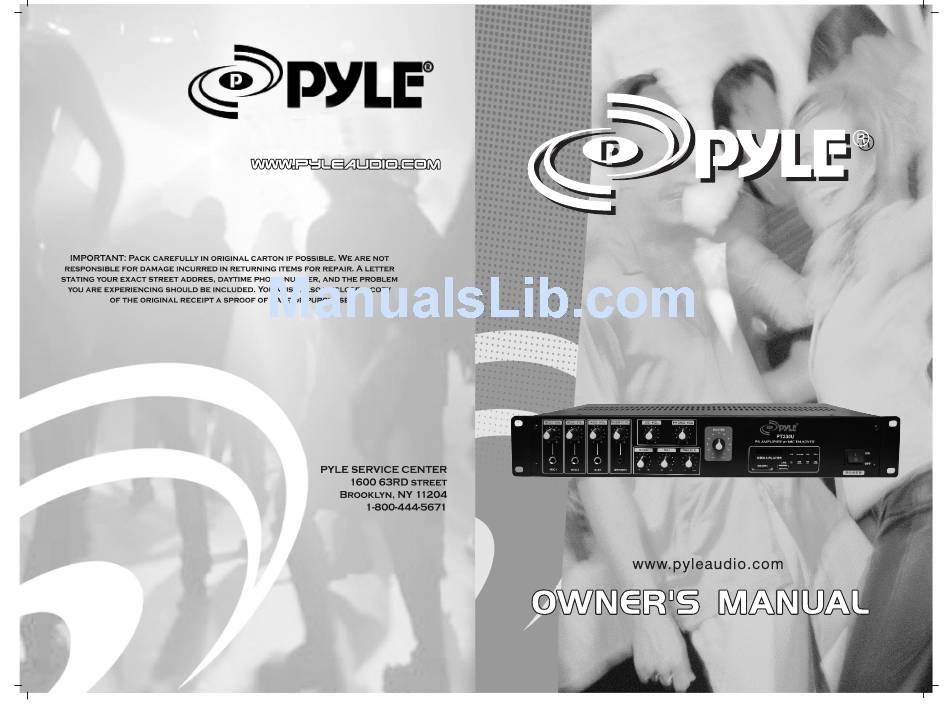

- Page 1 PT330U PT330U 300 Watt Public Address Amplifier, w/ 70V Output & Mic 300 Watt Public Address Amplifier, w/ 70V Output & Mic Talkover, USB/SD Card MP3 Player, Built-in FM Radio Talkover, USB/SD Card MP3 Player, Built-in FM Radio...
- Page 2 Welcome to PYLE, and thank you for being part of our extended family! This 300 Watt public address system is perfect for office paging systems, business background music, public gatherings, live DJ parties and any where you need excellent music and sound performance combined with microphone input.

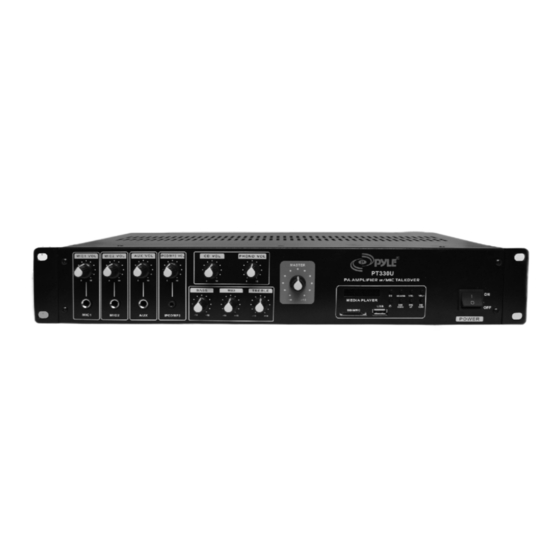

- Page 3 330U FRONT PANEL- PT330U REAR PANEL- PT330U...
- Page 4 MODEL:PT330U PA AMPLIFIER 1.MIC1 Volume Control -Volume control for MIC1. 2.MIC2 Volume Control -Volume control for MIC2. 3.AUX-IN VOLUME CONTROL - Allow you to control any high level sound source inputs (by 1/4" Audio Input,1/8" iPod/MP3 input, and RCA Audio Input to connect any high level sound source inputs).
- Page 5 Connect any high level sound source, such as a CD player, tape deck, or tuner to the jacks 26. MIX BUS Jack Connet another public addressing amplifier like PT110/PT210/PT330U/ PT730U/PT930U to this jack to double the size of your PA system. 330U...
- Page 6 mic2 mic1 This example shows a two 4 ohm speaker, and the total impedance is 8 ohms TO THE 8-OHM TERMINAL This example shows a 4 ohm speaker This example shows a two 4 ohm speaker, and the total impedance is 8 ohms...
- Page 7 300W 4 ohm 10 W speaker 19"x7.9"x3.3" 10.6 lbs...
