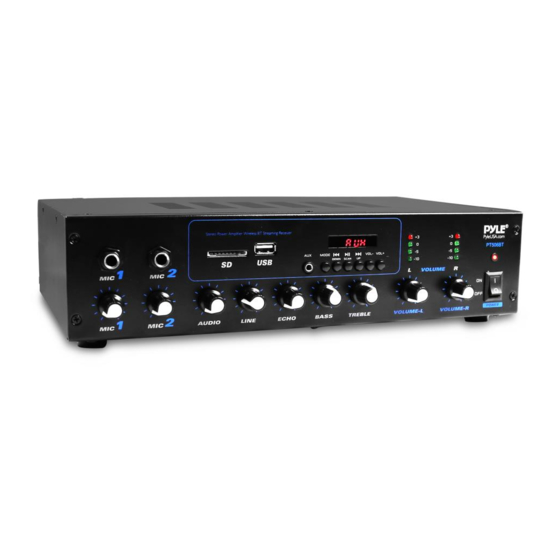

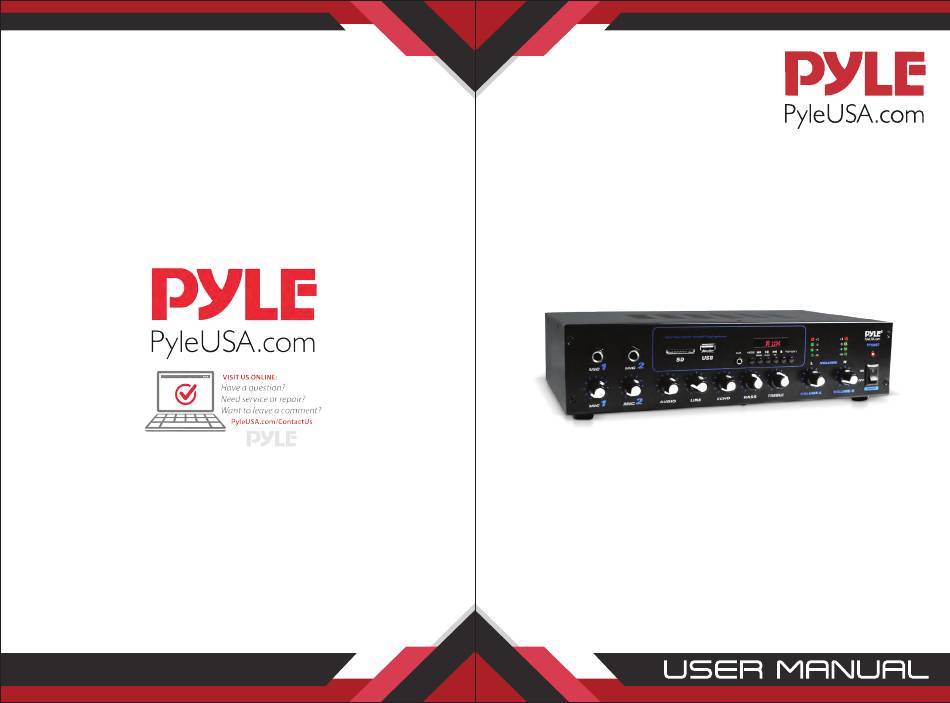

- Page 1 PT506BT Desktop Audio Power Amplifier Wireless BT Stereo Receiver System, Questions? Issues? FM Radio, Microphone Inputs, MP3/USB/ We are here to help! SD/AUX Playback (600 Watt) Phone: (1) 718-535-1800 Email: support@pyleusa.com...
- Page 2 Features and Controls: FRONT PANEL Pyle's PT506BT Desktop Audio Power Ampli er is the perfect solution for all of your audio needs. Using the latest sound ampli cation technology and an impressive 200 Watt power output, this receiver is designed to deliver pure stereo sounds from a wide range of connected music sources.
- Page 3 3. LED Output ( L & R) Level Indicators Connection Diagram: 4. Power On/ O LED Indicator The Indicator Lights when the Ampli er is Turned ON. 5. POWER ON/OFF 6. MASTER (L&R) Volume Control Separate left and right channel volume control lets you control the level of each channel, and it doesn’t a ect the volume of the microphone.
- Page 4 Help & Troubleshooting: Features: • Compact Stereo Ampli er Receiver If you experience any of the following di culties while using the unit, use • Desktop Home Theater Audio System Design this trouble shooting guide to help you remedy the problem, should any •...
