Summary of Contents for Pyle PTAU45
- Page 2 IMPORTANT SAFETY INSTRUCTIONS 1. Read Instructions — All the safety and operating instructions should be read before the appliance is operated. 2. Retain Instructions — The safety and operating instructions should be retained for future reference. 3. Heed Warnings — All warnings on the appliance and in the operating instructions should be adhered to. 4.

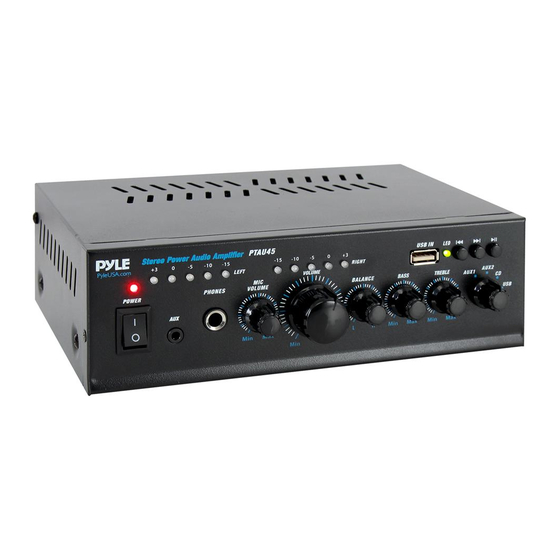

- Page 3 21. Safety Check — Upon completion of any service or repairs to this appliance, ask the service technician to perform safety checks to determine that the appliance is in proper operating condition. YOUR NEW PYLE PRO PTAU45 STEREO POWER AMPLIFIER gives you the power and versatility you need in a professional sound system. Its wide frequency response make it suitable for amplifying music or vocal program material.
- Page 4 FEATURES AND CONTROLS 3 4 5 6 www.PyleUSA.com...
- Page 5 FEATURES AND CONTROLS 1. Power Indicator 2. USB input for MP3 player 3. MP3 Player Indicator 4. Previous Song 5. Next Song 6. Play / Pause 7. Power ON/OFF Switch 8. AUX IN 9. Phone Output 10. MIC Volume Control 11.
- Page 6 CONNECTION DIAGRAM www.PyleUSA.com...
- Page 7 SPECIFICATIONS Output Power, 2 Channels Driven 4- Ohm, 1 kHz, 1% THD ..........20Wx2 ........................ 4- Ohm, 10 kHz, 1% THD 32Wx2 ................................... Max Power 120Wx2 ......................................Total Harmonic Distortion, 1 kHz Rated Power 0.3% ........................Input Sensitivity, 1 kHz, 4—Ohm Rated Power AUX 1 250mV ..........................................
