Summary of Contents for Pyle PTA66BT
- Page 1 PTA66BT Wireless BT Streaming Home Audio Source Amplifier 6-Ch. Audio Source Desktop Stereo Receiver System with FM Radio, MP3/USB/SD/AUX Playback (600 Watt)
- Page 2 WARNING! CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER OF THIS UNIT. THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO A QUALIFIED TECHNICIAN. The lighting ash with arrow head symbol within an equilateral triangle is intended to alert the user to the presence of “DANGEROUS”...
- Page 3 Introduction To get the most from our PTA66BT, it is recommended that you review all of the information provided in the instruction manual before operating the equipment. FRONT & BACK PANEL...
- Page 4 1. POWER ON/OFF SWITCH: Press this button to ON/OFF the unit. 2. LED DISPLAY SCREEN: To display the input sources and track time information 3. SD CARD SLOT: Insert your SD Card to play Mp3 les. 4. USB PORT: This is the USB port where you insert your USB mass storage device for playing Mp3 les.
- Page 5 Bluetooth name - PYLEUSA 3. Select the PYLEUSA Bluetooth name and wait for the device to pair. 4. The PTA66BT will emit a noise con rming that the devices have successfully paired 6. CHANNEL A VOLUME CONTROL KNOB Turn this knob to adjust the volume of Channel A.
-
Page 6: Remote Control
19. PHONES OUTPUT To allow you to enjoy the music through the headphone devices 20. AUX INPUT - Connects to a MP3 player or Ipod with 3.5mm Jack. 21. PHONES OUTPUT VOL CONTROL KNOB - Turn this knob to adjust the volume of the headphone output 22. - Page 7 PTA66BT Wireless BT Streaming Home Audio Source Ampli er 6-Ch. Audio Source Desktop Stereo Receiver System with FM Radio, MP3/USB/SD/AUX Playback (600 Watt) Features: • 6-Channel Ampli er System • Compact Desktop Audio Receiver Design What’s in the Box •...
Need help?
Do you have a question about the PTA66BT and is the answer not in the manual?
Questions and answers

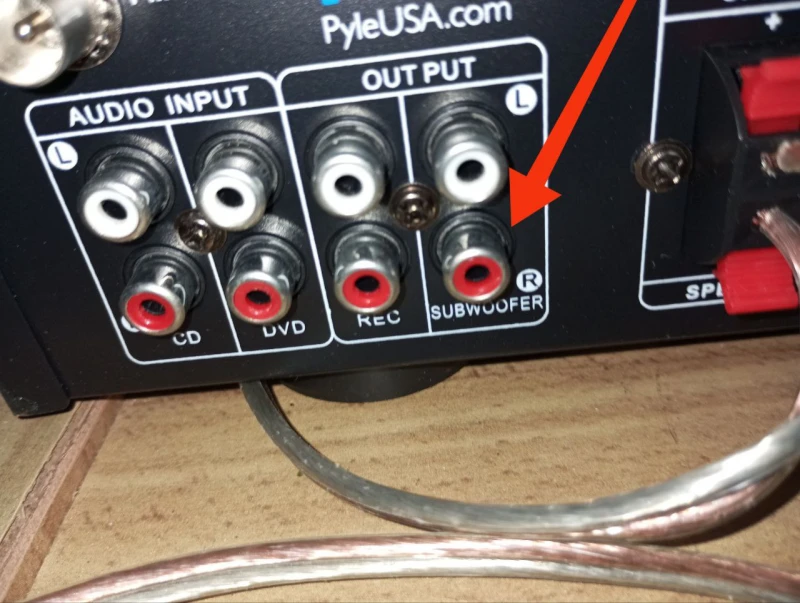

Cannot get sound from sub out to active sub!
To troubleshoot sound issues from the sub out to an active sub on the Pyle PTA66BT, follow these steps:
1. Check Subwoofer Power: Ensure the active subwoofer is powered on and its volume is turned up.
2. Verify Connections: Confirm the RCA cable from the sub out on the PTA66BT is securely connected to the subwoofer input.
3. Test Cable: Try a different RCA cable to rule out a faulty cable.
4. Input Source: Make sure the PTA66BT is receiving audio from a working input source and that other speakers are producing sound.
5. Subwoofer Settings: Check if the subwoofer has a low-pass filter or auto-on setting that may be preventing it from playing.
6. Try Another Output: Connect the subwoofer to a different output (like a main line out) to test if the subwoofer is functioning.
7. Inspect Receiver for Damage: Look for signs of damage like burned resistors on the PTA66BT, which could affect the output.
If none of these steps resolve the issue, the sub out port on the receiver may be faulty.
This answer is automatically generated
How to connect output for monoaural speakers
To connect monoaural speakers to the Pyle PTA66BT:
1. Identify the SPEAKER OUTPUT section on the back panel. There are 6 groups of speaker output terminals.
2. Match the impedance of the monoaural speakers to the amplifier's output (the unit supports 300W RMS at 8 Ohm).
3. Connect the positive (+) and negative (–) terminals of each monoaural speaker to the corresponding terminals in one of the speaker output groups.
4. Ensure the total impedance load does not drop below the amplifier’s supported range when connecting multiple speakers.
5. Once connected, power on the unit and adjust the MUSIC VOLUME CONTROL KNOB and other EQ knobs (BASS, TREBLE) as needed.
This answer is automatically generated
subwoofer Pyle PTA 66BT.6 RCA output passive or active?
The RCA output of the Pyle PTA66BT is a line-level output, which means it is a passive signal and not amplified.
This answer is automatically generated
Does each speaker output have a left and a right because it’s not labeled? Why is there two sets of connections on each output? Please advise how it should be wired
how to connect to surround sound speakers
how to connect
