INSTALLATIEVOORSCHRIFTEN  EN GEBRUIKSAANWIJZING
INSTALLATION INSTRUCTIONS AND OPERATING MANUAL
INSTALLATION ET MODE D'EMPLOI
EINBAUANLEITUNG UND GEBRAUCHSANWEISUNG
INSTRUCCIONES DE INSTALACIÓN Y USO
MONTERINGS- OG BRUKSANVISNING

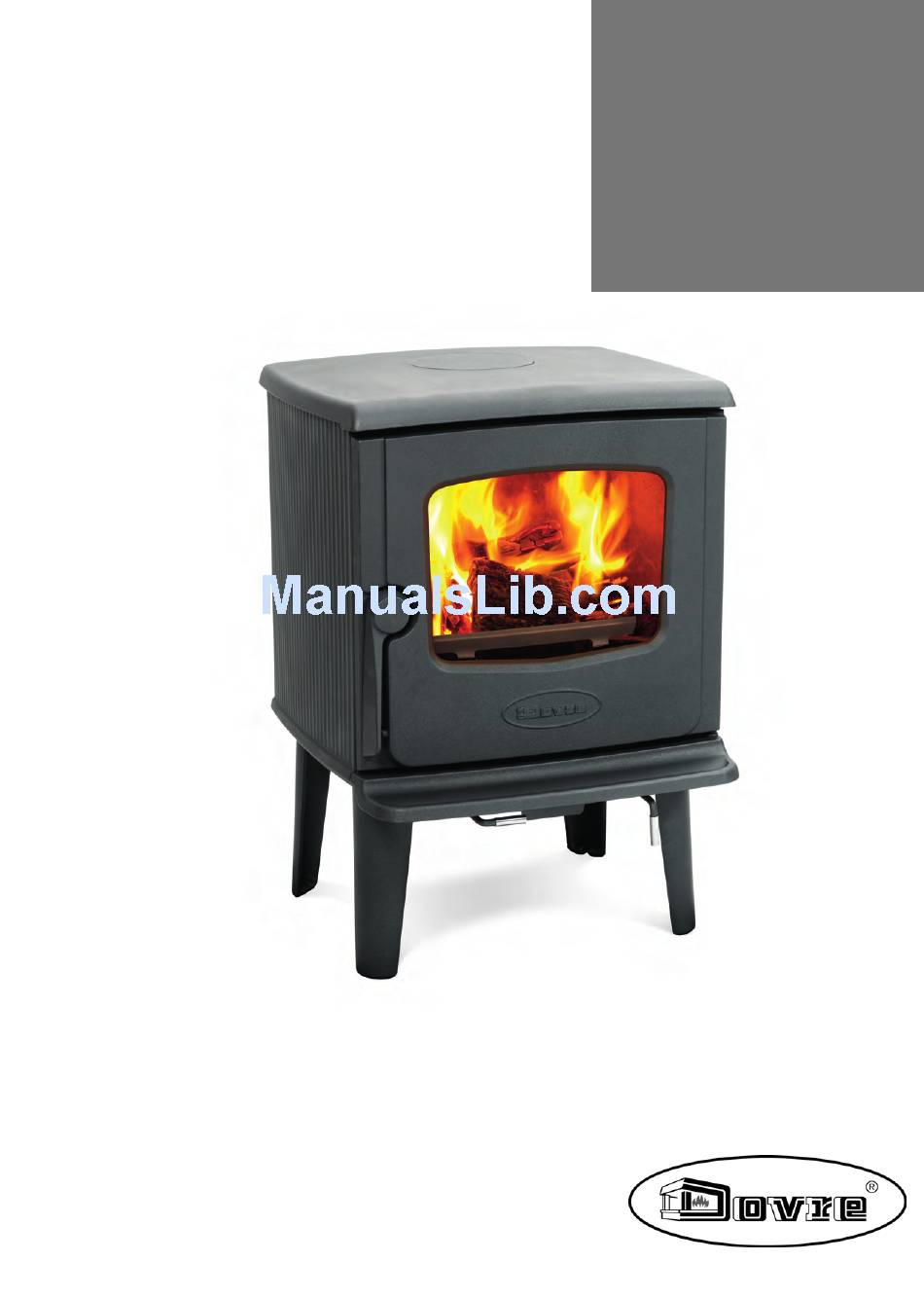

325CB
HOUTKACHEL
WOOD STOVE
POELE A BOIS
HOLZ-FEUERSTÄTTE
ESTUFA DE LEÑA
PEISOVN
03.27100.1.00 - 02-2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 325CB and is the answer not in the manual?

Questions and answers

Related Manuals for Dovre 325CB

Summary of Contents for Dovre 325CB

  • Page 1 INSTALLATIEVOORSCHRIFTEN  EN GEBRUIKSAANWIJZING HOUTKACHEL WOOD STOVE INSTALLATION INSTRUCTIONS AND OPERATING MANUAL INSTALLATION ET MODE D’EMPLOI POELE A BOIS HOLZ-FEUERSTÄTTE EINBAUANLEITUNG UND GEBRAUCHSANWEISUNG INSTRUCCIONES DE INSTALACIÓN Y USO ESTUFA DE LEÑA MONTERINGS- OG BRUKSANVISNING PEISOVN 325CB 03.27100.1.00 - 02-2013...

  • Page 2: Table Of Contents

    Removing ashes Fog and mist Solving problems Maintenance Chimney Cleaning and other regular maintenance activities Spare parts 325CB Appendix 1: Technical Data Appendix 2: Dimensions Appendix 3: Distance from combustible material Appendix 4: Diagnostic diagram Index Subject to change because of technical improvements...

  • Page 3: Introduction

    The appliance is intended for use in a living room. It should be connected hermetically to a well- functioning chimney. that the wood stove 325CB has been produced in We advise you have the appliance installed by an accordance with EN 13240.

  • Page 4: Safety

    Safety Installation Please note: All safety regulations must be requirements complied with strictly. Please read carefully the instructions supplied General with the appliance for installation, use and maintenance, before using the appliance. The appliance must be connected tightly to a well- The appliance must be installed in accordance functioning chimney.

  • Page 5: Ventilation Of The Area

    A draught/vacuum of 15 - 20 Pa during normal Ventilation of the area operation is ideal. For good combustion, the stove needs air (oxygen). Starting from the flue spigot, the flue must run as This air is supplied via adjustable air inlets from the vertically as possible.

  • Page 6: Product Description

    material. 6. Leg The rule of thumb for a single-walled tube is a 7. Primary air slide distance of 3x the diameter. If a lining shell is fitted around the tube, a distance of 1x the Features of the appliance diameter is permissible.
  • Page 7 3. Close the door. 1. Open the door; see the following figure. 09.20020.100 Removable internal sections 3 fire basket 4 inner plate on the left and right side 5 baffle plate Connecting to the rear 1. Apply supplied fibre glass sealing tape (2) measuring 10 x 3 mm to the connection collar's contact surface (8).

  • Page 8: Preparing The Outside Air Connection

    3. Remove the cover (1) from the back wall. 4. Install the connection collar to the back wall with the materials. 5. Install the cover in the top plate using the mounting bracket (4). Preparing the outside air connection If the appliance is installed in a room without sufficient ventilation, you can install the connecting kit on the appliance for the supply of outside air.

  • Page 9: Use

    3. In the case of connection to outside air: connect Saw the wood to size and split it while it is still the outside air supply to the connector fitted to the fresh. Fresh wood is easier to split, and split wood appliance.

  • Page 10: Burning Wood

    appliance; see the following figure. Open stacking 5. Allow the fire develop into a good blaze until there is glowing bed of charcoal. You can then add fuel and adjust the appliance, see the chapter "Stoking with wood". If the logs are stacked openly, the wood will burn quickly as the oxygen can reach each log easily.

  • Page 11: Controlling Combustion Air

    the stove window and door. Controlling combustion air When the outside temperature is not very low, it is better to burn wood intensely for a few The appliance has various features for air control; see hours instead of having a low intensity fire for a following figure.

  • Page 12: Maintenance

    Cast-iron inner plates last a long time if you Maintenance remove frequently the ash that can accumulate behind them. If accumulated ash behind the Follow the maintenance instructions in this chapter to cast-iron plate is not removed, the plate will no keep the stove in good condition.

  • Page 13: Spare Parts 325Cb

    Lubrication Spare parts 325CB Although cast-iron is slightly self-lubricating, you will still need to lubricate moving parts frequently. Lubricate the moving parts (such as guide systems,hinge pins, latches and air slides) with heat resistant grease that is available in the specialist trade.

  • Page 14: Appendix 1: Technical Data

    Appendix 1: Technical Data 325CB 325CB Model (6 kW) (4.9 kW) Nominal output 6 kW 4.9 kW Chimney connection (diameter) 125 mm 125 mm Weight +/- 100 kg +/- 100 kg Recommended fuel Wood Wood Fuel property, max. length 30 cm...

  • Page 15: Appendix 2: Dimensions

    Appendix 2: Dimensions 325CB Subject to change because of technical improvements...
  • Page 16 325CB (GB) Subject to change because of technical improvements...

  • Page 17: Appendix 3: Distance From Combustible Material

    Appendix 3: Distance from combustible material 325CB - Minimum distance in millimetres 09-20008-017 Combustible material Incombustible material, thickness 100 mm Please note! To guarantee the flow of combustion air, when no outside air connection is provided, the distance from the outside air connection collar to the wall must be at least 20 mm. The connection collar may be removed where appropriate.
  • Page 18 325CB - Dimensions of fireproof protective plate 09-20002-004 Minimal dimensions of fireproof protective plate A (mm) B (mm) Din 18891 Germany Finland Norway Subject to change because of technical improvements...

  • Page 19: Appendix 4: Diagnostic Diagram

    Appendix 4: Diagnostic diagram Problem Wood will not stay lit Gives off insufficient heat Smoke emissions into the room when adding wood Fire in stove is too intense, is hard to adjust Deposit on the glass Possible cause Possible solution A cold flue usually fails to create sufficient draught.

  • Page 20: Index

    Index Cover on flue Creosote Adding fuel Damage Adding wood Damp wood smoke emissions into the room Dimensions Air control Door Air inlets open Air leak sealing rope Air supply for fire Draught Ashes Drying wood remove Efficiency Bearing capacity of floor Enamel Burning wood maintenance...
  • Page 21 Fuel adding Open adding wood door necessary amount Outside air intake suitable connection to unsuitable wood Paint finish Glass Particulate emission clean Parts, removable deposit Prevent a chimney fire Primary air inlet Heat, insufficient Heat,insufficient Removable parts Hood on the flue Removal of ashes Remove fire-resistant inner plates...
  • Page 22 Ventilation connect supply of outside air rule of thumb Ventilation louvre Vermiculite fire-resistant Vermiculite inner plates Walls fire safety Warning chimney fire 4, 9, 11 combustible materials fireproof inner plates glass broken or cracked 4, 12 hot surface regulations stove window cleaner terms and conditions for insurance ventilation Weather conditions, do not burn wood...
