Summary of Contents for Dovre 700

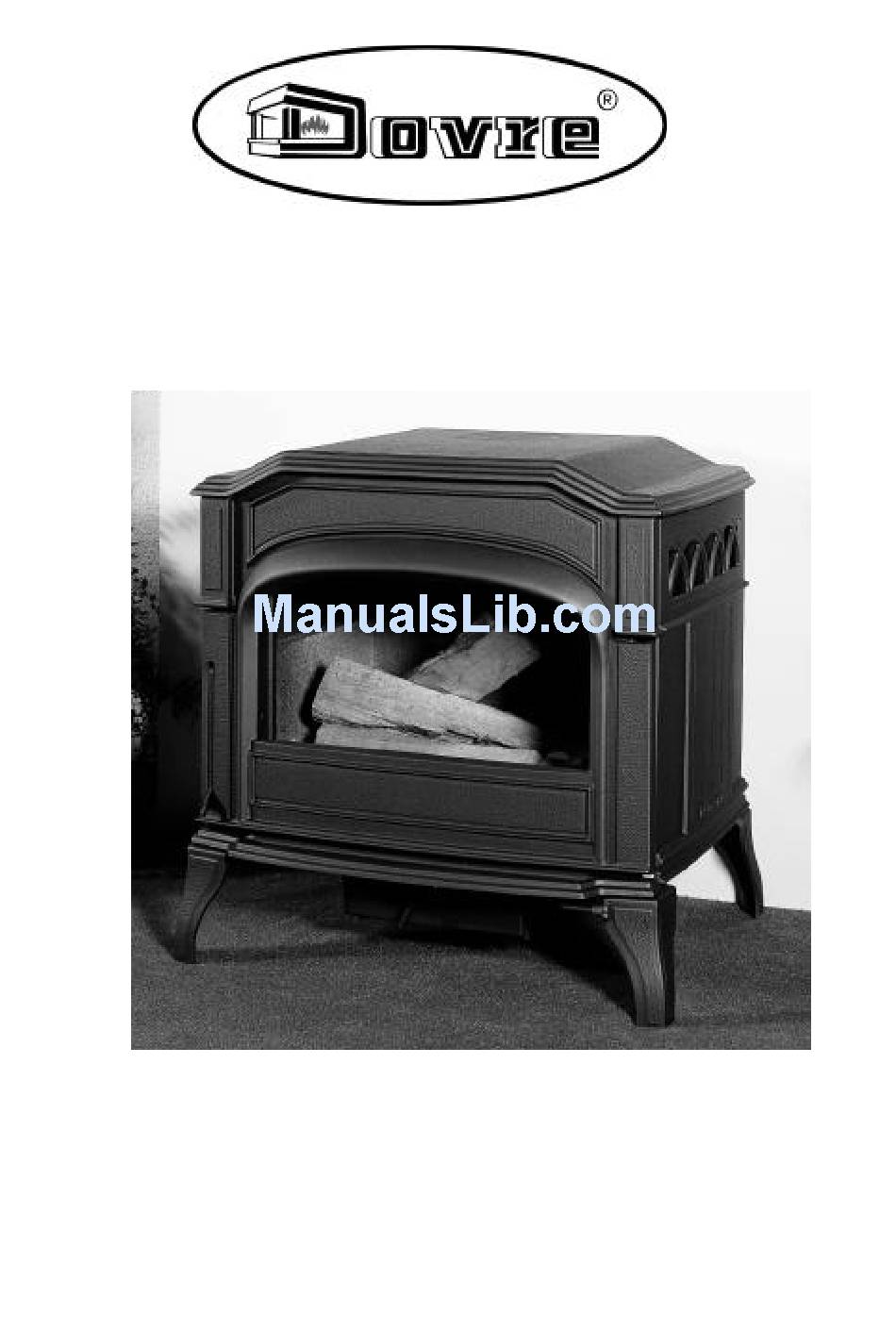

- Page 1 KACHEL / POELE / STOVE / OFEN INSTALLATIEVOORSCHRIFTEN EN GEBRUIKSAANWIJZING INSTALLATION ET MODE D’EMPLOI INSTALLATION INSTRUCTIONS AND OPERATING MANUAL EINBAUANLEITUNG UND GEBRAUCHSANWEISUNG 03.27838.100...
-
Page 2: Table Of Contents
Table of contents Foreword ..........................20 Introduction ........................20 Safety ..........................20 Installation guideline ...................... 21 3.1. Preliminary measures ....................21 3.1.1. The chimney ....................21 3.1.2. Ventilation ...................... 22 3.1.3. Floor, walls ..................... 22 3.2. Preparing the stove ....................23 3.2.1. -
Page 3: Foreword
Save this booklet and pass to any subsequent user who can also profit by it. Introduction Your DOVRE purchase has made you the owner of a high quality product that sy m - bolizes a new generation of energy -saving and ecologically safe heaters, producing convection heat as well as radiant heat with optimum efficiency. -
Page 4: Installation Guideline
Installation guideline 3.1. Preparatory measures The stove should be hermetically connected to a well-functioning chimney, suffi- ciently enclosed to keep combustible materials (floor and walls) at a distance, and should be installed in a room with sufficient ventilation. Please inform about national or local norms and regulations concerning this subject. Your distributor will give y ou the necessary advice. -
Page 5: 3.1.2. Ventilation
way that wind will not hinder, but promote the smoke flow. • Especially if the flue runs through unheated rooms or outside the house, further insulation is necessary. Metal chimneys or parts of the chimney outside heated rooms should always have double -walled, insulated flues. The part of the chim - ney outside the roof should always be insulated. -
Page 6: Preparing The Stove
3.2. Preparing the stove Please inspect the stove for damage caused during transport immediately after deliv- ery and notify your distributor in case there are any defects. Do not put the stove into operation in the meantime. In order to avoid damaging the stove during installation and to make handling of the stove easier, it is recommended to remove previously all loose parts (fire-resistant bricks, ashtray, ...) from the stove. -
Page 7: Finishing
3.3. Finishing When the stove is placed in the final position and hermetically connected to the chimney, you can replace all of the loose parts. Your stove is now ready for use. Attention: never light a fire with the inner plates or refractory stones re- moved. -
Page 8: Low He Ating
ney can be heated up by lighting a ball of paper above the fire plate or at the back of the bunker. To kindle the fire in the stove you can use paper and/or fire- lighters and small pieces of wood. Slightly open the door and turn the air slide wide open. -
Page 9: Extinguishing The Fire
Relatively speaking, burning wood produces little ash and it will not be necessary to remove it each time daily, since wood burns better on a bed of ash. 4.5. Extinguishing the fire Stop fuelling the fire and let it burn out. Damping a fire by closing the air slides involves the release of noxious gases. -
Page 10: Maintenance
Maintenance It takes little effort to keep your stove in good condition. Regularly check whether the sealing cord still closes the doors tightly enough. The painted or enamelled cast iron mantle can be cleaned with a moist, soft cloth, when it is almost cold. Minor paint damage can be touched up with a can of spray paint. -
Page 11: Annex 1 : Technical Data Sheet
Bijlage 1 : technische gegevens Annexe 1 : données techniques Annex 1 technical data sheet Anlage 1 : technischen Daten Model / Modèle / Modell Nominaal vermogen Puissance nominale 10 kW Nominal heat output Nominalleistung Aanbevolen brandstoffen Hout Combustibles conseillés Bois Advised combustibles Wood... -
Page 12: Anlage 2 : Abmessungen
Bijlage 2 : afmetingen Annexe 2 : dimensions Annex 2 dimensions Anlage 2 : Abmessungen 03.27838.100... - Page 13 03.27838.100...
- Page 14 Wir, Dovre nv Nijverheidsstraat 18 B2381 Weelde verklaren bij deze dat de kachel 700 conform is volgens de EN 13240. déclarons que le poële 700 est conforme au norme EN 13240. declare that the oefen 700 is in conformity with the EN 13240.
