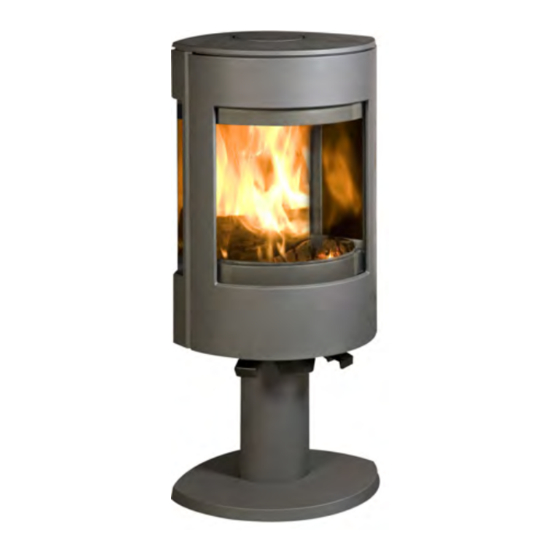

Dovre ASTRO 3CBP PEGASUS Installation Instructions And Operating Manual
  1. Manuals
  2. Brands
  3. Dovre Manuals
  4. Wood stove
  5. ASTRO 3CBP
  6. Installation instructions and operating manual

Dovre ASTRO 3CBP PEGASUS Installation Instructions And Operating Manual

Hide thumbs Also See for ASTRO 3CBP PEGASUS:
Table of Contents

Advertisement

Quick Links

Download this manual

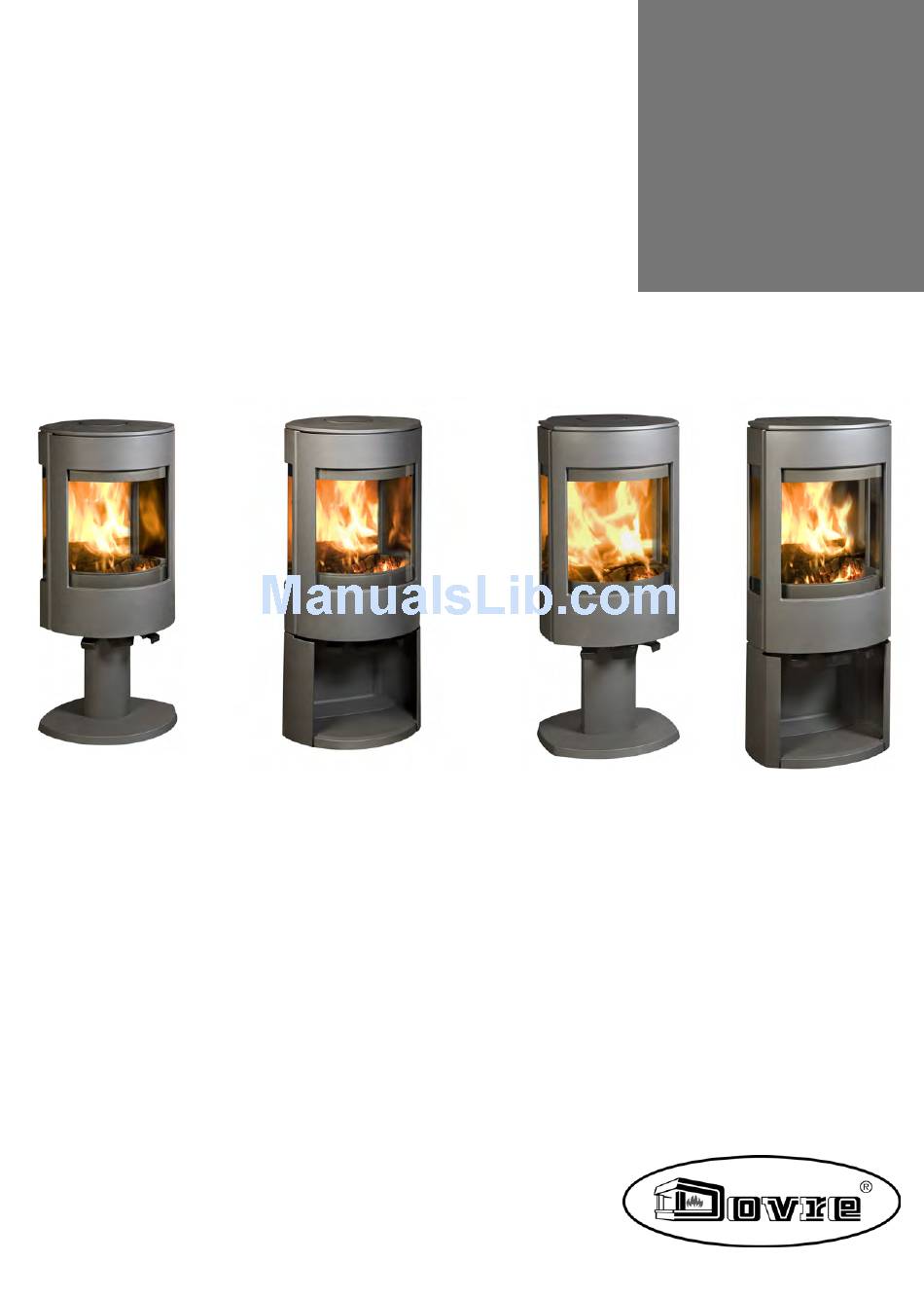

INSTALLATIEVOORSCHRIFTEN  EN GEBRUIKSAANWIJZING
INSTALLATION INSTRUCTIONS AND OPERATING MANUAL
INSTALLATION ET MODE D'EMPLOI
EINBAUANLEITUNG UND GEBRAUCHSANWEISUNG
INSTRUCCIONES DE INSTALACIÓN Y USO
REQUISITI PER L'INSTALLAZIONE E ISTRUZIONI PER L'USO
MONTERINGS- OG BRUKSANVISNING
ASTRO 3CBP
ASTRO 3CBWB PEGASUS
ASTRO 4CBP
ASTRO 4CBWB LEON
PEGASUS
LEON
HOUTKACHEL
WOOD STOVE
POELE A BOIS
HOLZ-FEUERSTÄTTE
ESTUFA DE LEÑA
STUFA A LEGNA
PEISOVN
03.27661.300 - 10/2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASTRO 3CBP PEGASUS and is the answer not in the manual?

Questions and answers

Related Manuals for Dovre ASTRO 3CBP PEGASUS

Summary of Contents for Dovre ASTRO 3CBP PEGASUS

  • Page 1 INSTALLATIEVOORSCHRIFTEN  EN GEBRUIKSAANWIJZING HOUTKACHEL INSTALLATION INSTRUCTIONS AND OPERATING MANUAL WOOD STOVE INSTALLATION ET MODE D’EMPLOI POELE A BOIS EINBAUANLEITUNG UND GEBRAUCHSANWEISUNG HOLZ-FEUERSTÄTTE INSTRUCCIONES DE INSTALACIÓN Y USO ESTUFA DE LEÑA REQUISITI PER L'INSTALLAZIONE E ISTRUZIONI PER L'USO STUFA A LEGNA MONTERINGS- OG BRUKSANVISNING PEISOVN ASTRO 3CBP...

  • Page 2: Table Of Contents

    Table of contents Introduction Declaration of conformity Safety Installation requirements General Chimney (flue) Ventilation of the area Floors and walls Product description Installation General preparation Preparing the outside air connection Installing and connecting First use Fuel Lighting Burning wood Controlling combustion air Extinguishing the fire Removing ashes Fog and mist...

  • Page 3: Introduction

    Observe the following safety regulations when Weelde 19-01-2011 installing and using the appliance. In this manual, you can read how the DOVRE heating appliance can be installed, used and maintained safely. Should you require additional information or technical data, or should you experience an installation problem, please first contact your supplier.

  • Page 4: Safety

    Installation requirements Safety Please note: All safety regulations must be General complied with strictly. The appliance must be connected tightly to a well- Please read carefully the instructions supplied functioning chimney. with the appliance for installation, use and maintenance, before using the appliance. For the connection measurements: see the appendix "Technical data".

  • Page 5: Ventilation Of The Area

    horizontal pieces disrupt the outward flow of Ventilation of the area combustion gases and may cause soot deposits. For good combustion, the stove needs air (oxygen). To prevent combustion gases from cooling down This air is supplied via adjustable air inlets from the too much, which reduces the draught, ensure that area in which the stove is installed.

  • Page 6: Floors And Walls

    Floors and walls Product description The floor on which the appliance is placed must have sufficient bearing capacity. For the weight of the appliance, see the appendix "Technical data". Protect flammable flooring from heat radiation by means of a fireproof protective plate. See the appendix "Distance from combustible material".
  • Page 7 Vermiculite inner plates are light and tend to be ochrous in colour on delivery. They insulate the combustion chamber to boost combustion. Cast iron inner plates protect the combustion chamber and dissipate heat to the surroundings. If you detect damage caused during transport or any other damage or defects, do not use the appliance and notify the supplier.
  • Page 8 Connect to top (missing or bad snippet) 1. Remove the top plate. The top plate can be taken off the appliance just like that. 2. At the outlet at the top, apply sealant to the contact surface where the connection collar will be positioned.

  • Page 9: Preparing The Outside Air Connection

    length (12 m) must be reduced by 1 m for each Connecting to the rear accessory used. 1. Close the air inlet in the bottom plate with the small cast-iron cover plates (1) and screws (2); see following figure. By closing the air inlet in the bottom plate you prevent air being used for combustion from an insufficiently ventilated space.
  • Page 10 3. For connection to outside air via the rear of the appliance: a. Create an opening in the base or the log compartment by removing the panel at the back of the base or the log compartment; see following figures. Depending on the version of the stove the cover plate is affixed either with springy clips or with a washer plate.

  • Page 11: Installing And Connecting

    Do not use other fuels, as they can cause serious damage to the stove. You are not allowed to use the following fuels, as they pollute the environment and because they heavily soil the appliance and flue, which may lead to a chimney fire: Treated wood, such as scrap wood, painted wood, EN 1856-2...

  • Page 12: Burning Wood

    Open stacking 1. Stack two layers of medium sized logs crosswise. 2. Stack two layers of kindling crosswise on top of the logs. 3. Place a firelighter cube in the lower layer of kindling and light the cube according to the instructions on the packaging.

  • Page 13: Controlling Combustion Air

    Controlling combustion air The appliance has various features for air control; see following figure. The primary air slide is open in pulled out position and closed in pushed back position. The secondary air slide is open in pulled out position and closed in pushed back position. The primary air slide controls the air flow under the grille (1);see following figure.

  • Page 14: Extinguishing The Fire

    Control the air supply with the secondary air inlet. 2. Using the scraper, sweep the excess ashes through the ash removal port into the ash pan The secondary air inlet not only supplies air to underneath. the fire but to the glass as well, so that it does not quickly become dirty.

  • Page 15: Solving Problems

    Remove and install baffle plate Solving problems Unscrew the clamping plate on the front of the baffle Refer to the appendix "Diagnostic diagram" to resolve plate. Lift the baffle plate from the support and tilt the any problems in using the stove. baffle plate out of the appliance.
  • Page 16 1. Remove dust and loose soot with a dry cloth. Check the appliance for air leaks. Close any chinks with stove sealant. 2. Clean the glass with stove glass cleaner: a. Apply stove glass cleaner to a kitchen sponge, Allow the sealant to harden fully before lighting rub down the entire glass surface and give the the stove, as any moisture in the sealant will cleaning agent time to react.

  • Page 17: Appendix 1: Technical Data

    Appendix 1: Technical Data Model / Modèle / Modell Astro 3 / Astro 4 Nominaal vermogen / Puissance nominale / 8 kW Nominal heat output / Nominalleistung Schoorsteenaansluiting (diameter) / Raccordement cheminée (diamètre) / Connection 150 mm to chimney (diameter) / Schornsteinanschluss (Diameter) Gewicht / Poids / Weight +/- 140 kg...

  • Page 18: Appendix 2: Measurements

    Appendix 2: Measurements ASTRO 3CBP Subject to change because of technical improvements...
  • Page 19 ASTRO 3CBWB Subject to change because of technical improvements...
  • Page 20 ASTRO 4CBP Subject to change because of technical improvements...
  • Page 21 ASTRO 4CBWB Subject to change because of technical improvements...

  • Page 22: Appendix 3: Distance From Combustible Material

    Appendix 3: Distance from combustible material ASTRO 3 PEGASUS Minimum distances for versions without heat shield: If the distance between the connecting tube and combustible materials is less than 300 mm the connecting tube should be protected. Combustible material Incombustible material, thickness 100mm Subject to change because of technical improvements...
  • Page 23 Minimum distances for versions with heat shield: Combustible material Incombustible material, thickness 100mm ASTRO 4 LEON Minimum distances for versions without heat shield: If the distance between the connecting tube and combustible materials is less than 300 mm the connecting tube should be protected. Combustible material Incombustible material, thickness 100mm Subject to change because of technical improvements...
  • Page 24 Minimum distances for versions with heat shield: Combustible material Incombustible material, thickness 100mm ASTRO 3 PEGASUS and ASTRO 4 LEON - Dimensions fireproof floor plate 09-20002-004 Minimal dimensions of fireproof protective plate A (mm) B (mm) Din 18891 Germany Finland Norway Subject to change because of technical improvements...

  • Page 25: Appendix 4: Diagnostic Diagram

    Appendix 4: Diagnostic diagram Problem Wood will not stay lit Gives off insufficient heat Smoke emissions into the room when adding wood Fire in stove is too intense, is hard to adjust Deposit on the glass Possible cause Possible solution A cold flue usually fails to create sufficient draught.

  • Page 26: Index

    Index Combustible material distance from Connection measurements Adding fuel Connection collar for connection to chimney Adding wood smoke emissions into the room Connection set for outside air supply Air control Connection to chimney at top Air inlets Air leak Connection to outside air supply Air supply for fire Control air supply Ash pan...
  • Page 27 Flue connection diameter Maintenance maintenance chimney requirements clean glass Flue gas cleaning the appliance mass flow fire-resistant inner plates temperature lubrication Fog, do not burn wood sealing Foot Measurements cover plate Mist, do not burn wood Fuel adding adding wood Nominal heat output necessary amount Nominal output...
  • Page 28 deposit Wood damp Sealing rope for door does not keep burning Secondary air inlet drying Smoke right sort on first use storing Smoke emissions into the room 3, 24 Softwood Solving problems 14, 24 Stacking logs Storing wood Stove window cleaner Suitable fuel Supply of outside air Sweep chimney...
  • Page 32 E & O E...
