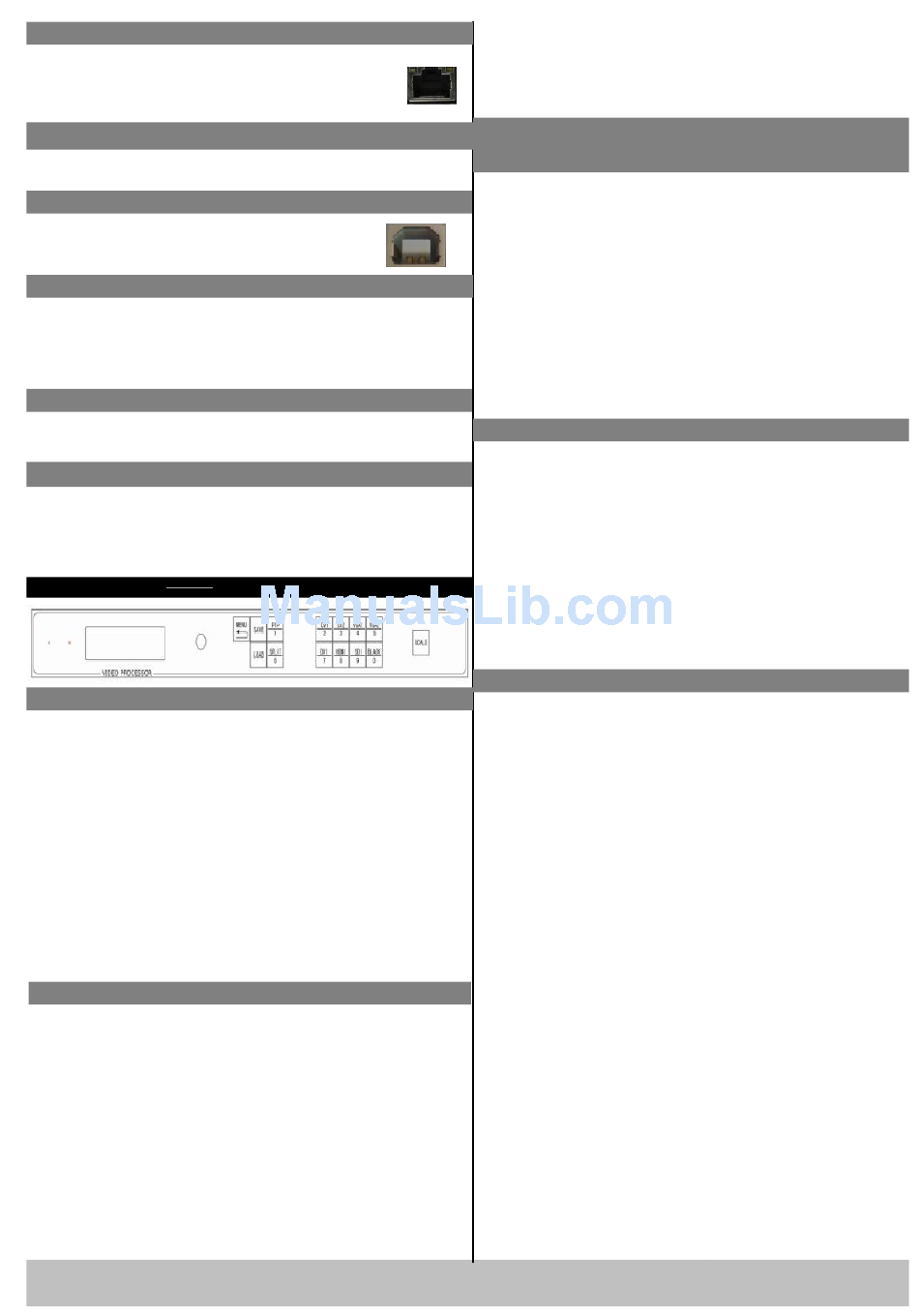

RGBlink VSP 198CVS Quick Start Manual page 2

Step 11-10/100M interface
Used to connect the computer or console.
Support the speed of network connection
with 10M or 100M.
Step 12-RS232 interface
Used to connect the computer or console.
Step 13-USB interface
Used to connect the computer or console.
Step 14-Sending Card interface
Sending card module port. Power has been already
supplied by video processor itself, no external power
supply needed for sending card.
Step 15-Power Interface and Switch
AC 85-264V 50/60Hz IEC-3 Power Interface .
Step 16-Power On
Connect with power cable, press the "POWER" and the
power indicator is turned on and after 10 seconds, the
monitor will be switched on and get into working status.
Local Control
User Guideline
Inputs cable ,outputs cable , control cable ,power cable
were connected to interface finish turn on the power
switch,user guideline :
The fist step set up OLED display language .
The second step set up output format.
The third step set up LED screen height size.
The fourth step set up LED screen width size.
The fifth step set up LED screen horizontal size.
The sixth step set up LED screen Vertical size.
The seventh step set up input source.
The eighth step up save .
How to Set up the SPLIT
ushress the SPLIT button, the button
The first step p
led light will turn on ,enter the SPLIT function menu.
The second step push and turn the knob ,will enable
open split function.
H TOTAL: LED screen Horizontal total size.
V TOTAL: LED screen Vertical total size.
H POS: this device display image Horizontal size
V POS: this device display image Vertical size.
Front Panel Operation
H SIZE: this device display image Width setting.
V SIZE: this device display image Height setting.
RESET:Restore the factory Settings.
How to Set up the Size and Position of the
Single Image.
The first step p
ress the SCALE button ,enter the SCALE
function menu.
The second step
touch the knob and turn the knob,open
split function .
H SIZE: Width setting.
V SIZE: Height setting.
H Pos: Horizontal phase setting.
V Pos: Vertical phase setting.
How to do customized output resolution
The first step push [MENU] button to open the main
menu.
The second step turn Knob and go to <OUTPUT
FORMAT>.
The third step push knob and confirm to go into the
<OUTPUT FORMAT > menu.
STANDARD: standard resolution.
CUSTOMIZED: user defined resolution setting.
How to Set up image zoom
The first step push [MENU] button to go into the main
menu.
The second step turn Knob goes to ZOOM menu .
The third step push Knob to confirm to go inside
ZOOM menu.
V UP:Zoom in vertical and the image will be zoom
in to the top direction from its bottom part .
V DOWN:Zoom in vertical and the image will be
zoom in to the down direction from its top part.
V UP/DOWN:Zoom in vertical but in both top and
down direction from its middle part.
H LEFT:Zoom in horizontal and the image will be
zoom in to the left direction from its right part.
H RIGHT:Zoom in horizontal and the image will
be zoom in to the right direction from its left part.
H IEFT/RIGHT:Zoom in horizontal but in both left
and right direction from its middle part.
CENTER:Zoom in 4 corner direction from center.
VSP 198CVS Quick Start
Rev 1.0
Page 2 of 3
