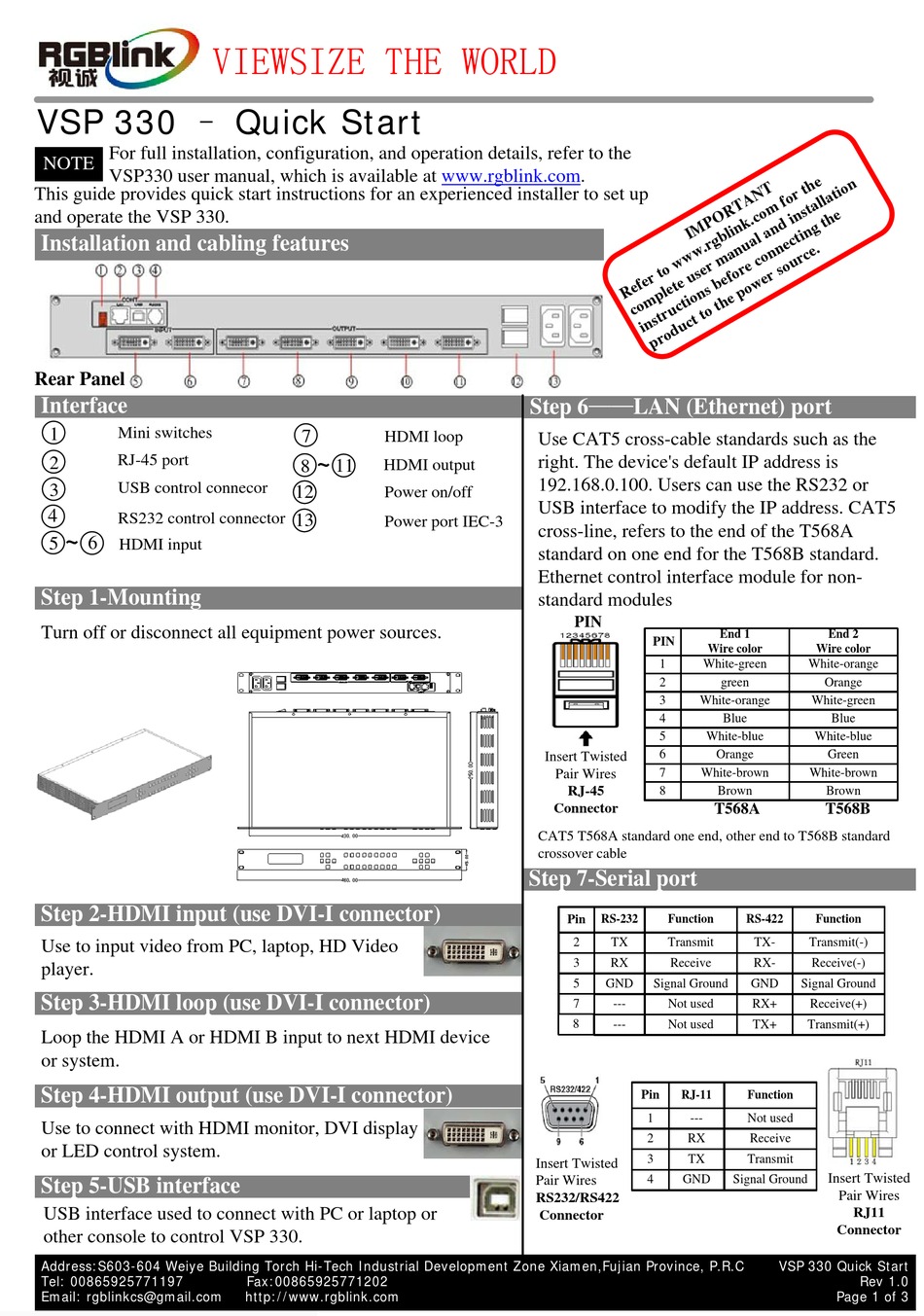

RGBlink VSP 330 Quick Start Manual

VSP 330 – Quick Start
For full installation, configuration, and operation details, refer to the
NOTE
VSP330 user manual, which is available at www.rgblink.com.
This guide provides quick start instructions for an experienced installer to set up
and operate the VSP 330.
Installation and cabling features
Rear Panel
Interface
1 Mini switches
RJ-45 port
2
USB control connecor
3
4
RS232 control connector
~
5 6
HDMI input
Step 1-Mounting
Turn off or disconnect all equipment power sources.
Step 2-HDMI input (use DVI-I connector)
Use to input video from PC, laptop, HD Video
player.
Step 3-HDMI loop (use DVI-I connector)
Loop the HDMI A or HDMI B input to next HDMI device
or system.
Step 4-HDMI output (use DVI-I connector)
Use to connect with HDMI monitor, DVI display
or LED control system.
Step 5-USB interface
USB interface used to connect with PC or laptop or
other console to control VSP 330.
Address:S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C
Tel: 00865925771197
Email: rgblinkcs@gmail.com
VIEWSIZE THE WORLD
7
HDMI loop
~
11 HDMI output
8
12
Power on/off
13
Power port IEC-3
Fax:00865925771202
http://www.rgblink.com
Step 6 LAN (Ethernet) port
Use CAT5 cross-cable standards such as the
right. The device's default IP address is
192.168.0.100. Users can use the RS232 or
USB interface to modify the IP address. CAT5
cross-line, refers to the end of the T568A
standard on one end for the T568B standard.
Ethernet control interface module for non-
standard modules
PIN
PIN
T568A
1 1 White-green
2 2
3 3 White-orange
Green
4 4
5 5
6 6
Insert Twisted
7 7 White-brown
Pair Wires
RJ-45
8 8
Connector
CAT5 T568A standard one end, other end to T568B standard
crossover cable
Step 7-Serial port
Pin RS-232 Function
2 TX Transmit
3 RX Receive
5 GND Signal Ground
7 --- Not used
8 --- Not used
Pin
RJ-11
1 ---
2 RX
3 TX
Insert Twisted
Pair Wires 4 GND
RS232/RS422
Connector
End 1 End 2
Wire color Wire color
绿白
White-orange
green Orange
桔白
White-green
蓝色 蓝色
Blue Blue
T568B
蓝白 蓝白
White-blue White-blue
桔白
桔白 绿色
Orange Green
桔色
棕白 棕白
White-brown
棕色
绿白
棕色
Brown Brown
T568A T568B
RS-422 Function
TX- Transmit(-)
RX- Receive(-)
GND Signal Ground
RX+ Receive(+)
TX+ Transmit(+)
Function
Not used
Receive
Transmit
Insert Twisted
Signal Ground
Pair Wires
RJ11
Connector
VSP 330 Quick Start
Rev 1.0
Page 1 of 3
