VIEWSIZE THE WORLD

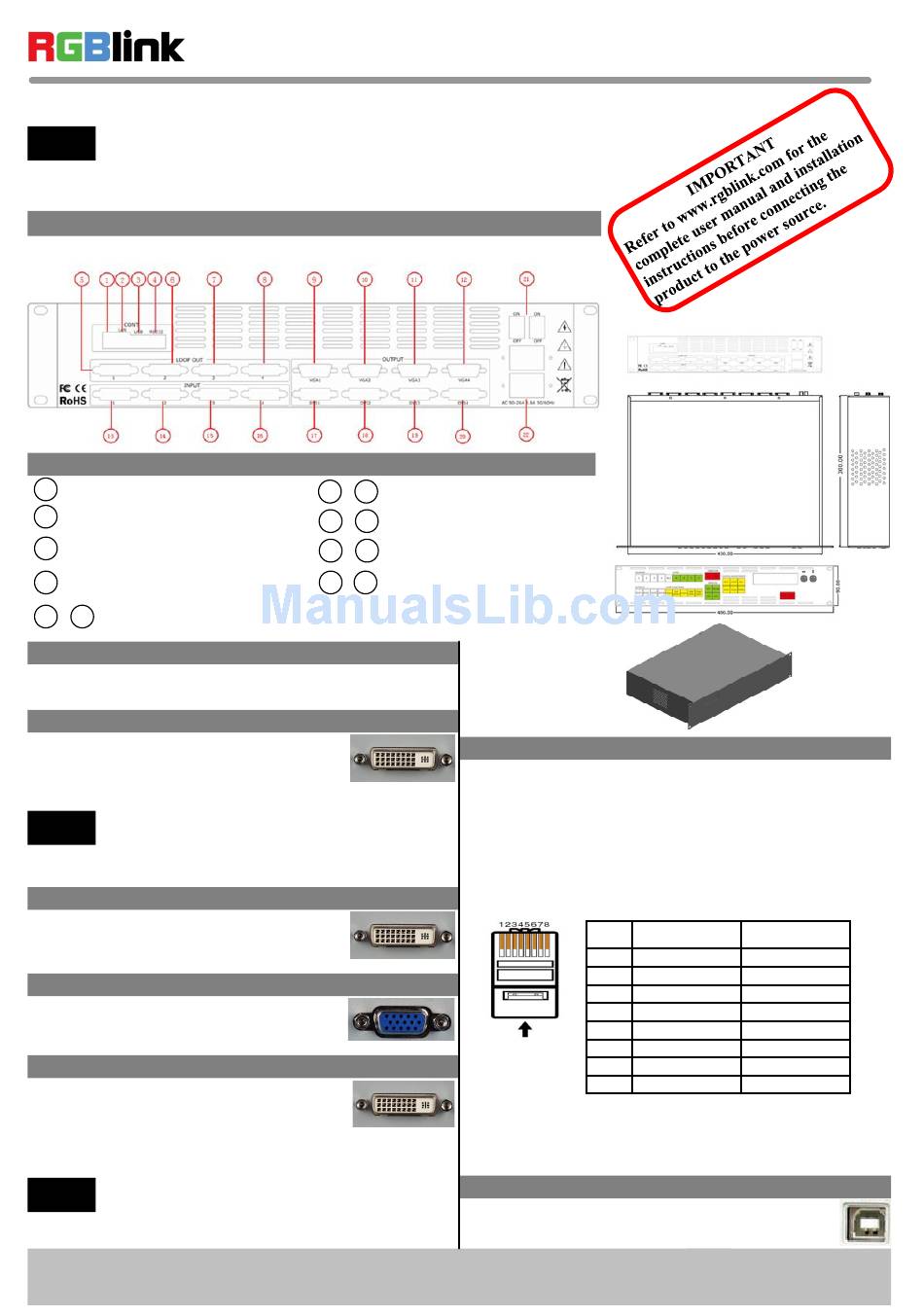

VSP 3600 – Quick Start
For full installation, configuration, and operation details, refer to the
NOTE
VSP 3600 user manual, which is available at www.rgblink.com.
This guide provides quick start instructions for an experienced installer to set
up and operate the VSP 3600.
Installation and cabling features
Rear Panel
Connections
1 Dial switch
2
10/100M Internet Control Port
3
USB Control Port
4
RS232 Control Port
~
5
DVI Loop Out
8
Step 1-Mounting
Turn off or disconnect all equipment power sources.
Step 2- DVI Input DVI-I
DVIinput ports support signal sources
of HDM I from high-definition player
or DVI from PC
Comments to use the programs video when
NOTE
connect with HDMI from high definition
player.
Step 3- DVI Loop Out
Can connect the next level VSP 3600
or the device with DVI loop out.
Step 4-VGA Output DB15
Used to connect VGA monitor,
projector or other display system.
Step 5- DVI Output DVI-I
Used to connect display system with
DVI input port or LED display control
system; DVI 1 output acts as the default
program output.
Comments to use the sending cards box,
NOTE
Driver, DV4 from RGBlink for that VSP3600
can not support sending card installed inside.
Address: S603~S604, Weiye Building, Torch Hi-Tech Industrial Development Zone, Xiamen, Fujian, China
Tel: 00865925771197
Email: sales@rgblink.com
~
VGA Output Port DB-15
9
12
13
16
~
DVI Input Port DVI-I
17
~
20
DVI Output Port DVI-I
Power Switch Button
22
21
and Power Port IEC-3
Fax:00865925771202
http://www.rgblink.cn
Step 6- Lan Control Port
Use twist CAT5 cable to connect to LAN port, operator
can control VSP 3600 based on default IP address:
192.168.0.100. Operator can also change the IP address
by RS 232 or USB.
Twist CAT5 should be one end in T568A, and another
end in T568B standard.
Pins
Pin
1
2
3
4
5
Insert Twisted
6
Pair Wires
7
8
RJ-45
Connector
CAT5 is wired as T568A at one end and T568B at the
other(Tx and Rx pairs reversed) is crossover.
Step 7-USB Port
Use USB cable to connect the VSP 3600 and
computer.
Crossover Cable
End 2
End 1
Wire color
Wire color
White-green
White-orange
Green
Orange
White-orange
White-green
Blue
Blue
White-blue
White-blue
White-orange
Green
White-brown
White-brown
Brown
Brown
T568A
T568B
VSP 3600 Quick Start
Version 1.1
Page 1 of 4
